Titanium Seamless Elbows
Standard: ASME B16.9
Material: Gr1, Gr2, Gr7, Gr12
Unit Price: $10usd/pc-$200usd/pc
Outer Diameter: 1/2"-48"
Wall Thickness: Sch5s-Sch160s
Technique: Seamless/Welded
MOQ:10pcs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium bar manufacturer

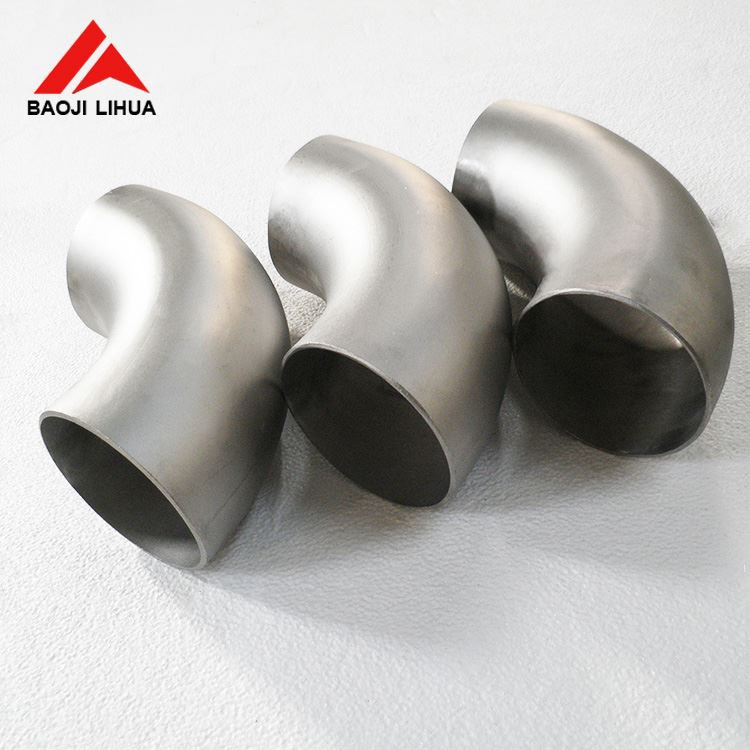

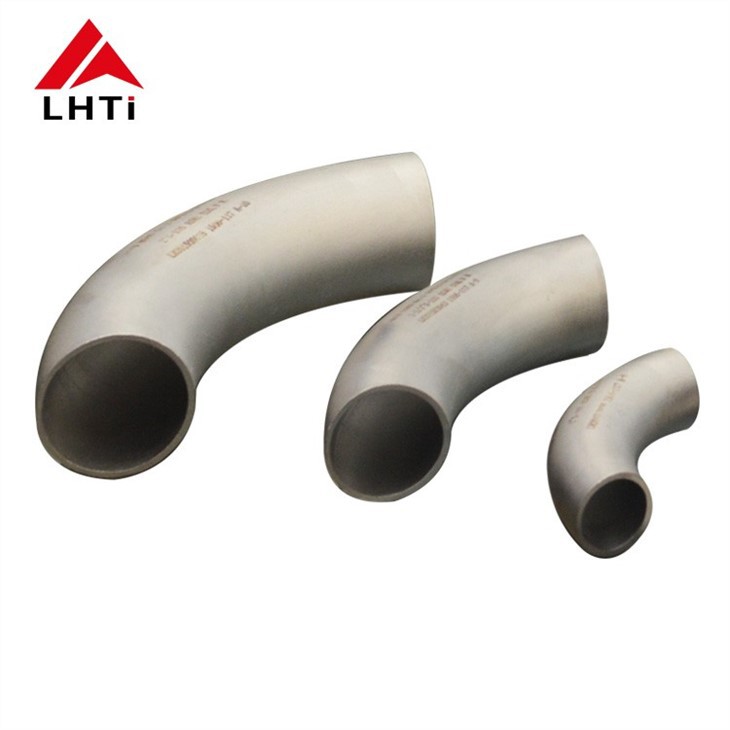

Titanium seamless elbows

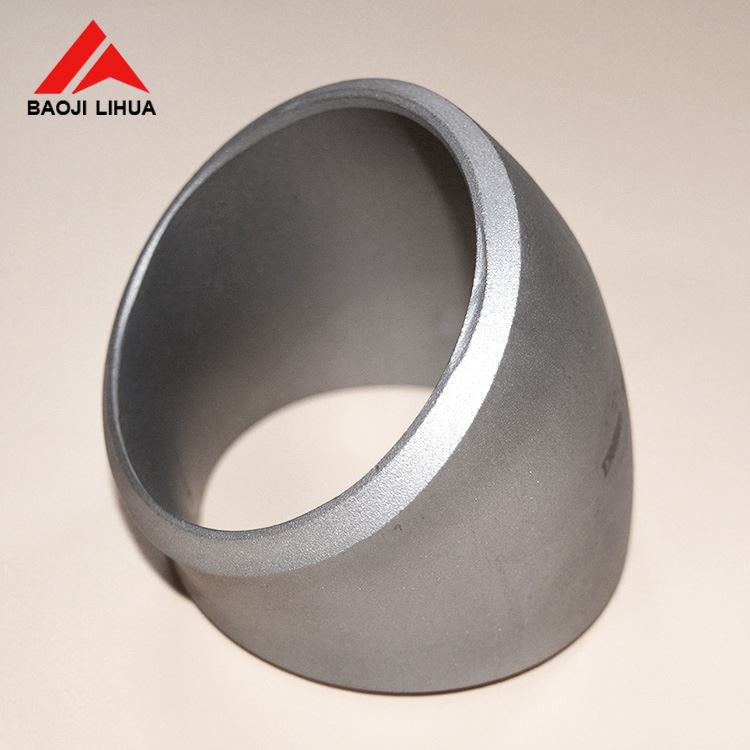

In a piping system, an elbow is a fitting that changes the direction of the pipe run. According to the angle, there are three most commonly used elbows: 45 ° and 90 ° 180 °, and other abnormal angle elbows such as 60 ° are also included according to the needs of the project.
The connection methods with the pipe include: direct welding (the most commonly used method) flange connection, hot-melt connection, electric fusion connection, threaded connection, socket connection, etc. according to the production process can be divided into: welding elbow, stamping elbow, push elbow, casting elbow, butt welding elbow, etc. Other names: 90 degree elbow, right angle bend, etc.
Name | Titanium Elbow |
Material | Gr1, Gr2, Gr7, Gr12 |
Specification | 1/2"-48" Schedule 5s to Schedule 80 |
Standard | ASTM B363, EN 10253, DIN 2065 |
Type | R=1.0D, R=1.5D, R=3D |
Bending degrees | 30, 45, 60, 90, 120, 180 degrees bend |
Surface Processing | quartz-shot, sand-blasting, polishing |
Month capacity | 60000 pieces |
Grade | Fe max | O max | N max | C max | H max | Pd | Al | V | Mo | Ni | Elong'n | Σb (Mpa) | σr0.2 (Mpa) |
No | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | % | MPa | MPa |
Grade 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | 24 | 240 | 140 | |||||
Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 20 | 400 | 275 | |||||
Grade 7 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0,12-0,25 | 20 | 400 | 275 | ||||
Grade 12 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0.3 | 0.8 | 18 | 460 | 300 |
Detailed Images:
About our company:
