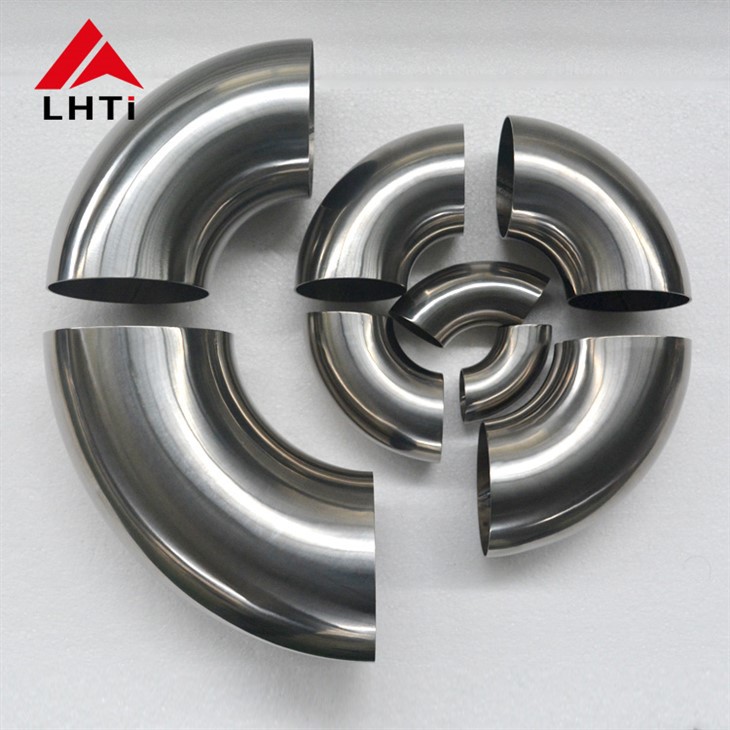

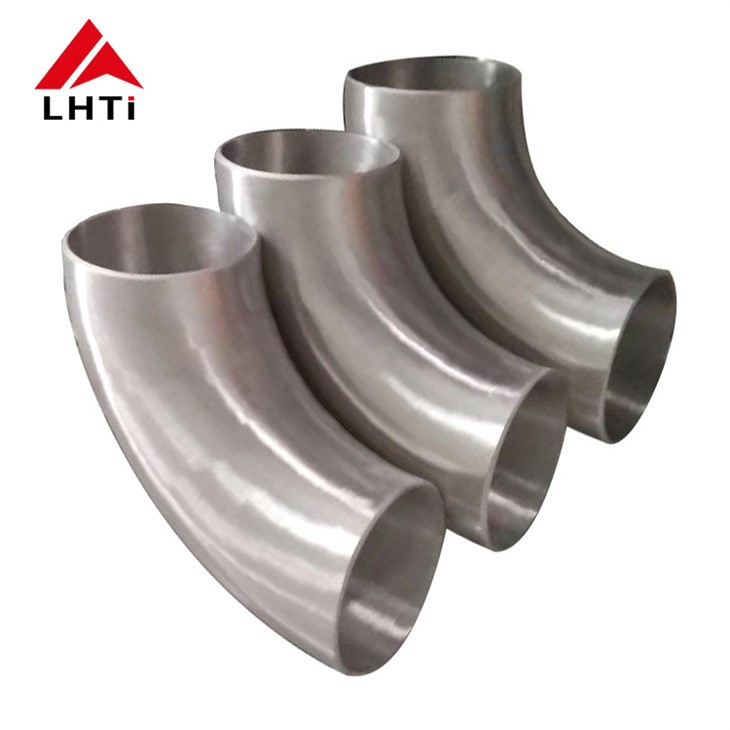

Gr12 Titanium Elbow 90 Degree

 Gr12 Titanium Elbow 90 degree

Introduction of Gr12 Titanium Elbow 90 Degree:

Titanium Elbow is one of the important fittings of titanium pipe system, which not only changes the flow direction of medium, but also increases the flexibility of pipe. When the medium through the elbow, the pressure of the medium directly rushed to the back of the elbow, the medium along the back flow to the outlet, it can be seen that the pressure under the back of the elbow is larger, serious corrosion erosion, indicating that the load on the back is greater than any part.

As an ideal pipeline material for transporting corrosive media in chemical industry, the service life of pipeline depends on pipe fittings. Titanium pipeline is paid more and more attention by engineers and technicians

Product name: Gr12 Titanium Elbow 90 Degree

Standard: ANSI / ASME B16.9 ,ANSI / ASME B16.9 B363

Material grade: Grade 7

OD: 1/2"-36"

Wall thickness: 1.0-18mm

Type: Seamless ,welded

Surface: Pickled, polished,sand-blasting

Application: Pipe fittings

Grade 12 Titanium Overview:

Composition: Grade 12 titanium is a titanium alloy containing approximately 0.3% molybdenum and 0.8% nickel. It falls under the alpha-beta category of titanium alloys, known for their excellent corrosion resistance and mechanical properties.

Corrosion Resistance: Grade 12 titanium offers outstanding resistance to corrosion in a wide range of environments, including seawater, chlorides, and various acids. The presence of molybdenum and nickel enhances its resistance to crevice corrosion and reduces susceptibility to stress corrosion cracking.

Strength and Ductility: It combines good strength with excellent ductility and toughness, making it suitable for forming into complex shapes like elbows while maintaining structural integrity.

Temperature Resistance: Grade 12 titanium retains its mechanical properties at elevated temperatures, up to around 400°C (752°F), making it suitable for high-temperature applications.

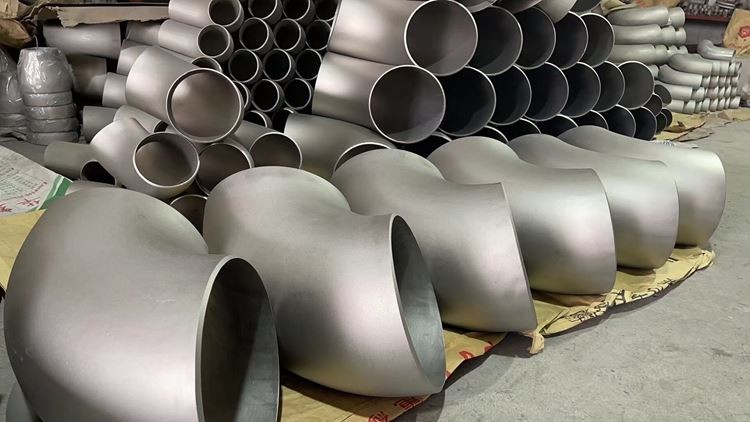

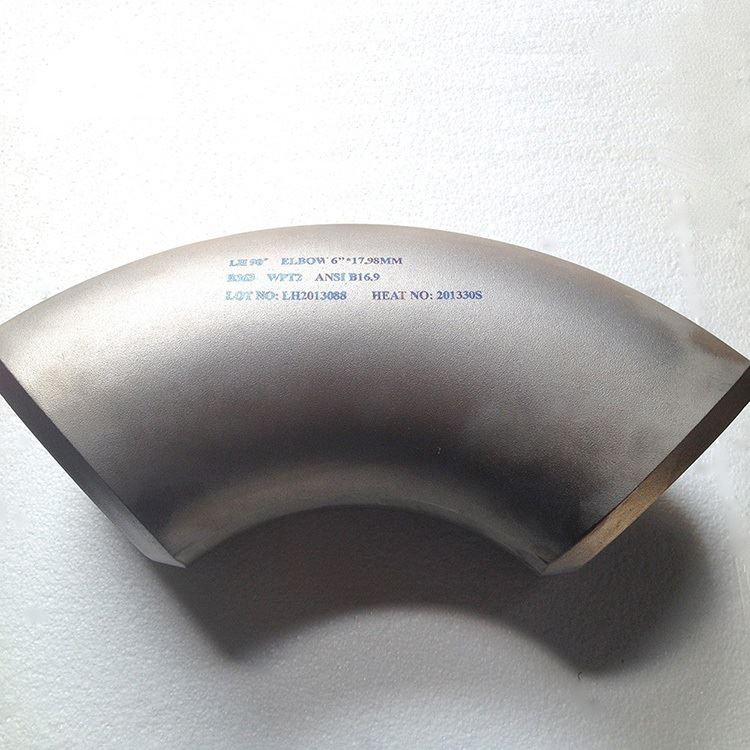

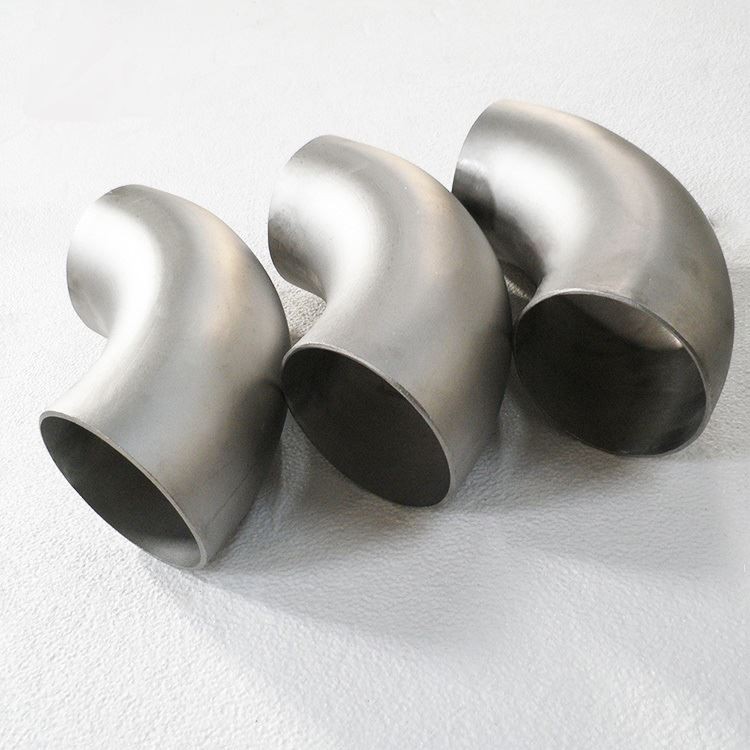

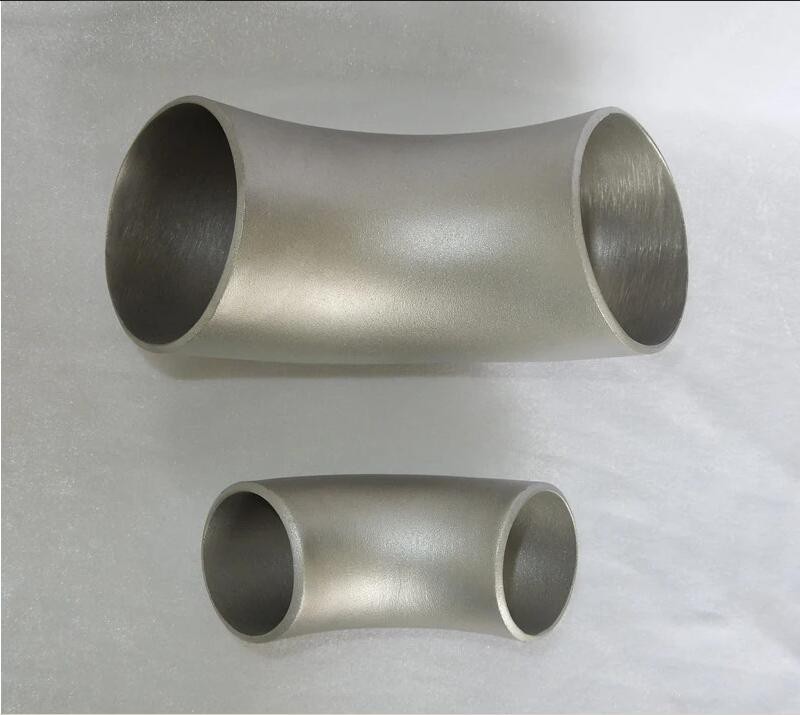

Detailled images:

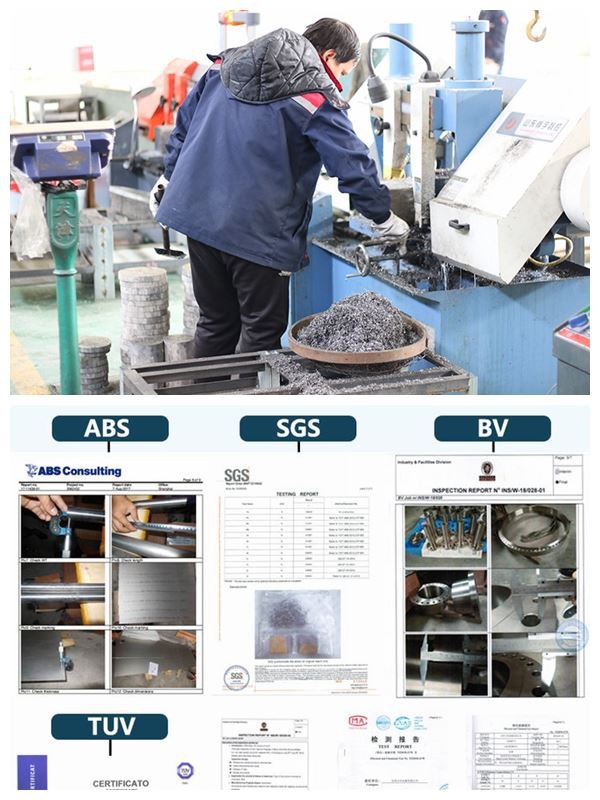

About our company:

Applications of Grade 12 Titanium Elbows:

Chemical Processing: They are widely used in chemical plants for piping systems handling corrosive chemicals and acids. The high corrosion resistance of Grade 12 titanium ensures longevity and reliability in aggressive environments.

Oil and Gas Industry: Grade 12 titanium elbows are used in offshore oil rigs and processing facilities where resistance to seawater corrosion and high strength-to-weight ratio are crucial.

Marine Applications: Due to its excellent resistance to seawater corrosion, Grade 12 titanium elbows are employed in marine environments for seawater piping systems, desalination plants, and shipbuilding.

Aerospace and Defense: In aerospace applications, Grade 12 titanium elbows may be used in aircraft hydraulic and fuel systems where lightweight, corrosion resistance, and reliability are essential.

Medical and Healthcare: Grade 12 titanium's biocompatibility makes it suitable for medical devices and implants where resistance to bodily fluids and durability are required.

Advantages of Grade 12 Titanium Elbows:

Lightweight: Titanium is about 45% lighter than steel, reducing overall system weight and facilitating easier handling and installation.

High Strength: Grade 12 titanium offers a high strength-to-weight ratio, providing structural integrity while minimizing material usage.

Longevity: Exceptional corrosion resistance minimizes maintenance requirements and extends service life in harsh environments.

Biocompatibility: Safe for use in medical applications due to its inertness and compatibility with human tissue.
