Titanium Welded Elbows

 Titanium welded Elbows

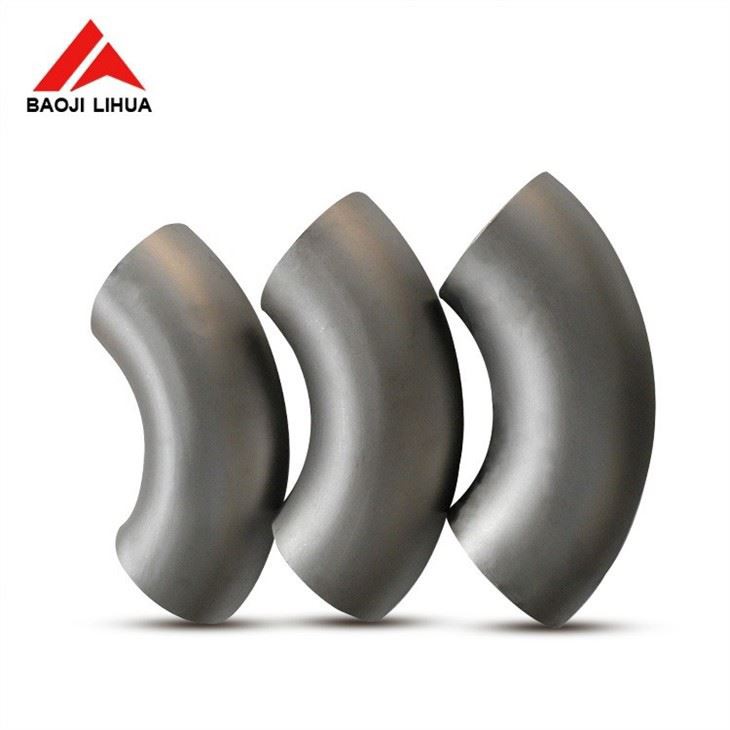

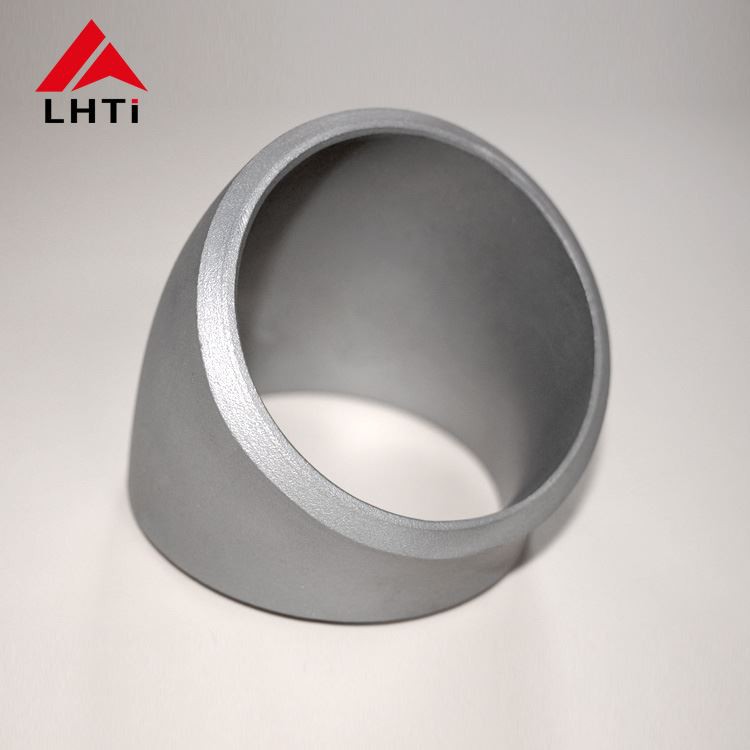

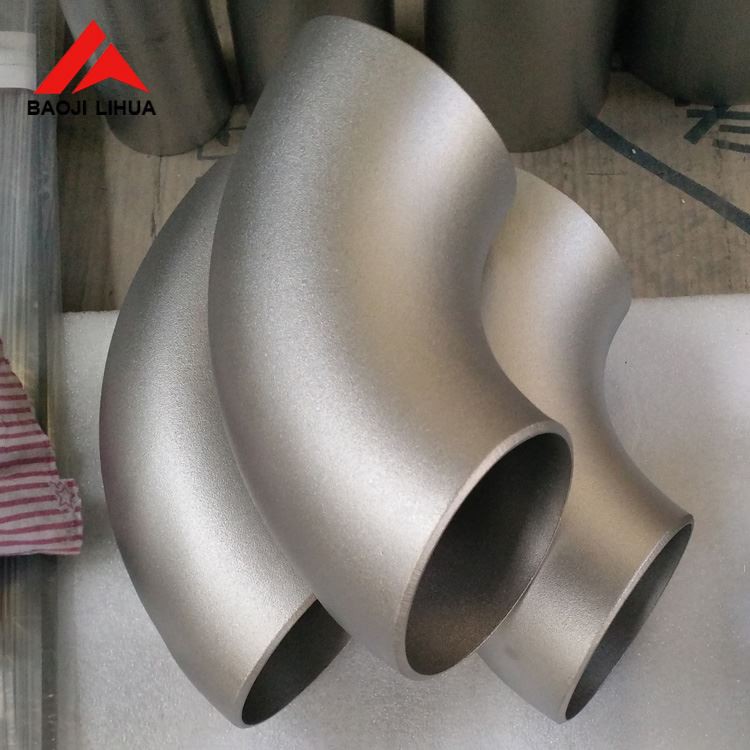

Titanium elbow is a pipe fitting used to change the direction of the pipeline, with 45 degrees, 90 degrees, 180 degrees, and other non-standard angle elbows according to engineering needs. Titanium elbows can be classified as welding elbows, stamping elbows, casting elbows, butt welding elbows, etc.

Titanium welded elbow features: high temperature resistance, corrosion resistance, pressure resistance, light weight, non-magnetic, non-toxic, strong stability, long life

Technical requirement:

1. Since most pipe fittings are used for welding, in order to improve the welding quality, the ends are turned into grooves, with a certain angle and a certain edge. This requirement is also strict. There are regulations on the thickness of the edge, the angle and the deviation range. The surface quality and mechanical properties are basically the same as those of pipes.

For the convenience of welding, the steel grade of pipe fittings and connected pipes is the same

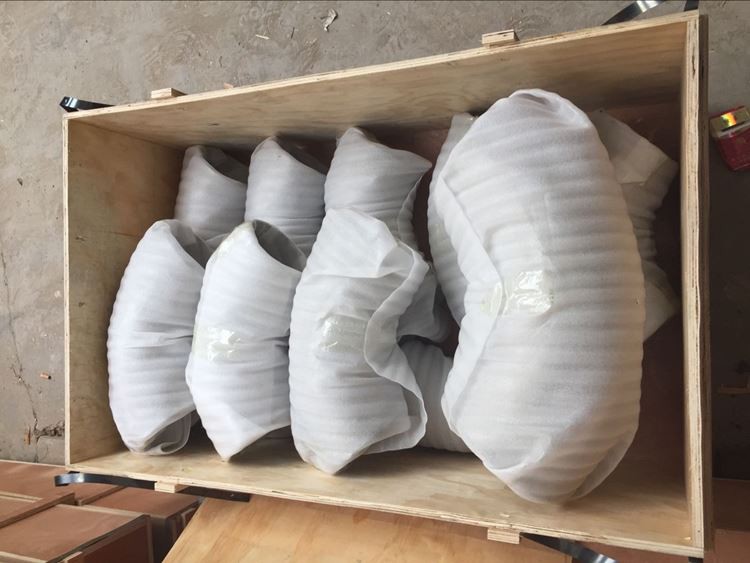

2. Packaging requirements: for small pipe fittings, such as export, wooden boxes need to be made, about 1m3. It is stipulated that the number of elbows in such boxes cannot exceed one ton. The standard allows suits, that is, large sets and small sets, but the total weight generally cannot exceed 1 ton. For large pieces, a single package is required, such as 24 ″

Must be packaged individually. Another is the packaging mark, which should indicate the size, material, batch number, manufacturer's trademark, etc.

Detailed Images:

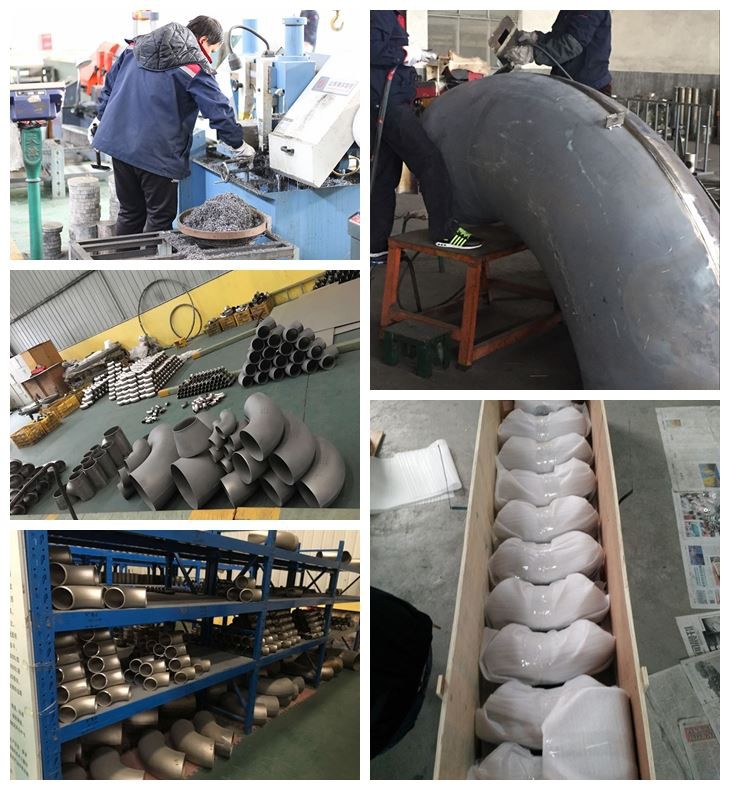

About our company:
