Titanium Grade 2 Elbows

Titanium Grade 2 Elbows

Product Name: titanium grade 2 elbows
Standard: ASME B16.9
Material: Titanium Gr2
Unit Price: $10usd/pc-$200usd/pc
Outer Diameter: 1/2"-48"
Wall Thickness: Sch5s-Sch160s
Technique: Seamless/Welded
MOQ:10pcs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium bar manufacturer

Send Inquiry

Chat Now

Product Introduction

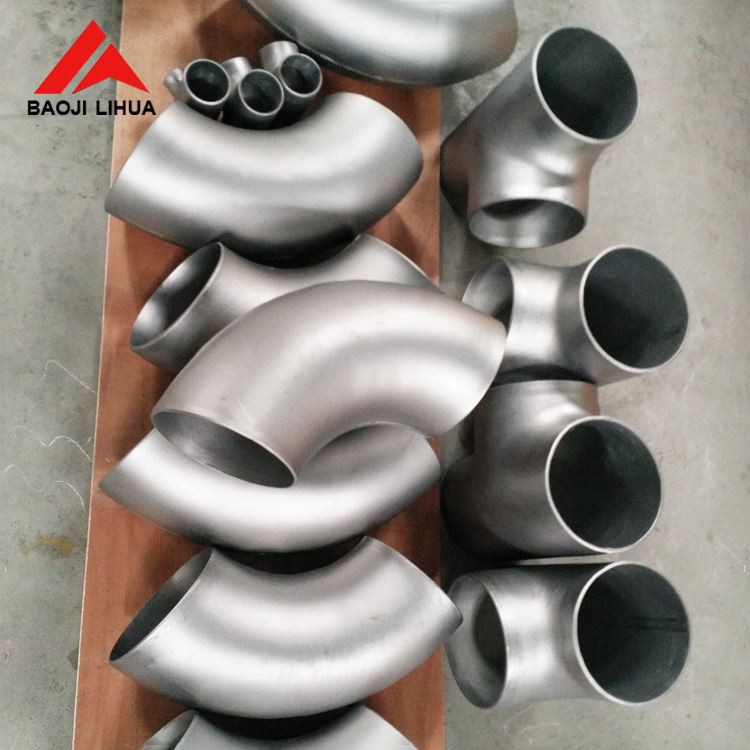

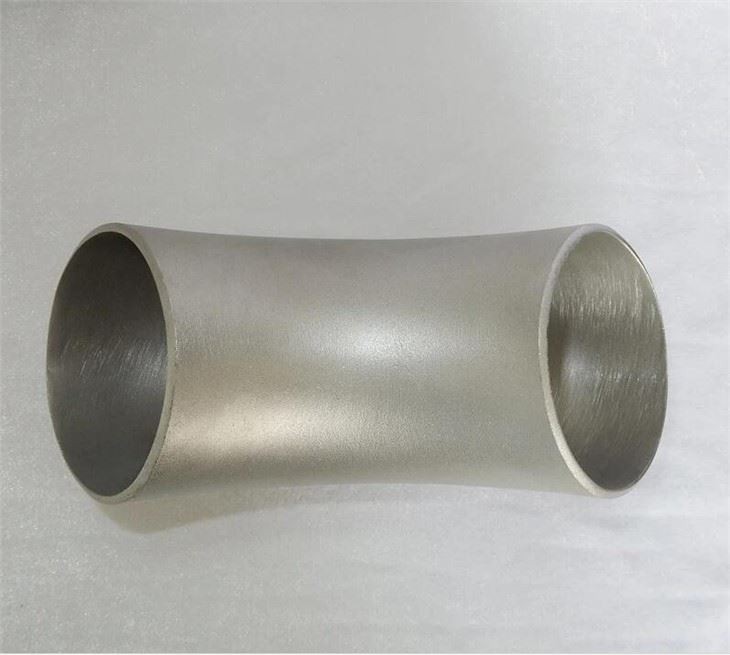

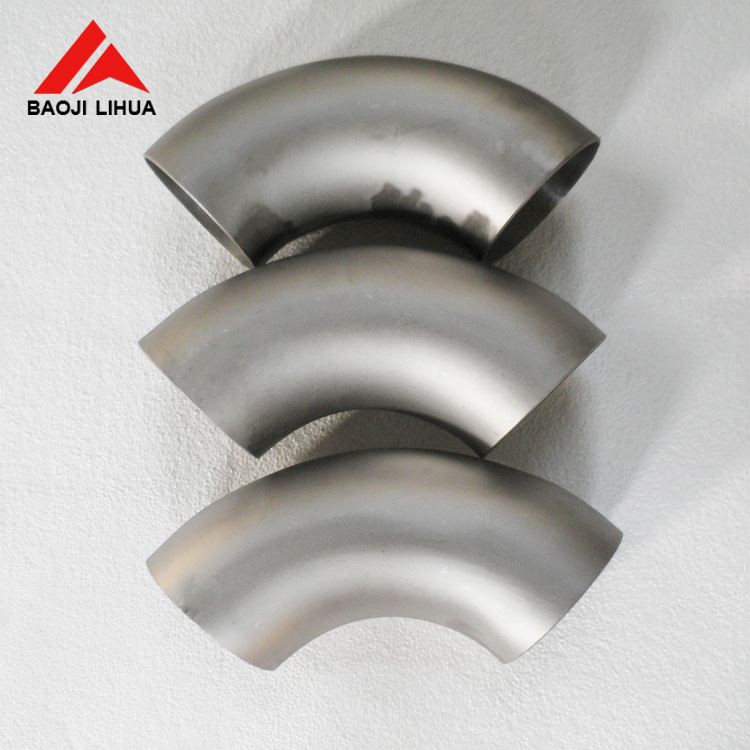

Titanium grade 2 elbows

An elbow is a pipe fitting used at the turn of a pipe. Among all the pipe fittings used in the pipeline system, the proportion is the largest, about 80%. Generally, different forming processes are selected for elbows with different materials or wall thickness.

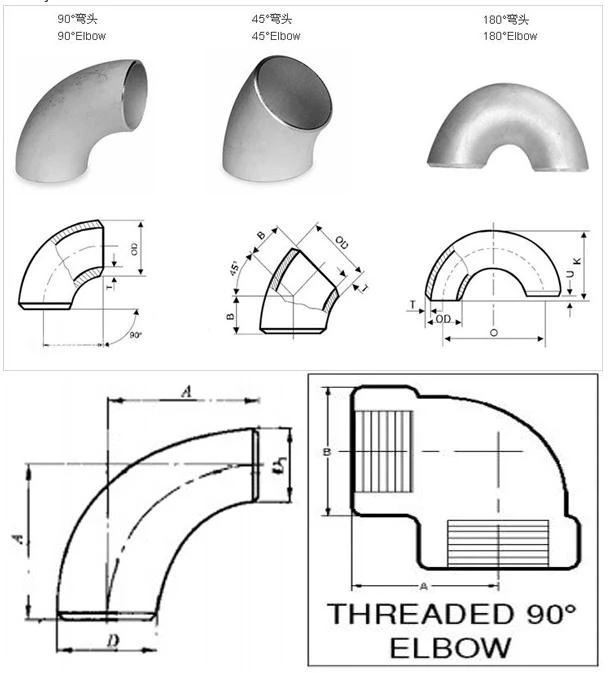

PRODUCT TYPE	Long radious elbow(LR elbow), short radious elbow(SR elbow), seamless elbow, butt welding elbow, carbon steel elbow(CS elbow), mild steel elbow(MS elbow), alloy steel elbow(AS elbow),stainless steel elbow(SS elbow), ( 15deg, 30deg, 45deg, 90deg, 180deg)
SIZE	NPS1/2”-120”(DN15-3000)
WALL THICKNESS	SCH5S/10S, SCH20/40/80/160, STD/XS/XXS, SGP…….
MATERIAL	Titanium Gr2
STANDARD	ANSI B 16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/DIN2605 etc…
STANDARD	We can also produce according to drawing by customers.
SURFACE TREATMENT	Pickled
PACKING	plywood cases, pallets, nylon bags or according to the customers' requirements
TRADE TERM	FOB, CNF&CFR, CIF
APPLICATION	Chemical industry, petroleum industry, construction industry, power industry, gas industry, shipbuilding ,domestic installation and other
CERTIFICATES	ISO-9001:2015
ORIGIN	Baoji, Shaanxi, China

Chemical composition (Wt%)

ASTM No.	Fe max	O max	N max	C max	H max	Pd	Al	Bal
Grade 2	0.3	0.25	0.03	0.1	0.015	-	-	Ti

Physical Properties (Min)

ASTM Grade	Alloy Composition	Tensile Strength		Yield Strength		Elongation min %
ASTM Grade	Alloy Composition	ksi	Mpa	ksi	Mpa
Grade 2	Unalloyed Ti ("Pure") 50A -CP2	58	400	40	275	25
