Product name: Grade 5 Titanium Ring
Grade: Titanium GR5
Standard: ASME SB381 / ASTM B381,AMS 4928
Size: OD200-1500mm * ID100-1200mm *Height20*600mm
Application:Electroplating,Chemical engineering & Petrochemical technology etc.

Send Inquiry

Chat Now

Product Introduction

A titanium Seamless Rolled Ring is made in three steps. This process directs grain flow in tangential and radial directions and provides the pieces with the mechanical properties such as strength, ductility, and resistance to impact and fatigue. First: a preform is made on a press out of an ingot cut Second: a hole in punched on the center creating the form of a doughnut, Third: the preform is placed on a ring mill that expands the material to the right dimensions. Advantages of titanium Seamless Rolled Ring Forging For use in Oil & Gas, Power Generation, Mining, Aerospace and other critical applications, Performance-wise, there is no equal for Rolled Rings.

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

Product picture:

product-1-1

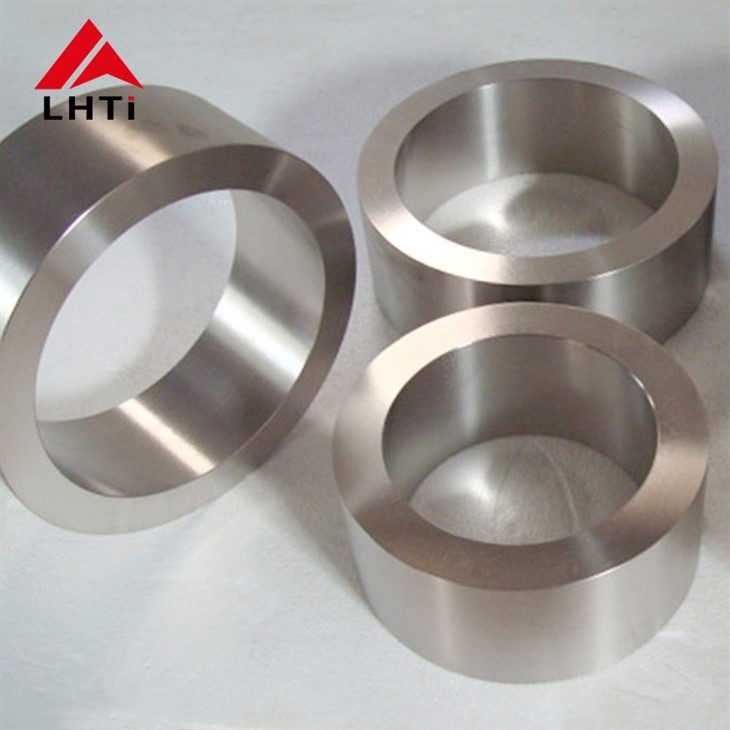

99.0% Gr5 Titanium Forged Rings

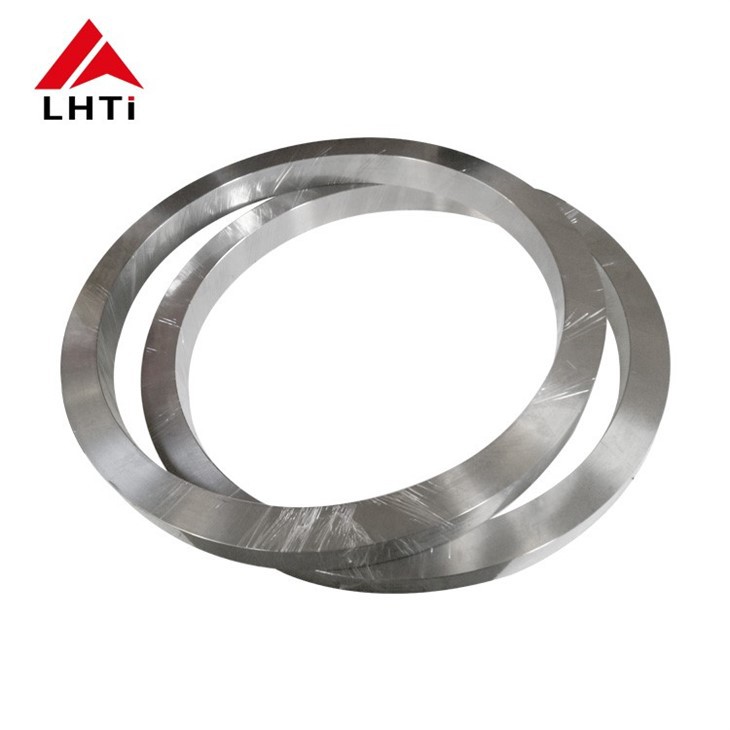

Gr2 Forged Pure Titanium Ring
