Product name: Grade 5 Titanium Ring
Grade: Titanium GR5
Standard: ASME SB381 / ASTM B381,AMS 4928
Size: OD200-1500mm * ID100-1200mm *Height20*600mm
Application:Electroplating,Chemical engineering & Petrochemical technology etc.

Send Inquiry

Chat Now

Product Introduction

High tangential strength and ductility make rolled rings well suited for torque, pressure and fatigue resistant components, such as gears, bearings, couplings, flanges, valve bodies, rotor spacers among others. Compared with castings that may present high gas porosity, rolled rings eliminate that problem. Every ring is made to order and we can supply titanium Seamless Rolled Rings from one piece to high volume orders.

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

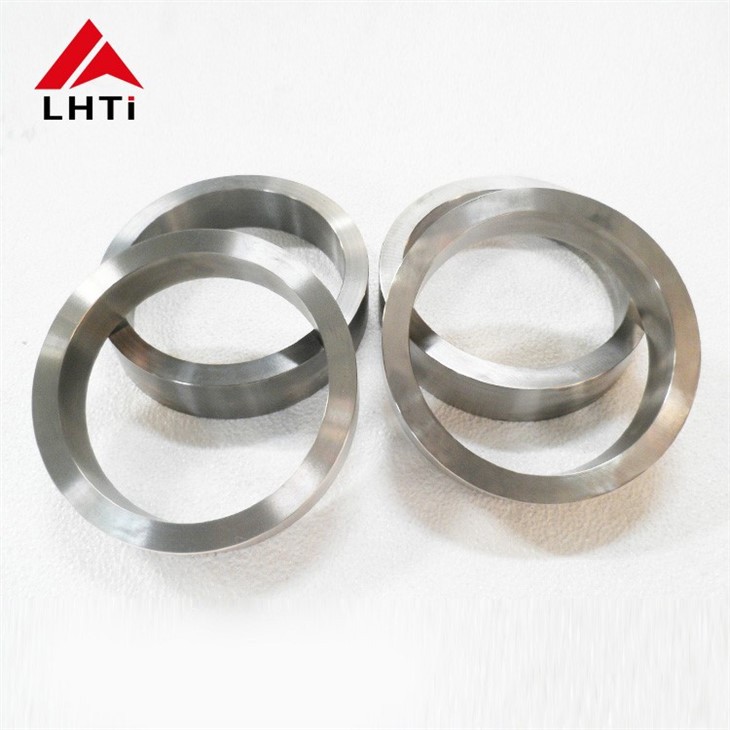

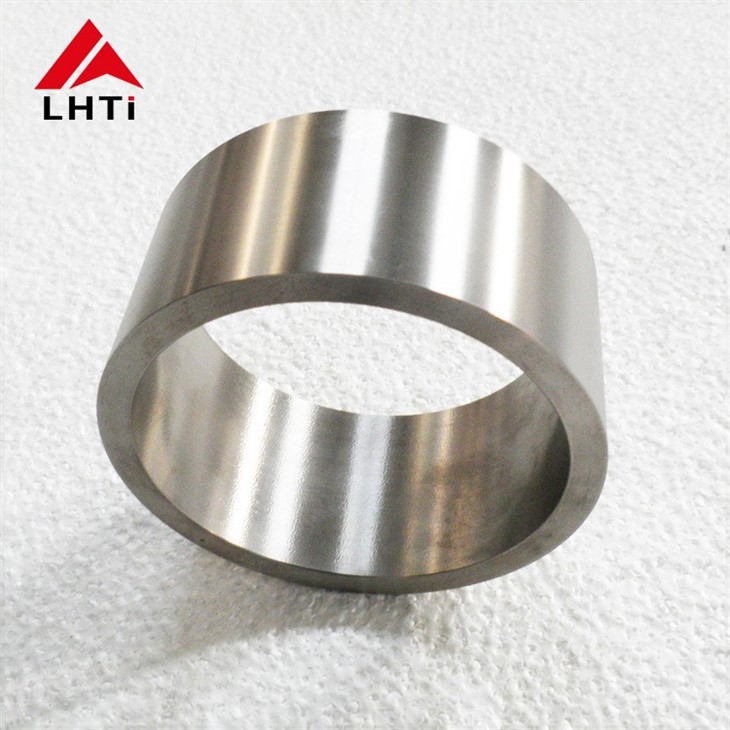

Product picture:

product-1-1

Bright Surface Forged Titanium Ring 6al4v Gr5 AMS4928

AMS4928 Forged Titanium Rings 6al4v Gr5
