Gr2 Forged Pure Titanium Ring
Product name: Grade 5 Titanium Ring
Grade: Titanium GR5
Standard: ASME SB381 / ASTM B381,AMS 4928
Size: OD200-1500mm * ID100-1200mm *Height20*600mm
Application:Electroplating,Chemical engineering & Petrochemical technology etc.
Grade: Titanium GR5
Standard: ASME SB381 / ASTM B381,AMS 4928
Size: OD200-1500mm * ID100-1200mm *Height20*600mm
Application:Electroplating,Chemical engineering & Petrochemical technology etc.
Send Inquiry
Chat Now
Product Introduction
Titanium Alloy Forged Rings can be widely used in the automotive industry due to its lightweight structure and good corrosion resistance. It has a metallic luster and is malleable. Its main advantages include low density, high mechanical strength and easy processing, meanwhile, it has good corrosion resistance and is not affected by the atmosphere and seawater.
| Material | Pure titanium and titanium alloy |
| Grade | Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, Gr12 etc |
| Size | OD:300-1500mm, ID:200-1400mm; H:20-500mm |
| Quality control | Ultrasonic Testing& Material Test Report& Visual inspection |
| Pressure rating | 0.6~32Mp |
| (DIN)PN6, PN10, PN16, PN25 though PN250 | |
| (ASNI)CL150, CL300, CL600, CL900, CL1500 | |
| Working temperature | -60℃~250℃ |
| Flange surface | FF, RF, TG, RJ etc |
| Value Added Services | Customized |
| Status | Hot forging, Annealed (M) |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |

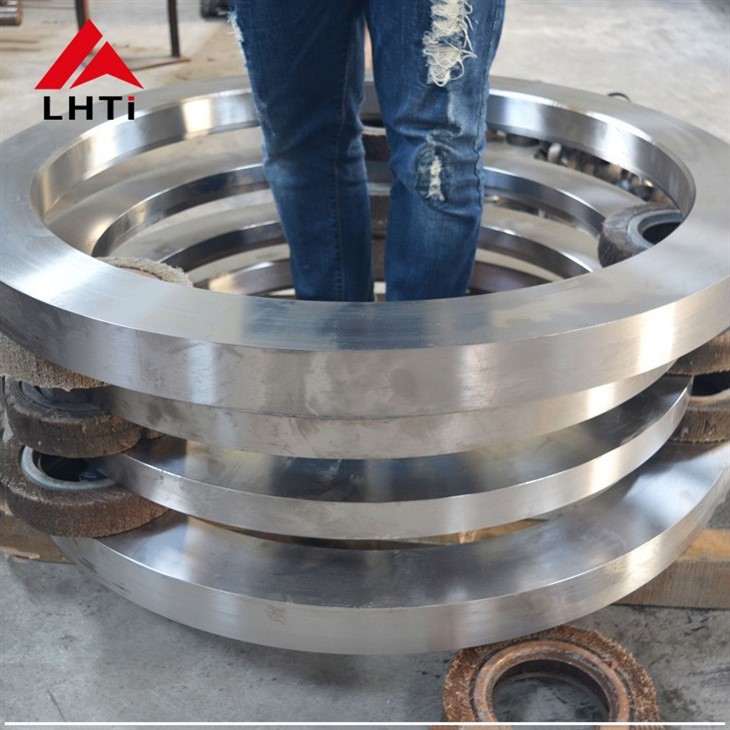

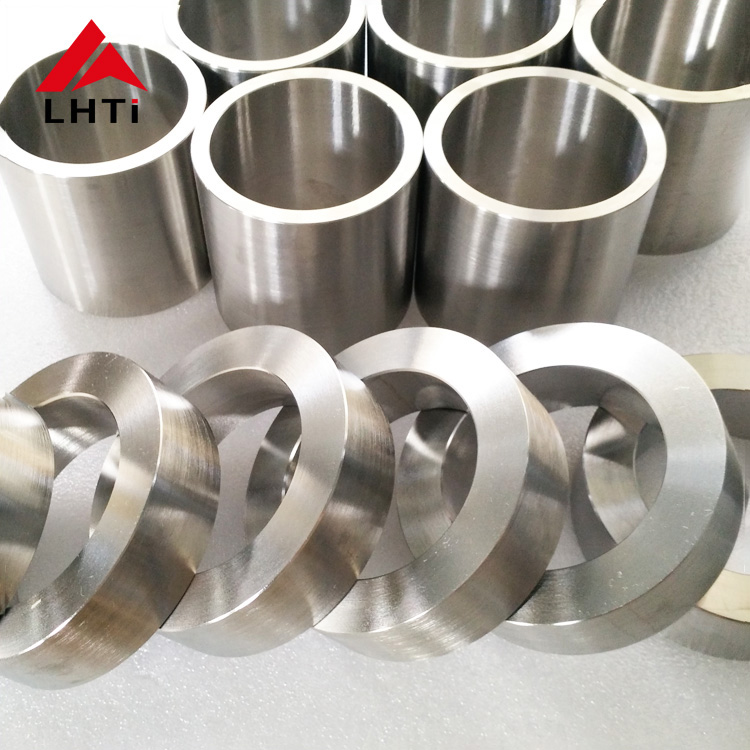

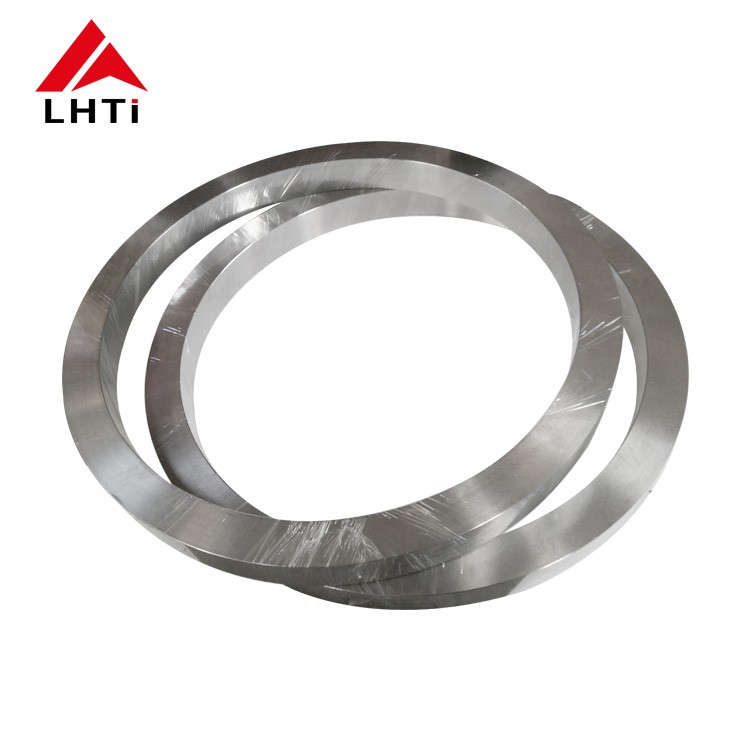

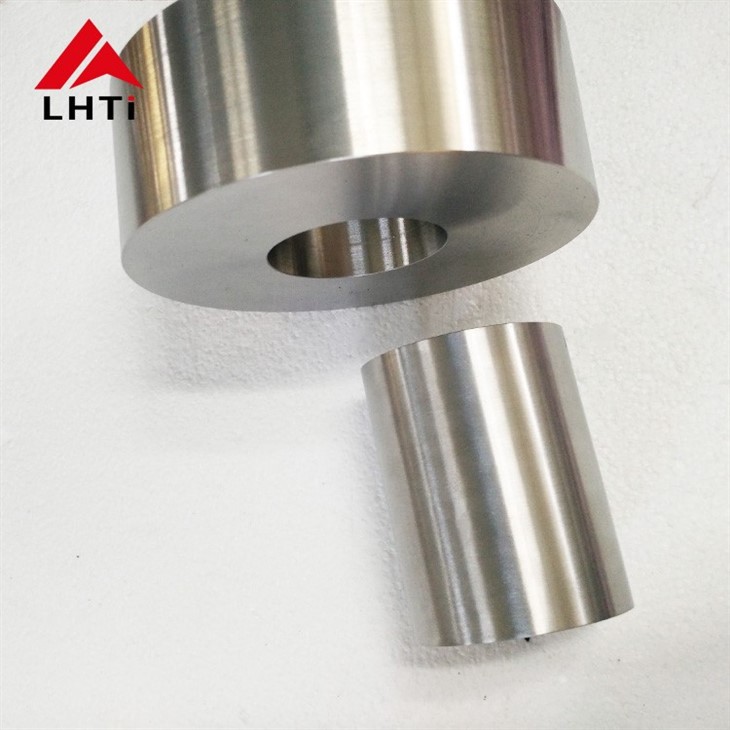

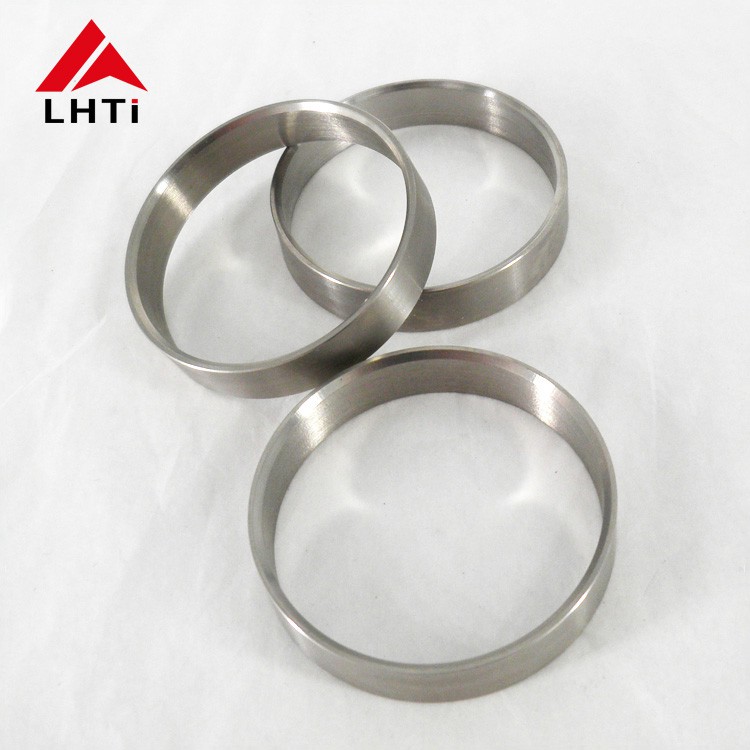

Product picture:
