Gr7 Titanium Welding Wire

Gr7 Titanium Welding Wire

Product name:Titanium grade 7 welding wire
Standard : AWS a5.16 , ASME SFA 5.16
Grade : GR7 (ErTi-7,Ti-0.2Pd )
Diameter : 1.0mm 1.2mm 1.6mm 2.0mm 2.4mm 3.2mm etc.
Shape : Coil,spool,straight.
Surface : Pickling surface/bright surface
Application :Welding

Send Inquiry

Chat Now

Product Introduction

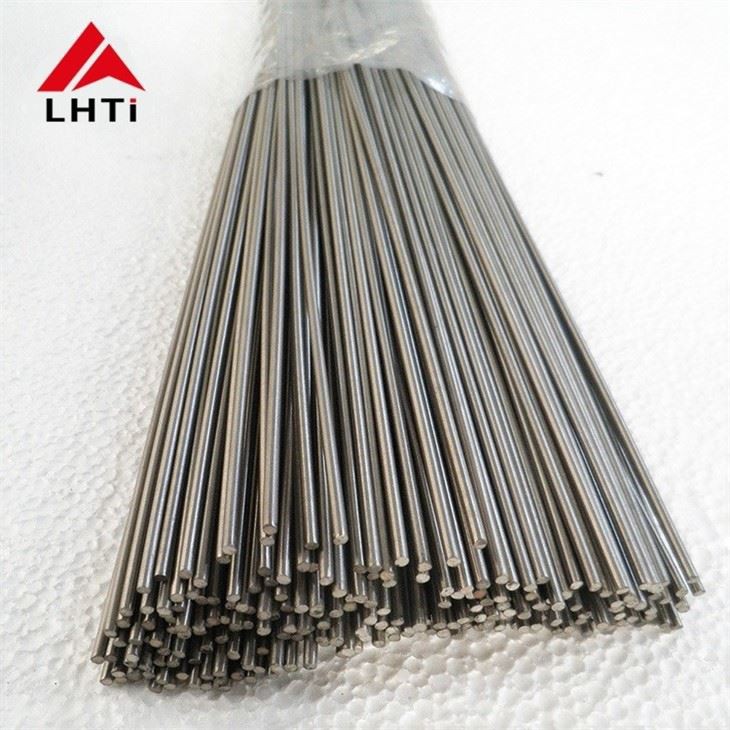

Gr7 Titanium Welding Wire

Product	Gr7 titanium welding wire/ gr7 titanium tig wire
Size	Straight:
	Dia.: 1.0mm-5.0mm (0.04"-0.02", tolerance: +/-0.05mm, +/-0.002")
	3000mm (118") max length

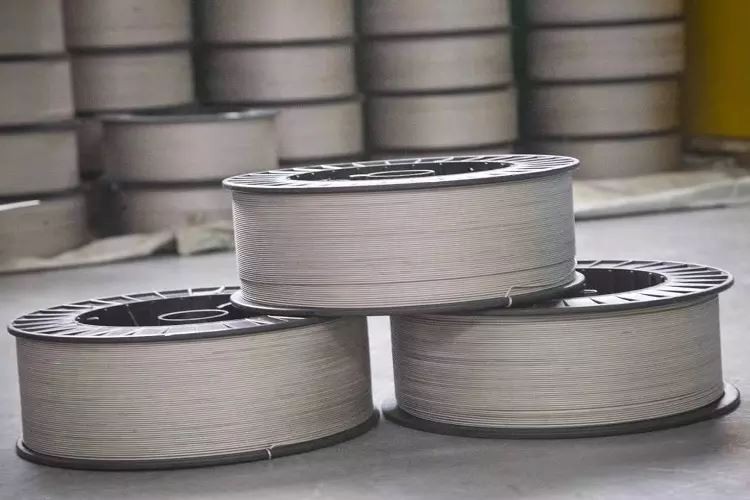

	Coiled:
	Dia.: 0.5mm-5.0mm (0.02", tolerance: +/-0.05mm, +/-0.002")
	Spool diameter: around 300mm (12")
Material	Grade 7 titanium
Standard	AWS 5.16, etc.
Surface	Black, Pickled, Polished (for dia. >1mm)
Shape	Straight or Coiled

Grade 7 (Ti-0.2Pd) titanium wire
Chemical compositions(weight%,<=)
Pd	Al	V	Fe	C
0.12-0.25	----	----	0.30	0.08
N	H	O	Other(total)	Ti
0.05	0.015	0.2	0.4	Remainder
Physical properties(>=)
Σb Tensile Strength (Mpa)	σr0.2 Yield Strength (Mpa)	δL0+50mm Elongation (%)	ψ Reduction of area (%)
370	250	20	25
