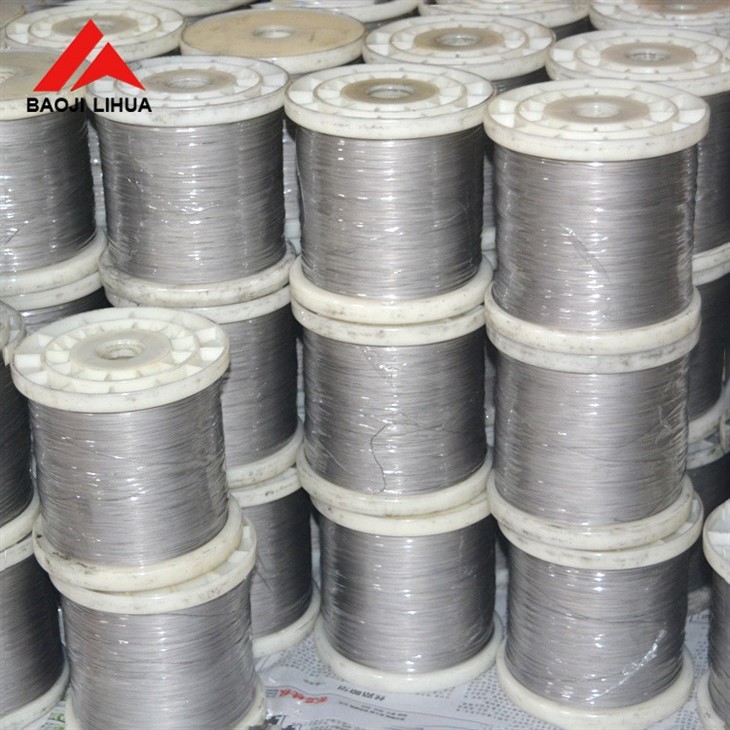

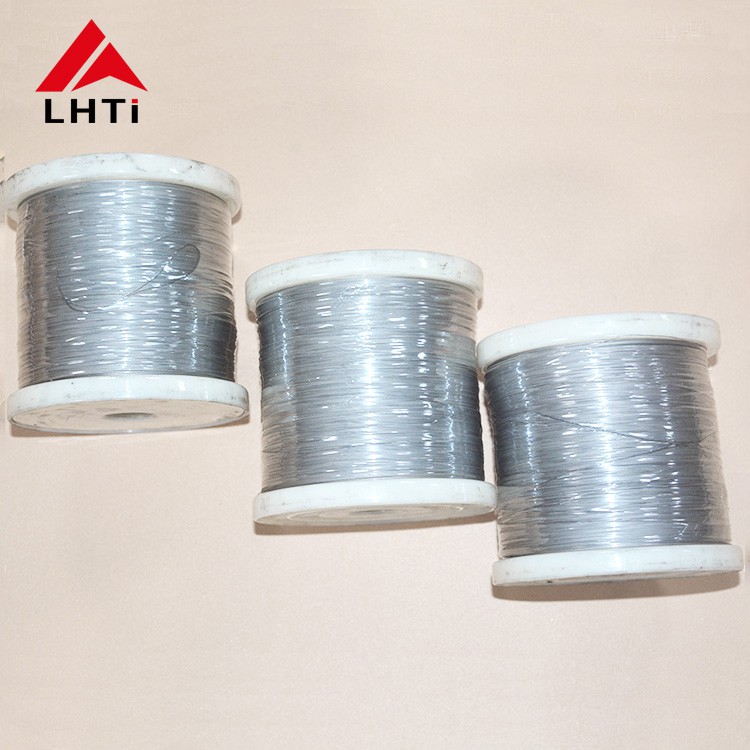

Pure Titanium Wire Coil Gr1 Gr2
Material:Pure Titanium, Alloy Titanium
Grade:Gr1, Gr2
Diameter:0.5mm-3mm
Straight Wire Length:1000mm-3000mm
MOQ:20 Kg
Package Box:5kg Per Plastic Box, Or As Your Request
Delivery State:
1. M (Annealed soft state);
2. R (Processing of soft state);
3. Y (Processing of hard state);
4. D (Memory training, Dedicated Nitinol).
Packing: Soft paper or plastic bag as inside, wooden case as outside,
or according to customer's demand
Titanium wire is a highly versatile and durable material that is widely used in a variety of industrial and medical applications. It is widely regarded as one of the strongest and most corrosion-resistant metals in the world, making it a popular choice for applications where strength, durability, and resistance to extreme conditions are essential.
The versatility of titanium wire is further demonstrated by its use in a range of other industries, including transportation, marine, and energy. In each case, the material's remarkable strength and durability make it an excellent choice for challenging environments.
1. Available Diameter, Type & Packing
| Size (mm) | Dia 0.5 | Dia 0.8 | Dia 1.0 | Dia 1.2 | Dia 1.6 | Dia 2.0 | Dia 2.4 | Dia 2.5 | Dia 3.0 | Dia 3.2 | Dia 4.0 |
| Size (inch) | 0.020' | 0.031" | 0.039" | 0.047" | 0.062" | 0.079" | 0.093" | 0.098' | 0.12" | 0.125" | 0.16' |
| Straight | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
| Spool | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||
| Coil | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
2.Guide to choose of filler metal for general purpose titanium welding
| ASTM Base Metal Grade | Base metal | Normal composition | Recommended Filler Metal | |
| UTS(min.) ksi[Mpa] | YS(min.) ksi[Mpa] | |||
| Grade 1 | 35[240] | 20[138] | Unalloyed Ti CP1 | ERTi-1 |
| Grade 2 | 50[345] | 40[275] | Unalloyed Ti CP2 | ERTi-2 |
| Grade 4 | 80[550] | 70[483] | Unalloyed Ti CP4 | ERTi-4 |
| Grade 5 | 130[895] | 120[828] | Ti 6AL-4V | ERTi-5 |
| Grade 7 | 50[345] | 40[275] | Ti 0.15Pd | ERTi-7 |
3.Chemical compostion requirements
| AWS | CHEMICAL SPECIFICATIONS | ||||||||
| AWS A5.16 | UNS | C | O | N | H | I | Al | V | Pd |
| Number | |||||||||
| ERTi 1 | R50100 | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 | - | - | - |
| ERTi 2 | R50120 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | - |
| ERTi 4 | R50130 | 0.03 | 0.08-0.32 | 0.025 | 0.008 | 0.25 | - | - | - |
| ERTi 5 | R56400 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 | 5.5-6.7 | 3.5-4.5 | - |
| ERTi 7 | R52401 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | 0.12-0.25 |
4. Definition of Different Levels
ERTI-1: Grade 1 is the lowest strength unalloyed (or Commercially Pure-CP)grade. Grade 1 is used in applications where ductility is paramount,such as explosive cladding, loose linings, expanded metal, and deep drawing applications. It is also used in electrolytic applications like coated anode substrates for production of chlorine and sodium chlorate.
ERTI-2: Grade 2 is the "workhorse"of the industrial corrosion market and most common unalloyed(or commercially Pure-CP)grade. Grade 2 is generally the most readily available in all product forms and has the lowest cost . It is used for process equirpment like pressure vessels ,columns ,tanks,heat exchangers,shafts,blowers and fans,conderser tubing ,valves,fittings and pipe.
ERTI-4: Grade 4 is the highest strenth unalloyed(or Commerically Pure-CP) grade.Grade 4 is rarely used I corrosion service ,but have beeen used(under AMS Specifications)in aircraft components where its higher strength can reduce the weight of components like bulk-heads and firewalls.

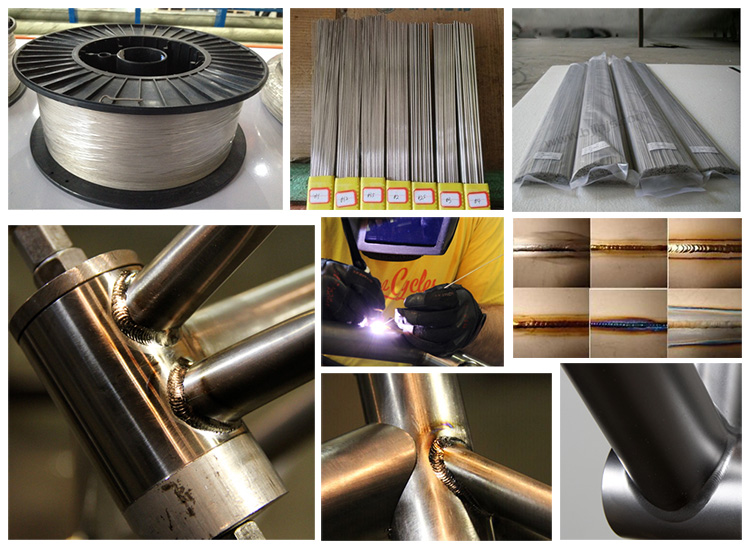

5. Detailed Images and Application
