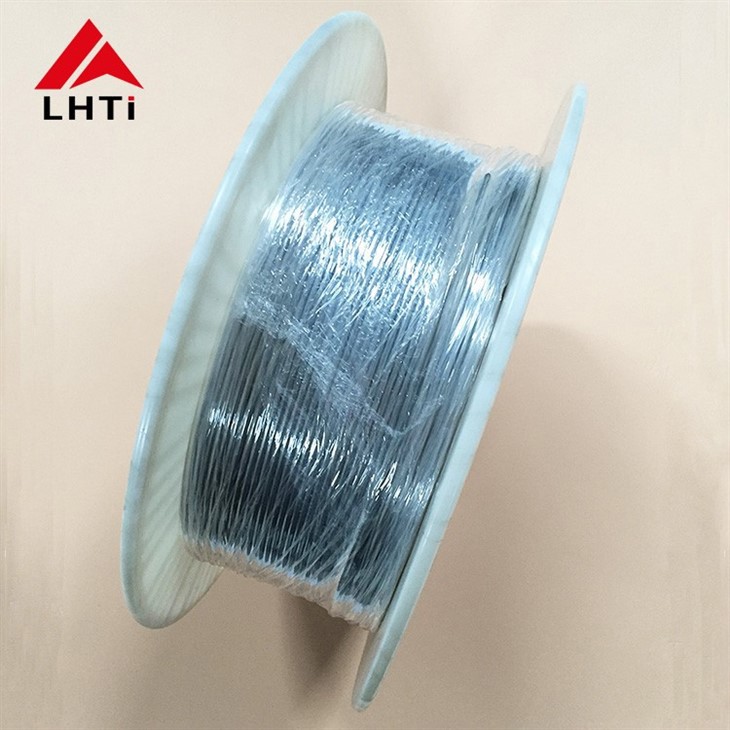

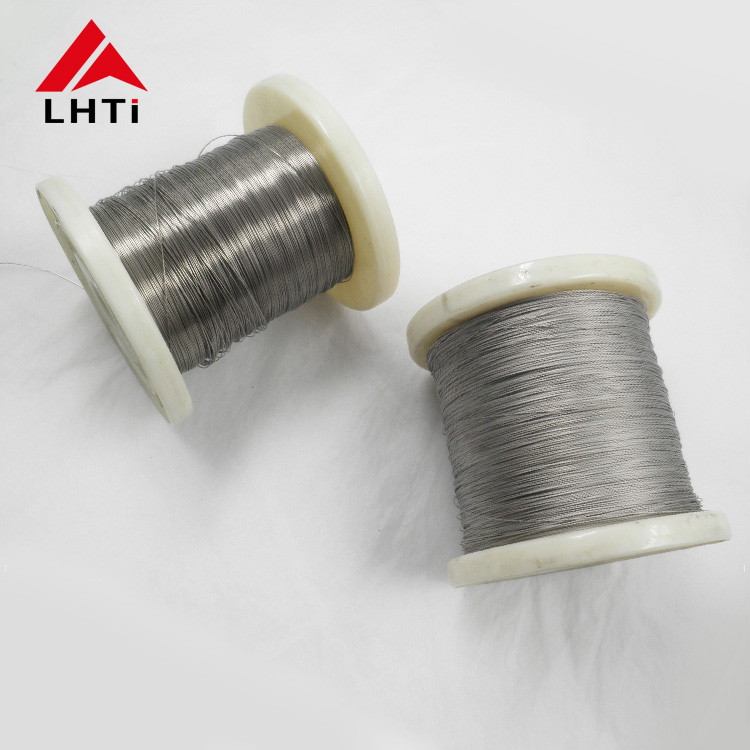

Pure Titanium Welding Wire ErTi2 For Medical
Product Name: Titanium Weld Wire
Standard: AWS A5.16
Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12
Unit Price: $21.5usd/kg-$60usd/kg
Shape: Straight, Spool, Coil
Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc.
Surface: Pickling,polishing
MOQ:10kgs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium wire manufacturer
Standard: AWS A5.16
Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12
Unit Price: $21.5usd/kg-$60usd/kg
Shape: Straight, Spool, Coil
Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc.
Surface: Pickling,polishing
MOQ:10kgs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium wire manufacturer
Send Inquiry
Chat Now
Product Introduction
Pure Titanium Welding Wire ErTi2 For Medical
Standard:ASTM B863 AWS A5.16
Specification OD:1.0-4.0mm L: 1000mm
Manufacturing method:Forging, Drawing
Surface:Brightness
Advantages :Corrosion resistance, high temperature resistance,
low temperature resistance, non-toxic, non-magnetic,
high strength, small thermal conductivity
Application:Welding of titanium base alloy.
Gr1 ERTi titanium wire is a commercial titanium welding wire. It has excellent welding process performance, beautiful weld forming, the weld metal has excellent comprehensive mechanical properties. It is mainly used for welding titanium base alloy.
| Standard | ASTM B863 AWS A5.16 |
| Specification | OD:1.0-4.0mm L: 1000mm |
| Manufacturing method | Forging, Drawing |
| Surface | Brightness |
| Advantages | Corrosion resistance, high temperature resistance, low temperature resistance, non-toxic, non-magnetic, high strength, small thermal conductivity |
| Application | Welding of titanium base alloy. |
| ASTM Base Metal Grade | Base metal | Normal composition | Recommended Filler Metal | |
| UTS(min.) ksi[Mpa] | YS(min.) ksi[Mpa] | |||
| Grade 1 | 35[240] | 20[138] | Unalloyed Ti CP1 | ERTi-1 |
| Grade 2 | 50[345] | 40[275] | Unalloyed Ti CP2 | ERTi-2 |
| Grade 4 | 80[550] | 70[483] | Unalloyed Ti CP4 | ERTi-4 |
| Grade 5 | 130[895] | 120[828] | Ti 6AL-4V | ERTi-5 |
| Grade 7 | 50[345] | 40[275] | Ti 0.15Pd | ERTi-7 |
| AWS | CHEMICAL SPECIFICATIONS | ||||||||
| AWS A5.16 | UNS | C | O | N | H | I | Al | V | Pd |
| Number | |||||||||
| ERTi 1 | R50100 | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 | - | - | - |
| ERTi 2 | R50120 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | - |
| ERTi 4 | R50130 | 0.03 | 0.08-0.32 | 0.025 | 0.008 | 0.25 | - | - | - |
| ERTi 5 | R56400 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 | 5.5-6.7 | 3.5-4.5 | - |
| ERTi 7 | R52401 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | 0.12-0.25 |
