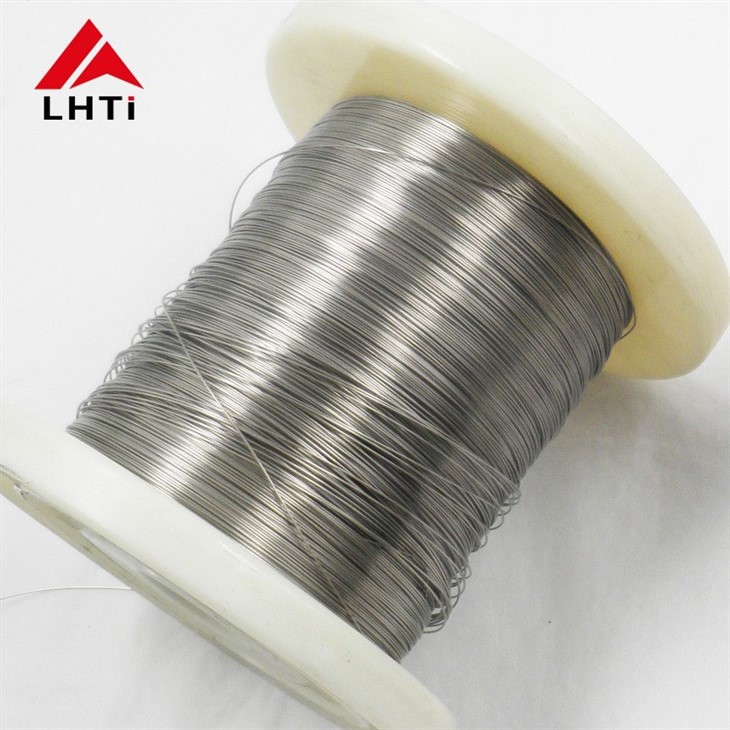

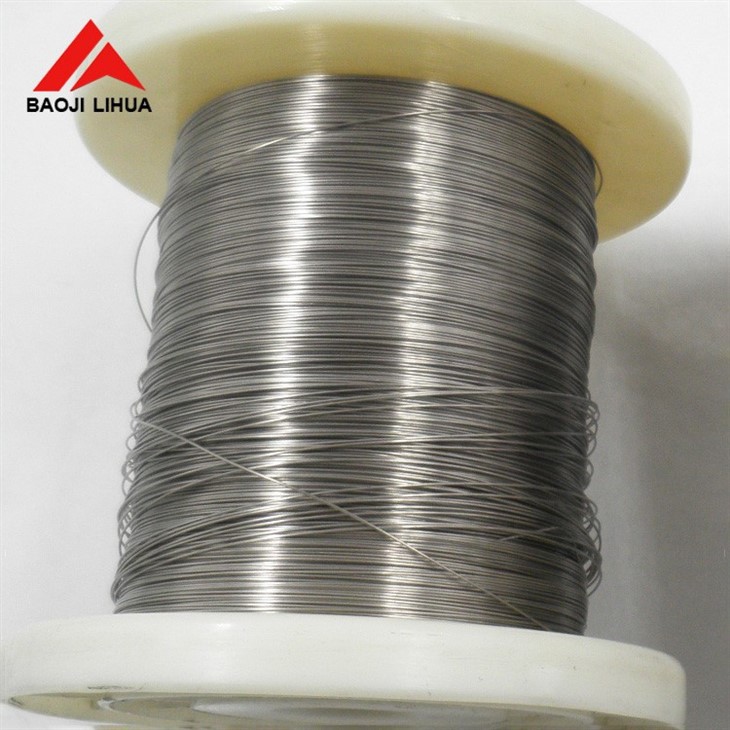

AWS A5.16 Bending Titanium Wire Spool Gr1

AWS A5.16 Bending Titanium Wire Spool Gr1

AWS A5.16 Bending Titanium Wire Spool Gr1

Product Name: Titanium Weld Wire
Standard: AWS A5.16
Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12
Unit Price: $21.5usd/kg-$60usd/kg
Shape: Straight, Spool, Coil
Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc.
Surface: Pickling,polishing
MOQ:10kgs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium wire manufacturer

Send Inquiry

Chat Now

Product Introduction

Standard	ASTM B348, ,ASTM SB348,ASTM B863,AWSA5.16, ASTM F67, ASTM F136
Material	GR1 GR2 GR3 GR4 GR5 GR7 GR9 GR12 Titanium Alloy and pure titanium, Titanium Nickel Shape Memory Alloy Wires
Color	Matal gray
Shape	Straight , spool ,coil
Size	0.5-4.0 (mm)
Surface	pickling, polished, bright finish, etc.
Application	Structural parts wire: mainly used for structural parts and fasteners; Welding wire:mainly used for the electrode material and welding materials Medical wire
Package	Ply-wooden case, carton box,As customer's requirement

ASTM Base Metal Grade	Base metal		Normal composition	Recommended Filler Metal
	UTS(min.) ksi[Mpa]	YS(min.) ksi[Mpa]
Grade 1	35[240]	20[138]	Unalloyed Ti CP1	ERTi-1
Grade 2	50[345]	40[275]	Unalloyed Ti CP2	ERTi-2
Grade 4	80[550]	70[483]	Unalloyed Ti CP4	ERTi-4
Grade 5	130[895]	120[828]	Ti 6AL-4V	ERTi-5
Grade 7	50[345]	40[275]	Ti 0.15Pd	ERTi-7

AWS	CHEMICAL SPECIFICATIONS
AWS A5.16	UNS	C	O	N	H	I	Al	V	Pd
	Number
ERTi 1	R50100	0.03	0.03-0.10	0.012	0.005	0.08	-	-	-
ERTi 2	R50120	0.03	0.08-0.16	0.015	0.008	0.12	-	-	-
ERTi 4	R50130	0.03	0.08-0.32	0.025	0.008	0.25	-	-	-
ERTi 5	R56400	0.05	0.12-0.20	0.03	0.015	0.22	5.5-6.7	3.5-4.5	-
ERTi 7	R52401	0.03	0.08-0.16	0.015	0.008	0.12	-	-	0.12-0.25

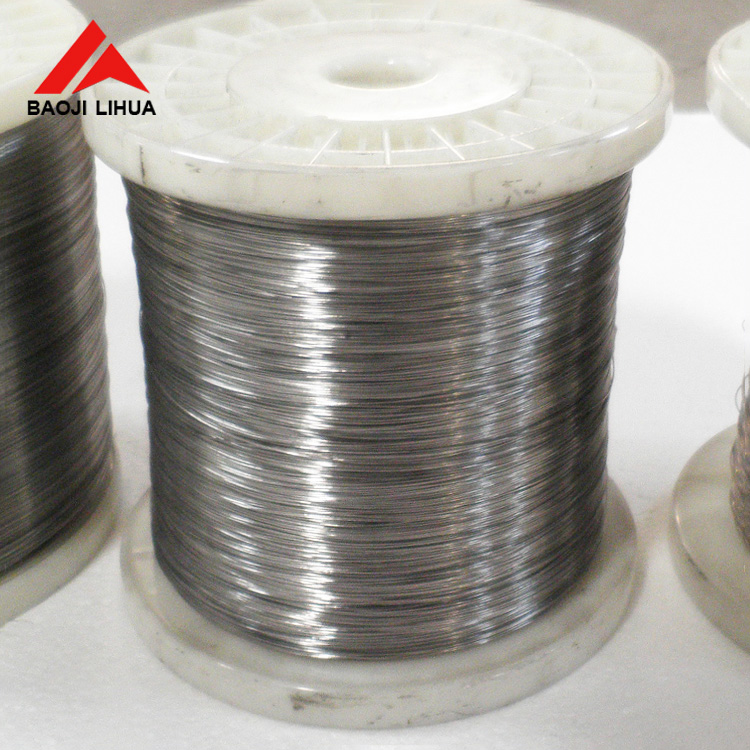

product-1-1

Gr2 Raw Titanium Wire Corrosion Resistance 3mm

Pure Titanium Welding Wire ErTi2 For Medical
