Titanium Tubes for Heat Exchangers
Product Name: Titanium Pipe
Standard: ASTM B338
Material: Gr1, Gr2
Unit Price: $25usd/kg-$40usd/kg
Type: Welded/Seamless
Shape: Round
Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc.
Wall Thickness: 0.5-3.0mm
Length: Max 12000mm
Surface: Bright
Standard: ASTM B338
Material: Gr1, Gr2
Unit Price: $25usd/kg-$40usd/kg
Type: Welded/Seamless
Shape: Round
Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc.
Wall Thickness: 0.5-3.0mm
Length: Max 12000mm
Surface: Bright
Send Inquiry
Chat Now
Product Introduction
Material: Gr1, Gr2
Standard: ASTM B338
Application: heat exchanger
Size: OD9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc., WT0.5-3.0mm , L Max 12000mm
Surface: Polishing, Pickling
Common Sizes of Titanium Tubes for Heat Exchangers
| OD | WT | L |
| 12.7 | 1.0 | 4000 |
| 15.9 | 0.5 | 6000 |
| 15.9 | 0.7 | 3000 |
| 19.1 | 0.7 | 6000 |
| 19.1 | 0.7 | 7000 |
| 19.1 | 1.2 | 4000 |
| 19.1 | 1.4 | 5500 |
| 19.1 | 1.4 | 6000 |
| 19.1 | 1.4 | 4000 |
| 19.1 | 1.5 | 4000 |
| 21.7 | 3.0 | 4000 |
| 25.4 | 0.5 | 6000 |
| 25.4 | 1.0 | 4000 |
| 25.4 | 1.2 | 4000 |
| 25.4 | 2.0 | 4000 |
| 27.2 | 2.0 | 4000 |
| 31.75 | 1.2 | 6000 |
| 34.0 | 2.0 | 4000 |

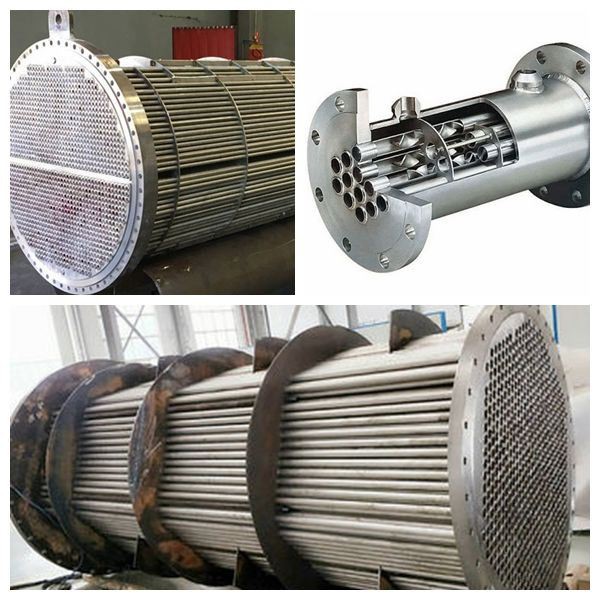

Detailed Images of Titanium Tubes for Heat Exchangers
All Tests
Visual Quality check
Dimension Check
Peneumatic test /Hydrostatic test
10% UT test
Chemical composition
Tensile test
Flaring test/ flattening test
Heat treatment
