Product Introduction

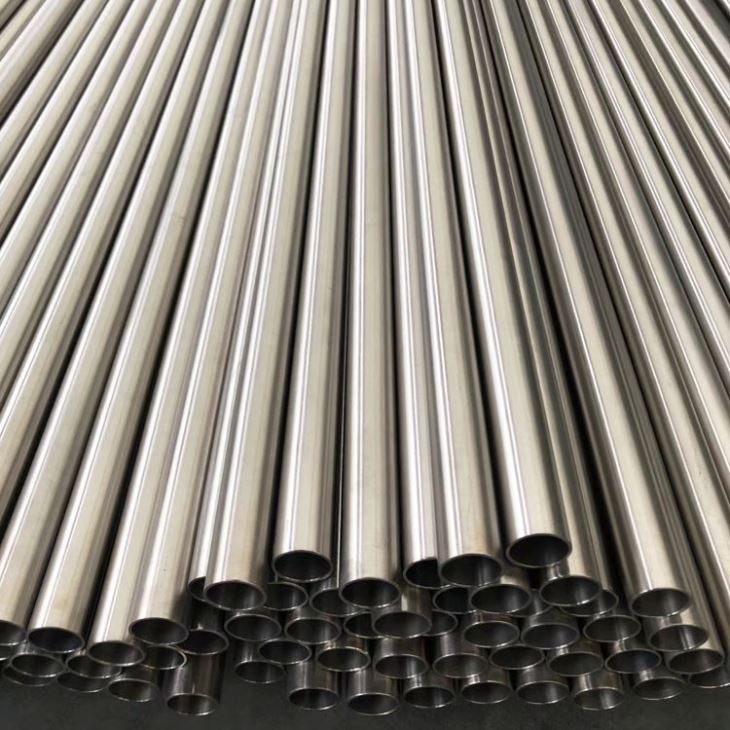

Titanium tube for heat exchange

Titanium tubes are widely used in heat-exchange equipment, such as tube type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condensator, evaporator and transmission pipeline.

Product Information

Material: Gr1, Gr2

Standard: ASTM B338

Application: Heat Exchanger

Size: OD9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc., WT0.5-3.0mm , L Max 12000mm

Wall thickness tolerance: +/- 10%
Length tolerance: +3.2mm

Type: Welded/Seamless

Surface: Polishing, Pickling

Common Sizes of Titanium Tube for Heat Exchange

OD	WT	L
12.7	1.0	4000
15.9	0.5	6000
15.9	0.7	3000
19.1	0.7	6000
19.1	0.7	7000
19.1	1.2	4000
19.1	1.4	5500
19.1	1.4	6000
19.1	1.4	4000
19.1	1.5	4000
21.7	3.0	4000
25.4	0.5	6000
25.4	1.0	4000
25.4	1.2	4000
25.4	2.0	4000
27.2	2.0	4000
31.75	1.2	6000
34.0	2.0	4000

Test Report of Titanium Tube for Heat Exchange

Titanium Tube for Heat Exchange

Chemical Requirements

	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal

Tensile Requirements of Titanium Tube for Heat Exchange

Grade	Tensile strength(min)		Yield strength(min)		Elongation(%)
Grade	ksi	M Pa	ksi	M Pa	Elongation(%)
1	35	240	20	138	24
2	50	345	40	275	20
