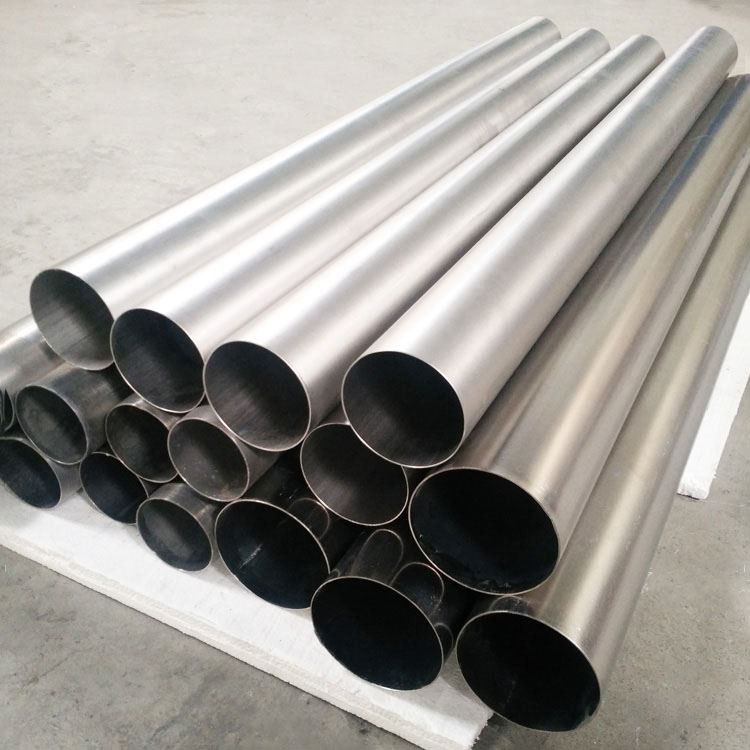

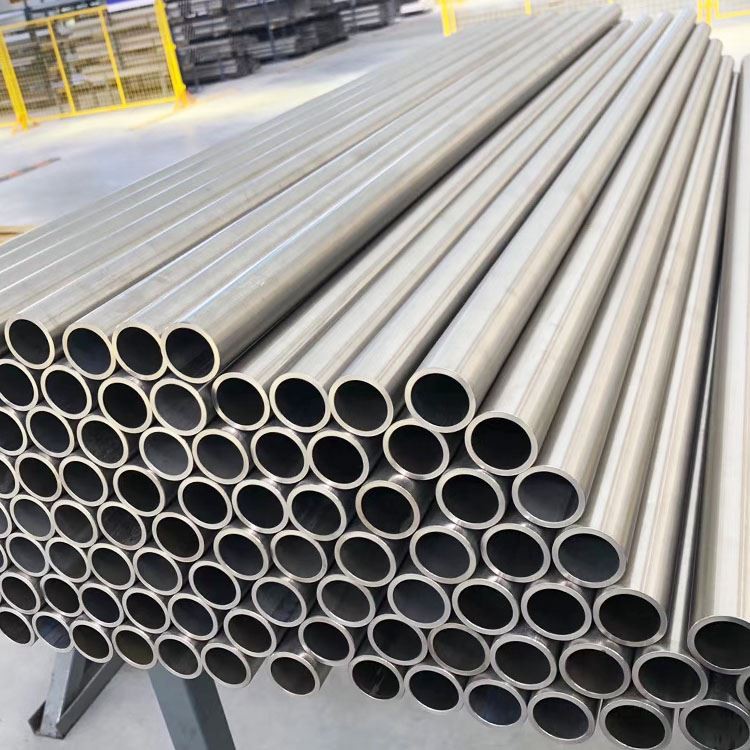

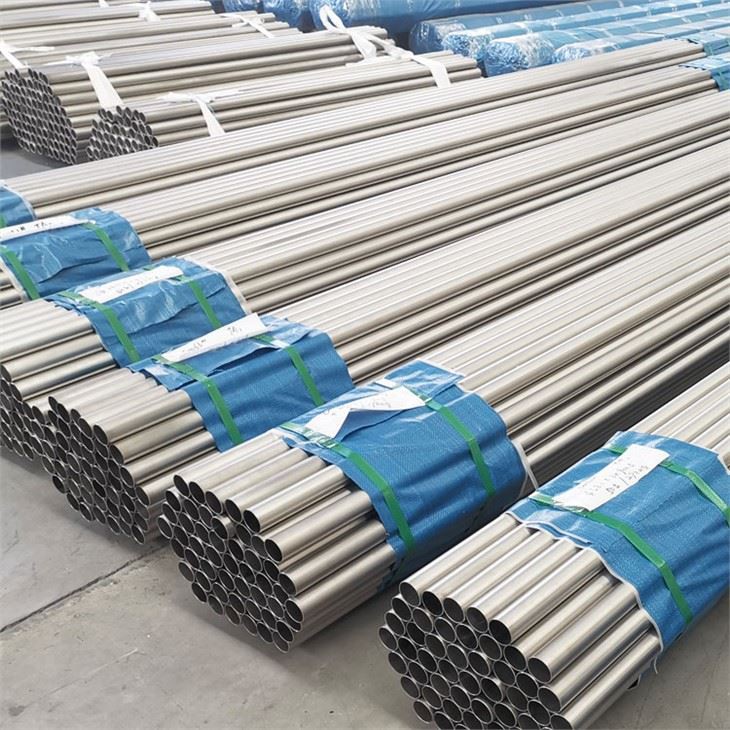

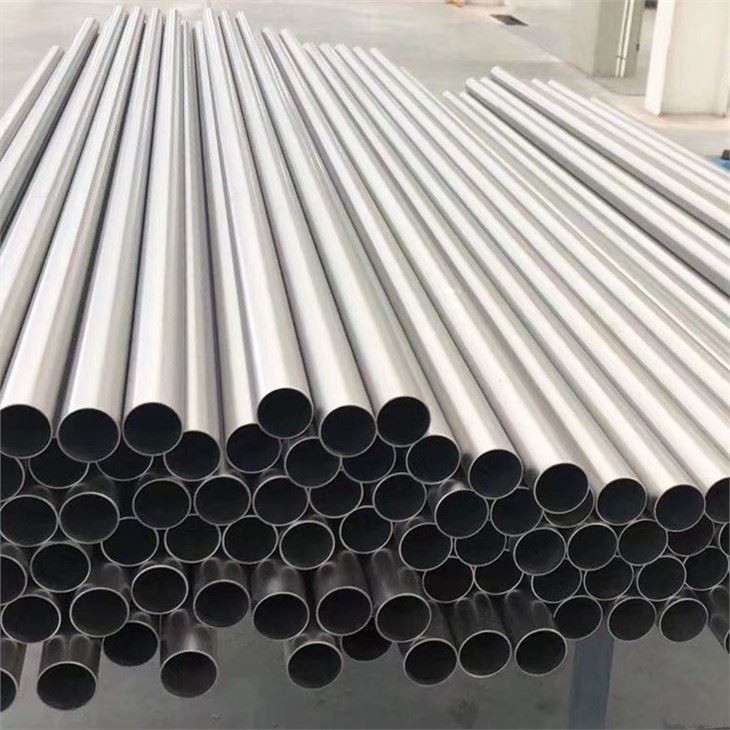

B861 Titanium Pipe

B861 Titanium Pipe

Product Name: B861 titanium pipe Standard: ASTM B338 / ASME SB338, ASTM B337 / ASME SB337, ASTM B861 / ASME SB861,NACE MR175-94 Material: Gr1 Gr2 Gr3 Gr7 Gr9 Gr12 Unit Price: $16.5usd/kg-$35.5usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 3-114mm or as customized Wall Thickness: 0.5-7mm or as customized Length: Max 12000mm Surface: Bright

Send Inquiry

Chat Now

Product Introduction

Product name:Titanium pipe

Specifications:

ASTM B338 / ASME SB338, ASTM B337 / ASME SB337, ASTM B861 / ASME SB861,NACE MR175-94

Material:Gr1 Gr2 Gr3 Gr7 Gr9 Gr12

O.D. , W.T & Length Range:

Dimensional Capabilities:
Cold Reduced Tubing (lengths up to 708″/18000mm)
O.D.		Wall
0.118″ - 4.5″	3 mm - 114.3 mm	0.020″ - 0.433″	0.5 mm - 11 mm
Hot Rolled Tubing (lengths up to 157″/4000 mm)
O.D.		Wall
2.756″ - 3.937″	70 mm - 100 mm	0.354″ - 1.181″	9 mm - 30 mm
Hot Extruded Tubing (lengths up to 240″/6096 mm)
O.D.		Wall
1.968″ - 6.625″	50 mm - 168 mm	0.276″ - 1.378″	7 mm - 35 mm

Chemical Composition:

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr. 1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	Bal
Gr. 2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	Bal
Gr. 3	0.05	0.08	0.015	0.30	0.35	/	/	/	/	/	Bal
Gr. 7	0.03	0.08	0.015	0.30	0.25	/	/	0.12-0.25	/	/	Bal
Gr. 9	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0	/	/	/	Bal
Gr. 12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2-0.4	0.6-0.9	Bal

Baoji Lihua Non-ferrous metals Co., Ltd. produces titanium welded pipe in accordance with ASTM/ASME standards in Grade 2 and 7 for the construction of titanium process equipment. Material is produced to customer order requirements in a diameter range of 3" IPS to 12" IPS in Schedules 10 and 40. Additional specification such as DIN and PED and customer specific specifications can be quoted following a review by the quality assurance and process engineering departments.
