Titanium Pipe Coil
Grade: Gr1, Gr2,Gr3 ,Gr7,Gr9,Gr12
Standard: ASTM B338/ASME B338
Dimention: OD 3-88.9mm*WT0.5-5mm*L
Shape: Coiled Tubes, "U" Shape,Or as customer’s drawing
Application: Pharmaceutical Equipment; Chemical Equipment,Sea Water Equipment etc.
MOQ:3PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium tube/pipe manufacturer
Product name.:Titanium coil pipe,titanium coil tube,titanium tube coil,titanium coil tubing
Type:Seamless, welded
Technique: Cold Drawn
Material: Titanium Gr1, Gr2,Gr3 ,Gr7,Gr9,Gr12
Standard: ASTM B338/ASME B338
Surface Treatment:Polish
Dimention: OD 3-88.9mm*WT0.5-5mm*L
Shape and dimension: As per the drawing ;as Per The Clients
Usage:Pipeline Transport
Section Shape:Round
Origin:China
Following is the material grade of Titanium Coiled Tubes that we could do:
Ti CP - Grade 1 R50250 3.7025
Ti CP - Grade 2 R50400 3.7035
Ti CP - Grade 3
Ti-0.7Pd Grade 7
Ti 3Al2.5V Grade 9 R56320 3.7194
Ti 0.3Mo 0.8Ni Grade 12
Chemical composition | |||||||||||
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
Grade 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | Bal |
Grade 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | ||||||
Grade 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | ||||||
Grade 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12-0.25 | / | / | Bal |
Grade 9 | 0.05 | 0.08 | 0.015 | 0.25 | 0.12 | 2.0-3.5 | 1.5-3.0 | ||||
Grade 12 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | / | / | / | 0.2-0.4 | 0.6-0.9 | Bal |

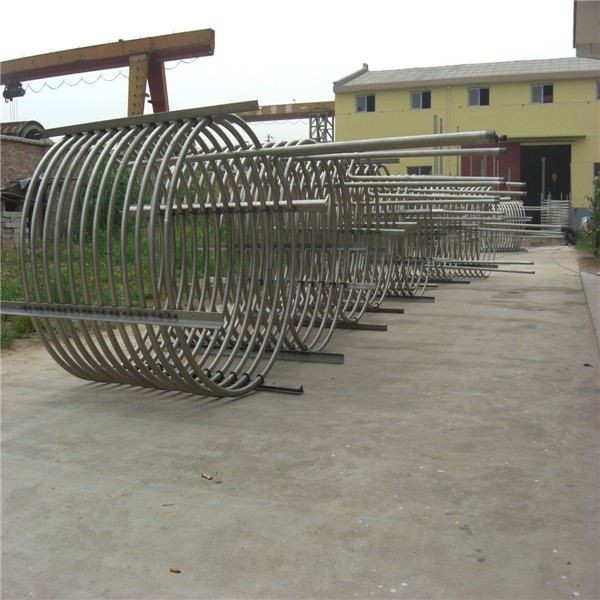

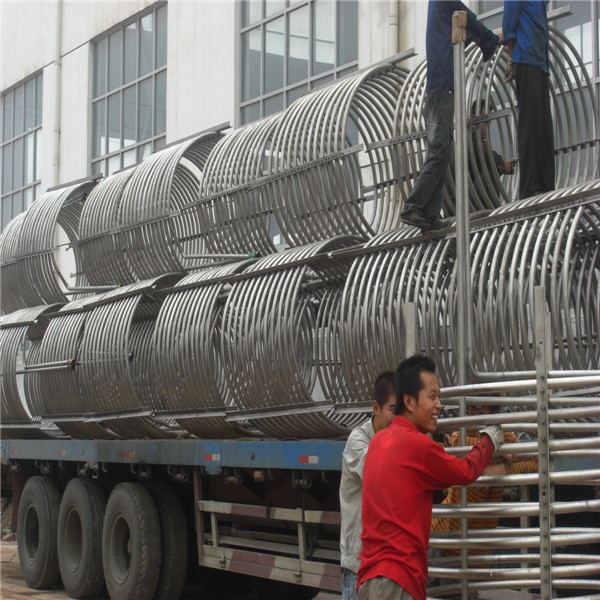

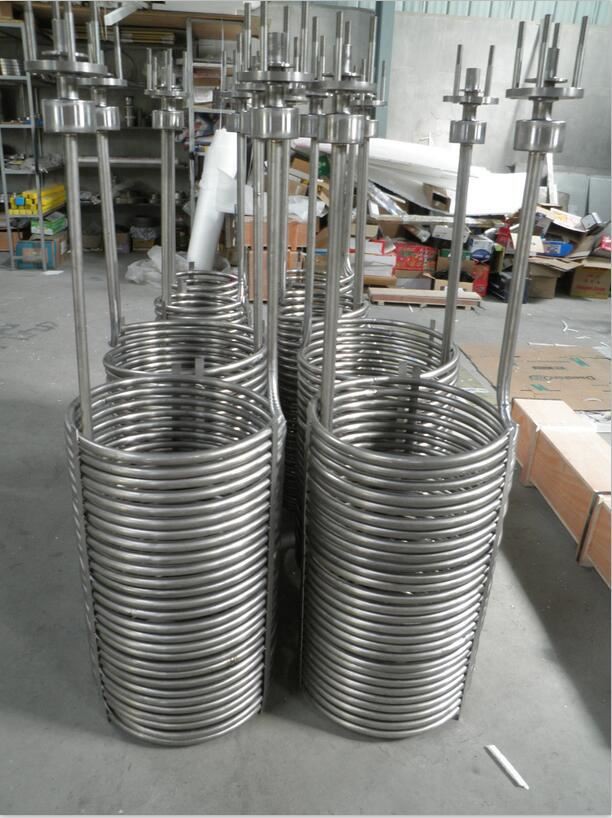

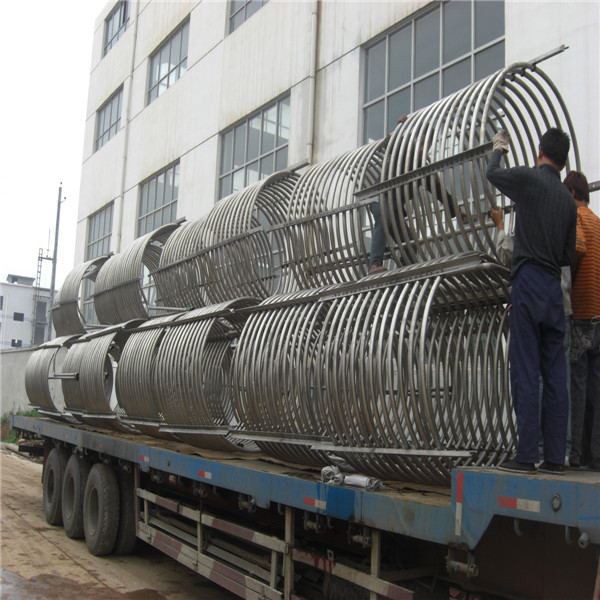

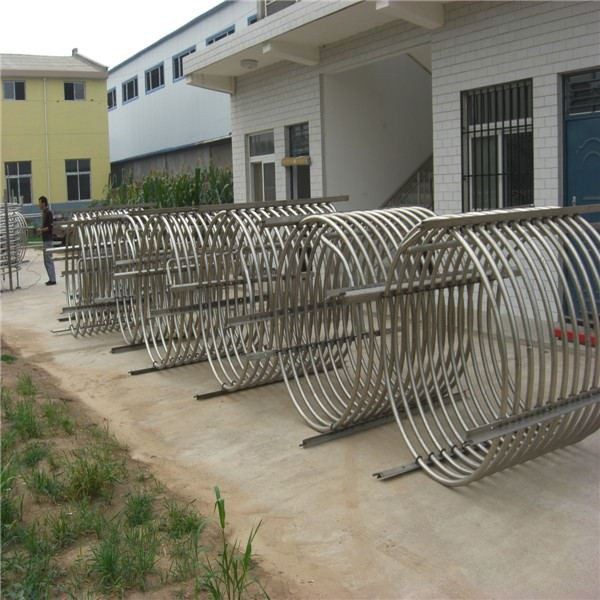

Detailed Images:
Our titanium Titanium pipe coil/ titanium coil tube are widely used in a numerous petrochemical applications, including: Down hole tubes Subsea umbilical's Process constructions General control system Steam supply lines Gas transport lines Instrumentation The pressure that we could meet is as follows: 50MPA— 130MPA .

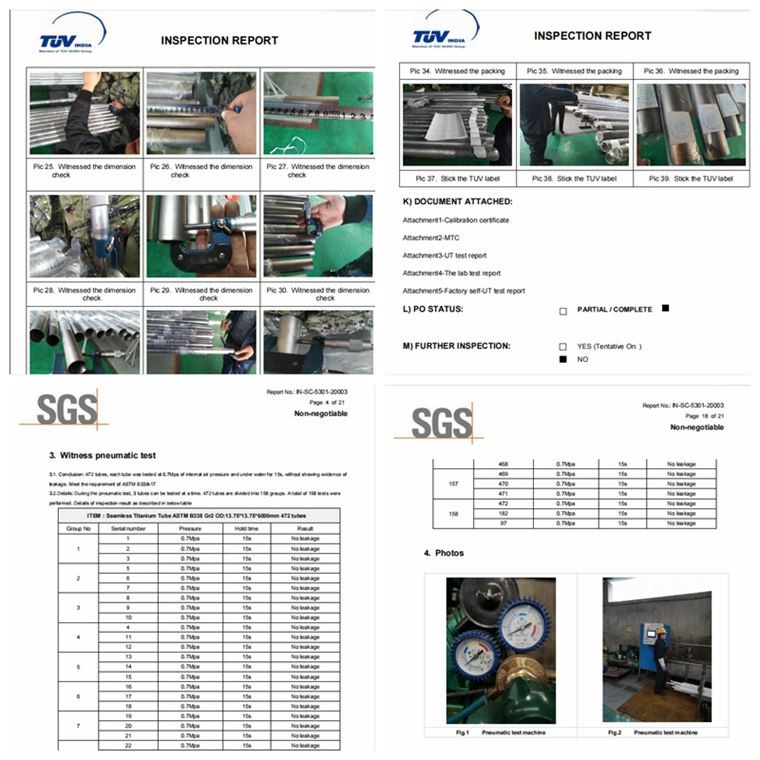

The third party inspections of titanium tubes/ pipes:

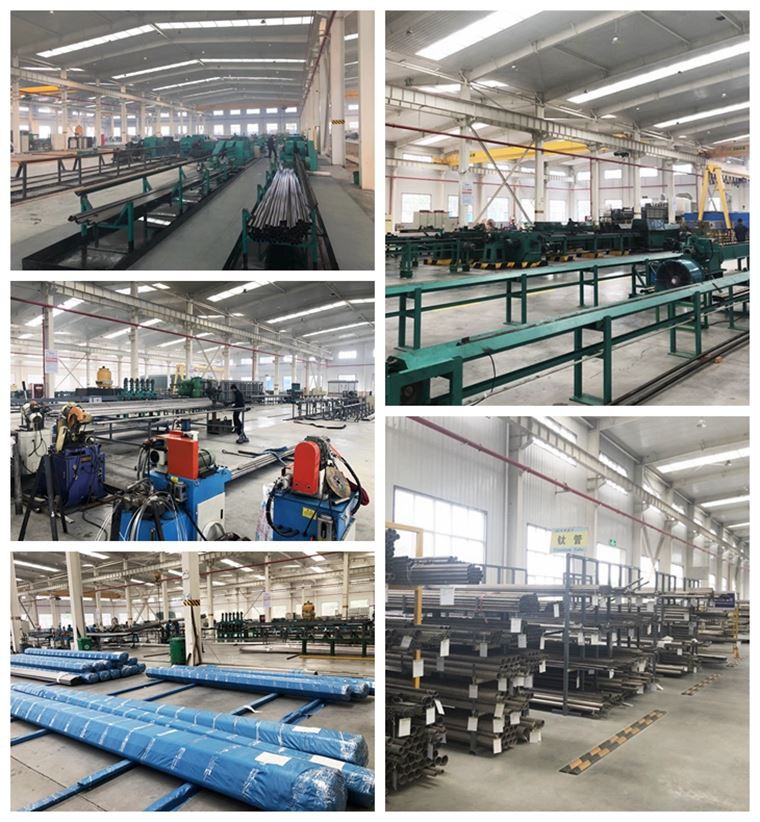

About our company:
