Titanium Gr 2 Pipe

Titanium gr 2 pipe has low density, light weight, high strength, good corrosion resistance, mechanical properties and weldability, making it used in many fields: used in chemical equipment, automobile exhaust pipe, offshore power generation equipment, seawater desalination equipment, Ship parts, electroplating industry and other industries. The corrosion resistance is 15% stronger than stainless steel, and the service life is about 10% longer than stainless steel.

Material: Titanium Gr2

Standard: ASTM B861, ASTM B862, ASTM B338

Specifications: Outer diameter (Φ2-Φ200) × wall thickness (0.2-15) × length Max16000 mm

Technique:Rolled

MOQ:10KGS

Color: Natural

Certificate: En10204/3.1

Dimensional Inspection:

Chemical composition ,Physical properties ,Ultrasonic Inspection ,Hydrostatic test etc.

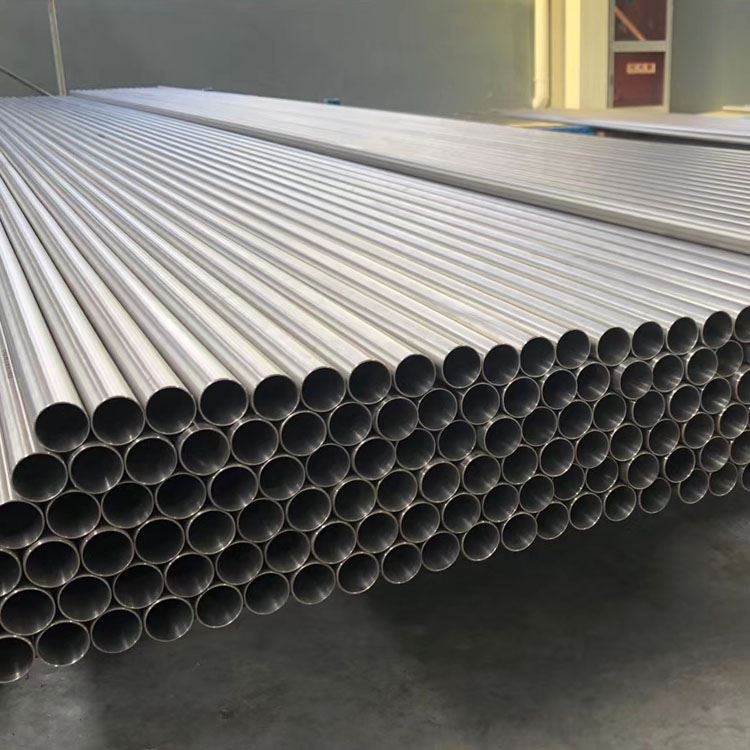

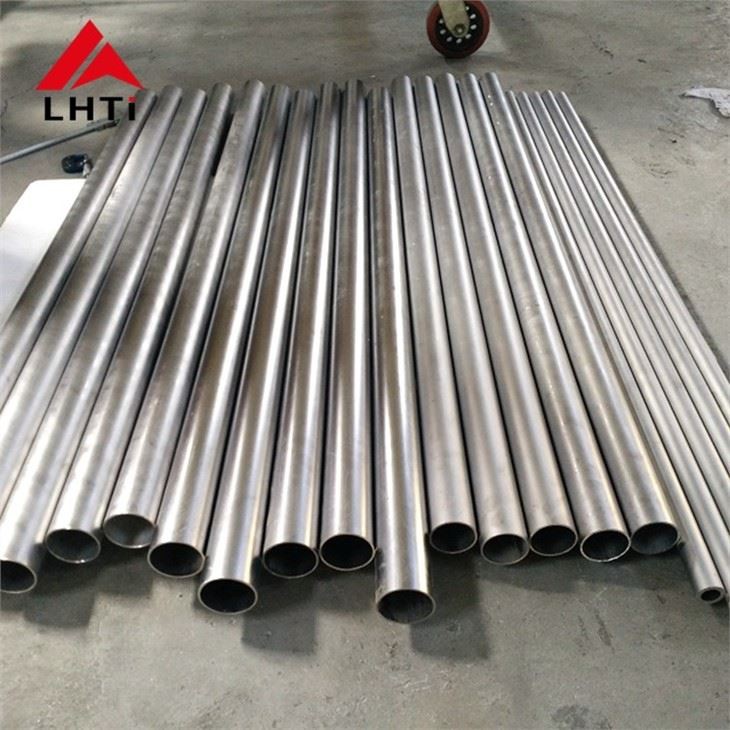

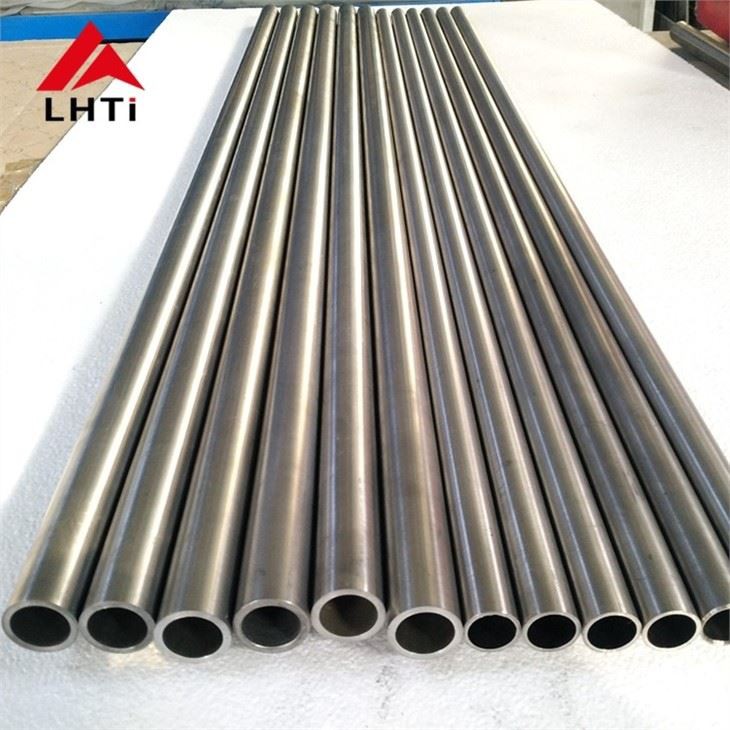

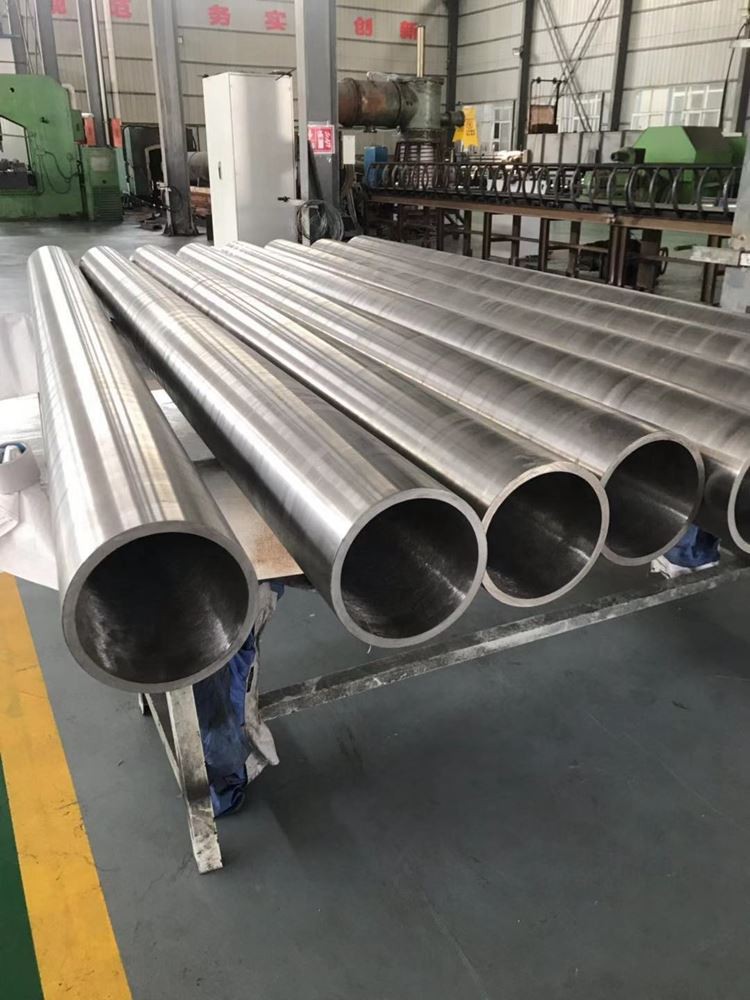

Detailed images:

Precautions for installation and transportation of titanium pipes and titanium pipe fittings:

1. Titanium and titanium alloy pipe installation Titanium and titanium alloy pipe manufacturers should take care not to contact or collide with ferrous materials during transportation and storage.

2. The cutting of titanium and titanium alloy pipes should be made by mechanical methods, and the cutting speed should be low; when titanium pipes are cut or reground with grinding wheels, special grinding wheels should be used; flame cutting is not allowed. The groove should be processed by mechanical methods.

3. Inert gas shielded welding or vacuum welding should be used for welding titanium alloy welded pipes. Oxygen-acetylene welding or carbon dioxide gas shielded welding should not be used, and ordinary manual arc welding should not be used.

4. When installing titanium and titanium alloy pipes, it is not allowed to use iron tools and materials to knock and squeeze; rubber plates or soft plastic plates should be inserted between the carbon steel supports and hangers and the titanium and titanium alloy pipes to make them No direct contact with titanium and titanium alloy pipelines; when the titanium and titanium alloy pipelines pass through walls and floors, casings should be installed, the gap should not be less than 10mm, and insulation should be filled. The insulation should not contain iron impurities.

5. Titanium and titanium alloy pipes should not be directly welded to other metal pipes. When connection is required, a lap joint flange connection can be used. The non-metallic gaskets used are generally rubber gaskets or plastic gaskets, and the chloride ion content should not exceed 25ppm.

The third party inespction test report:

Packaging and shipping:

About our company:
