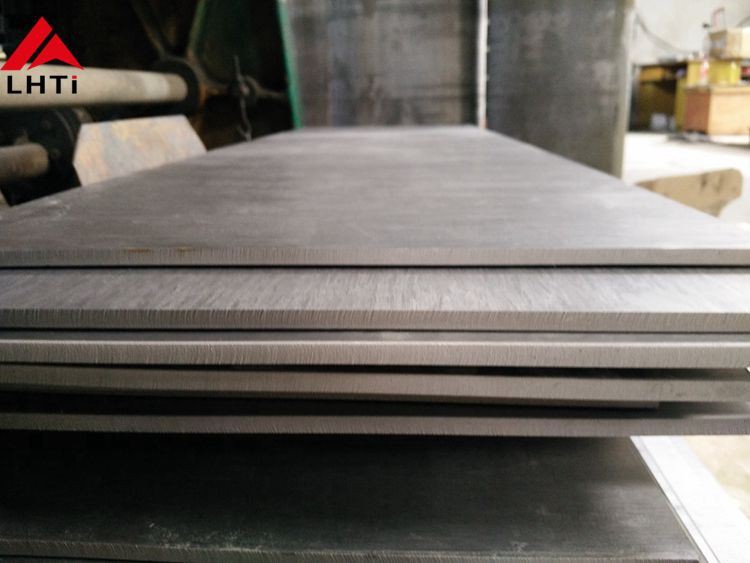

Ti6Al4V titanium sheet

Introduction of Ti6Al4V titanium sheet:

GR5 is one of the most widely used titanium alloy. It has the advantages of pure titanium: light weight, non-toxic, corrosion resistance, and also has better physical properties than pure titanium:tensile strength >=895 MPa, yield strength BBB>830 MPa, hardness BBB2 =>32. Widely used in military industry, medical industry,aviation,motor vehicle industry, bicycle industry, machinery industry etc.

Titanium Grade 5 Overview:

Composition: Ti6Al4V is an alpha-beta titanium alloy composed of 90% titanium, 6% aluminum, and 4% vanadium by weight. This alloy is one of the most commonly used titanium alloys due to its excellent combination of properties.

Strength: Ti6Al4V offers a high strength-to-weight ratio, comparable to many steels but with approximately half the density of steel. This makes it suitable for applications where weight reduction is critical without compromising on strength.

Corrosion Resistance: It exhibits good resistance to corrosion in a wide range of environments, including seawater and oxidizing acids. This property, combined with its biocompatibility, makes it suitable for medical implants and aerospace applications.

Heat Resistance: Ti6Al4V maintains its mechanical properties at elevated temperatures, up to about 400°C (752°F). This heat resistance makes it suitable for applications involving high temperatures.

Product Detailed Information:

Product name:Ti6Al4V titanium sheet

Grades: Titanium Gr5

Thickness: δ1.0mm, 3.0mm, 6.0mm, 10mm, 12mm, 15mm 16mm, 20mm,25mm,30mm,35mm etc.

Width:200-3000mm

Length:500-6000mm

Standard: ASTM B265 AMS 4911

Technique: Cold rolled, hot rolled

Supply status: Annealed(M)

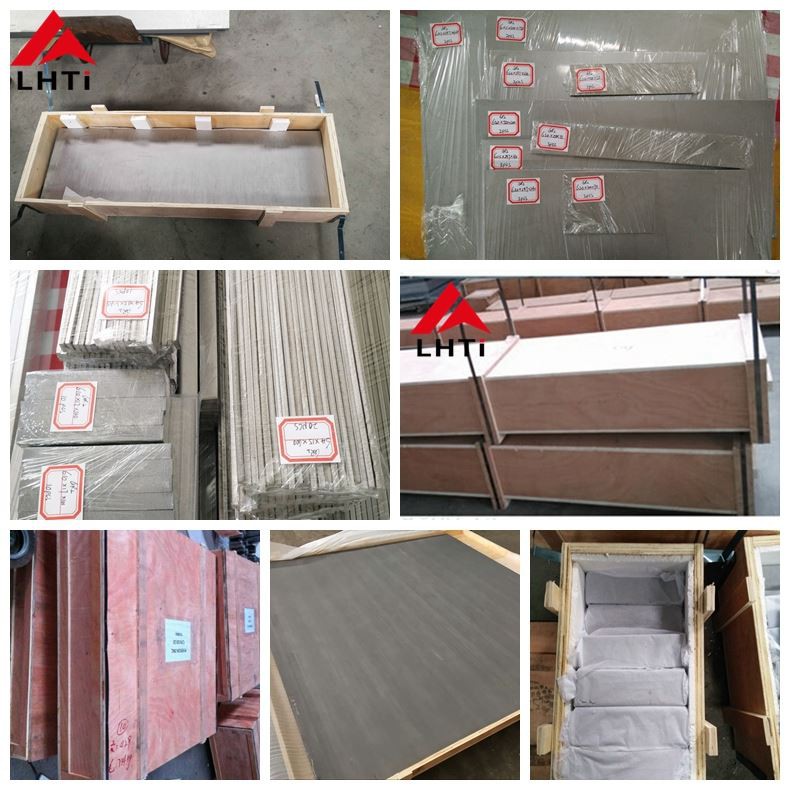

Package: Standard export packaging:inside pearl cotton and foam film to protect the goods, outside fumigation-free plywood case

MTC: EN10204.3.1 certificate

MOQ : 10 kgs

Applications : Petroleum ,chemical industry, Marine etc.

Production Process: Sponge-compacting-electrodes-melting-forging-slabds-hot-rolling-cold rolling-Pickling-titanium plate

Titanium Gr 5 Plate, Sheet & Coil Chemical Composition:

Titanium Gr 5 Sheets, Plates & Coils Mechanical Properties

Equivalent Grades for Gr 5 Titanium Sheets & Plates:

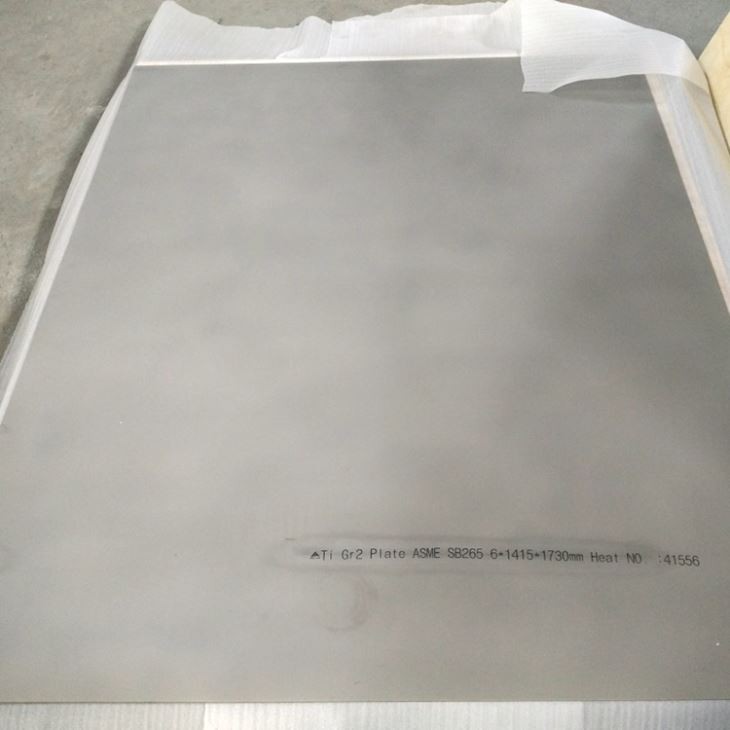

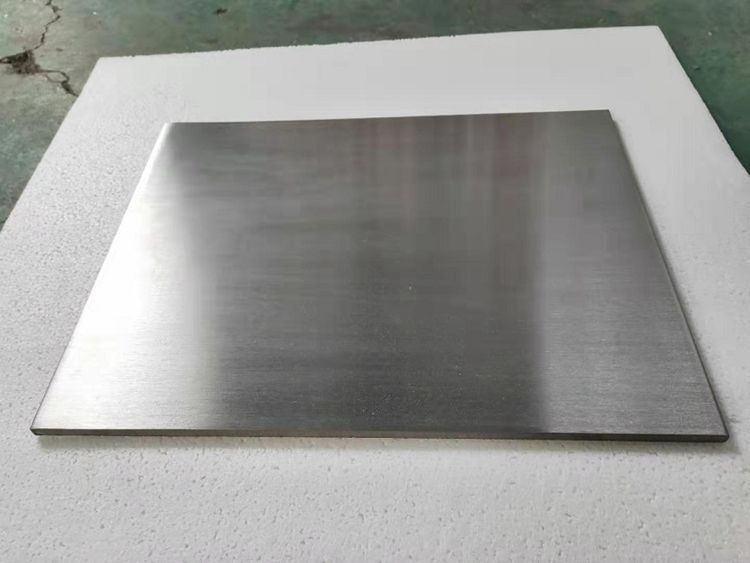

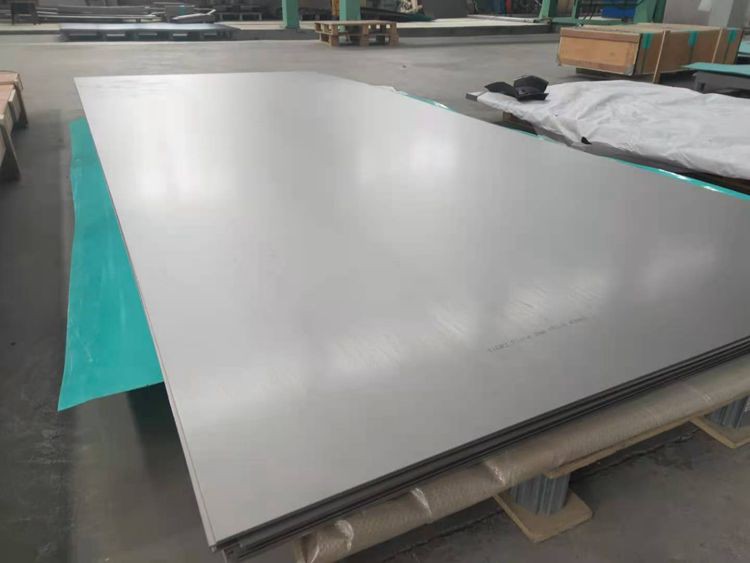

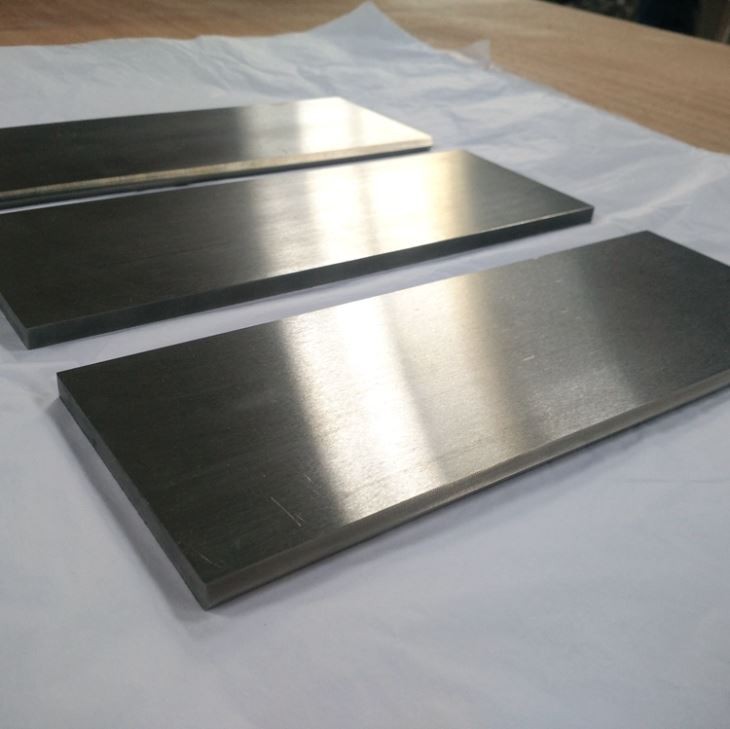

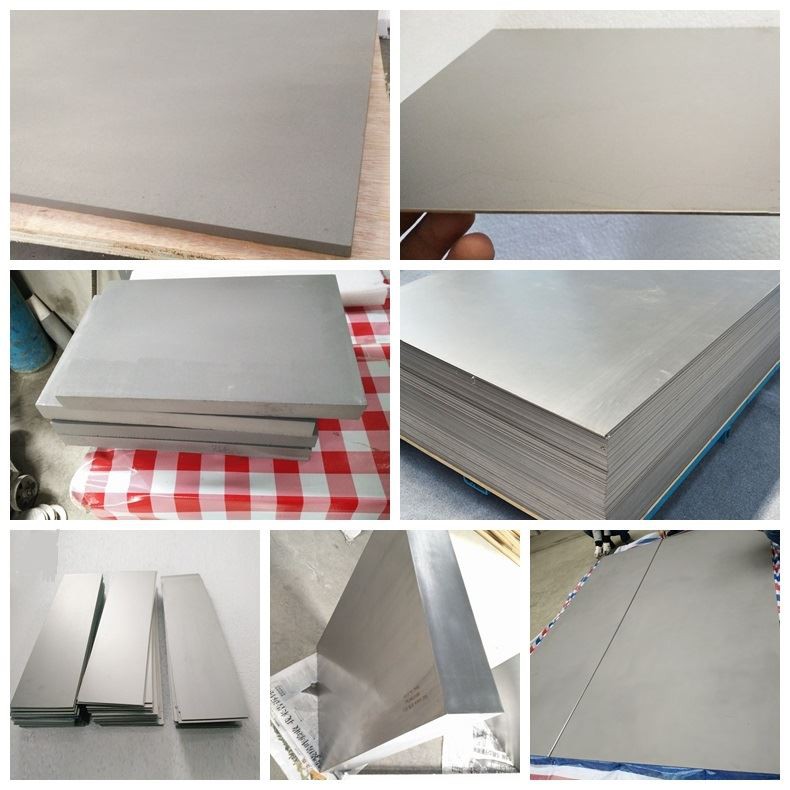

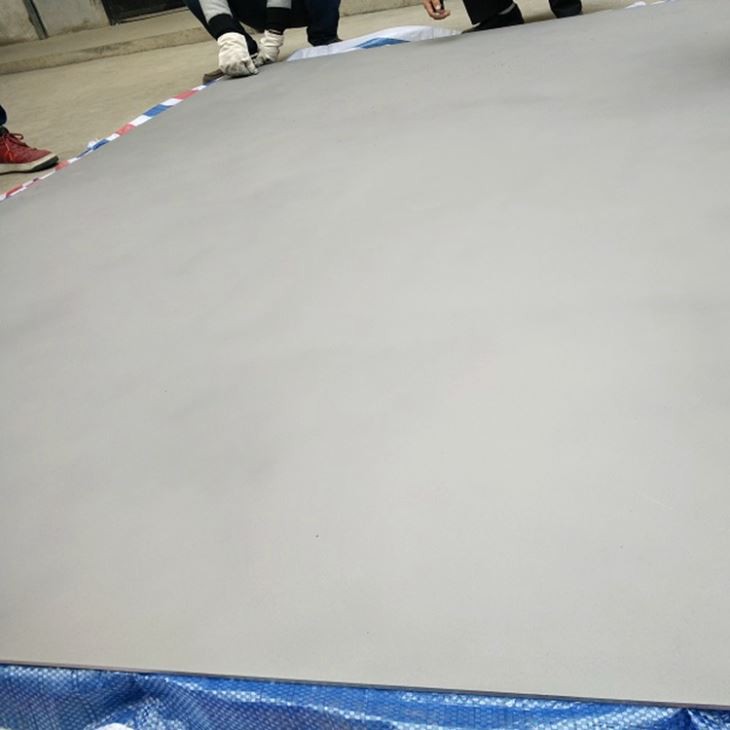

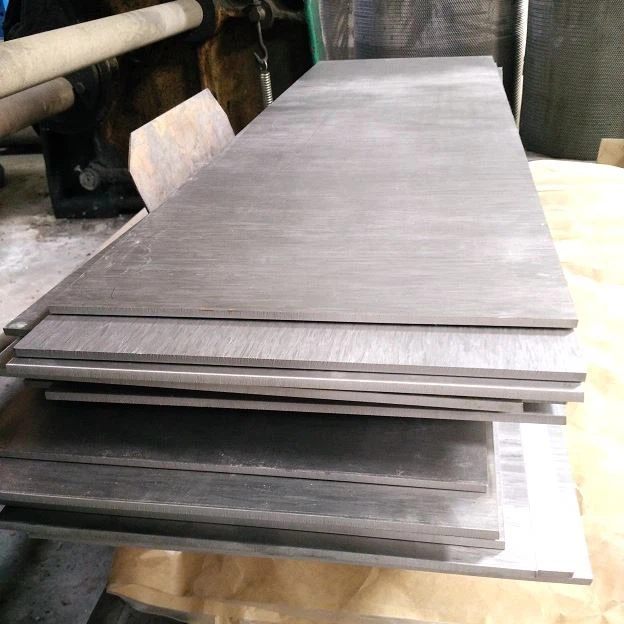

Detailed images of gr5 titanium sheet:

The applications of titanium sheet:

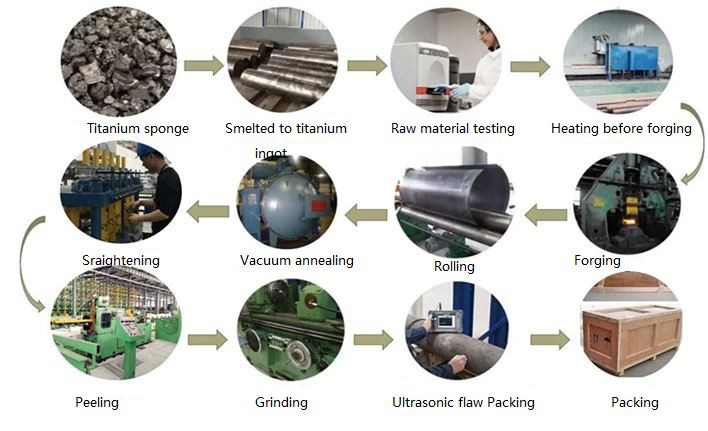

Production process of titanium sheet:

Quality supervision:

Starting from the sponge titanium composition inspection, the upper part.

Take samples of the middle and lower parts of the ingot for composition inspection and perform ultrasonic inspection. Perform non-destructive inspection to ensure the quality of the ingot. Physical performance. Test to ensure product performance.

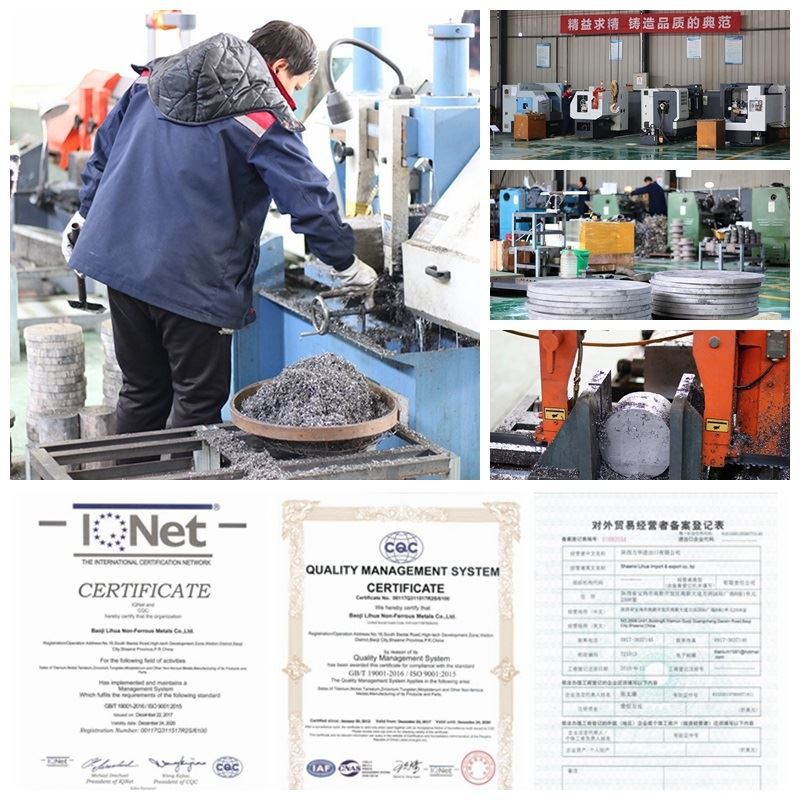

About our company:

Baoji Lihua Non-ferrous Metals co.,Ltd found in 2004 years, which is a lead titanium manufacturer in China, with more than 15 years production and export experience.

And our products involved in Industry, Chemical science, Medical industry etc.

Besides raw material and standard parts, we can also make customized titanium parts according to the specification or drawings you provided.

Applications of Ti6Al4V Titanium Sheet:

Aerospace: Ti6Al4V is extensively used in aerospace applications, including aircraft airframes, engine components, and landing gear parts due to its strength, lightweight nature, and ability to withstand high temperatures.

Medical: It is widely used in medical implants and prosthetics, such as hip stems, bone plates, and dental implants, due to its biocompatibility, corrosion resistance, and ability to bond with bone.

Marine: Ti6Al4V is used in marine applications where resistance to seawater corrosion and strength are essential, such as marine shafts, hulls, and propeller blades.

Industrial: It finds use in various industrial applications, including chemical processing equipment, where corrosion resistance and strength are critical.

Advantages of Ti6Al4V Titanium Sheet:

High Strength: Excellent strength-to-weight ratio, making it strong yet lightweight.

Corrosion Resistance: Resistant to corrosion in various environments, enhancing durability and longevity.

Biocompatibility: Suitable for medical implants and devices due to its compatibility with human tissue.

Heat Resistance: Maintains mechanical properties at elevated temperatures, expanding its application range.
