GR5 Titanium Sheet

Titanium plates are mainly used to make aircraft engine compressor components, followed by rocket, missile and high-speed aircraft structural parts. In the mid-1960s, titanium and its alloys have been used in general industry, for making electrodes in the electrolysis industry, condensers in power plants, heaters for petroleum refining and seawater desalination, and environmental pollution control devices. Titanium and its alloys have become a corrosion-resistant structural material. It is also used to produce hydrogen storage materials and shape memory alloys.

Features of GR5 Titanium Sheet

---

good weldability

High strength at low temperature

Excellent strength to weight ratio

good corrosion resistance

very high strength

Description	Titanium plate, Titanium sheet, Titanium coil
Material	Gr5 Ti6Al4V
Standard	ASTM B265,ASME SB265 ,AMS 4911，ASTM F136
Size	Cold rolled: Thick 0.02mm ~ 5mm * Wide 1500mm max * Long 2500mm max Hot rolled: Thick 5mm ~ 100mm * Wide 3000mm max * Long 6000mm max
Price term	Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU,etc
Payment term	TT,L/C,Wester Union,Paypal etc.
MOQ	10 kgs
Export to	Ireland,Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Canada,USA,Brazil,Thailand,Korea, Iran,India,Egypt,Oman,Dubai,Kuwait,Peru,South Africa,Russia,Malaysia,Chile,etc

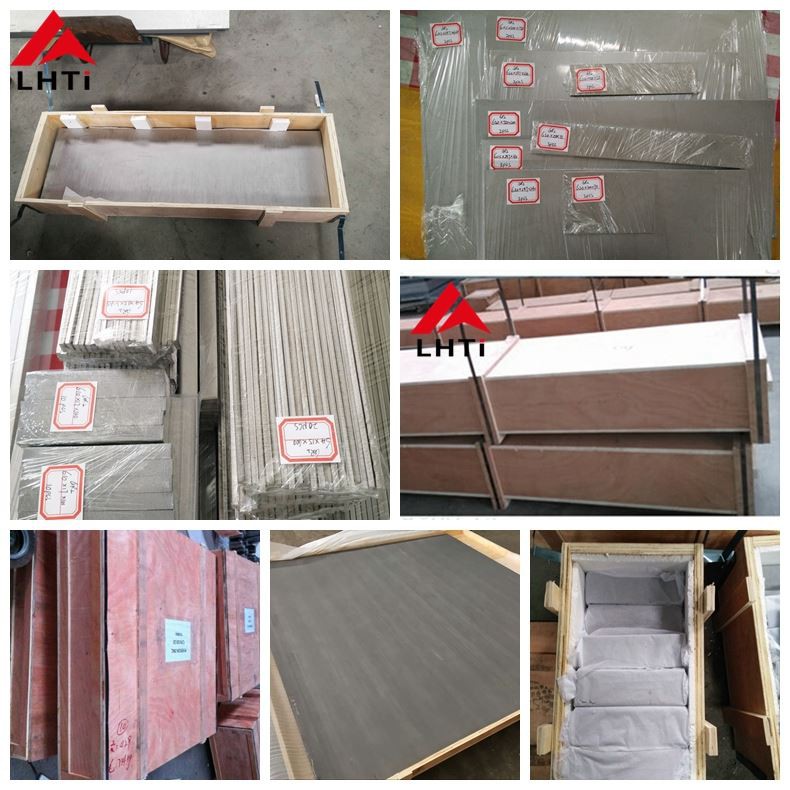

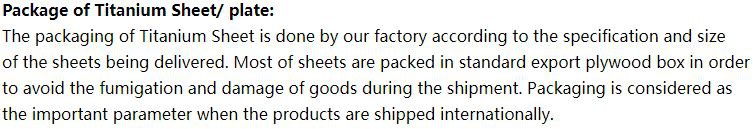

Package	Standard export package,suit for all kinds of transport ,or as required.
Container Size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)



Physical Properties (Min):

Grade	Tensile strength(min)	Tensile strength(min)	Yeild strength(min)	Yeild strength(min)	Elongation
	Ksi	Mpa	Ksi	Mpa	%
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	90	620	70	438	15

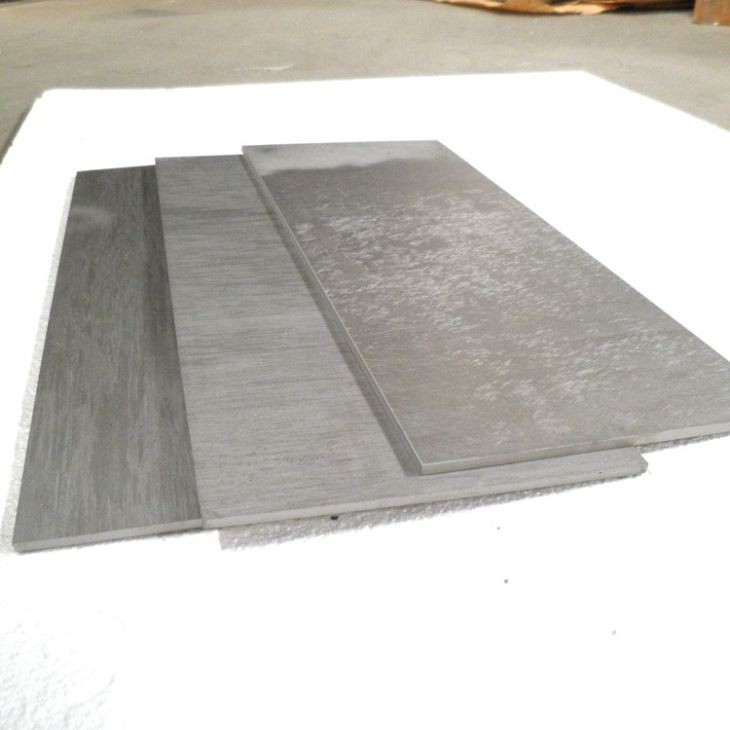

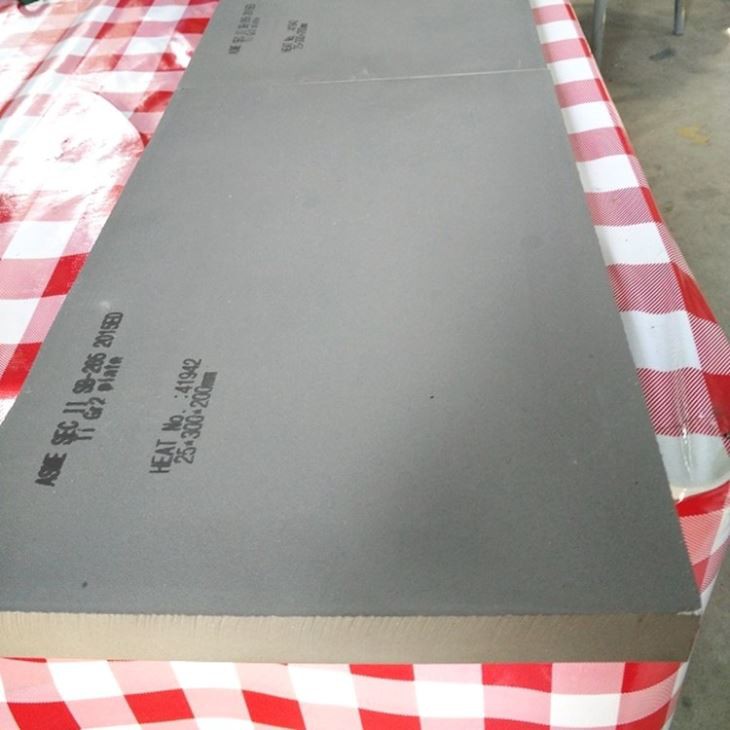

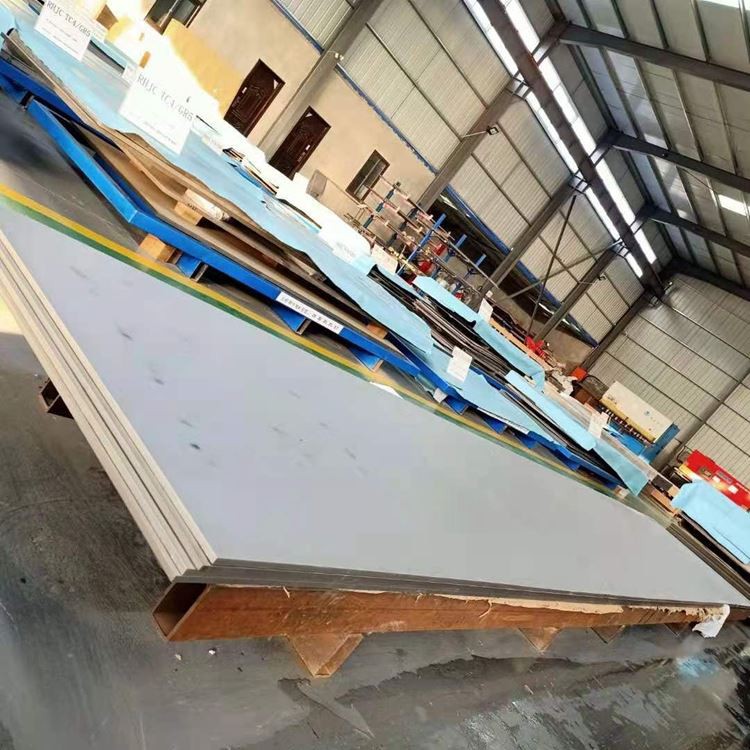

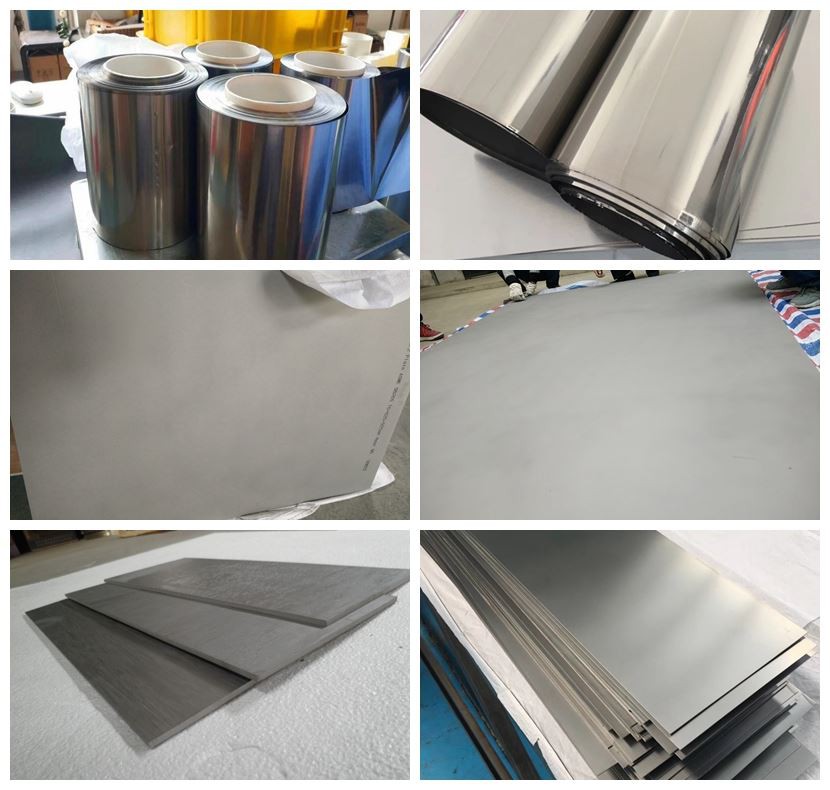

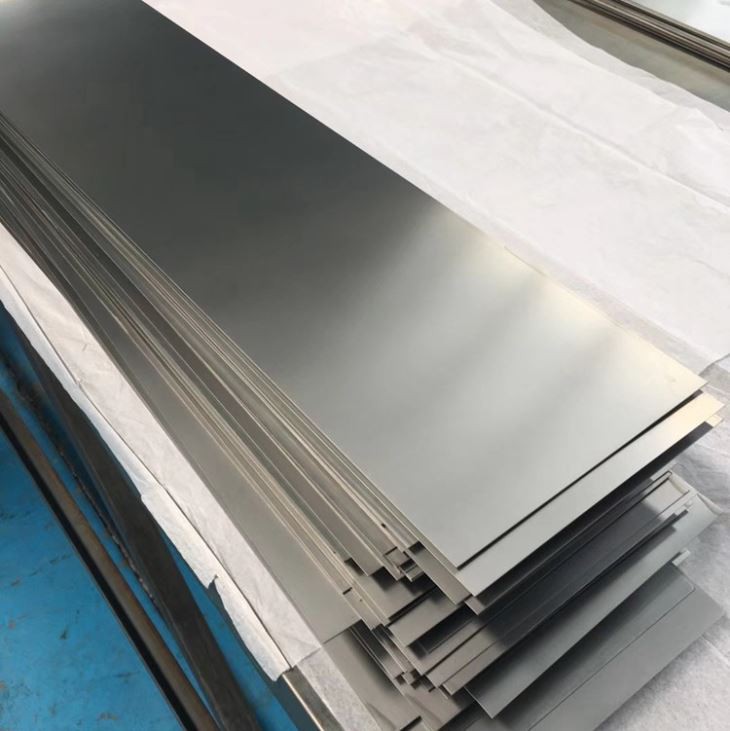

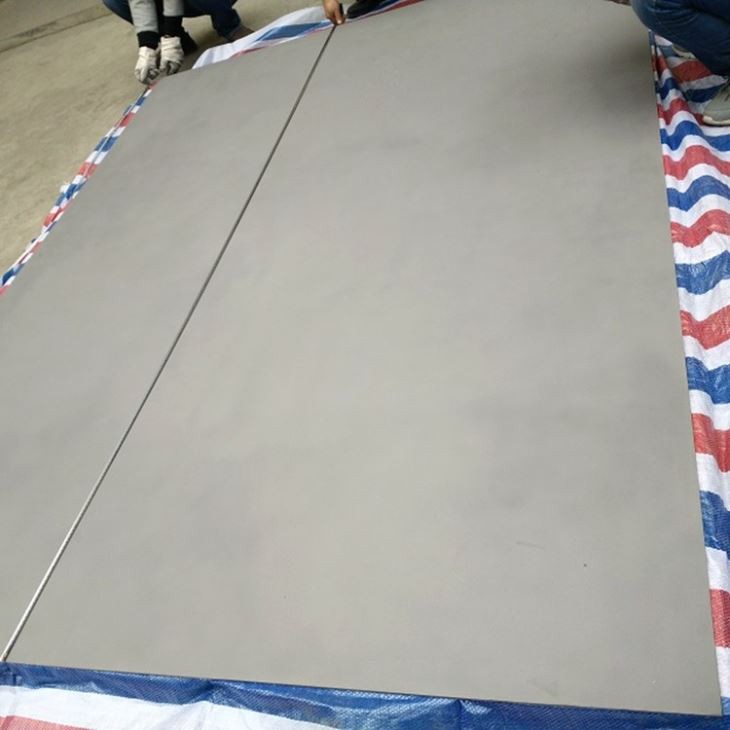

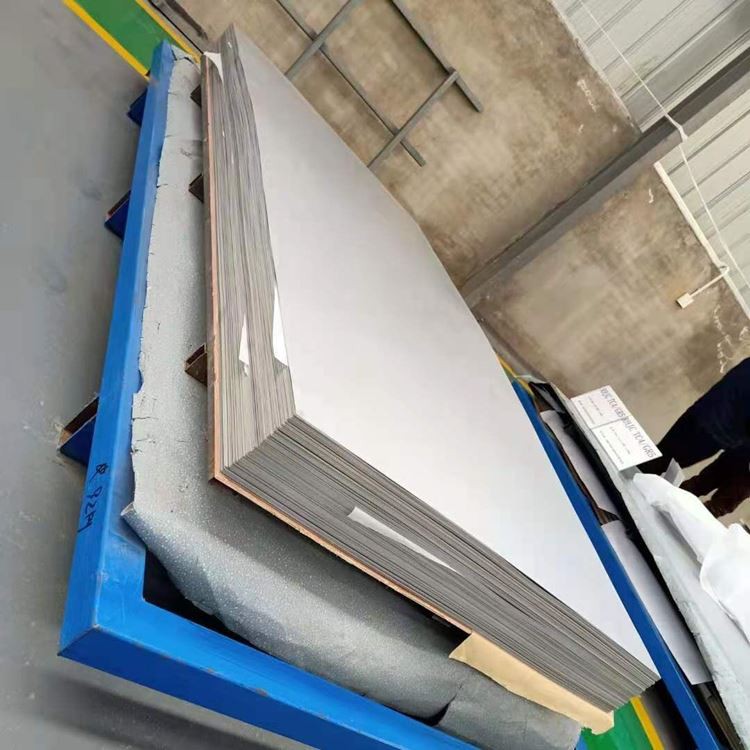

Detailed images:

What is GR5 Titanium Sheet?

---

Titanium alloy Gr 5 strip is considered an alpha-beta alloy. ASTM B265 is a specification that covers annealed titanium and titanium-based alloys fabricated in strip, sheet, and grade 5 titanium plate. Grade 5 titanium plate alloy metals covered by the Astm B265 specification are required to meet the specified chemical composition requirements. For example, the alloy used for Astm B265 Titanium Gr 5 cold rolled sheet is chemically composed of the following amounts of alloying material, namely - 6% aluminium and 4% vanadium, which is why titanium grade 5 sheet is often referred to as Ti 6Al-4V

Difference Between GR5 Titanium Sheet, Sheet and Foil

---

Thicknesses greater than 0.15mm and less than 6.35mm are called grade 5 titanium plates.

Thicknesses greater than 6.35mm are called grade 5 titanium plates.

Thickness less than 0.15mm is called grade 5 titanium foil.

Application of titanium plates:



About our company:

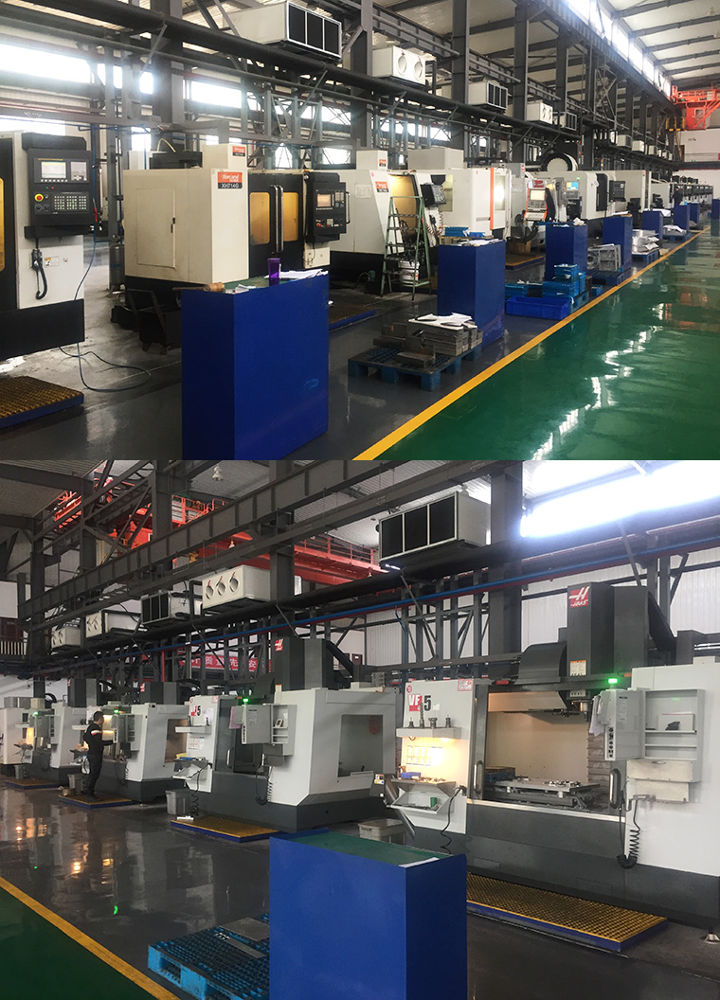

Since its establishment in 2006, Baoji Lihua Non-ferrous Metals co.,Ltd has more than 15 years of experience in the production and export of titanium plates. We have our own factory and equipment. The titanium plates we produced are not only smooth surface, but also produced in strict accordance with the ASTMB 265 standard.The chemical and physical properties have reached the export requirements. While the quality is guaranteed,we purchased new machines in 2019, which can save production costs and provide customers with low prices.
