Grade 5 Titanium Sheet

Grade 5 Titanium Sheet

Product Name: Titanium Plate
Standard: ASTM B265
Material: GR1, GR2, GR5, GR7, GR12
Unit Price: $15usd/kg-$48usd/kg
Thickness: 0.5-100mm
Length: 500-6000mm Or As You Require
Width: 500-1000mm Or As You Require
Surface: Pickling, Polishing, Sand Blasting
MOQ:50kgs
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Plate Manufacturer

Send Inquiry

Chat Now

Product Introduction

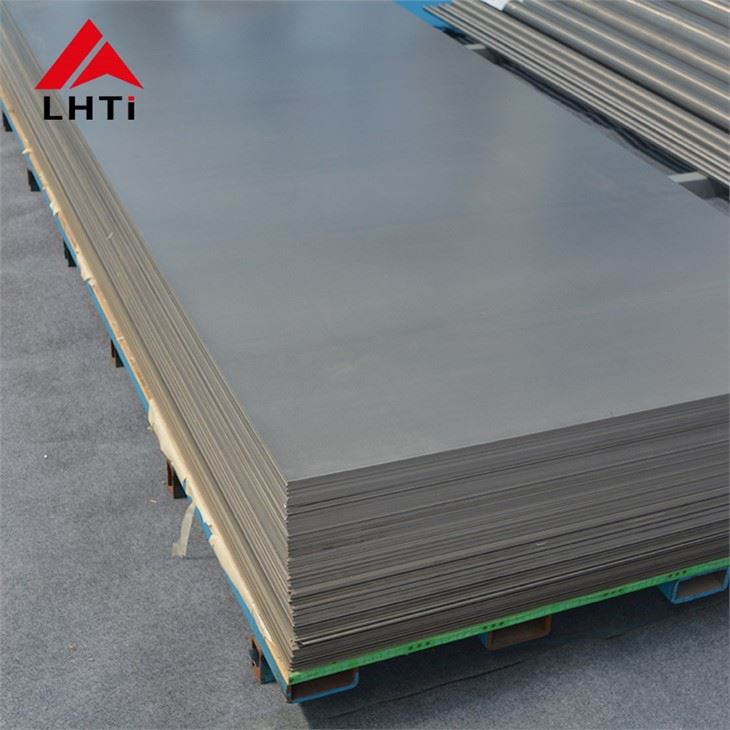

Grade 5 Titanium Sheet

Product Information

Baoji Lihua is a world-renowned manufacturer of Grade 5 Titanium Sheets, providing high quality Grade 5 Titanium Sheets to customers worldwide.

Grade 5 Titanium is the most commonly used titanium grade of all titanium alloy sheets due to its ability to withstand extreme temperatures, good corrosion resistance and thermal stability.

Material: GR1, GR2, GR4, GR5, GR7, GR12

Russia Grade: BT1-100,BT1-0,BT6 etc.

Standard: ASTM B265

Thickness: 0.5-100mm

The size of standard sheet is 5/10mm × 1000mm × 2000mm. We can also cut it as you require.

Surface: Pickling, Polishing, Sand blasting etc.

Type: Sheet, plate, foil; Straight & roll

State: R/Y/M

Chemical compositions(weight%,<=)
Ti	Al	V	Fe	C
Reminder	5.5-6.75	3.5-4.5	0.30	0.08
N	H	O	Other(total)
0.05	0.015	0.2	0.4
Physical properties(>=)
Σb Tensile Strength (Mpa)	σr0.2 Yield Strength (Mpa)	δL0+50mm Elongation (%)	ψ Reduction of area (%)
895	825	10	25
