Grade 7 Titanium Sheet
Standard: ASTM B265
Material: GR1, GR2, GR5, GR7, GR12
Unit Price: $15usd/kg-$48usd/kg
Thickness: 0.5-100mm
Length: 500-6000mm Or As You Require
Width: 500-1000mm Or As You Require
Surface: Pickling, Polishing, Sand Blasting
MOQ:50kgs
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Plate Manufacturer

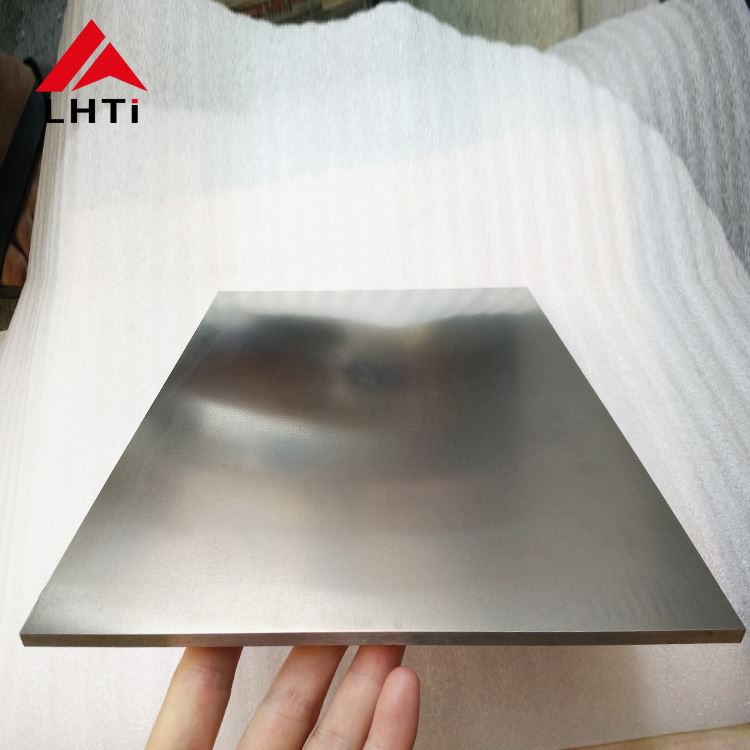

Grade 7 Titanium Sheet
Product Information
Grade 7 titanium sheet (Ti-0.2pd) is a d-type titanium alloy sheet made from industrial pure titanium by adding a small amount of precious metal Pd. The addition of Pd not only significantly improves the corrosion resistance of the alloy in reducing medium, but also improves its corrosion resistance in oxidizing medium. In various chlorine-containing media at high temperature and high concentration, the crevice corrosion resistance of grade 7 titanium alloy sheet is the best. Grade 7 titanium sheet also has the best resistance to crevice corrosion. Other grades of titanium sheets have similar properties, so this alloy sheet is widely used in the chemical industry. Grade 7 Because the addition of Pd increases the cost of titanium, when industrial pure titanium cannot meet the conditions of use, grade 7 titanium sheets are often used.
Material: GR1, GR2, GR4, GR5, GR7, GR12
Russia Grade: BT1-100,BT1-0,BT6 etc.
Standard: ASTM B265
Thickness: 0.5-100mm
The size of standard sheet is 5/10mm × 1000mm × 2000mm. We can also cut it as you require.
Surface: Pickling, Polishing, Sand blasting etc.
Type: Sheet, plate, foil; Straight & roll
State: R/Y/M
Chemical Compositions(weight%,<=) | ||||
Pd | Al | V | Fe | C |
0.12-0.25 | ---- | ---- | 0.30 | 0.08 |
N | H | O | Other(total) | Ti |
0.05 | 0.015 | 0.2 | 0.4 | Remainder |
Physical Properties(>=) | ||||
Σb Tensile Strength (Mpa) | σr0.2 Yield Strength (Mpa) | δL0+50mm Elongation (%) | ψ Reduction of area (%) | |
400 | 275 | 20 | 25 | |

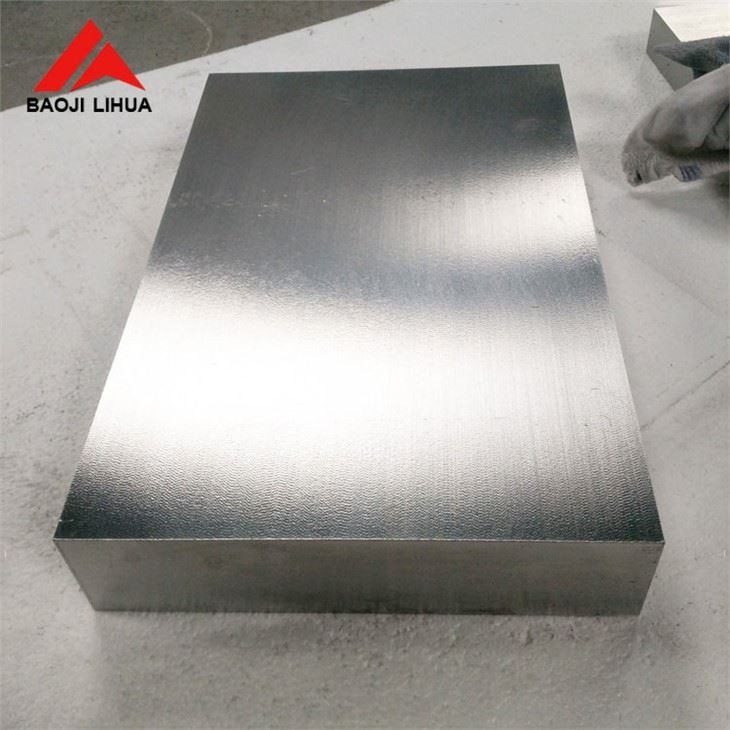

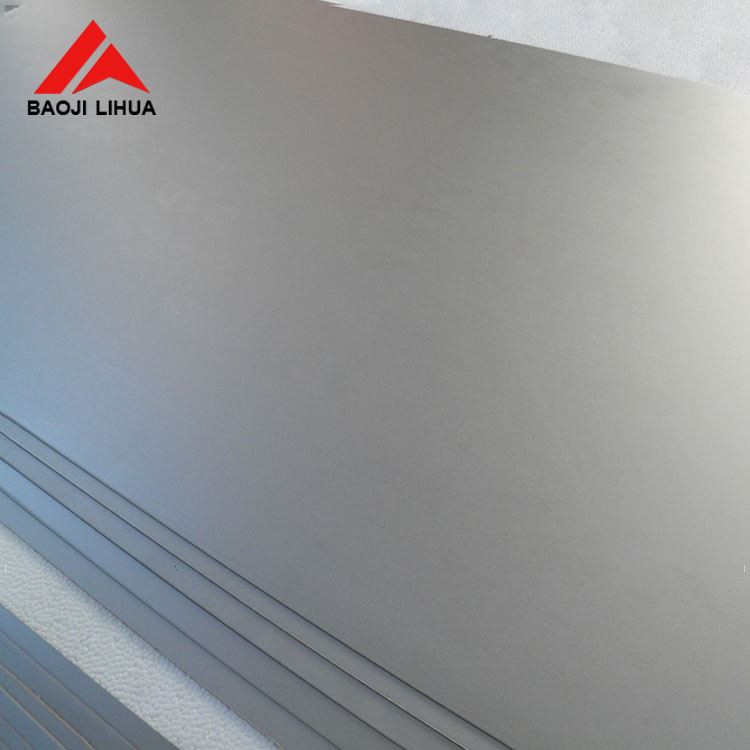

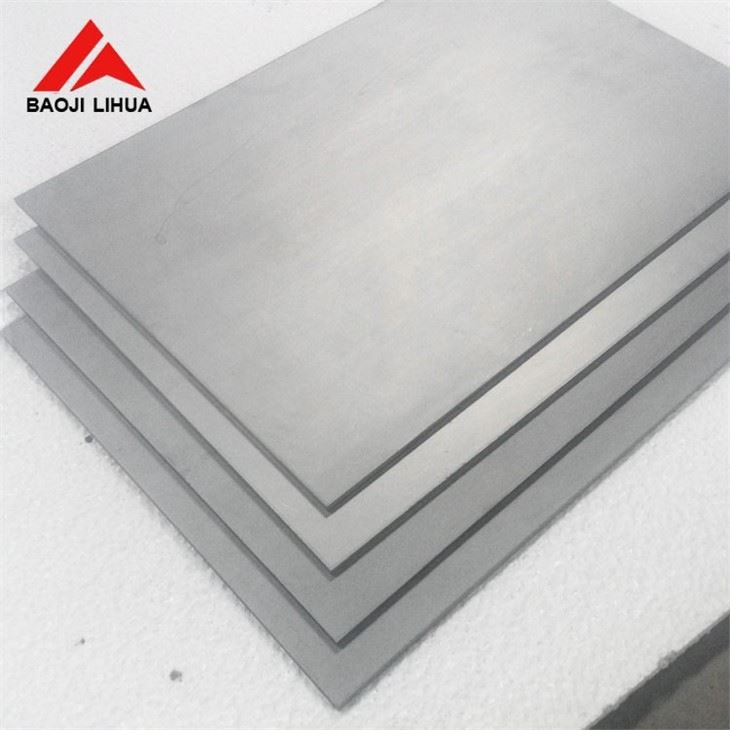

Detailed Images
Marking
Quality Inspection
Packaging
