ASME B16.9 Titanium Elbow

ASME B16.9 Titanium Elbow

Product Name: Titanium Elbow
Standard: ASME B16.9
Material: Gr1, Gr2, Gr7, Gr12
Unit Price: $10usd/pc-$200usd/pc
Outer Diameter: 1/2"-48"
Wall Thickness: Sch5s-Sch160s
Technique: Seamless/Welded

MOQ:5PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium pipe fittings manufacturer

Send Inquiry

Chat Now

Product Introduction

Titanium elbows offer several notable advantages, including a smooth inner wall that reduces flow resistance for heat mediums, exceptional resistance to acids and alkalis, and a long service life. These features also contribute to easy installation. Due to their robust properties, titanium elbows are extensively utilized across various industries such as chemical processing, petroleum, light and heavy manufacturing, power generation, aerospace, and shipbuilding, as well as other fundamental engineering applications.

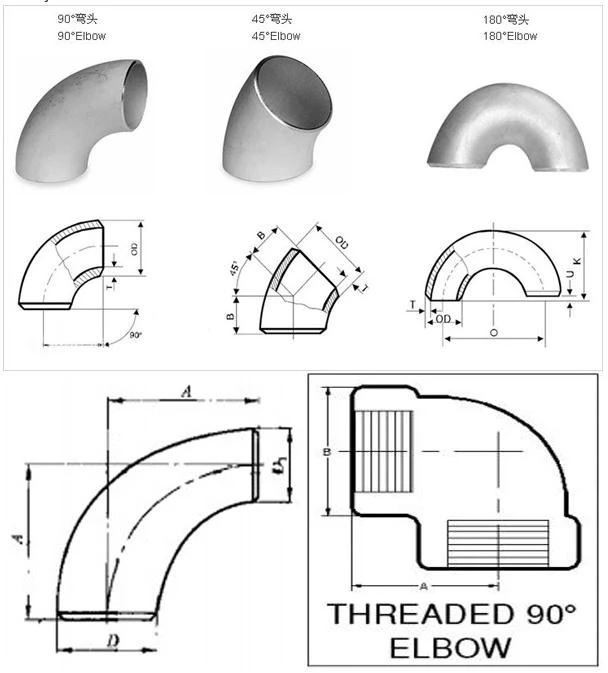

titanium elbow

Product Name: Titanium Elbow

Standard: ASME B16.9 ASME B363

Material: Gr1, Gr2, Gr7, Gr12

Outer Diameter: 1/2"-48"

Wall Thickness: Sch5s-Sch160s

Type: Seamless/Welded

Technique: Extruded, welded

MOQ:5 PCS

Delivery time:

If in stock, 3-54 working days

If needed to manufacture, 15-35 working days

Advantages of ASME B16.9 titanium elbow:

Precision Manufacturing
Light in weight
Excellent corrosion resistance
High Strength
Excellent strength-to-weight ratio
High temperature resistance
Low temperature resistance
Good thermal conductivity
Low density
Long service life

Chemical composition of titanium elbows:

Grade	Fe max	O max	N max	C max	H max	Pd	Al	V	Mo	Ni	Elong'n	Σb (Mpa)	σr0.2 (Mpa)
No	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	%	MPa	MPa
Grade 1	0.2	0.18	0.03	0.1	0.015						24	240	140
Grade 2	0.3	0.25	0.03	0.1	0.015						20	400	275
Grade 7	0.3	0.25	0.03	0.1	0.015	0,12-0,25					20	400	275
Grade 12	0.3	0.25	0.03	0.1	0.015				0.3	0.8	18	460	300

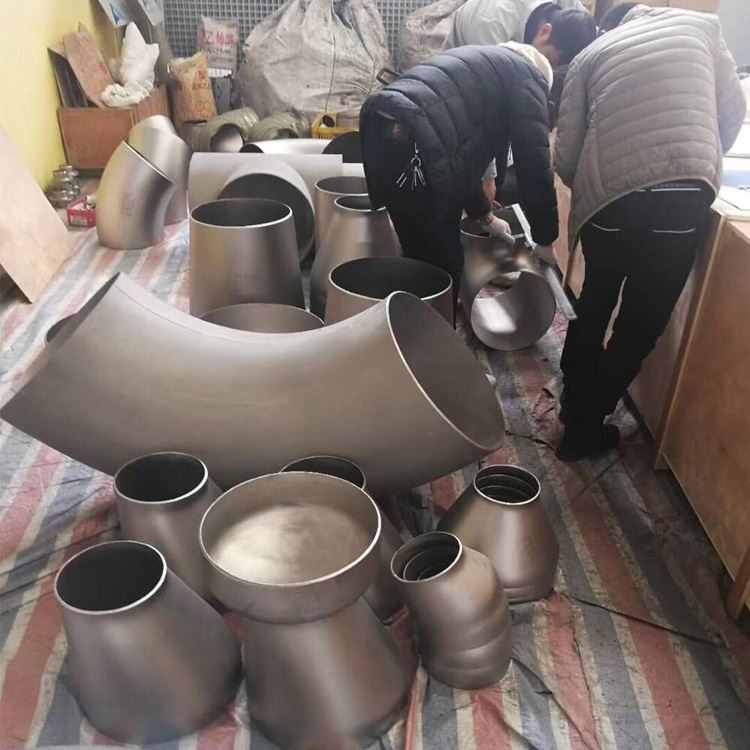

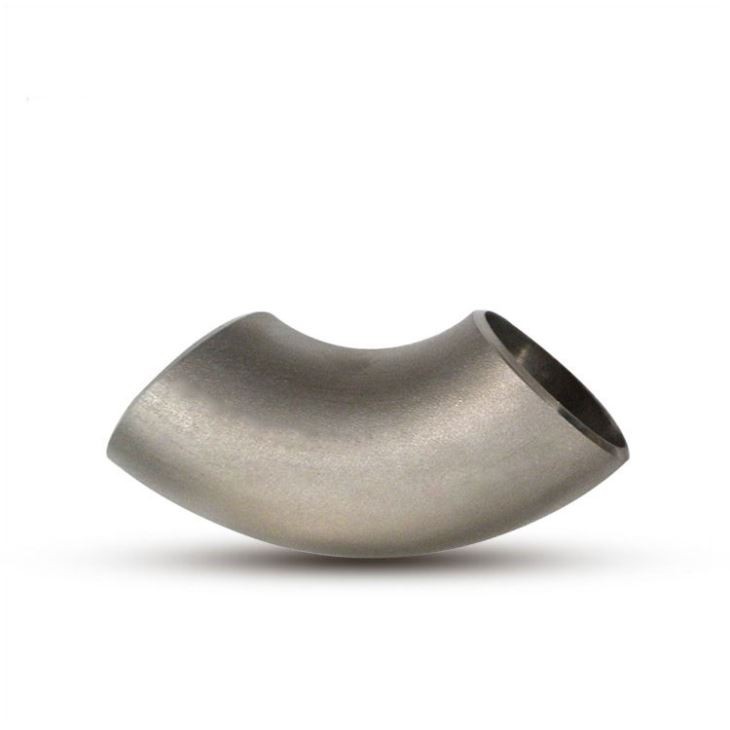

Detailed Images of ASME B16.9 titanium Elbow:

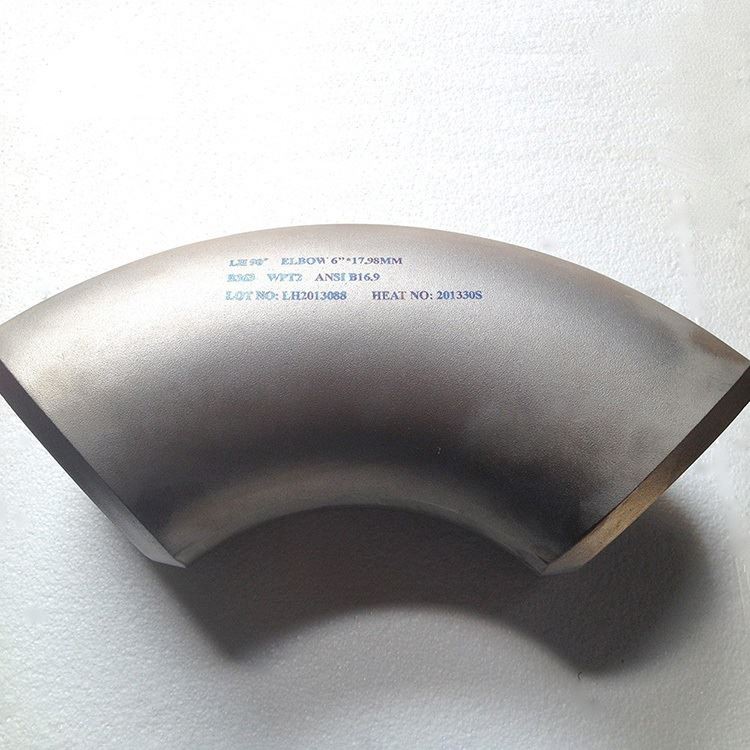

ASME B16.9 titanium elbow

Titanium 45 Degree Elbow Data

						Schedule 10S Light N.P.S.						Schedule 40S Standard N.P.S.
Nominal Pipe Size		Outside Diameter		Center to Face		Wall Thickness		Inside Diameter		Approx. Wt in Lbs./Kgs.		Wall Thickness		Inside Diameter		Approx. Wt in Lbs./Kgs.
in	mm	in	mm	in	mm	in	mm	in	mm	lb	kg	in	mm	in	mm	lb	kg
1/2″	15	0.84	21.34	0.63	15.88	0.08	2.11	0.67	17.12	0.04	0.02	0.11	2.77	0.62	15.80	0.05	0.02
3/4″	20	1.05	26.67	0.44	11.11	0.08	2.11	0.88	22.45	0.04	0.02	0.11	2.87	0.82	20.93	0.05	0.02
1″	25	1.32	33.40	0.88	22.23	0.11	2.77	1.10	27.86	0.11	0.05	0.13	3.38	1.05	26.64	0.14	0.06
1-1/4″	32	1.66	42.16	1.00	25.40	0.11	2.77	1.44	36.63	0.14	0.06	0.14	3.56	1.38	35.05	0.22	0.10
1-1/2″	40	1.90	48.26	1.13	28.58	0.11	2.77	1.68	42.72	0.22	0.10	0.15	3.68	1.61	40.89	0.28	0.13
2″	50	2.38	60.33	1.38	34.93	0.11	2.77	2.16	54.79	0.32	0.15	0.15	3.91	2.07	52.50	0.50	0.23
2-1/2″	65	2.88	73.03	1.75	44.45	0.12	3.05	2.64	66.93	0.61	0.28	0.20	5.16	2.47	62.71	0.97	0.44
3″	80	3.50	88.90	2.00	50.80	0.12	3.05	3.26	82.80	0.79	0.36	0.22	5.49	3.07	77.93	1.36	0.62
3-1/2″	90	4.00	101.60	2.25	57.15	0.12	3.05	3.76	95.50	0.95	0.43	0.23	5.74	3.55	90.12	1.79	0.81
4″	100	4.50	114.30	2.50	63.50	0.12	3.05	4.26	108.20	1.36	0.62	0.24	6.02	4.03	102.26	2.63	1.19
5″	125	5.56	141.30	3.13	79.38	0.13	3.40	5.30	134.49	2.29	1.04	0.26	6.55	5.05	128.19	4.33	1.96
6″	150	6.63	168.28	3.75	95.25	0.13	3.40	6.36	161.47	3.43	1.56	0.28	7.11	6.07	154.05	6.86	3.11
8″	200	8.63	219.08	5.00	127.00	0.15	3.76	8.33	211.56	6.75	3.06	0.32	8.18	7.98	202.72	13.50	6.12
10″	250	10.75	273.05	6.25	158.75	0.17	4.19	10.42	264.67	12.50	5.67	0.37	9.27	10.02	254.51	24.50	11.11
12″	300	12.75	323.85	7.50	190.50	0.18	4.57	12.39	314.71	17.00	7.71	0.38	9.53	12.00	304.80	37.50	17.01
14″	350	14.00	355.60	8.75	222.25	0.19	4.78	13.62	346.05	23.00	10.43	0.38	9.53	13.25	336.55	44.50	20.18
16″	400	16.00	406.40	10.00	254.00	0.19	4.78	15.62	396.85	30.00	13.61	0.38	9.53	15.25	387.35	58.00	26.30
18″	450	18.00	457.20	11.25	285.75	0.19	4.78	17.62	447.65	38.00	17.23	0.38	9.53	17.25	438.15	75.00	34.01
20″	500	20.00	508.00	12.50	317.50	0.22	5.54	19.56	496.93	63.00	28.57	0.38	9.53	19.25	488.95	94.00	42.63
24″	600	24.00	609.60	15.00	381.00	0.25	6.35	23.50	596.90	89.00	40.36	0.38	9.53	23.25	590.55	133.00	60.32

Titanium 90 Degree Elbow Data

						Schedule 10S Light N.P.S.						Schedule 40S Standard N.P.S.
Nominal Pipe Size		Outside Diameter		Center to Face		Inside Diameter		Wall Thickness		Approx. Wt. in Lbs./Kgs.		Inside Diameter		Wall Thickness		Approx. Wt in Lbs./Kgs.
in	mm	in	mm	in	mm	in	mm	in	mm	lb	kg	in	mm	in	mm	lb	kg
1/2″	15	0.84	21.34	1.50	38.10	0.67	17.12	0.08	2.11	0.08	0.04	0.62	15.80	0.11	2.77	0.10	0.05
3/4″	20	1.05	26.67	1.13	28.58	0.88	22.45	0.08	2.11	0.09	0.04	0.82	20.93	0.11	2.87	0.11	0.05
1″	25	1.32	33.40	1.50	38.10	1.10	27.86	0.11	2.77	0.17	0.08	1.05	26.64	0.13	3.38	0.20	0.09
1-1/4″	32	1.66	42.16	1.88	47.63	1.44	36.63	0.11	2.77	0.29	0.13	1.38	35.05	0.14	3.56	0.32	0.15
1-1/2″	40	1.90	48.26	2.25	57.15	1.68	42.72	0.11	2.77	0.39	0.18	1.61	40.89	0.15	3.68	0.50	0.23
2″	50	2.38	60.33	3.00	76.20	2.16	54.79	0.11	2.77	0.65	0.29	2.07	52.50	0.15	3.91	0.89	0.40
2-1/2″	65	2.88	73.03	3.75	95.25	2.64	66.93	0.12	3.05	1.08	0.49	2.47	62.71	0.20	5.16	1.72	0.78
3″	80	3.50	88.90	4.50	114.30	3.26	82.80	0.12	3.05	1.54	0.70	3.07	77.93	0.22	5.49	2.75	1.25
3-1/2″	90	4.00	101.60	5.25	133.35	3.76	95.50	0.12	3.05	2.14	0.97	3.55	90.12	0.23	5.74	3.57	1.62
4″	100	4.50	114.30	6.00	152.40	4.26	108.20	0.12	3.05	2.72	1.23	4.03	102.26	0.24	6.02	5.26	2.39
5″	125	5.56	141.30	7.50	190.50	5.30	134.49	0.13	3.40	4.58	2.08	5.05	128.19	0.26	6.55	8.65	3.92
6″	150	6.63	168.28	9.00	228.60	6.36	161.47	0.13	3.40	6.86	3.11	6.07	154.05	0.28	7.11	13.75	6.24
8″	200	8.63	219.08	12.00	304.80	8.33	211.56	0.15	3.76	13.50	6.12	7.98	202.72	0.32	8.18	27.00	12.24
10″	250	10.75	273.05	15.00	381.00	10.42	264.67	0.17	4.19	25.00	11.34	10.02	254.51	0.37	9.27	48.50	22.00
12″	300	12.75	323.85	18.00	457.20	12.39	314.71	0.18	4.57	34.00	15.42	12.00	304.80	0.38	9.53	75.00	34.01
14″	350	14.00	355.60	21.00	533.40	13.62	346.05	0.19	4.78	46.00	20.86	13.25	336.55	0.38	9.53	89.00	40.36
16″	400	16.00	406.40	24.00	609.60	15.62	396.85	0.19	4.78	60.00	27.21	15.25	387.35	0.38	9.53	116.00	52.61
18″	450	18.00	457.20	27.00	685.80	17.62	447.65	0.19	4.78	75.00	34.01	17.25	438.15	0.38	9.53	154.00	69.84
20″	500	20.00	508.00	30.00	762.00	19.56	496.93	0.22	5.54	126.00	57.14	19.25	488.95	0.38	9.53	189.00	85.71
24″	600	24.00	609.60	36.00	914.40	23.50	596.90	0.25	6.35	177.00	80.27	23.25	590.55	0.38	9.53	265.00	120.18

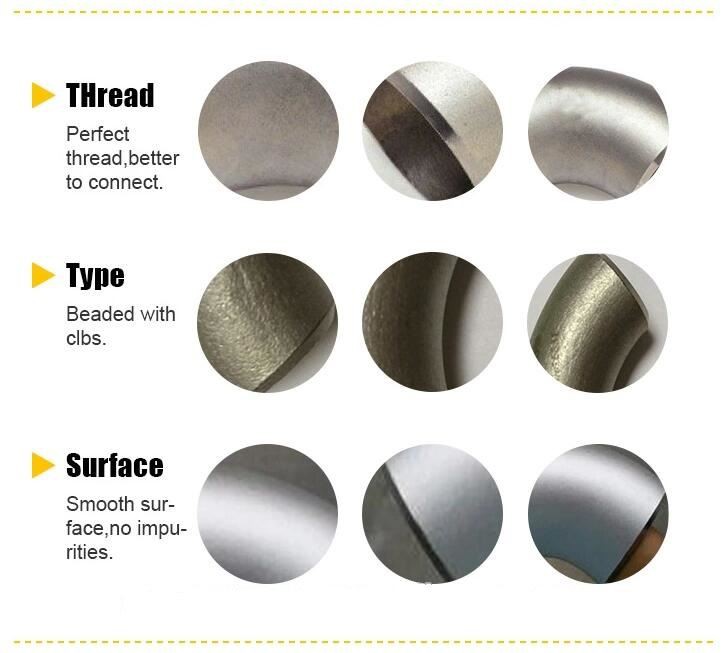

Titanium elbow (3)

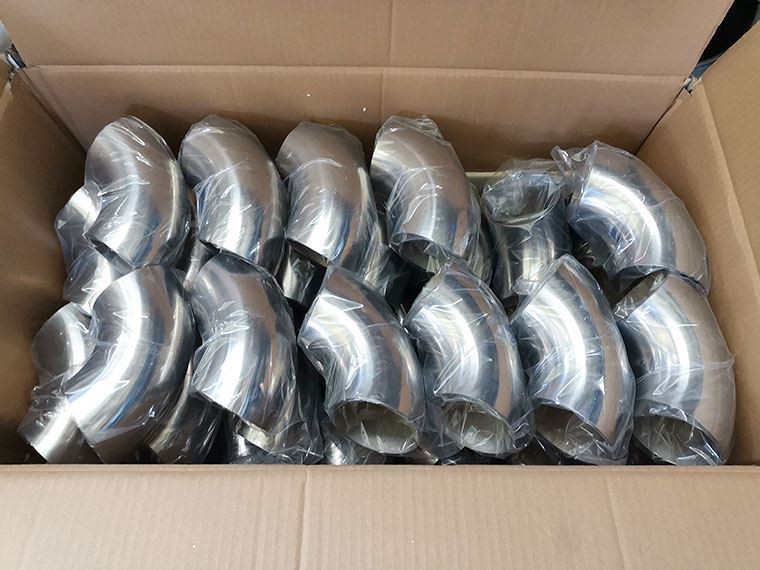

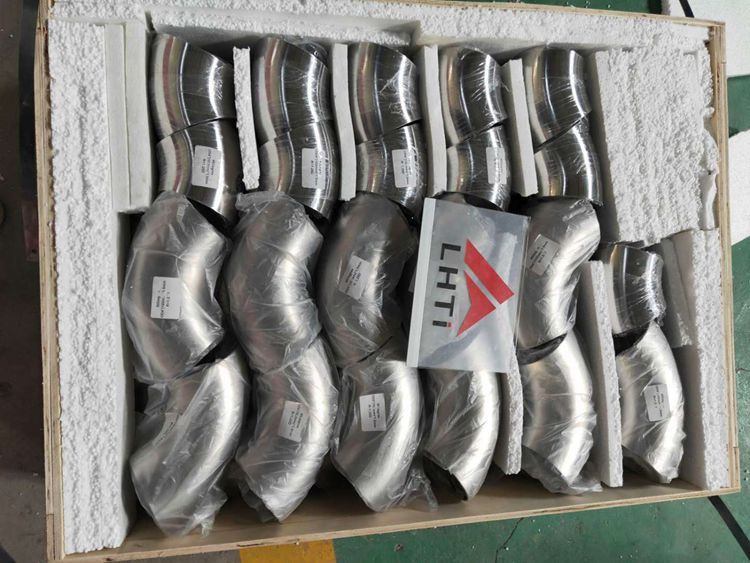

Packing:

Each titanium elbow is packed separately in plastic bags. The pads and foam films are filled in gaps to protect the goods from collision and extrusion during transportation. The outside is packed in strong cartons or wooden cases.

titanium elbow 90 degree

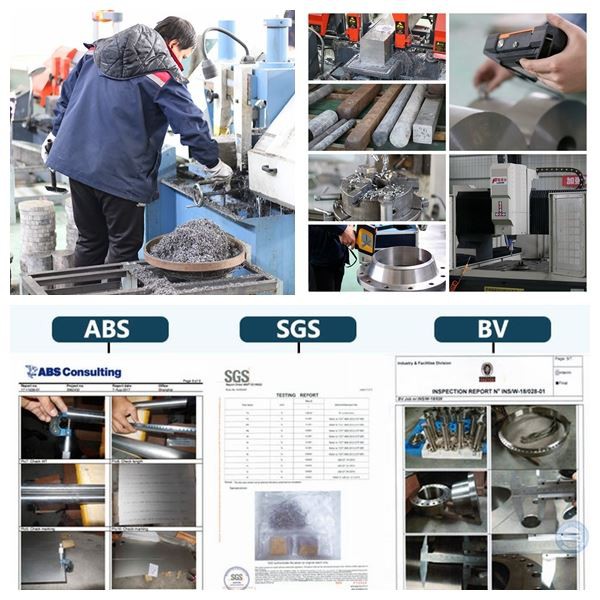

About our company: factory our advantagement lihua titanium rod (1)
