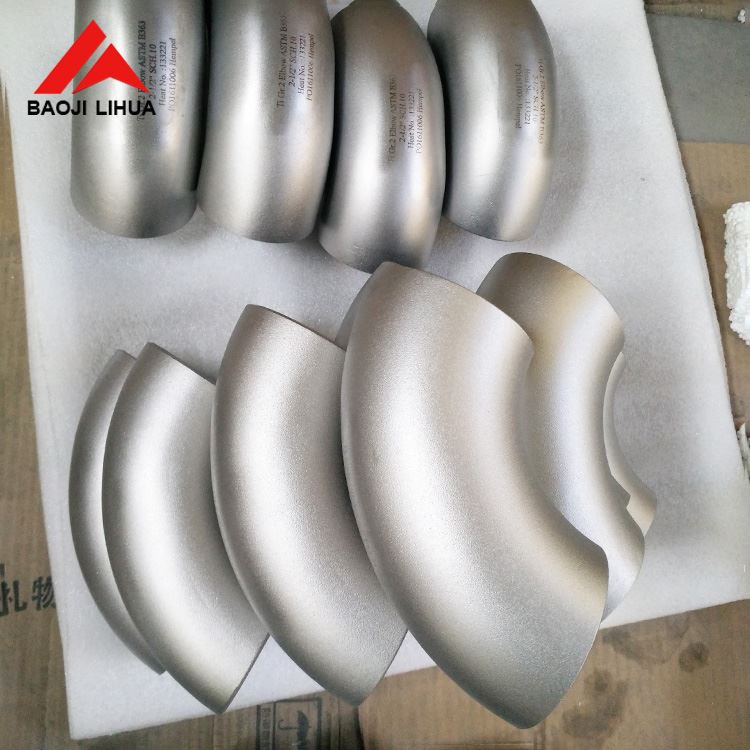

Titanium 90° Elbow

Titanium 90° Elbow

Product Name: Titanium Bends
Standard: ASME B16.9
Material: Gr1, Gr2, Gr7, Gr12
Unit Price: $10usd/pc-$200usd/pc
MOQ:5PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium pipe fittings manufacturer Outer Diameter: 1/2"-48"
Wall Thickness: Sch5s-Sch160s
Technique: Seamless/Welded
MOQ:5PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium pipe fittings manufacturer

Send Inquiry

Chat Now

Product Introduction

Product Information of Titanium 90° Elbow

Grade: GR1 GR2 GR7 GR12

Standard: ASTM B363, ASME SB363, ASME B16.9, ANSI B16.9, JIS, ISO, BS, DN etc.

Type: Long radius, Short radius

Technique: Seamless, Welded

Outer Diameter: 1/2"-48"(DN15-DN1200)

Wall Thickness: Sch5s-Sch160s

Chemical compositions:

Grade	Fe max	O max	N max	C max	H max	Pd	Al	V	Mo	Ni	Elong'n	Σb (Mpa)	σr0.2 (Mpa)
No	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	%	MPa	MPa
Grade 1	0.2	0.18	0.03	0.1	0.015						24	240	140
Grade 2	0.3	0.25	0.03	0.1	0.015						20	400	275
Grade 7	0.3	0.25	0.03	0.1	0.015	0,12-0,25					20	400	275
Grade 12	0.3	0.25	0.03	0.1	0.015				0.3	0.8	18	460	300

Applications of Titanium Elbows

Off-Shore Oil Drilling Company
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Medicine
Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchanger
Condenser
Pulp and Paper Industry

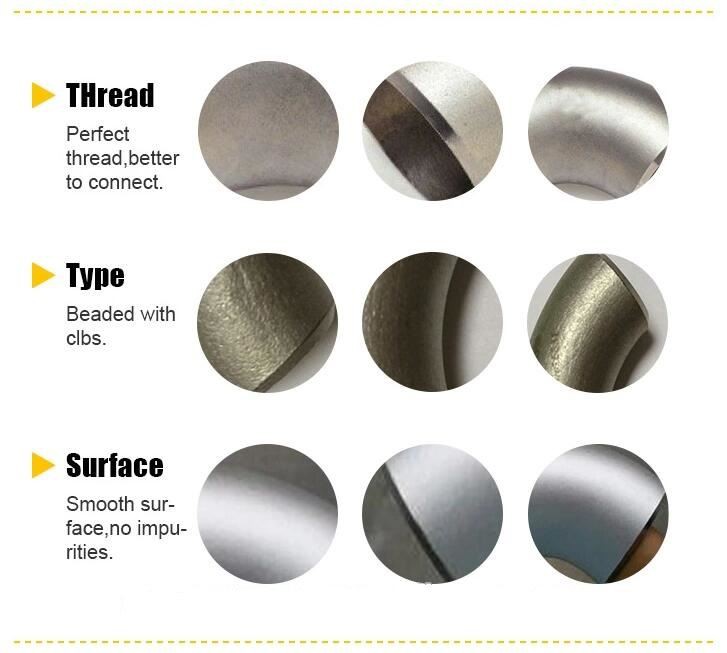

Titanium elbow (3)

Detailed Images of Titanium 90° Elbow

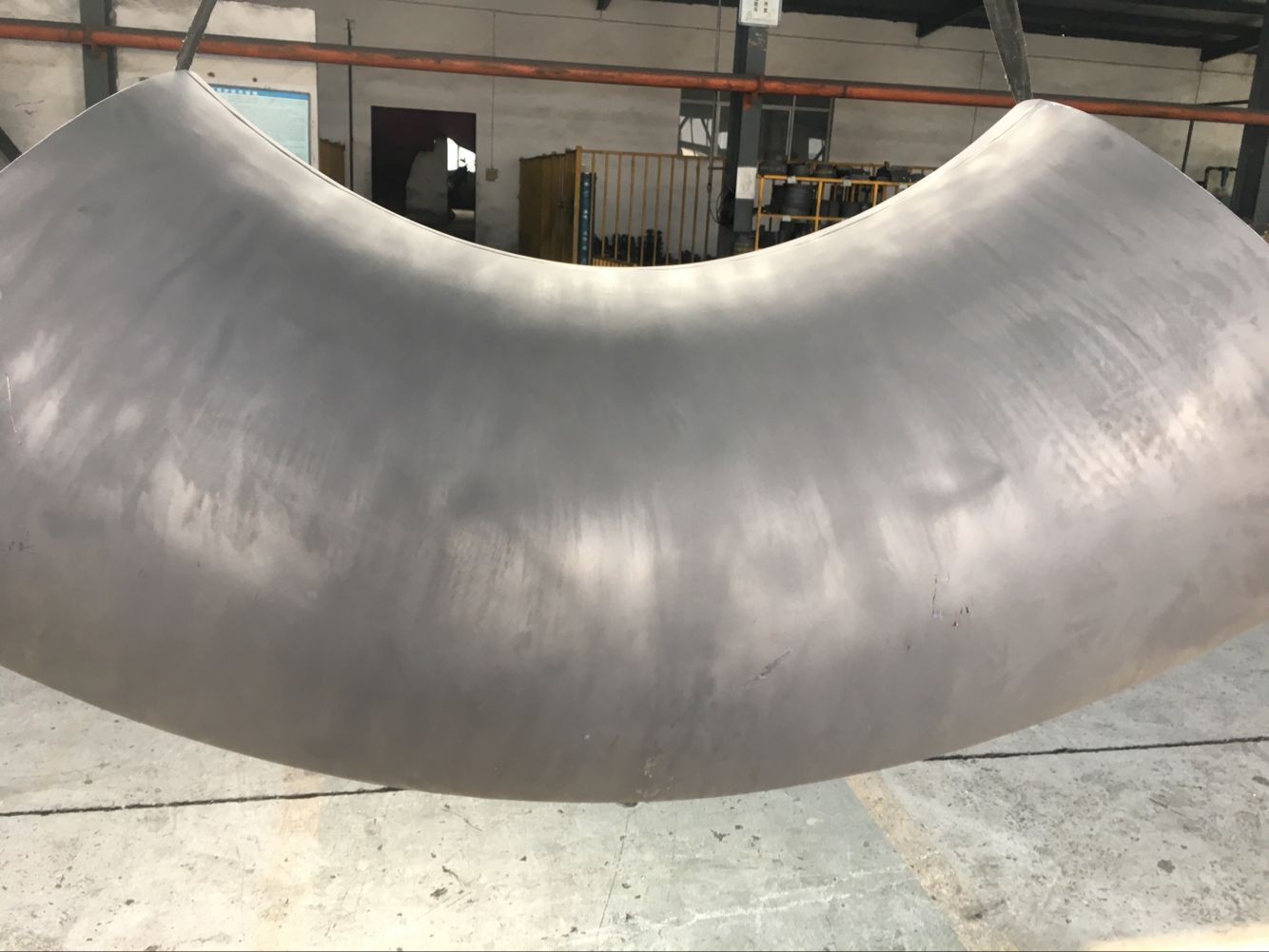

Titanium 90° Elbow 20170705titanium elbow big titanium elbow

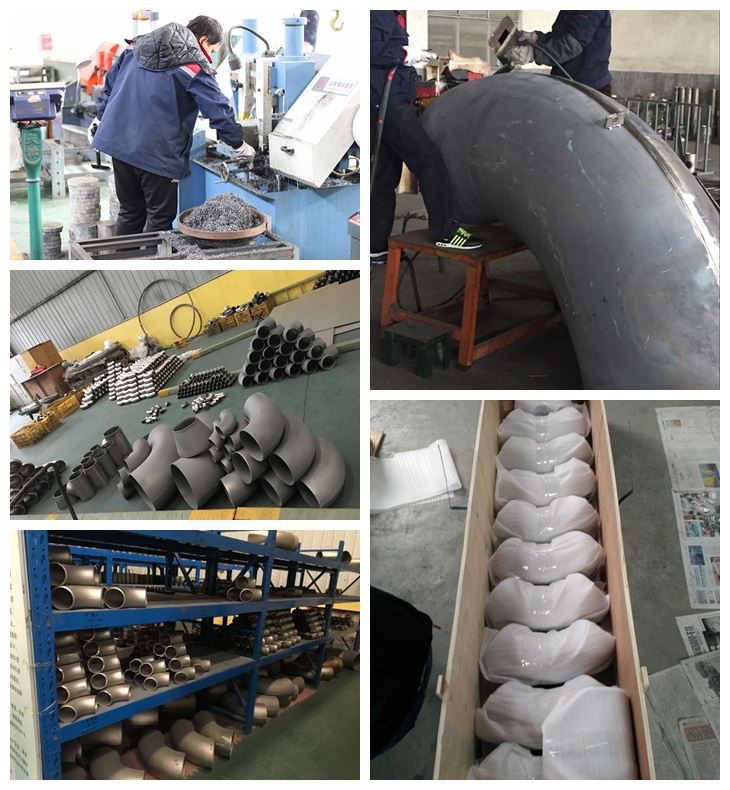

Packing and shipping of titanium elbows:

Quantity(Pieces)	1 - 100	100 - 500	>500
Est. Time(days)	15	20	To be negotiated

The packing is the responsibility of the special packing personnel, which is suitable for international long-distance transportation. Ensure that goods will not damage when arrive customers.

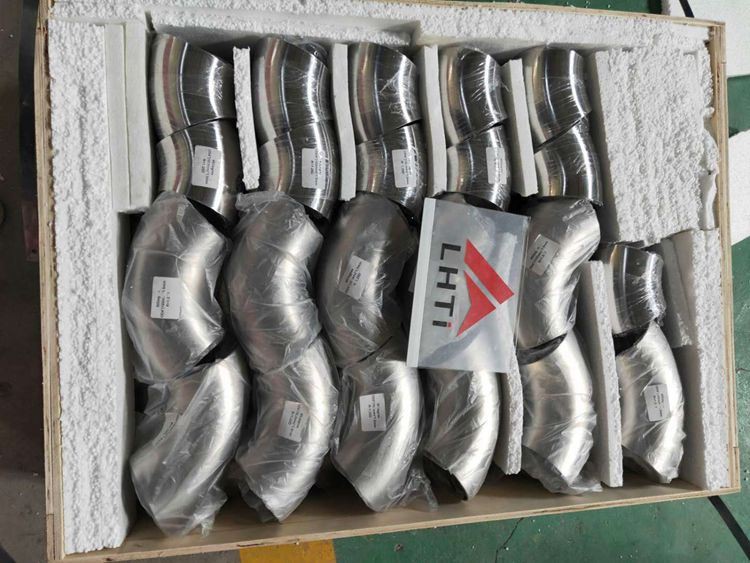

titanium elbow 90 degree
