GR2 Titanium Weldolet

Introducing The Outlet: Versatile Solutions for Pipe Branching

When it comes to connecting a large-diameter pipe with a smaller-diameter branch, precision and reliability are key. This is where The Outlet comes into play, offering a range of high-quality solutions for such applications.

What is The Outlet?

The Outlet is a specialized pipe fitting designed to create a seamless connection between a main pipe and a branch pipe. In this configuration, the pipe to which the branch pipe is welded is known as the main pipe, while the pipe welded onto the branch is referred to as the branch pipe. This setup is crucial in various industries where complex piping systems are required, such as in oil and gas, chemical processing, and aerospace.

Key Features and Specifications

Sizes: Available in a wide range of sizes, from NPS 1 to 24 and DN 25 to 600, to meet diverse application needs.

Standards: Manufactured in compliance with industry standards such as MSS SP-97 and ASTM B363 to ensure quality and reliability.

Materials: The Outlet can be produced in various materials, including:

Stainless Steel

Titanium Alloy (including grades GR1, GR2, GR7, and GR12)

Other Alloy Materials as per customer requirements.

Types and Classes

The Outlet is available in different classes, catering to various pressure requirements:

3000 LBS

6000 LBS

9000 LBS

Product Varieties

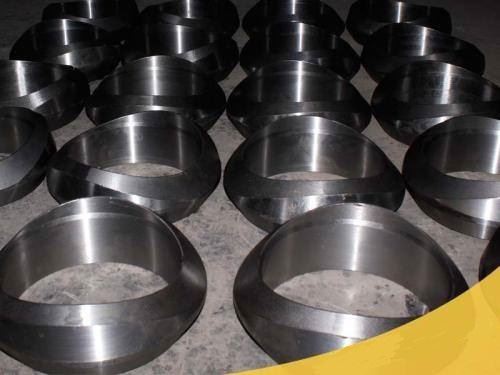

Gr2 Titanium Weldolet: A titanium branch fitting specifically designed for high performance and durability.

Titanium Weldolet: A versatile fitting suitable for a range of industrial applications.

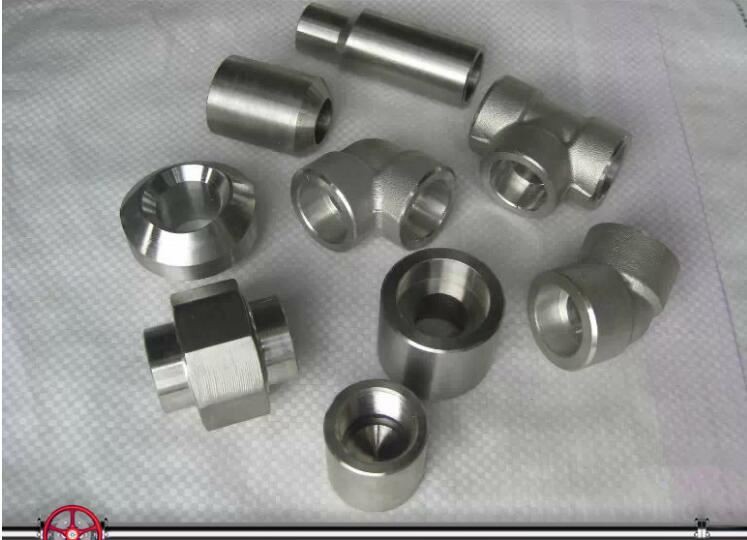

Titanium Pipe Fittings: Comprehensive solutions for connecting titanium pipes.

Grade 2 Titanium Weldolet: A fitting made from Grade 2 titanium, known for its excellent corrosion resistance and strength.

Titanium O-let: A variant of The Outlet, providing reliable connections for various piping systems.

Why Choose The Outlet?

Versatility: With options across multiple sizes, standards, and materials, The Outlet can be tailored to suit any piping system.

Quality: Adhering to rigorous standards ensures each fitting is durable and reliable under various operating conditions.

Customization: We offer bespoke solutions to meet specific project requirements, ensuring optimal performance and fit.

The Outlet is designed to provide a robust and efficient connection between large-diameter and small-diameter pipes, making it an essential component for many industrial applications. With a focus on quality and adaptability, The Outlet ensures that your piping systems operate smoothly and effectively.

Detailed images

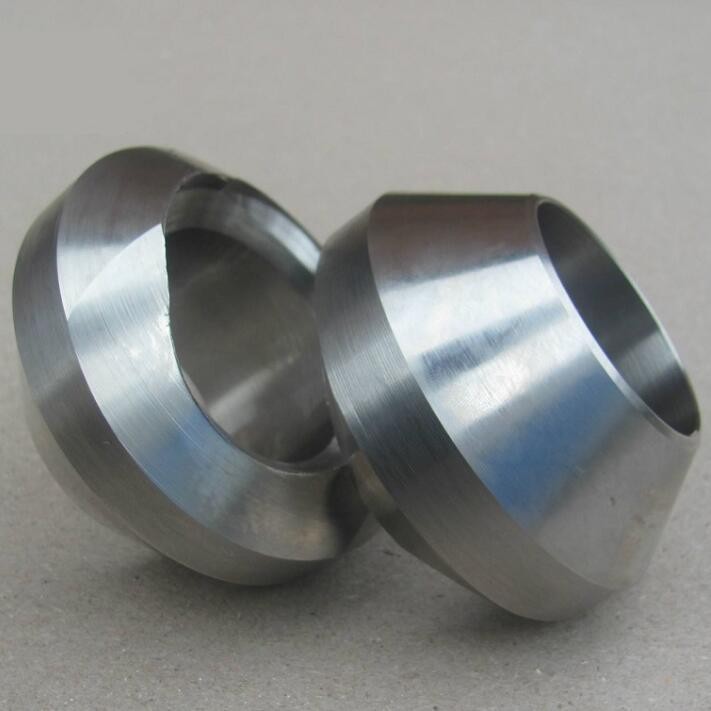

1. Weldolet is the most common branch connector. Its end is made into a groove, which is connected with a straight pipe butt welding, so it is regarded as a butt welded pipe fitting. The design of the Weldolet minimizes stress concentration and provides overall reinforcement. There are three pressure levels for Weldolet: STD, XS, and Sch160.

2. The base of the Sockolet is the same as the Weldolet, but its branch connection adopts a socket welding connection. The Sockolet has two pressure levels: 3000# and 6000#.

3. The base of Thredolet is also the same as Weldolet, but its branch connection is threaded and does not require welding. There are two pressure levels of Thredolet: 3000# and 6000#.

4. Latrolet is used for 45° branching. The connection with the branch pipe can adopt butt welding, socket welding, and screw connection.

5. Elbolet are used to provide branch connections on long radius elbows or short radius elbows. The connection with the branch pipe can adopt butt welding, socket welding, and screw connection.

6. Nipolet is commonly used for valve installation and exhaust. There are two grades of thickness XS and XXS, the length is from 3.1/2 inches to 6.1/2 inches, and the end is a socket or external thread.

7. Sweepolet is wavy and the overall reinforcement is. It is butt-welded to the branch pipe and is often used in low-pressure pipelines.

Package and Shipping Package :

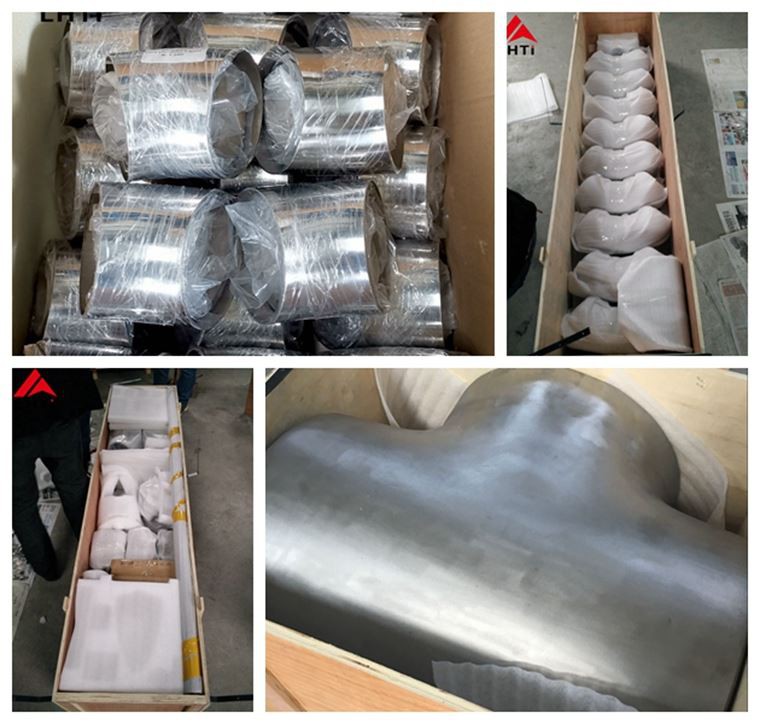

Protecting plastic bags and foam film inside, plywood case outside.

1:International Express freight: Such as DHL, TNT, EMS, UPS, and so on.

2:By air and by sea.

About Baoji Lihua Non-ferrous Metals

Baoji Lihua Non-ferrous Metals is a leading titanium manufacturer with a dedicated Foreign Trade Department. With over 15 years of experience in production and export, we are ISO 9001:2015 certified, underscoring our commitment to quality.

We offer a comprehensive range of titanium products in all grades and sizes, adhering to ASTM, ANSI, DIN, and JIS standards. Our products are known for their high quality and competitive pricing. The ISO certification we hold is a testament to our adherence to international standards.

Our titanium products are widely used in various industries, including power and chemical plants, automotive components, sports equipment, and marine applications where corrosion resistance is essential. Trust Baoji Lihua Non-ferrous Metals for reliable and superior titanium solutions.

Service introduction :

1. Before-Sales Service: Our Technical Production Department and stringent Quality Control System ensure comprehensive support. We also offer samples for quality testing upon request.

2. After-Sales Service: For any issues with our products, please contact us via phone or email at any time.
