ASME B16.9 Titanium Reducer

ASME B16.9 Titanium Reducer

Standard: ASME B16.9
Material: Gr1, Gr2, Gr7, Gr9, Gr12
Size: 1/2" - 48"
Wall Thickness: Sch5s-Sch160s
Technique: Seamless, Welded, Fabricated, ERW
Type: Titanium Concentric Reducer, Titanium Eccentric Reducer

Send Inquiry

Chat Now

Product Introduction

Product Infomation of ASME B16.9 Titanium Reducer

Grade: GR1 GR2 GR7 GR9 GR12

Standard: ASME B16.9

Type: Titanium Concentric Reducer, Titanium Eccentric Reducer

Technique: Seamless, Welded, Fabricated, ERW

Size: 1/2" - 10" Seamless

1/2" - 48" Welded

Wall Thickness: Sch5s-Sch160s

Surface: Pickling, Polishing, Sand Blasting

STANDARD	CHEMICAL COMPOSITION (weight %, max or range)	MECHANICAL PROPERTIES (min)
ASME B16.9	UNS No	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Tensile	Yield	El.	Red.
Mpa	Mpa	%	%
GR 1	R50250	0.03	0.08	0.015	0.2	0.18						240	138	24	30
GR 2	R50400	0.03	0.08	0.015	0.3	0.25						345	275	20	30
GR 7	R52400	0.03	0.08	0.015	0.3	0.25			0.12-0.25			345	275	20	30
GR 9	R56320	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0				620	483	15	25
GR 12	R53400	0.03	0.08	0.015	0.3	0.25				0.2-0.4	0.6-0.9	483	345	18	25

Tolerance of ASME B16.9 Titanium Reducer

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8
Outside Diameter at Bevel (D)	+ 1.6 – 0.8	1.6	1.6	+ 2.4 – 1.6
Inside Diameter at End	0.8	1.6	1.6	1.6
Overall Length (H)	2	2	2	2
Nominal Pipe Size	10 to 18	20 to 24	26 to 30	32 to 48
Outside Diameter at Bevel (D)	+ 4 – 3.2	+ 6.4 – 4.8	+ 6.4 – 4.8	+ 6.4 – 4.8
Inside Diameter at End	3.2	4.8	+ 6.4 – 4.8	+ 6.4 – 4.8
Overall Length (H)	2	2	5	5
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness

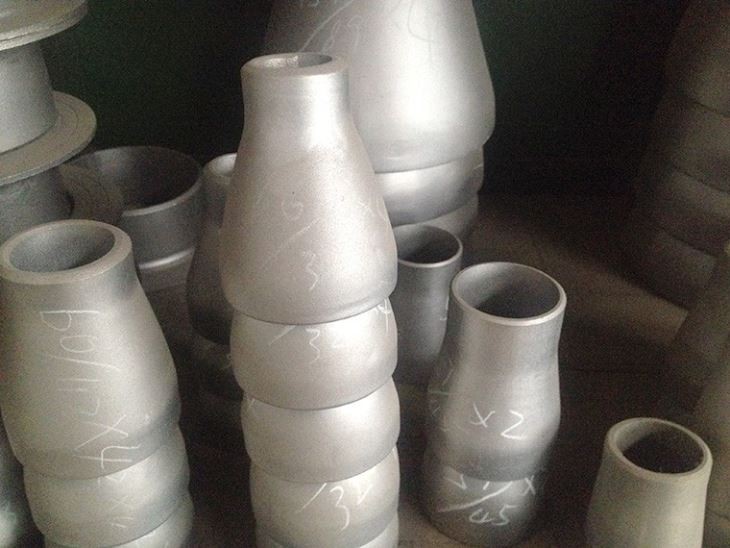

Detailed Images of ASME B16.9 Titanium Reducer
