Titanium Concentric Reducer Con-reducer
Standard:ASME B16.9, ASTM B363
Material:Titanium Gr1 Gr2 Gr7 Gr9 Gr12
Dimension：NPS 1/2”-40”(DN15-DN1000) Sch5s-Sch80s
Surface treatment:Sand-blasting,polishing,pickling
Material test report:EN10204.3.1
MOQ:5PCS
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium pipe fittings manufacturer

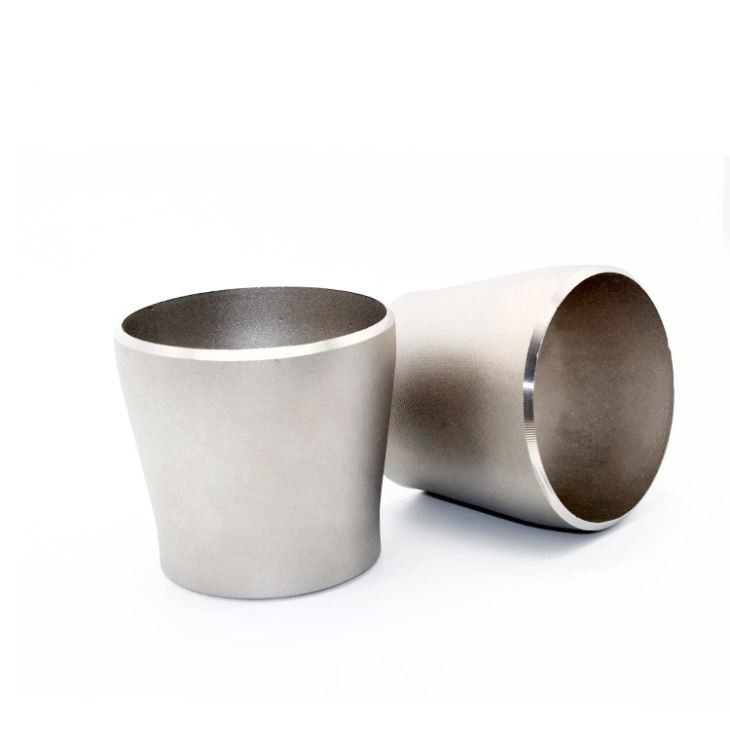

ASTM B363 Titanium concentric reducer con-reducer 3" Sch 40
Titanium reducer is a titanium hot-pressed or forged forming head, and its connection form is to directly butt weld the head and the titanium tube. Titanium reducers generally devided into concentric reducer and eccentric reducer, and the materials are pure titanium and titanium alloys.
Titanium reducer is formed by bending, extruding, pushing, molding, mechanical processing and other cold or hot processing methods. It has the characteristics of corrosion resistance and high pressure resistance.
Titanium reducer is widely used in power, oil and gas, petrochemical, chemical, marine, heating, paper, metallurgy and other industries.
Product name | Titanium concentric reducer |
Material | Titanium Gr1 Gr2 Gr7 Gr9 Gr12 |
Standard | ASME B16.9, ASTM B363 |
Reducer | NPS 1/2”-40”(DN15-DN1000) |
Wall thickness | Sch5s-Sch80s |
Technique | Mandrel forming(seamless) Butt-welded Forged Rolled Stamping Machining |
Surface treatment | Sand-blasting,polishing,pickling |
Quality control(inspection for welding line) | UT(x-ray tests) or Bye penetrate test |
Press test | Hydrostatic test |
Material test report | EN10204.3.1 |
Application | Petroleum industry, chemical industry, natural gas industry, machinery industry etc. |
Remark | Other type can be customized by customer’s drawings |
Titanium welded reducer refers to a hollow tube with two ports of different diameters made of titanium plate as the raw material and processed by rolling steel plates with equipment. There is a weld in the middle and the surface is smooth.Also called welded cone tube.
Titanium seamless reducer refers to a seamless hollow titanium tube that is processed by a thermal expansion process and is a two-port hollow hollow tube with different diameters and diameters. There is no butt joint or welding seam in the middle, and the surface is smooth. Also called Seamless cone tube.

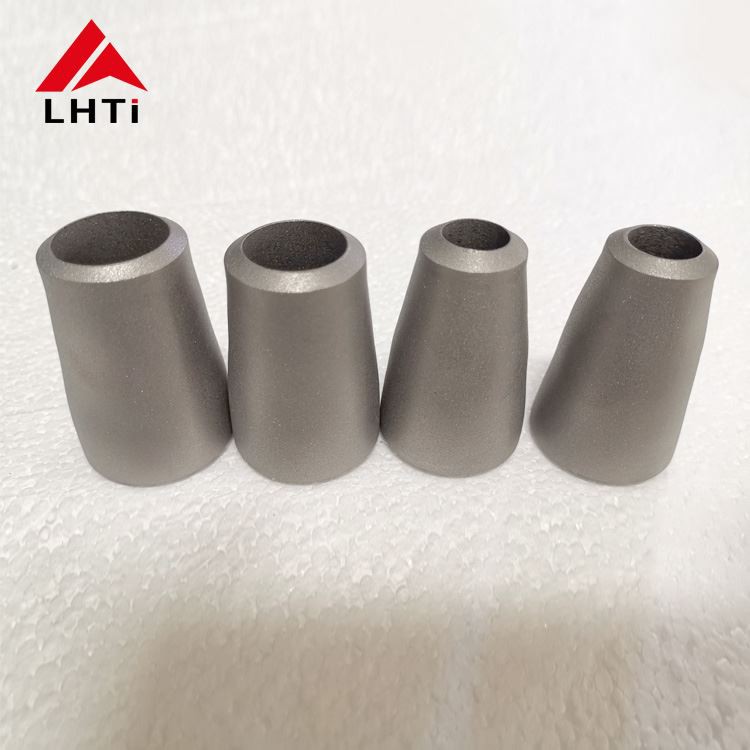

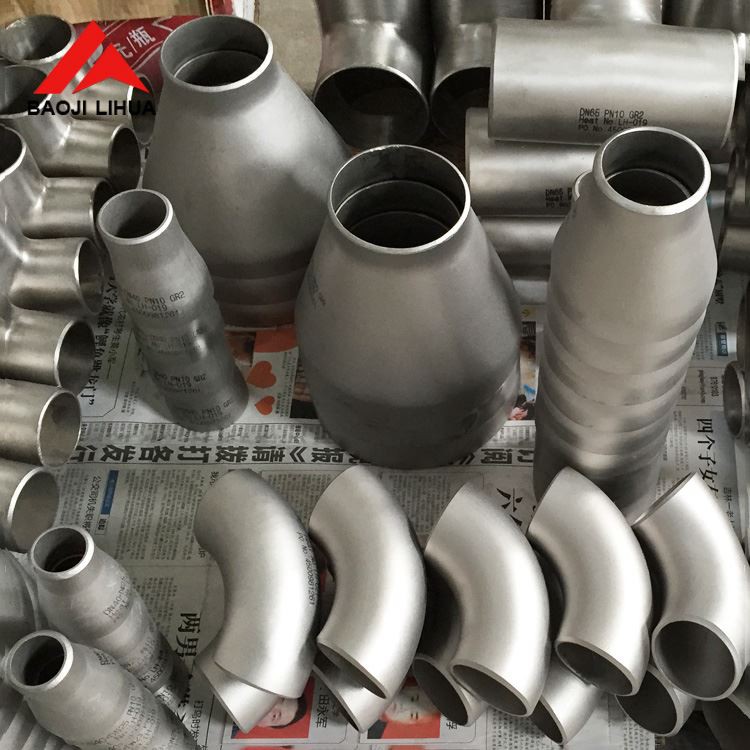

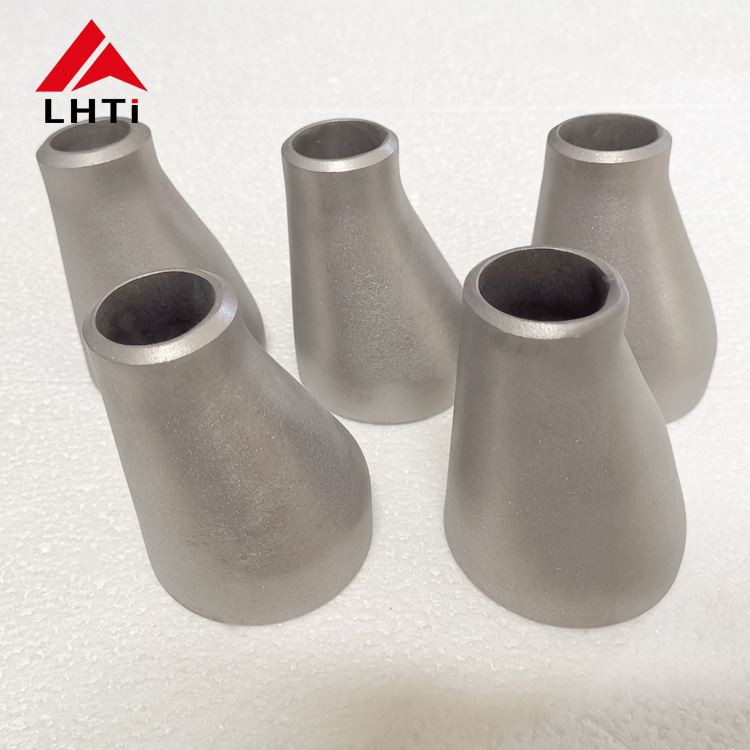

Detailed images:

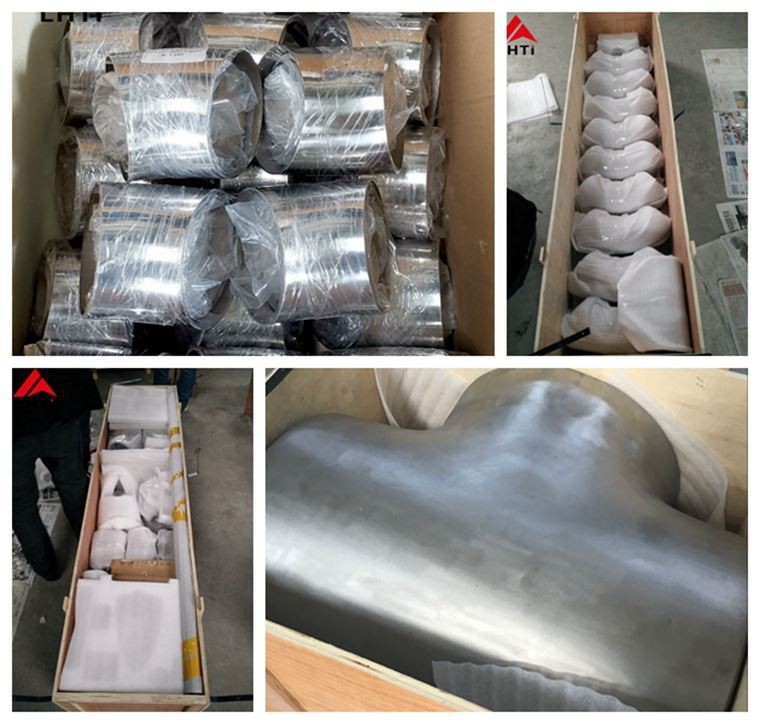

Packaging and shipping
We believe that packaging and transportation are also of great importance to customers. Our packing is in the charge of the factory's special packers. Inside there are fillers to protect the goods, and outside there are non-fumigated wooden cases that meet the international shipping standards.
We always choose the most suitable mode of transportation for our customers. If the order weight is small, the general choice of international express, such as DHL, FedEx, UPS, etc. We have a long-term cooperation with these international express companies, and they give us a very low discount, so our freight is low. If the weight of the goods is large, choose air or sea freight. We ensure that the goods are safe and intact when they arrive at the customer's hands.
Reducer | |||
Norminal diameter | Outside diameter | End to end | |
DN | NPS | D1×D2 | H |
20×15 | 3/4×1/2 | 26.7×21.3 | 38 |
25×20 | 1×3/4 | 33.4×26.7 | 51 |
25×15 | 1×1/2 | 33.4×21.3 | 51 |
32×25 | 1.1/4×1 | 42.2×33.4 | 51 |
32×20 | 1.1/4×3/4 | 42.2×26.7 | 51 |
32×15 | 1.14××1/2 | 42.2×21.3 | 51 |
40×32 | 1.1/2×1.1/4 | 48.3×33.4 | 64 |
40×25 | 1.1/2×1 | 48.3×33.4 | 64 |
40×20 | 1.1/2×3/4 | 48.3×26.7 | 64 |
40×15 | 1.1/2×1/2 | 48.3×21.3 | 64 |
50×40 | 2×1.1/2 | 60.3×48.3 | 76 |
50×32 | 2×1.1/4 | 60.3×42.2 | 76 |
50×25 | 2×1 | 60.3×33.4 | 76 |
65×50 | 2.1/2×2 | 73.0×60.3 | 89 |
65×40 | 2.1/2×1.1/2 | 73.0×48.3 | 89 |
65×32 | 2.1/2×1.1/4 | 73.0×42.2 | 89 |
65×25 | 2.1/2×1 | 73.0×33.4 | 89 |
80×65 | 3×2.1/2 | 88.9×73.0 | 89 |
80×50 | 3×2 | 88.9×60.3 | 89 |
80×40 | 3×1.1/2 | 88.9×48.3 | 89 |
90× 80 | 3.1/2×3 | 101,6×88.9 | 102 |
90×65 | 3.1/2×2.1/2 | 101.6×73.0 | 102 |
90×50 | 3.1/2×2 | 101.6×60.3 | 102 |
90×40 | 4×3.1/2 | 101.6×48.3 | 102 |
100×90 | 3.1/2×1.1/2 | 114.3×101.6 | 102 |
100×80 | 4×3 | 114.3×88.9 | 102 |
100×65 | 4×2.1/2 | 114.3×73.0 | 102 |
100×50 | 4×2 | 114.3×60.3 | 102 |
125×100 | 5×4 | 141.3×114.3 | 127 |
125×90 | 5×3.1/2 | 141.3×101.6 | 127 |
125×80 | 5×3 | 141.3×88.9 | 127 |
125×65 | 5×2.1/2 | 141.3×73.0 | 127 |
150×125 | 6×5 | 168.3×141.3 | 140 |
150×100 | 6×4 | 168.3×114.3 | 140 |
150×90 | 6×3.1/2 | 168.3×101.6 | 140 |
150×80 | 6×3 | 168.3×88.9 | 140 |
200×150 | 8×6 | 2191×168.3 | 152 |
200×125 | 8×5 | 219.1×141.3 | 152 |
200×100 | 8×4 | 219.1×114.3 | 152 |
250×200 | 10×8 | 273×219 | 178 |
250×150 | 10×6 | 273.1×168.3 | 178 |
250×125 | 10×5 | 273.1×141.3 | 178 |
300×250 | 12×10 | 323.9×273.1 | 203 |
300×200 | 12×8 | 323.9×219.1 | 203 |
300×150 | 12×6 | 323.9×168.3 | 203 |
350×300 | 14×12 | 355.6×323.9 | 330 |
350×250 | 14×10 | 355.6×273.1 | 330 |
350×200 | 14×8 | 355.6×219.1 | 330 |
350×150 | 14×6 | 355.6×168.3 | 330 |
400×350 | 16×14 | 406.4×355.6 | 356 |
400×300 | 16×12 | 406.4×323.9 | 356 |
400×250 | 16×10 | 406.4×273.1 | 356 |
400×200 | 16×8 | 406.4×219.1 | 356 |
400×150 | 16×6 | 406.4×168.3 | 356 |
450×400 | 18×16 | 457×406.4 | 381 |
450×350 | 18×14 | 457×355.6 | 381 |
450×300 | 18×12 | 457×323.9 | 381 |
450×250 | 18×10 | 457×273.1 | 381 |
450×200 | 18×8 | 457×219.1 | 381 |
500×450 | 20×18 | 508×457 | 508 |
500×400 | 20×16 | 508×406.4 | 508 |
500×350 | 20×14 | 508×355.6 | 508 |
500×300 | 20×12 | 508×323.9 | 508 |
500×250 | 20×10 | 508×273.1 | 508 |
500×200 | 20×8 | 508×219.1 | 508 |
550×500 | 22×20 | 559×508 | 508 |
550×450 | 22×18 | 559×457 | 508 |
550×400 | 22×16 | 559×406.4 | 508 |
550×350 | 22×14 | 559×355.6 | 508 |
600×550 | 24×22 | 610×559 | 508 |
600×500 | 24×20 | 610×508 | 508 |
600×450 | 24×18 | 610×457 | 508 |
600×400 | 24×16 | 610×406.4 | 508 |
650×600 | 26×24 | 660×610 | 610 |
650×550 | 26×22 | 660×559 | 610 |
650×500 | 26×20 | 660×508 | 610 |
650×450 | 26×18 | 660×457 | 610 |
700×650 | 28×26 | 711×660 | 610 |
700×600 | 28×24 | 711×610 | 610 |
700×550 | 28×22 | 711×559 | 610 |
750×700 | 30×28 | 762×711 | 610 |
750×650 | 30×26 | 762×660 | 610 |
750×600 | 30×24 | 762×610 | 610 |
750×550 | 30×22 | 762×559 | 610 |
800×750 | 32×30 | 813×762 | 610 |
800×700 | 32×28 | 812×711 | 610 |
800×650 | 32×26 | 812×660 | 610 |
800×600 | 32×24 | 813×610 | 610 |
850×800 | 34×32 | 864×813 | 610 |
850×750 | 34×30 | 864×762 | 610 |
850×700 | 34×28 | 864×711 | 610 |
850×650 | 34×26 | 864×660 | 610 |
900×850 | 36×34 | 914×864 | 610 |
900×800 | 36×32 | 914×813 | 610 |
900×750 | 36×30 | 914×762 | 610 |
900×700 | 36×28 | 914×711 | 610 |
Baoji Lihua Non-ferrous Metals Co.,Ltd was founded in 2006. The company is a manufacturer that integrates production and processing with independent research and development of science and technology. Our company's leading products are titanium pipe fittings and titanium forgings. The production of products is implemented by ASTM, DIN, DLT, HG, JB, JIS , MSS, SH, SY, ROCT etc, and non-standard products can also be customized.
The company's products are widely used, mainly in chemical industry, aerospace, shipping, food, medical and health, construction, environmental protection, medicine, petroleum, gas and other fields. The products are exported to America, Europe, Asia, Australia and other regions, and rely on excellent product quality, reasonable prices, and fast supply channels, and are deeply trusted and praised by domestic and foreign customers.
