ASTM B381 Titanium Forging Ring

ASTM B381 Titanium Forging Ring

Product name: Titanium forging ring
Standard: ASME SB381 / ASTM B381
Grade: Titanium GR1,GR2,GR5,GR7,GR9,GR12
Size: OD200-1300mm * ID100-900mm *Height35*250mm
Application: Electroplating,Chemical engineering & Petrochemical technology etc.
MOQ:1PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium forging manufacturer

Send Inquiry

Chat Now

Product Introduction

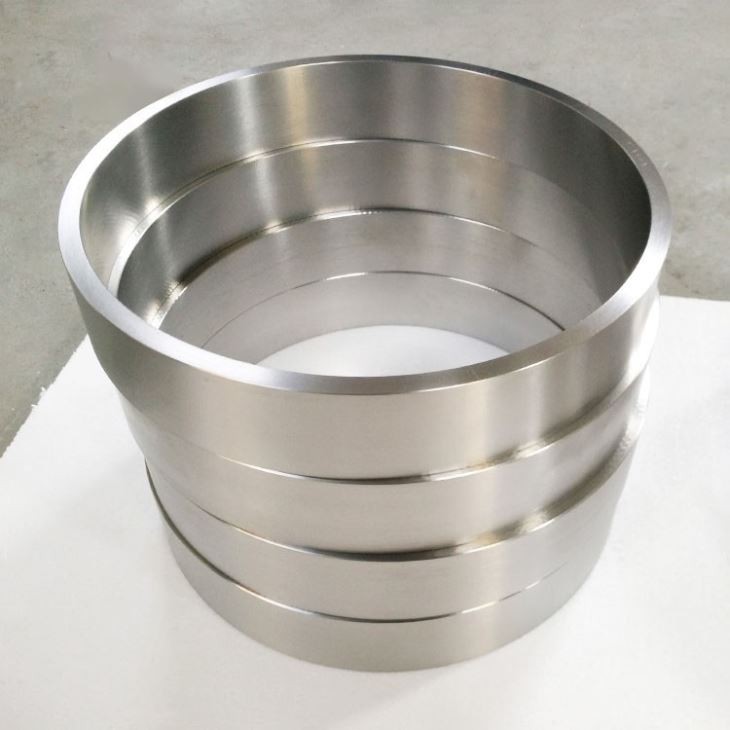

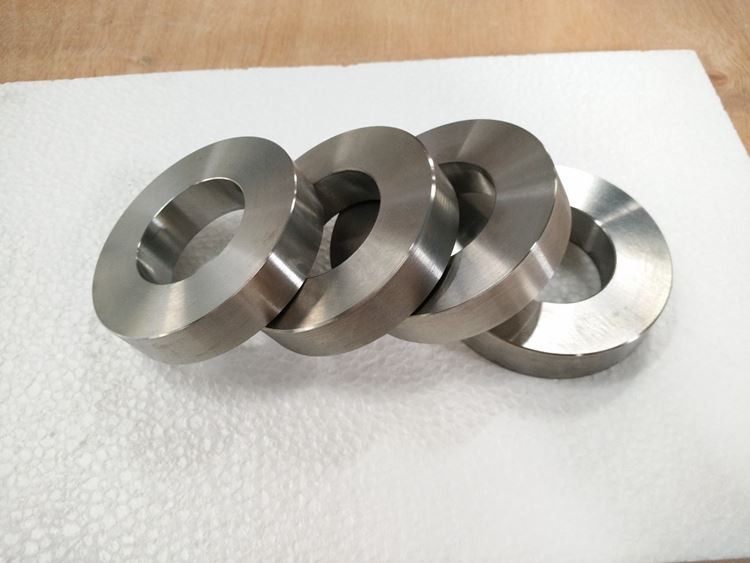

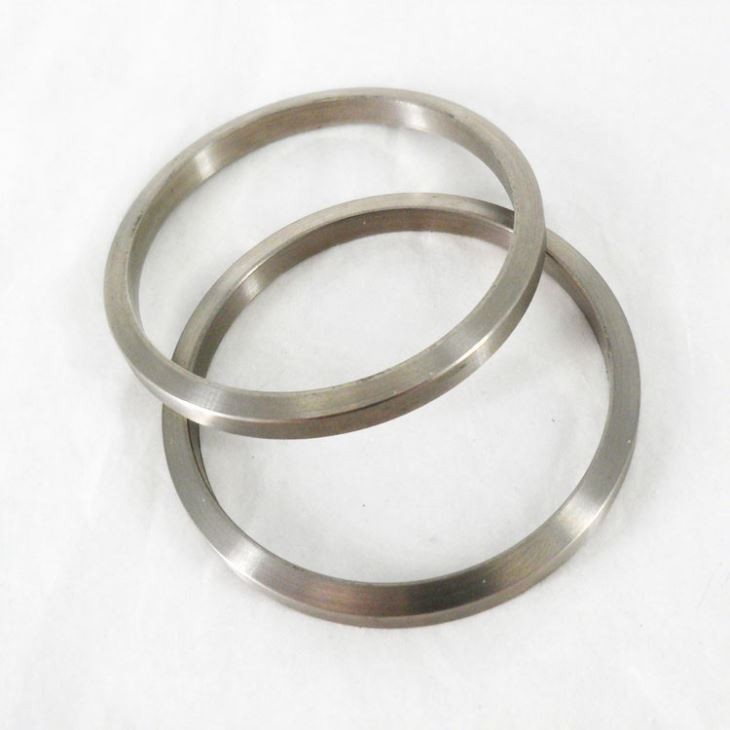

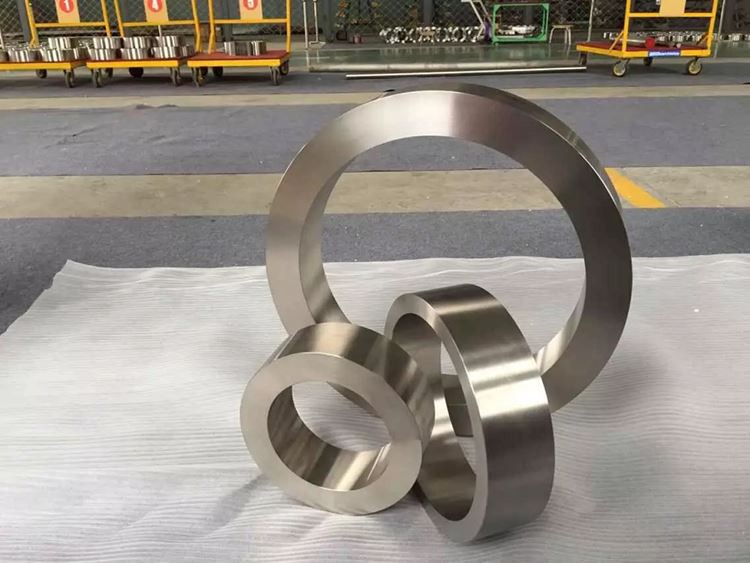

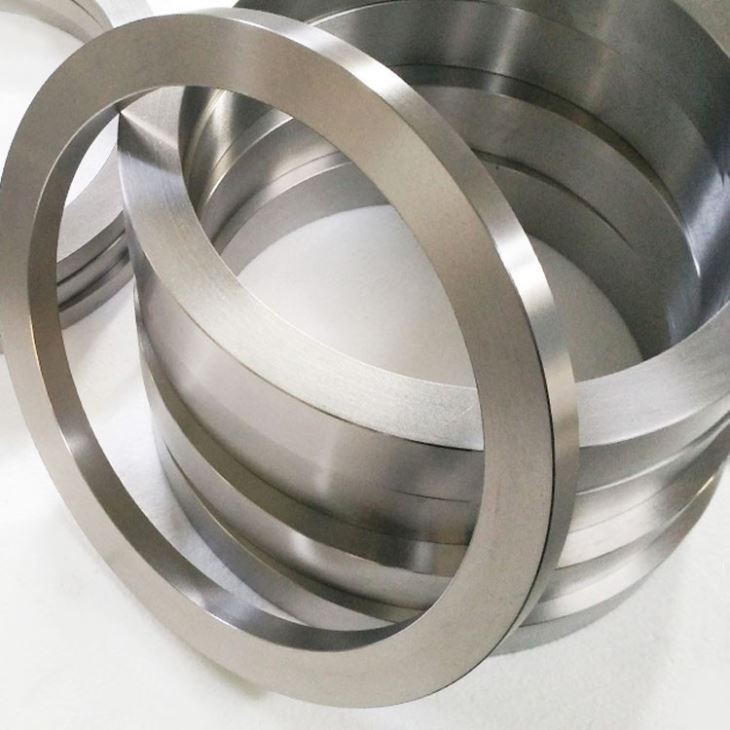

Titanium ring is a kind of titanium forging. Mainly used in chemical industry.

Product name: forged titanium ring

Standard: ASME SB381 / ASTM B381

Grade: GR1,GR2,GR5,GR7,GR9,GR12

Application: Chemical industry etc.

1.Common Dimensions:
Outside Diameter: 200~400 400~700 700~900 900~1300mm

Inside Diameter: 100~300 150~500 300~700 400~900mm

Height: 20~150 30~250 35~300 50~400mm

2.Mechanical Properties:

ASTM Grade	Alloy Composition	Tensile Strength	Yield Strength	Elongation %
ksi	Mpa	ksi	Mpa
Gr1	Unalloyed Ti ("Pure") 35A -CP1	35	240	25	170	24
Gr2	Unalloyed Ti ("Pure") 50A -CP2	50	345	40	275	20
Gr5	Ti 6Al 4V	130	895	120	828	10E
Gr7	T-50A 0.15Pd	50	345	40	275	20
Gr9	Ti 3Al 2.5V	90	620	70	483	15F
Gr12	Ti-0.3Mo-0.8Ni	70	485	50	345	18
