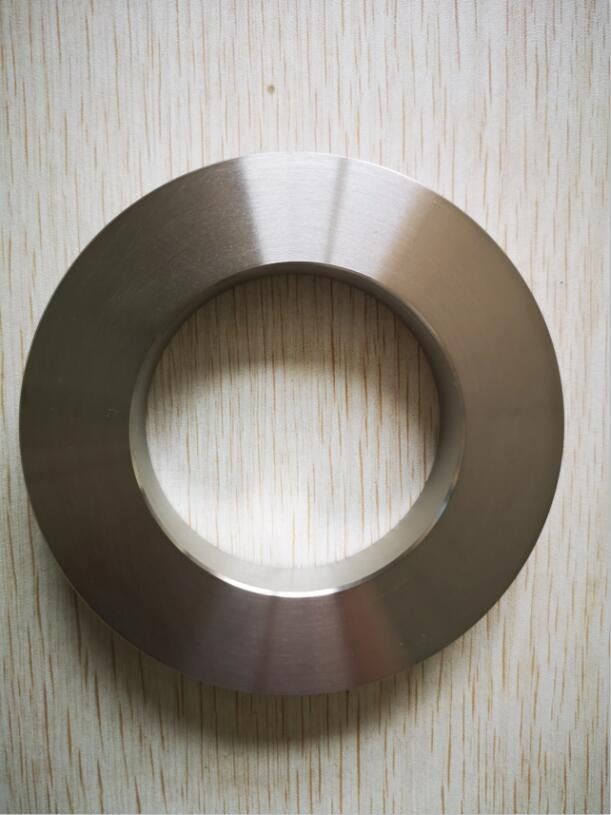

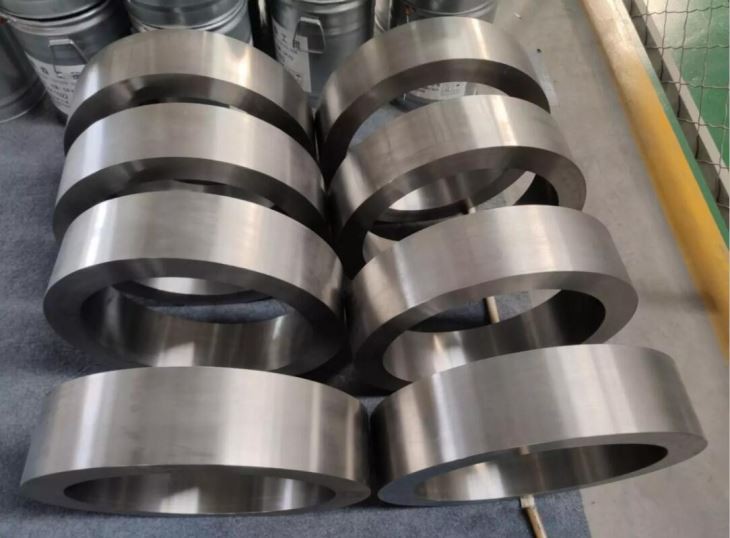

GR5 Titanium Alloy Forging Ring

GR5 Titanium Alloy Forging Ring

Product name: Titanium ring / Titanium forging
Grade: Titanium GR5
Standard: ASME SB381 / ASTM B381,AMS 4928
Size: OD200-1500mm * ID100-1200mm *Height20*600mm
Application:Electroplating,Chemical engineering & Petrochemical technology etc.
MOQ:1PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium forging manufacturer

Send Inquiry

Chat Now

Product Introduction

Color: silver

Surface: Polished, Machined,

Application:

Industry, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc.

Features of GR5 Titanium Alloy Forging Ring:

1. Low density, high specification strength

2. Excellent corrosion resistance

3. Good heat resistance

4. Excellent low temperature resistance

5. Non-magnetic and non-toxic

6. Good thermal performance

7. Low elastic modulus

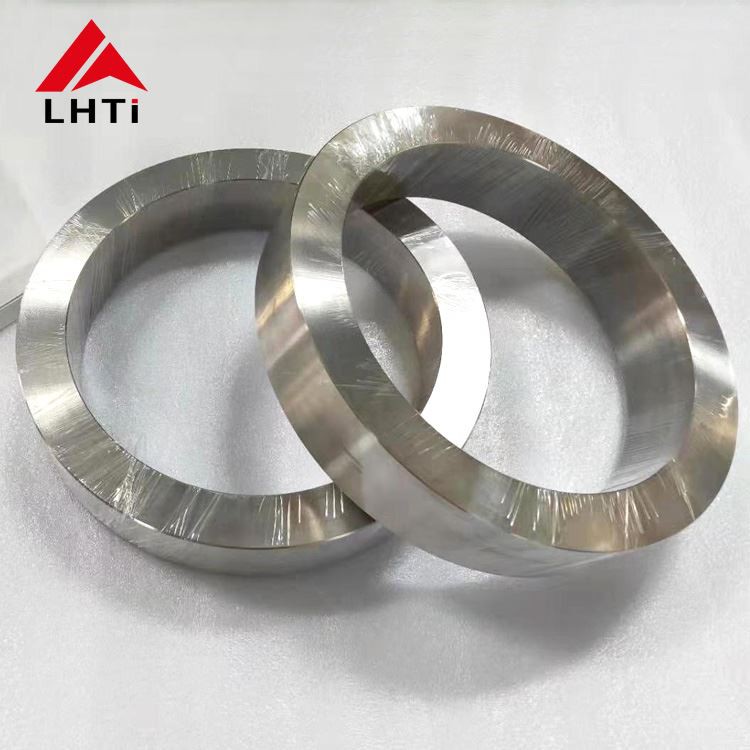

Titanium forging ring is a ring-shaped forging titanium product made by forging process. It is usually used for Aerospace, aviation, military, light industry, chemical, textile, medical and petrochemical industries etc.

With the same process titanium products are titanium forging disc, titanium block, titanium flange.

Product name	Titanium forging ring,Titanium forged ring,titanium ring for industry,Titanium split ring/titanium d-ring/titanium split ring of high quality
Shape	Reducing ring，round ring
Grade	TA1,TA2,TA3,TA4,TA9,TA10,TC4 Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr11,Gr12,Gr23 Ti6al4v, Ti-0.2Pd, Ti0.3Mo0.8Ni,Ti3al2.5V, Ti6al4v eli BT1-00,BT1-0,BT1-2 etc.
Standard	ASME SB381 / ASTM B381,AMS 4928
Size	OD(200-400)ID(100-300)H(20-120) OD(400-700)ID(150-500)H(40-250) OD(700-1500)ID(300-1200)H(40-600)
Process	Forging, die forging, rotary forging, precision forging, welding
Testing	Tensile strength test, hardness test, chemical composition test, ultrasonic test, ray test, penetration coloring test
Surface	Surface ：Polish， ChamferredSurface Quality：Two sides roughness Ra<3.2μm(To meet the requirements of ultrasonic inspection)，inner& outerside roughtness<12.5μm,chamfer radius 5-15mm

ASTM B265	Fe max	O max	N max	C max	H max	Pd	Al	V	Mo	Ni	Elong'n	Rp 0.2	Rm
No	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	%	MPa	MPa
Grade 1	0.2	0.18	0.03	0.1	0.015						24	170-310	240
Grade 2	0.3	0.25	0.03	0.1	0.015						20	275-450	345-480
Grade 3	0.25	0.3	0.05	0.1	0.015						18	360-480	480-700
Grade 4	0.5	0.4	0.05	0.1	0.015						15	500-530	600-680
Grade 5	0.4	0.2	0.05	0.1	0.015		5.5-6.7				10	800-1100	890-1400
Grade 6				0.1							16	780-820	820-860
Grade 7	0.3	0.25	0.03	0.1	0.015	0,12-0,25					20	275-450**	345
Grade 9	0.25	0.15	0.02	0.05	0.015		2,5-3,05				15	550	650
Grade 11	0.2	0.18	0.03	0.1	0.015	0.12-0.25					24	170-310**	240
Grade 12	0.3	0.25	0.03	0.1	0.015				0.3	0.8	25	414-460	499-600

Advantages of titanium forging ring:

1,Long servise life

2,corrosion-resistant

3,High yield strength and tensilestrength

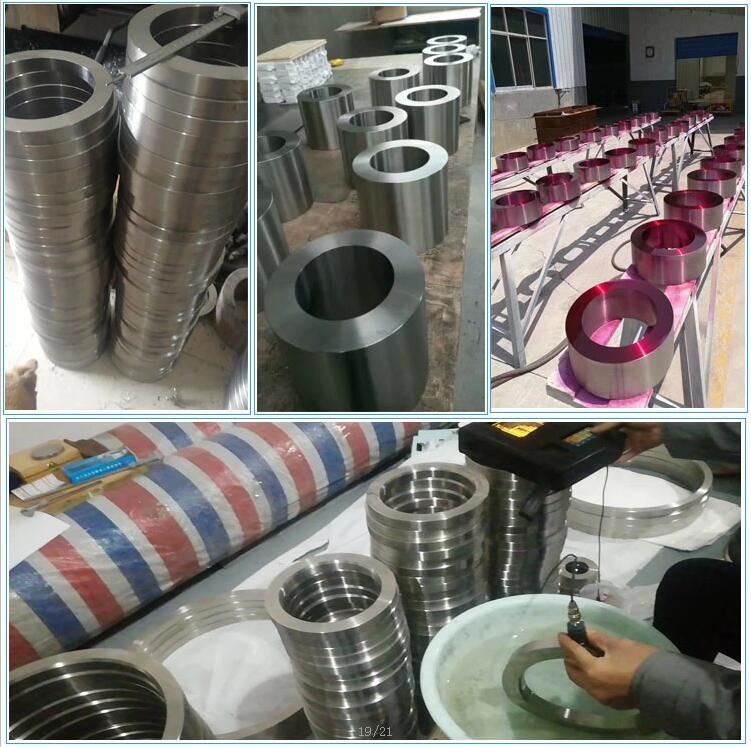

Detailed images:

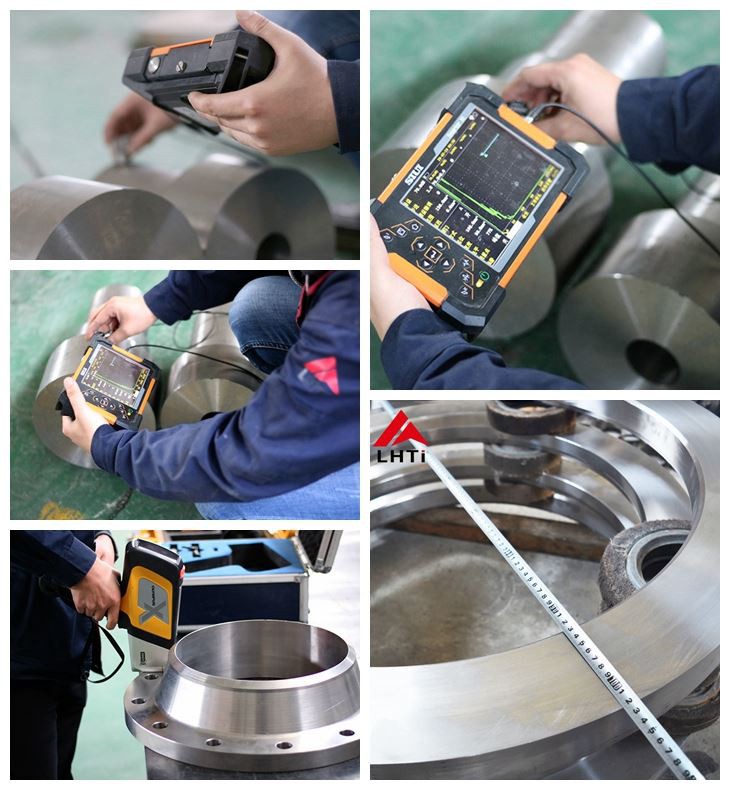

Main quality tests:

Dimensional accuracy testing, defect testing, surface roughness testing, mechanical properties, chemical composition, ultrasonic flaw detection, microstructure testing

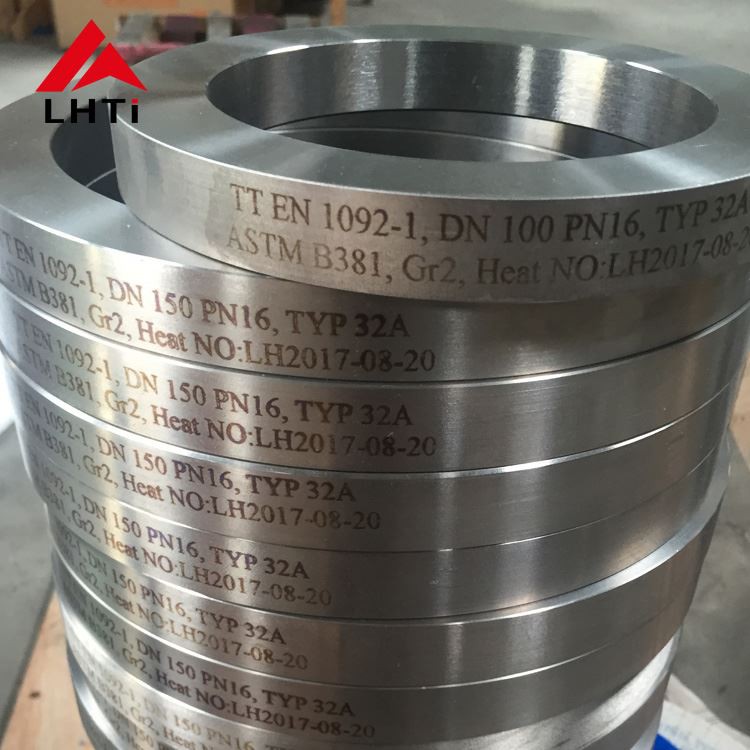

Marking is available, as customers' requets

The third party test : SGS, TUV ,BV etc.

Packaging and shipping:

We provide Manufacturer TC (Test Certificate) in accordance to EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report. We also provide Standard certificates like EN 10204 3.1 and additional requirement like. NACE MR 01075. FERRIT CONTENT as per norms if requested by clients.

• EN 10204/3.1B, • Raw Materials Certificate • 100% TU (Radiography Test Report) • Third Party Inspection Report, etc

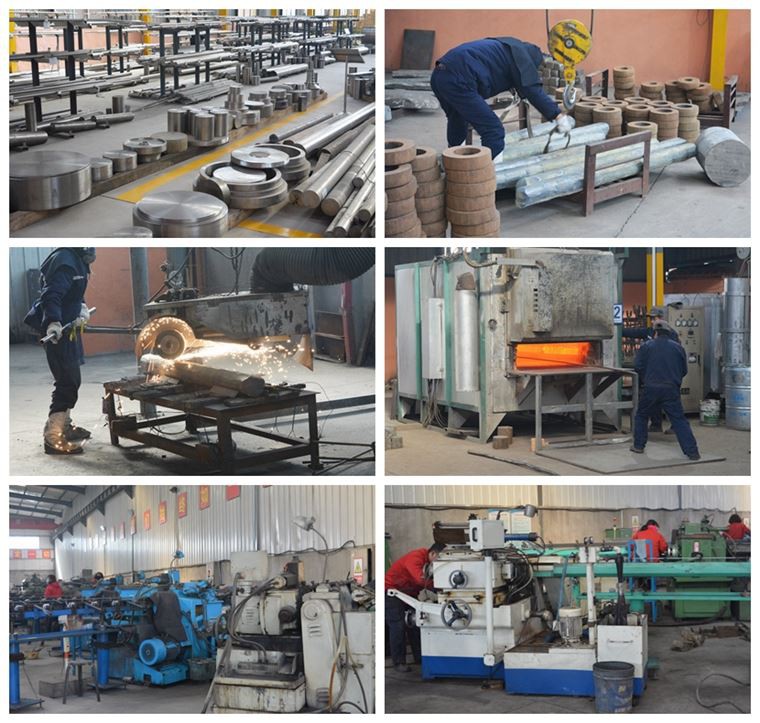

grade 5 titanium forging
