Gr 2 Titanium Tube Sheet

Gr 2 Titanium Tube Sheet

Porduct name : Gr 2 Titanium Tube Sheet
Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc.
Size &Standard: As per client drawing
Production Method: Forging,annealing and machining
Advantage: Excellent corrosion resistance ability
Packing: Plywood case
Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc.

Send Inquiry

Chat Now

Product Introduction

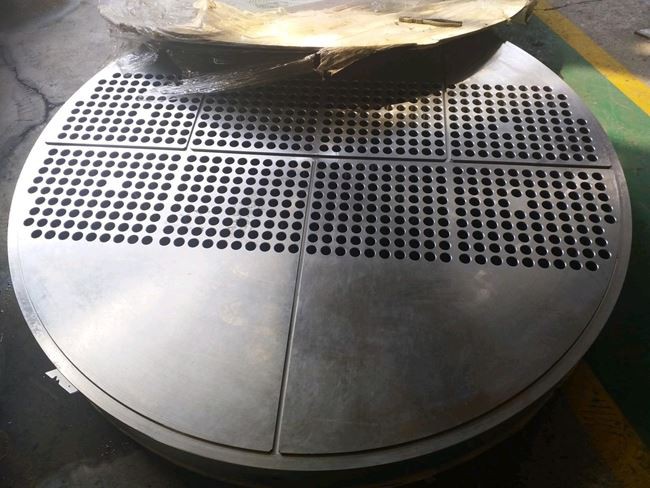

Gr 2 Titanium Tube Sheet

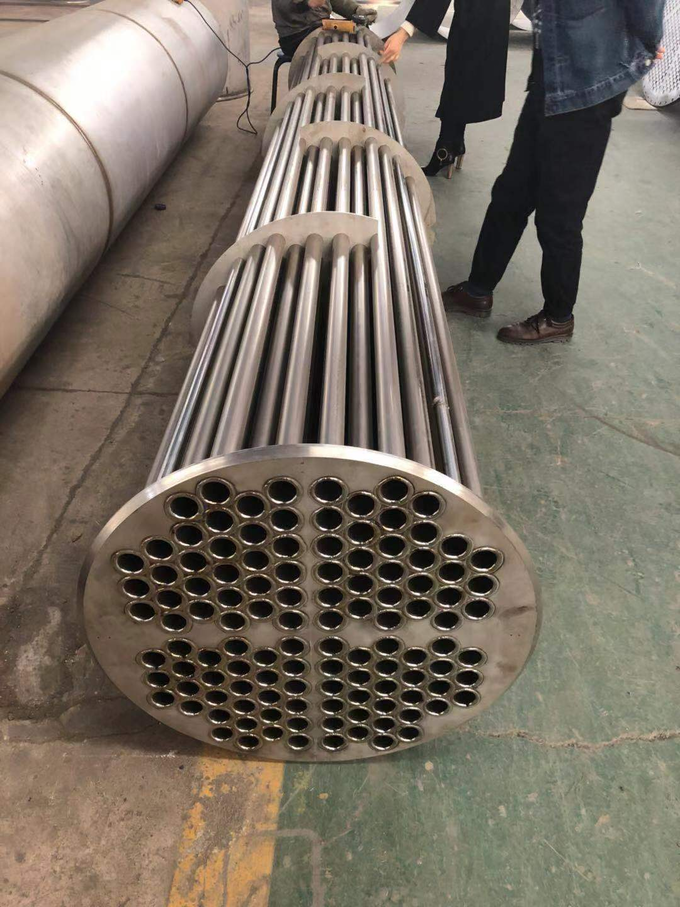

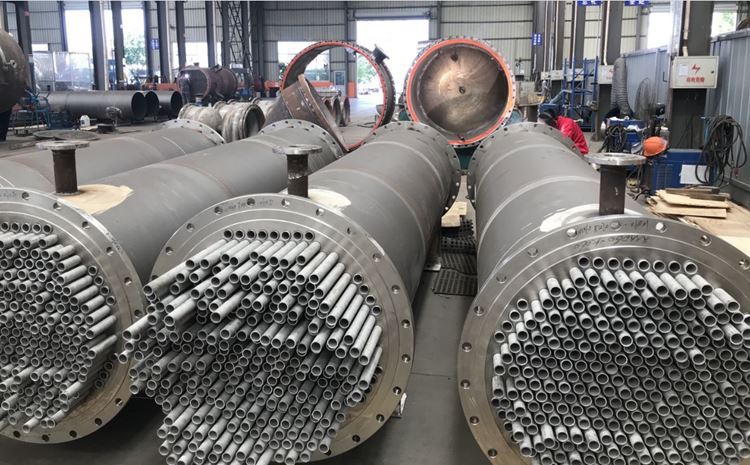

The two ends of the fixed tube-plate heat exchanger are connected with the shell by welding method. Heat exchange tube can be light tube or low fin tube. Its simple structure, low manufacturing cost, can get a small shell diameter, tube can be divided into various, shell can also be divided into multiple longitudinal partition, wide range of specifications, so it is widely used in engineering.

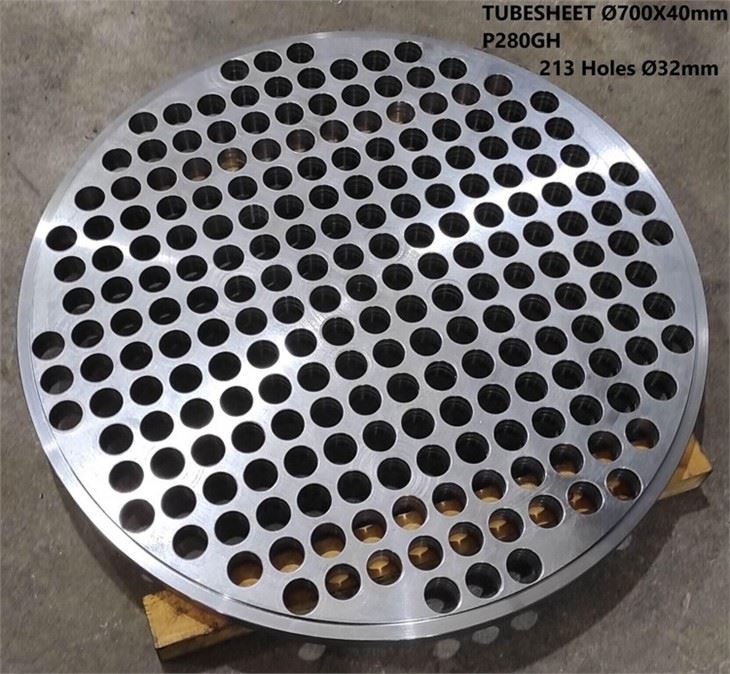

Tubeplate is very widely used in dead tube heat exchanger, boiler, pressure vessel, steam turbine, large central air conditioning and other industries, it is mainly used in some chemical vessels, play a role of supporting fixed tube, metal material makes it not only has strong rigidity but also has great thermal conductivity.

Chemical composition (Wt%)

ASTM No.	Fe max	O max	N max	C max	H max	Pd	Al	Bal
Grade 2	0.3	0.25	0.03	0.1	0.015	-	-	Ti

Physical Properties (Min)

ASTM Grade	Alloy Composition	Tensile Strength		Yield Strength		Elongation min %
ASTM Grade	Alloy Composition	ksi	Mpa	ksi	Mpa
Grade 2	Unalloyed Ti ("Pure") 50A -CP2	58	400	40	275	25
