Gr5 Titanium Disc
Material: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12
Shape: Round or according to your requirements
Technique: Forged, CNC Machined
Quality Control: Ultrasonic Testing
MOQ:1PC
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Disc Manufacturer

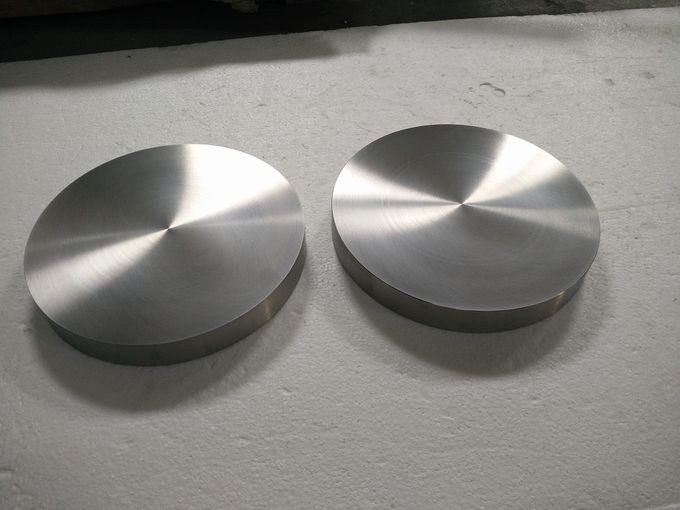

Gr5 Titanium Disc
Product Description
Titanium disc is widely used in vacuum salt production, fine chemical, petrochemical, pharmaceutical, chlor-alkali industry, electroplating, electrolysis, aerospace, seawater desalination and other industries.
Grade: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12
Standard: ASTM / ASME SB381
Shape: Round or according to your requirements
Technique: Forged, CNC Machined
Available Sizes:
Diameter:50-200mm*Height 2-140mm
Diameter:200-400mm*Height 25-150mm
Diameter:400-600*Height 30-110mm
| Chemical compositions(weight%,<=) | ||||
| Ti | Al | V | Fe | C |
| Reminder | 5.5-6.75 | 3.5-4.5 | 0.30 | 0.08 |
| N | H | O | Other(total) | |
| 0.05 | 0.015 | 0.2 | 0.4 | |
| Physical properties(>=) | ||||
Σb Tensile Strength (Mpa) | σr0.2 Yield Strength (Mpa) | δL0+50mm Elongation (%) | ψ Reduction of area (%) | |
| 895 | 825 | 10 | 25 | |

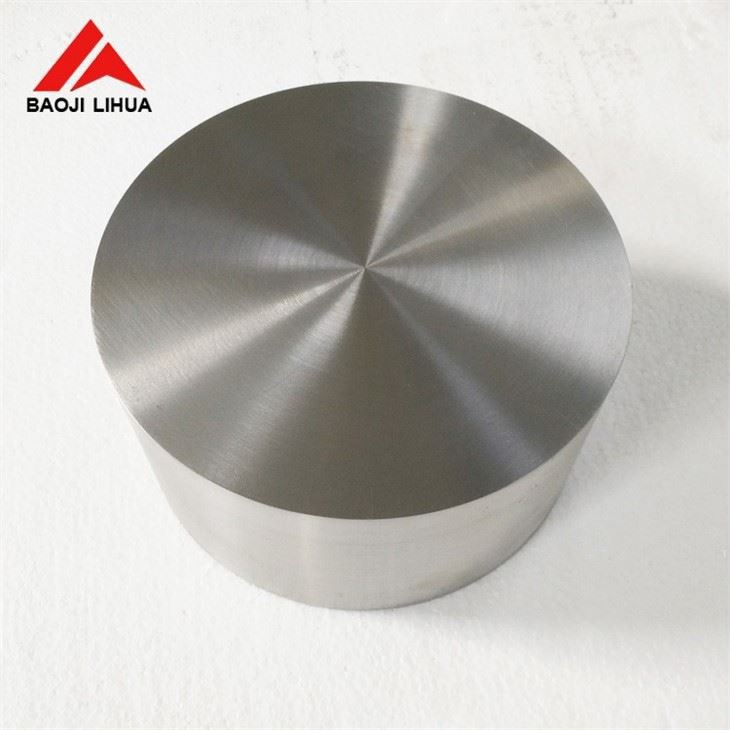

Deatiled Images

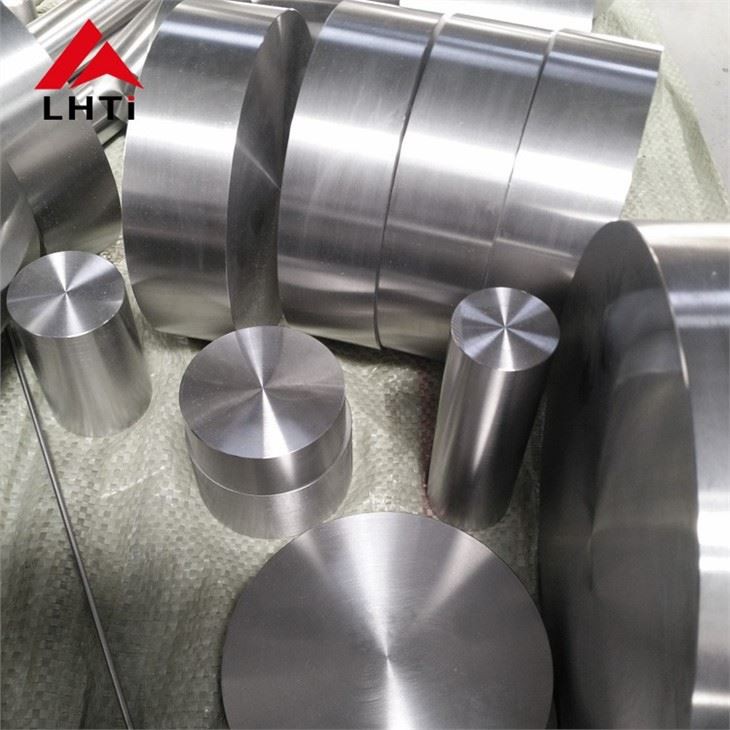

Raw Materials

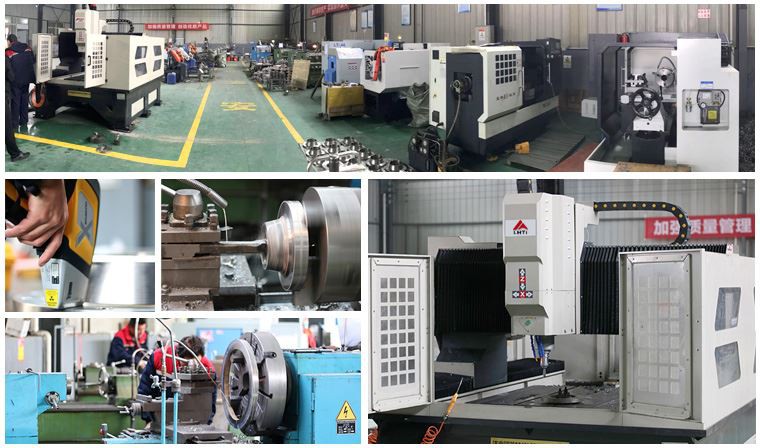

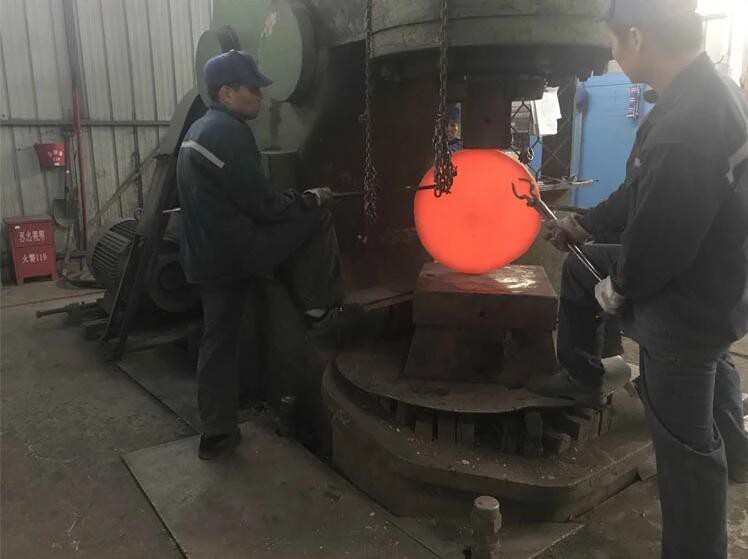

Our Factory

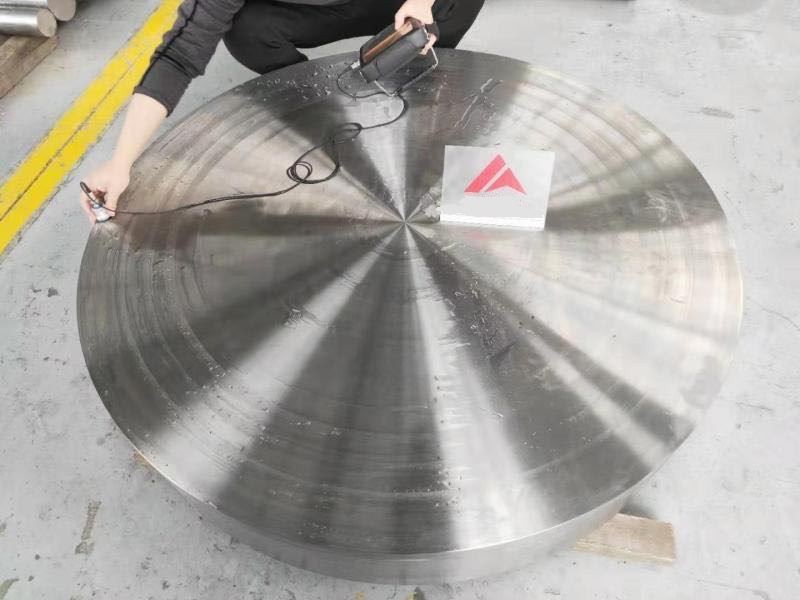

Quality Inspection
Destructive testing: physical performance testing, hardness testing, chemical composition testing.
Non-destructive testing: ultrasonic testing, penetration testing, appearance testing.

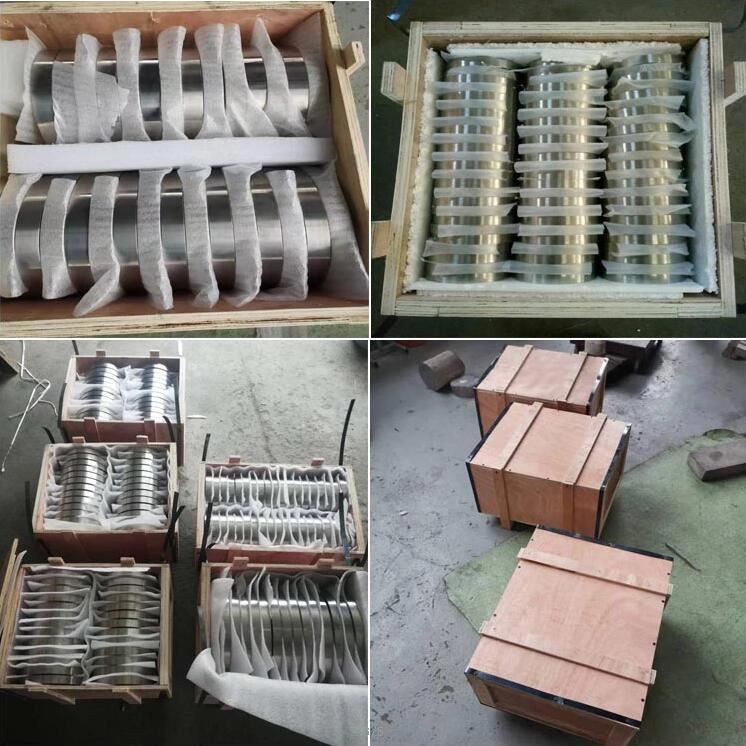

Packaging
Our Company
As a leading manufacturer & trader of titanium products, Baoji Lihua mainly focus on titanium rod, titanium wire, titanium tube and titanium flange etc., with a history of 16 years. The quality of our products is widely recognized.
