Gr2 Titanium Disc

Gr2 Titanium Disc

Standard: ASTM / ASME SB381
Material: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12
Shape: Round or according to your requirements
Technique: Forged, CNC Machined

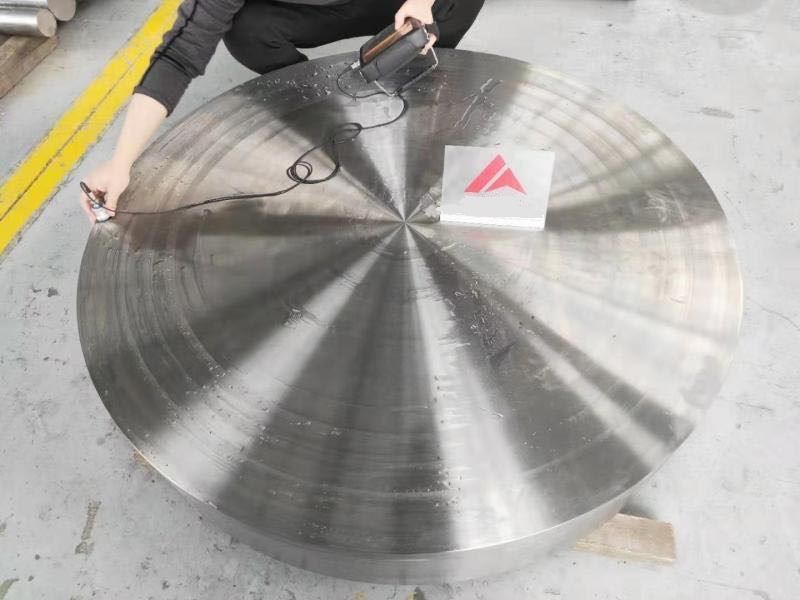

Quality Control: Ultrasonic Testing
MOQ:1PC
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Disc Manufacturer

Send Inquiry

Chat Now

Product Introduction

Gr2 Titanium Disc

Product Description

Grade: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12

Standard: ASTM / ASME SB381

Shape: Round or according to your requirements

Technique: Forged, CNC Machined

Available Sizes:

Diameter:50-200mm*Height 2-140mm

Diameter:200-400mm*Height 25-150mm

Diameter:400-600*Height 30-110mm

Chemical Composition

Grade	Ti	C	Fe	H	N	O	Al	V
Ti Grade2	99.2 min	0.1 max	0.3 max	0.015 max	0.03 max	0.25 max	–	–

Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Titanium Gr. 2	4.5 g/cm3	1665 °C (3030 °F)	Psi – 49900 , MPa – 344	Psi – 39900 , MPa – 275	20 %

Deatiled Images

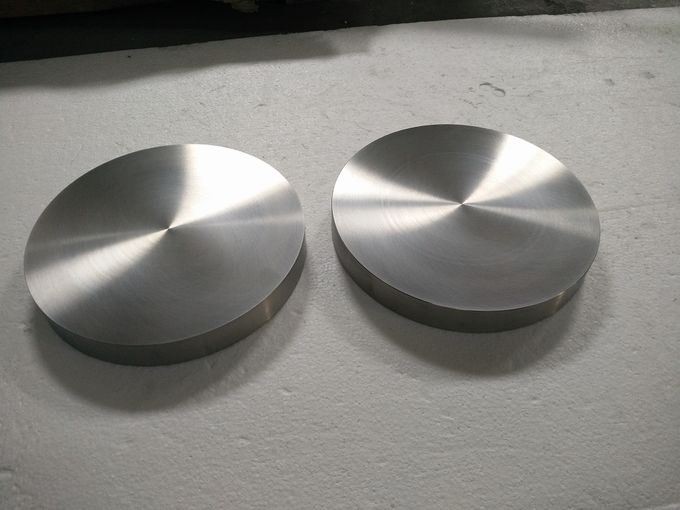

Titanium Discs For Sale
