Titanium Round Bar Grade 5

Titanium Round Bar Grade 5

Product Name: Titanium Rod
Standard: ASTM B348 AMS 4928
Material: Gr5
Unit Price: $15usd/kg- $30usd/kg
Shape: Round
Diameter: 6-350mm
Length: Max 6000mm
Surface: Bright
Condition: Annealed

Send Inquiry

Chat Now

Product Introduction

Product Information of Titanium Round Bar Grade 5

Grade: GR5

Standard: ASTM B348, AMS 4928

Shape: Round

Diameter: 6-350mm

Length: Max 6000mm

Surface: Polishing, Pickling

Condition: Annealed

Feature: 1. Polished surface without any defects free from cracks no pitting.

2. Two ends flatting making sure length tolerance and good looking.

Titanium Round Bar
Diameter (Inches)	Appx. Weight Per Foot	Diameter (Inches)	Appx. Weight Per Foot
0.1875	.05	3.25	16.22
0.25	.10	3.5	18.82
0.3125	.15	3.75	21.60
0.375	.22	4.0	24.58
0.4375	.29	4.25	27.74
0.5	.38	4.5	31.10
0.5625	.48	4.75	34.01
0.625	.60	5.0	37.68
0.6875	.71	5.25	41.54
0.75	.86	5.5	46.46
0.8125	.99	5.75	49.83
0.875	1.18	6.0	55.30
0.9375	1.32	6.25	58.88
1.0	1.54	6.5	64.80
1.125	1.94	7.0	75.30
1.25	2.40	7.5	86.40
1.375	2.90	8.0	98.30
1.5	3.46	8.25	104.60
1.625	3.98	8.5	111.00
1.750	4.62	9.0	124.40
1.875	5.40	9.5	138.60
2.0	6.14	10.0	153.60
2.25	7.78	11.0	185.90
2.375	8.50	12.0	212.20
2.5	9.60	13.0	259.60
2.625	10.58	14.0	301.10
2.75	11.62	15.0	351.40
3.0	13.82	16.0	385.90

Advantages

Precision Manufacturing
Light in weight
Excellent corrosion resistance
High Strength
Excellent strength to weight ratio
High temperature resistance
Low temperature resistance
Good thermal conductivity
Low density
Long service life

Detailed Images

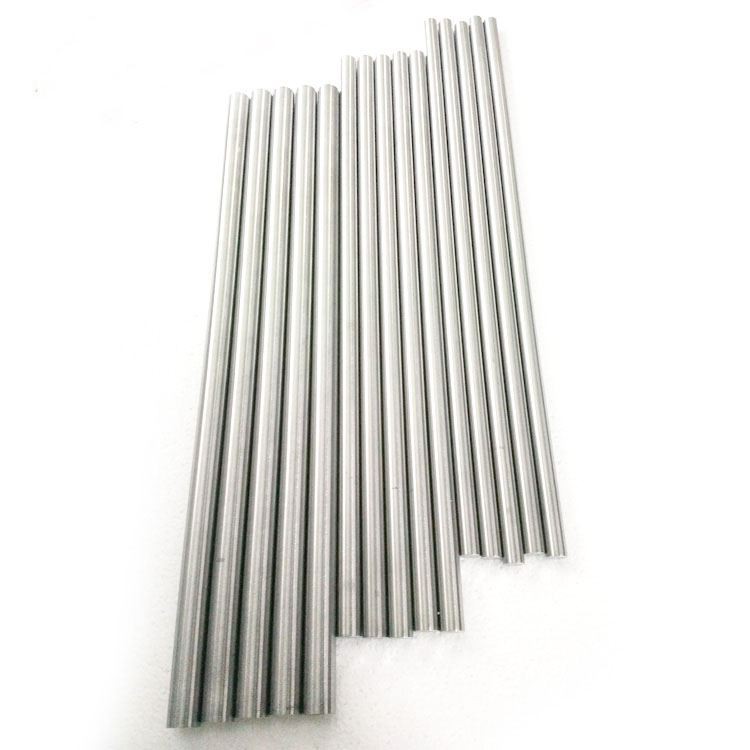

titanium round bar grade 5

Grade 5 Titanium Round Bar

Titanium Alloy Bar
