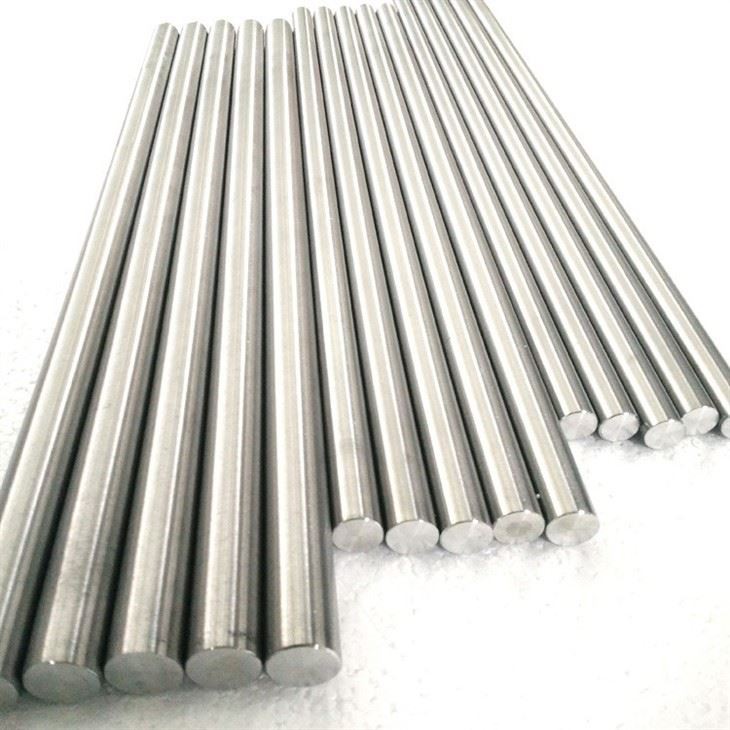

Grade 5 Titanium Round Bar

Grade 5 Titanium Round Bar

Product Name: Titanium Rod
Standard: ASTM B348 AMS 4928
Material: Gr5
Unit Price: $15usd/kg- $30usd/kg
Shape: Round
Diameter: 6-350mm
Length: Max 6000mm
Surface: Bright
Condition: Annealed

Send Inquiry

Chat Now

Product Introduction

Product Information of Grade 5 Titanium Round Bar

Grade: GR5

Standard: ASTM B348, AMS 4928

Shape: Round

Diameter: 6-350mm

Length: Max 6000mm

Surface: Polishing, Pickling

Condition: Annealed

Features: 1. Polished surface without any defects free from cracks no pitting.

2. Two ends flatting making sure length tolerance and good looking.

Tolerance of Grade 5 Titanium Round Bar

Diameter(mm)	h7	h8	h9	h10	h11	h12
Diameter(mm)	Tolerance precision (um)
3~6	12	18	30	48	75	120
6~10	15	22	36	58	90	150
10~18	18	27	43	70	110	180
"h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X)

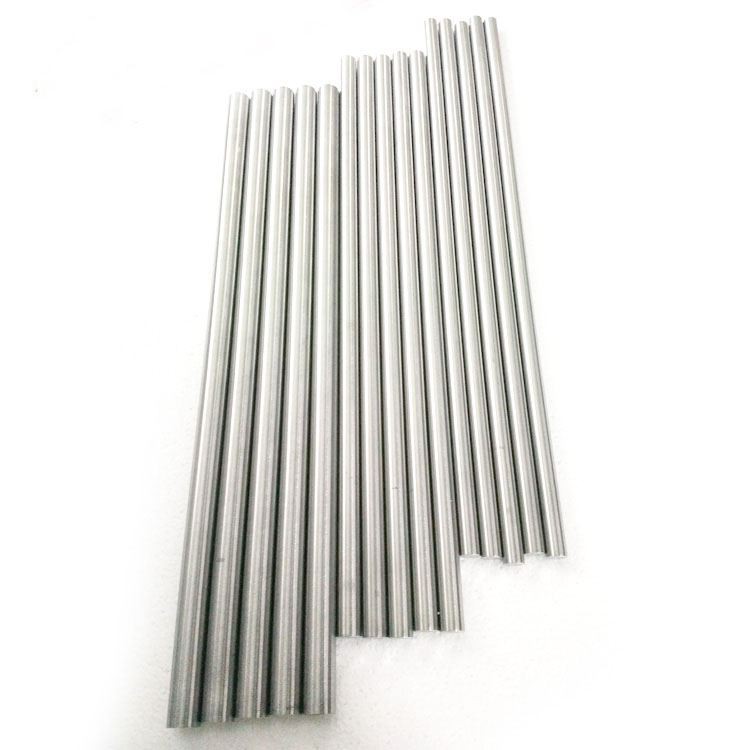

Deailed Images of Grade 5 Titanium Round Bar

Grade 5 Titanium Round Bar

All Tests of Grade 5 Titanium Round Bar

• Mechanical Testing Such as Tensile of Area

• Hardness Test

• Chemical Analysis – Spectro Analysis

• Positive Material Identification – PMI Testing

• Flattening Test

• Micro and MacroTest

• Pitting Resistance Test

• Flaring Test

• Intergranular Corrosion (IGC) Test
