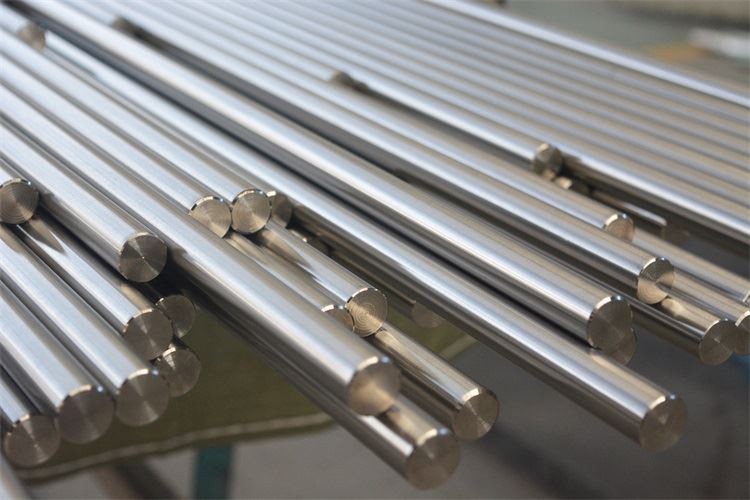

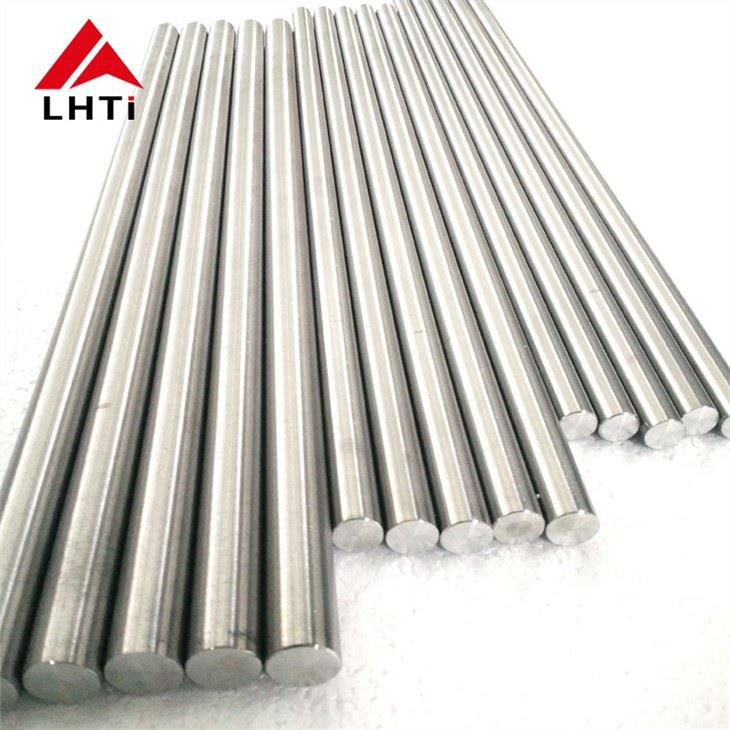

Round Gr2 Titanium Bar

Round Gr2 Titanium Bar

Product Name: Titanium Bar
Standard: ASTM B348
Material: GR1, GR2, GR5, GR7, GR12

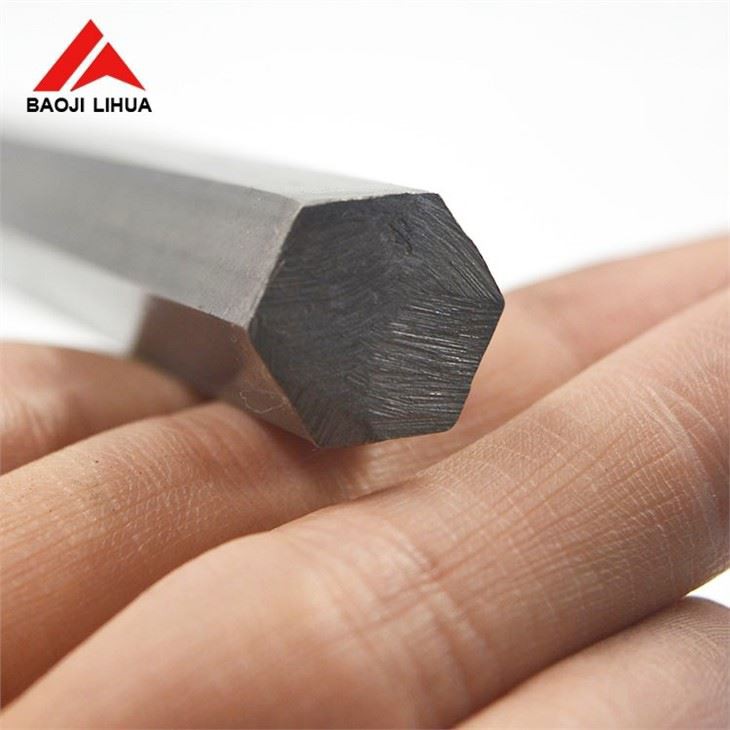

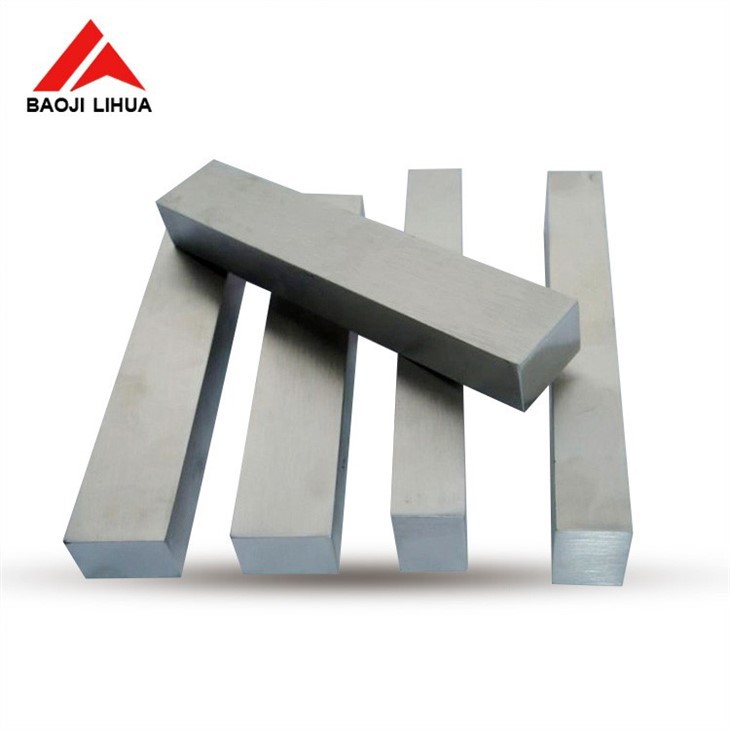

Shape: Round, Square, Flat, Hex
Diameter: 6-350mm
Length: Max 6000mm
Surface: Bright
MOQ:100kgs
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Bar Manufacturer

Send Inquiry

Chat Now

Product Introduction

Round Gr2 Titanium Bar

Product Information

Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136

Grade: GR1, GR2, GR4, GR5, GR5 ELI, GR7, GR12, GR23, TC11, TC21, Ti-15333, Ti-662 etc.

Russian Grade: BT1-100,BT1-0,BT6 etc.

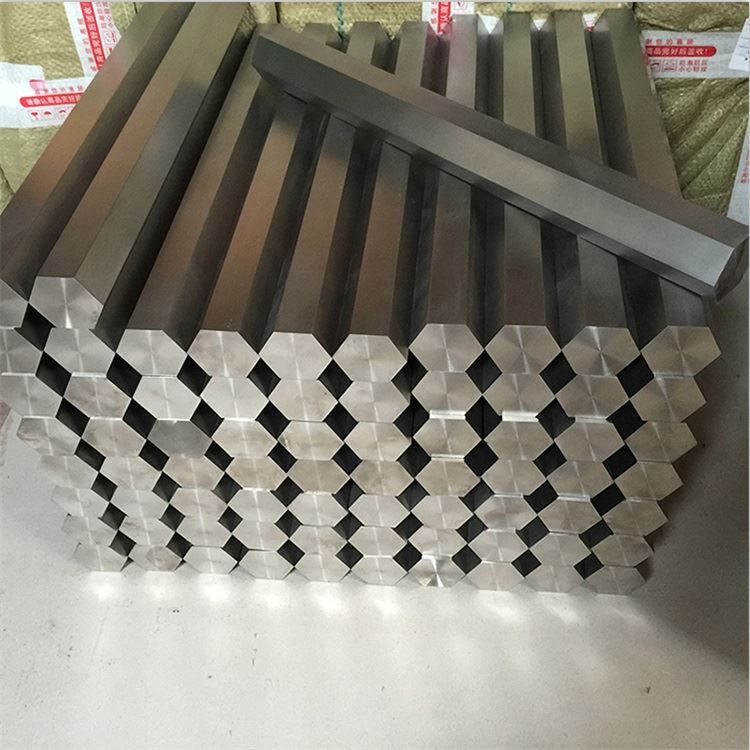

Shape: Round, Square, Flat, Hex

Diameter: 3-350mm

Length: up to 6000mm, random length is also ok and the price is lower

Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per your requirements

Surface: Polishing, Pickling

Condition: R/M/Y

Features: 1. Not any defects free from cracks no pitting.

2. Two ends flatting making sure length tolerance and good looking.

Applications: water treatment, desalination, power generation, marine, aerospace, chemical processing, engine components, autometic parts, medical industry, sports equipment etc.

Size(mm)	Tolerance(mm)	Ovality(mm)
6.35 to 7.94	±0.13	0.20
7.94 to 11.11	±0.15	0.23
11.11 to 15.88	±0.18	0.25
15.88 to 22.22	±0.20	0.30
22.22 to 25.40	±0.23	0.33
25.40 to 28.58	±0.25	0.38
28.58 to 31.75	±0.28	0.41
31.75 to 34.92	±0.30	0.46
34.92 to 38.10	±0.36	0.53
38.10 to 50.80	±0.40	0.58
50.80 to 63.50	+0.79, − 0	0.58
63.50 to 88.90	+1.19, − 0	0.89
88.90 to 114.30	+1.59, − 0	1.17
