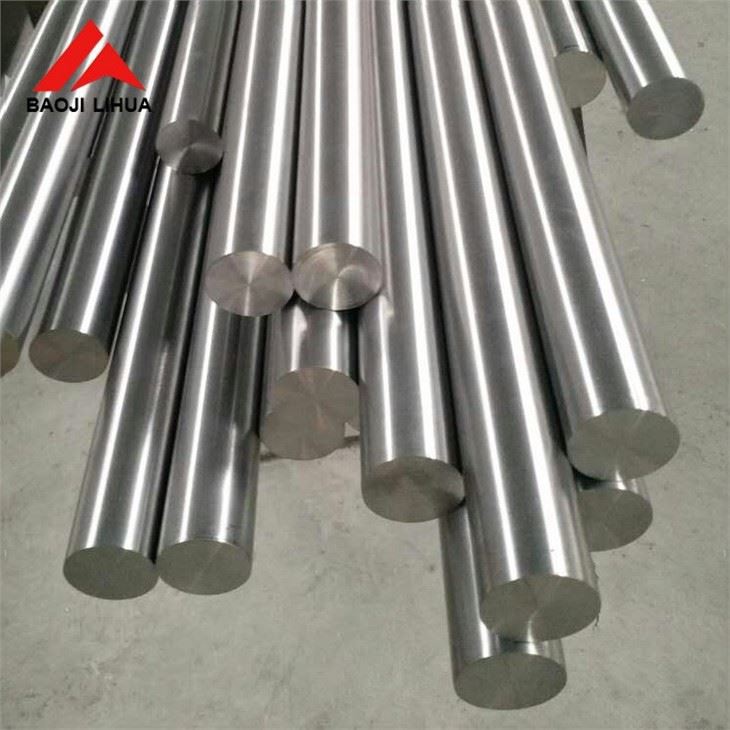

Gr12 Titanium Rod
Standard: ASTM B348
Material: GR1, GR2, GR5, GR7, GR12
Shape: Round, Square, Flat, Hex
Diameter: 6-350mm
Length: Max 6000mm
Surface: Bright
MOQ:100kgs
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Bar Manufacturer

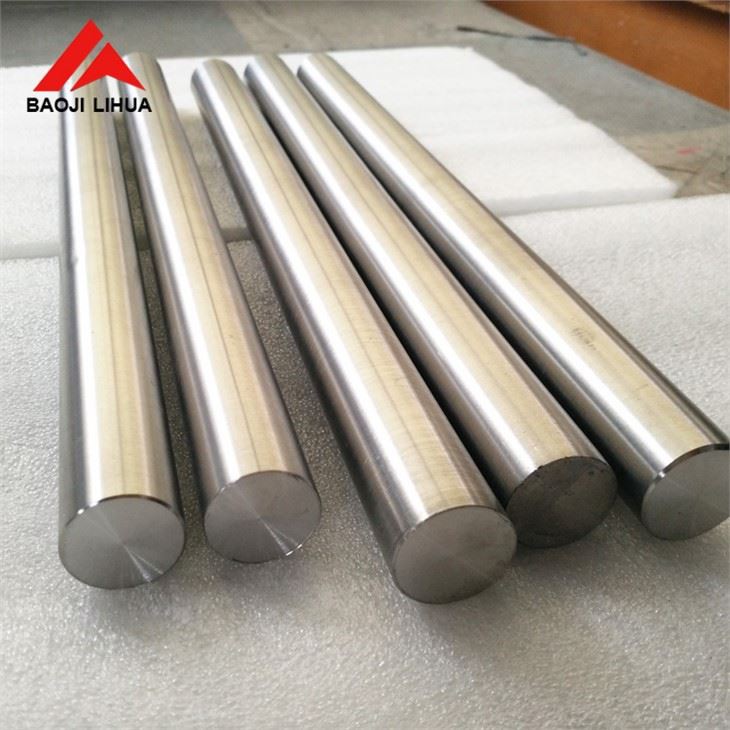

Gr12 Titanium Rod
Gr12 titanium rods are similar to commercially pure titanium grade 1, 2 and 3 titanium rods. Gr12 titanium is mainly used for primary forming forged products. Grade 12 titanium contains 0.3% molybdenum and 0.8% nickel. The content of nickel and molybdenum alloy provides higher strength and better corrosion resistance. While it is not as corrosion resistant as grade 7 titanium (a titanium-palladium alloy), grade 12 titanium is more cost effective.
Product Information
Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136
Grade: GR1, GR2, GR4, GR5, GR5 ELI, GR7, GR12, GR23, TC11, TC21, Ti-15333, Ti-662 etc.
Russian Grade: BT1-100,BT1-0,BT6 etc.
Shape: Round, Square, Flat, Hex
Diameter: 3-350mm
Length: up to 6000mm, random length is also ok and the price is lower
Surface: Polishing, Pickling
Chemical Composition
Chemical compositions(weight%,<=) | ||||
Mo | Ni | Fe | C | N |
0.2-0.4 | 0.6-0.9 | 0.30 | 0.08 | 0.03 |
H | O | Ti | Others | Total |
0.015 | 0.25 | Remainder | 0.10 | 0.40 |
Physical Properties
Physical properties(>=) | |||
Σb Tensile Strength (Mpa) | σr0.2 Yield Strength (Mpa) | δL0+50mm Elongation (%) | ψ Reduction of area (%) |
485 | 345 | 18 | 25 |

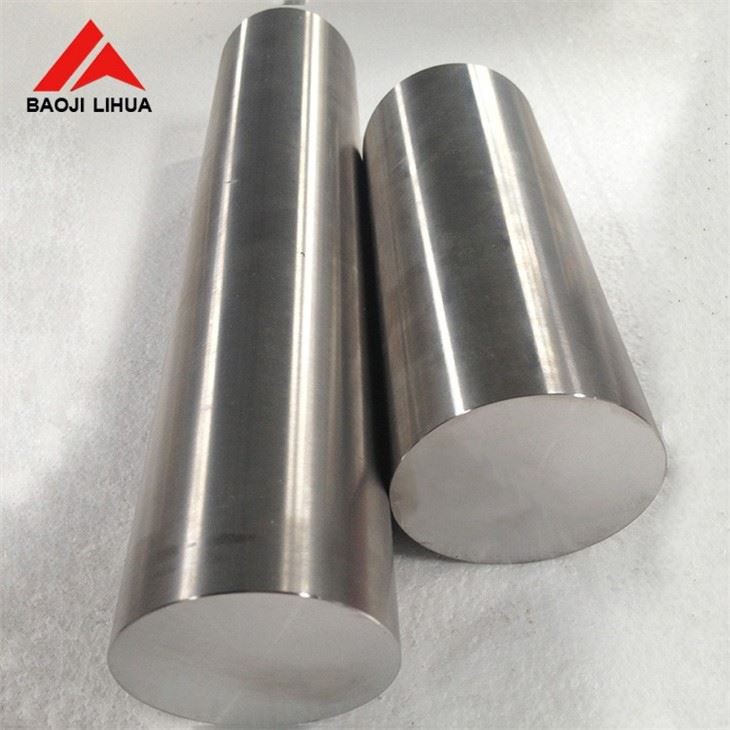

Detailed Images


Applications

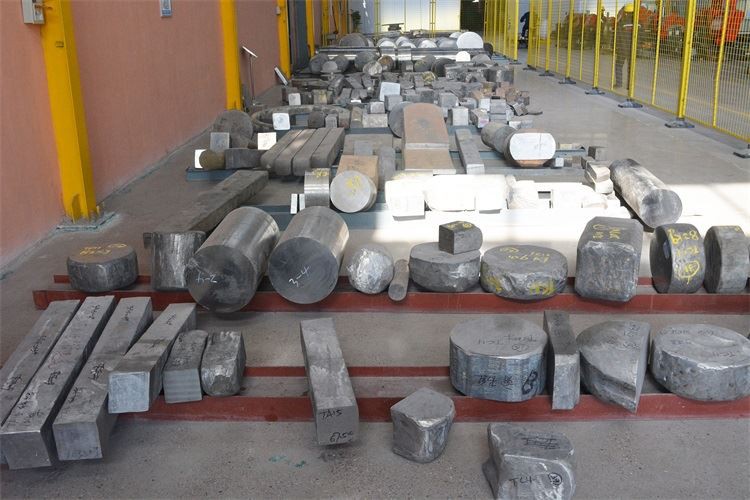

Raw Materials
Our Factory

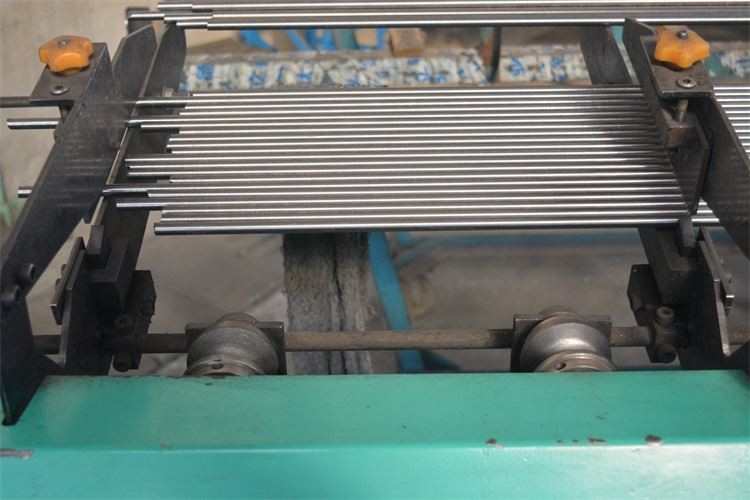

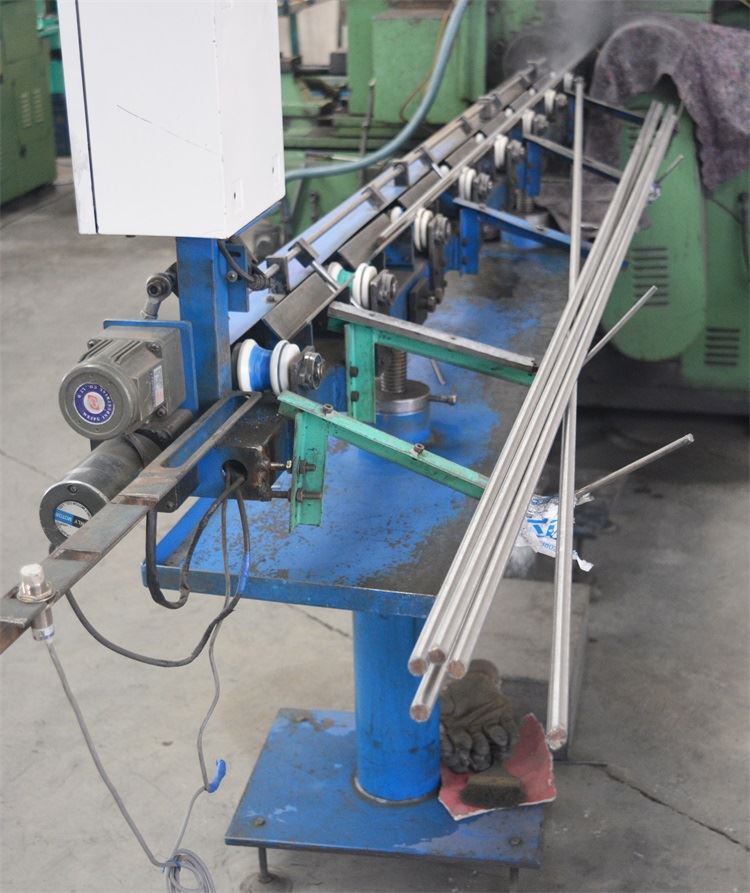

Production Process

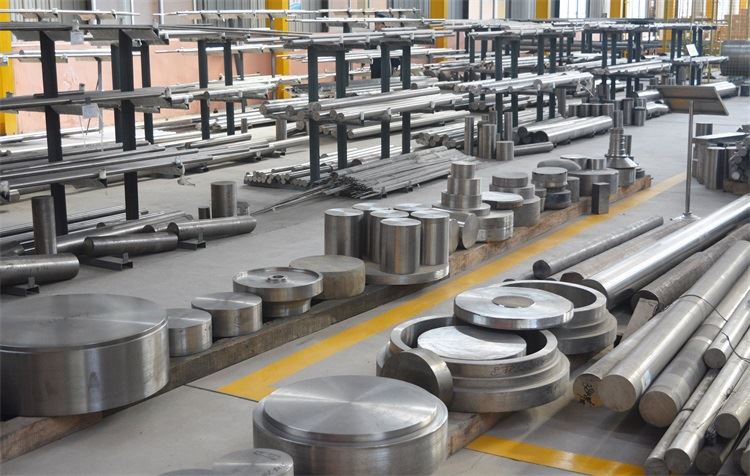

Stock
Quality Inspection

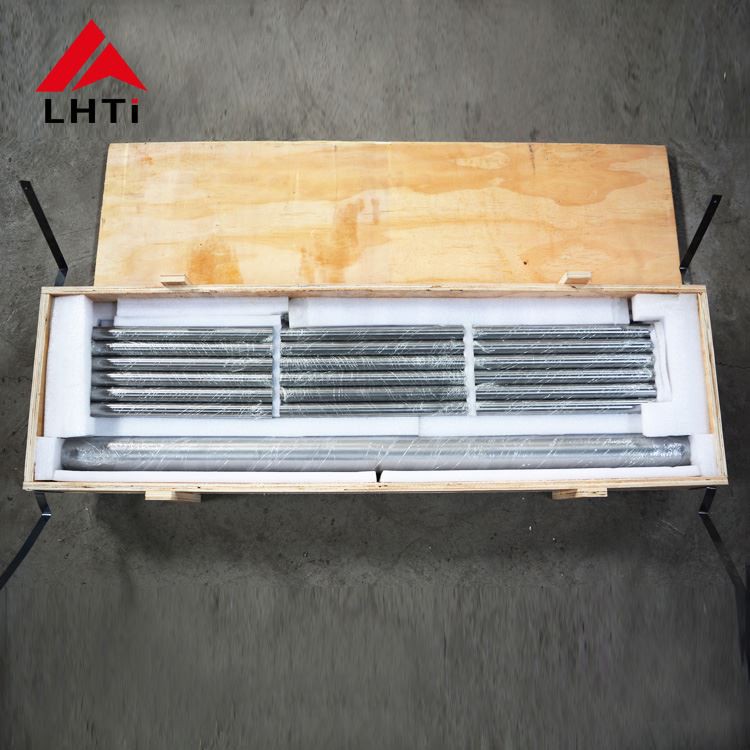

Packaging
