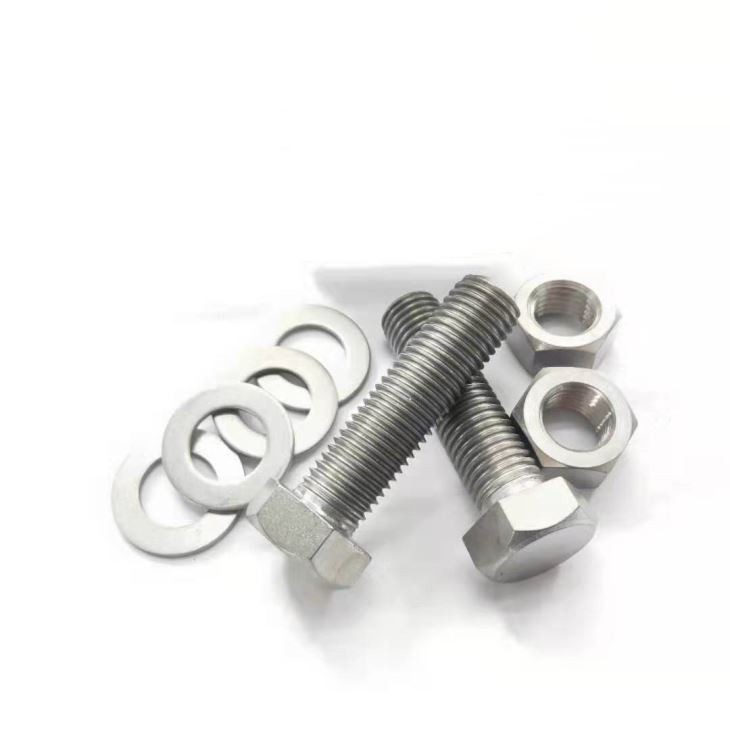

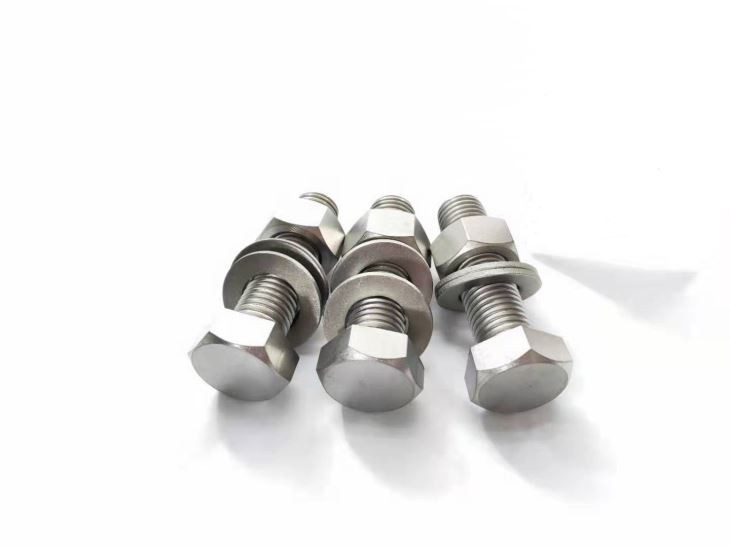

Titanium Hex Head Bolt
Size:M3-M52
Material:Gr2
Application: Chemical industry
Standard: DIN933
Technique:CNC machined, Forged
MOQ:100pcs
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Bolts Manufacturer
Pure titanium has extremely high corrosion resistance in most media, especially in neutral, oxidizing
and seawater media. The corrosion resistance in seawater is higher than that of aluminum alloys,
stainless steels and nickel-based alloys.So it has been used in the industrial, agricultural environment
and marine atmosphere for several years, and the surface has not changed.
Titanium is highly stable in various concentrations of nitric acid and chromic acid, and it is also very
resistant to corrosion in alkaline solutions and most organic acids and compounds.Titanium hex bolts
are produced in strictly accordance with DIN933 standard, and the smallest spot specifications from
M3 are available in stock.
Item Name | DIN933 Titanium hex bolts / screw / nut |
Material | Pure Titanium |
Grade | Gr2 |
Standard | DIN933 DIN 934 |
Surface Treatment | Forged or CNC machined |
Color | Ti natural |
Applications | Chemical Industry |
Certificate | ISO 9001:2015, EN 10204/3.1 |
Features | 1. Not easy to rust; 2. Resistance to acid and alkali corrosion; 3. Light weight; 4. Has a long service life, widely used in aerospace, electroplating, chemical industry, machinery, etc. |

Chemical composition (Wt%)
| Grade | Fe max | O max | N max | C max | H max | Pd | Al | Bal |
| Gr2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Physical Properties (Min)
| Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % | ||
| ksi | Mpa | ksi | Mpa | |||
| Gr2 | Unalloyed Ti ("Pure") 50A -CP2 | 58 | 400 | 40 | 275 | 25 |

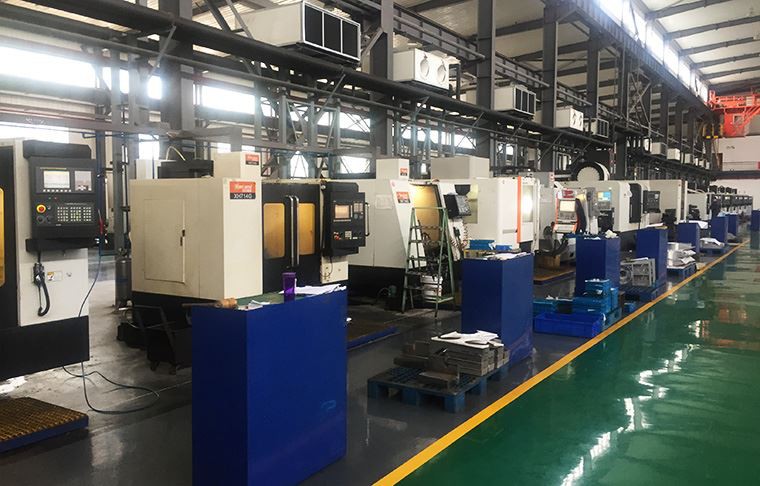

Our Factory

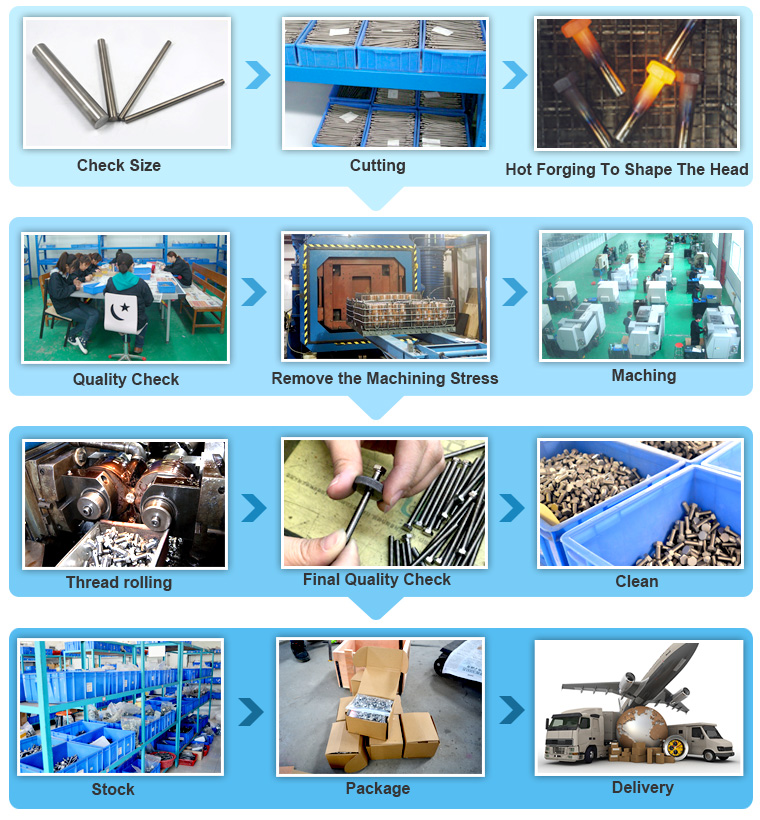

Production process of titanium bolts/ screws:

Our Company
As a leading manufacturer & trader of titanium products for over 15 years, Baoji Lihua has exported titanium bolts to many countries. The quality of our products is widely recognized.
Customized products are always welcomed.
We know the market very well so our price will make you more competitive.
We have a professional technical team. Our company offers a complete service to you from A to Z, with our dedicated team.

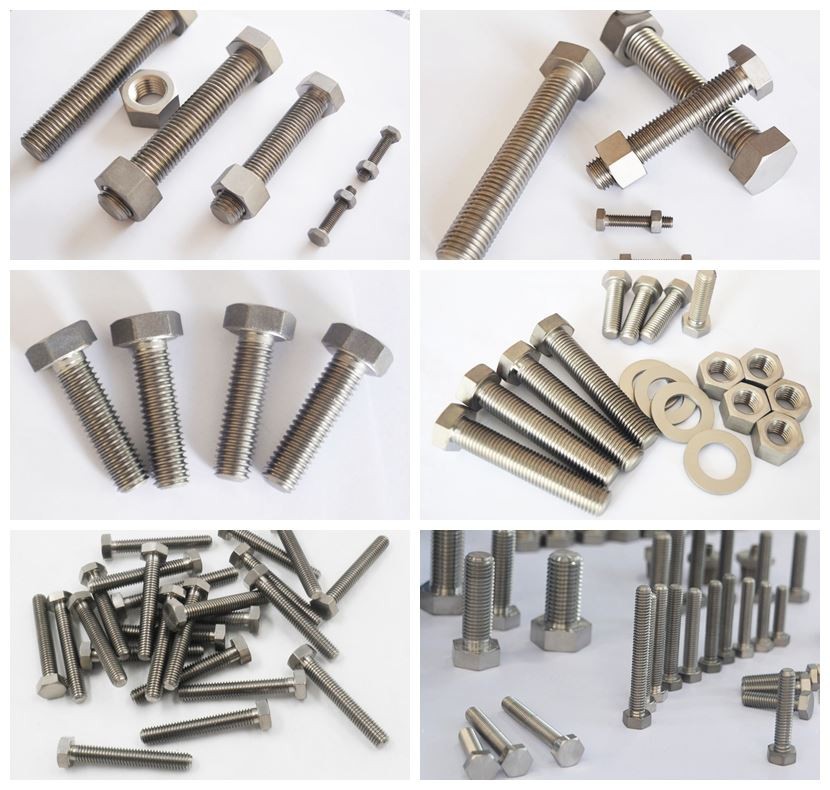

1.Type of titanium bolts Available
►Cap Head Bolts ► U-Bolts ► Square Head Bolts ► Hex flange bolts ► Round head bolts
► Round Torsional Shear Bolts ► T-head bolts
► Countersunk socket head bolt
2. Service
We have the stocks so we would provide our clients the short delivery time.
Strict control from raw materials till products finished, so the quality is guaranteed.
Customized sizes are offered as well as specified sizes and multiple sizes.
Strict quality test from raw material to product.
Original mill sheet test reports EN 10204.3.1 is available.
