2mm Titanium Wire
video

2mm Titanium Wire

Standard: ASTM B863
Material: Gr1, Gr2, Gr5, Gr7, Gr12
Unit Price: $25usd/kg-$60usd/kg
Shape: Straight, Spool, Coil
Diameter: 2mm
Surface: Bright


Send Inquiry
Chat Now
Product Introduction

Product Information of 2mm Titanium Wire


Grade: Gr1, Gr2, Gr5, Gr7, Gr12

Standard: ASTM B863

Size: 2mm

Shape:  Straight, Spool, Coil

Surface: Polishing, Pickling

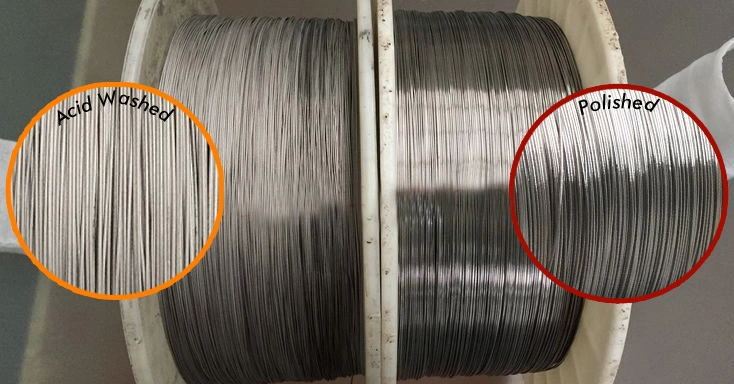

Surface of 2mm Titanium Wire


Bright, no oxidation color, no cracks, peeling, thorns, marks and inclusions. Minor

local scratches, abrasions, spots and pits that do not exceed the allowable deviation of the wire diameter are allowed.




Mechanical Propertities of 2mm Titanium Wire


Grade

Tensile Strength (min)

Yield strength 0.2%Offset

Elongation in 2in. or 50mm % (min)

Min

Ksi

Mpa

Ksi

Mpa

Gr1

35

240

20

138

20

Gr2

50

345

40

275

18

Gr5

130

895

120

828

10

Gr7

50

345

40

275

18

Gr12

70

483

50

345

18


Package of 2mm Titanium Wire


Straight wire is contained in plastic box, 5kg/box, with plywood box for export outside

Spool and coil wire is contained in standard export plywood box
