Product name:1.2mm titanium wire
Type: Titanium welding wire
Standard : AWS a5.16
Grade : GR1 GR2 GR4 GR5 GR7 GR12
Diameter : 1.0mm 1.2mm 1.6mm 2.0mm 2.4mm 3.2mm 4.2mm etc.
Shape : coil,spool,straight.
Surface : pickling surface/bright surface
Application : Welding

Send Inquiry

Chat Now

Product Introduction

1.2mm Titanium wire welding wire

Product name	Titanium welding wire
Standard	AMSE SFA 5.16/Aws a5.16
Material	Pure Titanium :ERTi-1,ERTi-2,ERTi-4(Gr1,Gr2,Gr4) Alloy Titanium :ERTi-5 ERTi-7 ERTi-12 (Gr5,Gr7,Gr12)
Diameter	Spool wire:φ 1.0, 1.2, 1.6mm (with wire reel) Coil wire: φ 1.2, 1.6, 2.0, 2.4, 3.0, 4.0, 5.0mm (no wire reel) Straight wire: φ 1.2, 1.6, 2.0, 2.4, 3.0, 4.0, 5.0, 6.0mm (plastic box packing, 1000mm in length)
Length	Spool wire and coil wire :according to weight Straight wire:1000mm, or as customer's request
Product situation	Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status

Chemical requirements(wt%)

ASTM No.	Fe max	O max	N max	C max	H max	Pd	Al	Bal
Gr1	0.20	0.18	0.03	0.08	0.015	-	-	Ti
Gr2	0.30	0.25	0.03	0.08	0.015	-	-	Ti
Gr4	0.50	0.40	0.05	0.08	0.015	-	-	Ti
Gr5	0.40	0.20	0.05	0.08	0.015	-	5.5-6.75	Ti
Gr7	0.30	0.25	0.03	0.08	0.015	0,12-0.25	-	Ti
Gr12	0.30	0.25	0.03	0.08	0.015	-	-	Ti

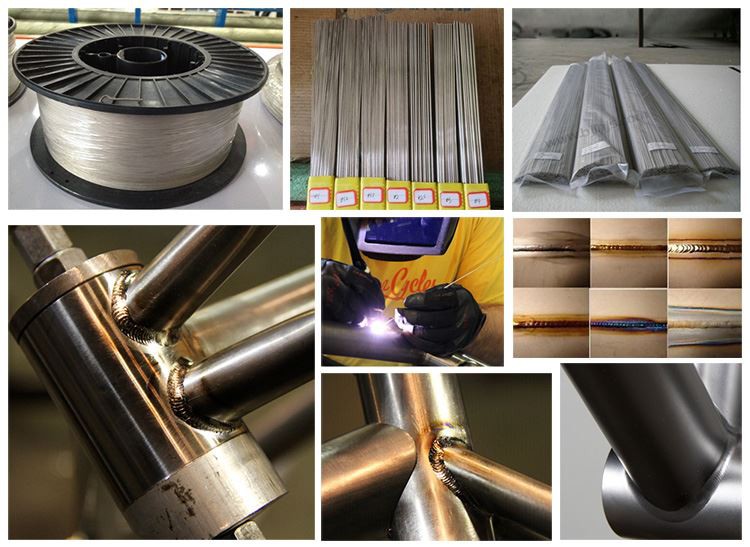

titanium-welding-wire-use

1. Because of its excellent corrosion resistance, titanium wire has been widely used in chemical, pharmaceutical, and paper industries. It can be made into a mesh for seawater filters, purified water filters, and chemical drugs filters.

2. Titanium and titanium alloy wires are also used to manufacture fasteners, load-bearing components, springs, etc. due to their good overall performance.

3. In the medical and health industry, due to its excellent biocompatibility, titanium and titanium alloy wires are used to manufacture medical devices, implanted in human crowns, skulls, etc.

4. Some titanium alloy wires with shape memory function, such as titanium-nickel alloy wires, are used to make satellite antennas, shoulder pads for clothes, women's bras, and eyeglass frames.

5. In the electroplating and water treatment industries, titanium and titanium alloy wires are used to manufacture various electrodes.
