ERTI-1 Titanium Welding Wire
Diameter: 1.0mm 1.2mm 1.6mm 2.0mm 2.4mm 3.2mm etc.
Length:1000mm or as customer's request
Standard: ASM a5.16
Surface : pickling surface/bright surface
Shape : coil,spool,straight
Application : Welding
Introduction to Gr1 Titanium Welding Wire
Our Gr1 Titanium Welding Wire is a premier choice for welding titanium-based alloys, renowned for its superior welding performance and exceptional mechanical properties. This wire is ideal for achieving clean, strong, and aesthetically pleasing welds.
Product Details
Grade: Gr1 (ERTi-1) Titanium Welding Wire
Standard: ASM A5.16
Diameter Options: Available in 1.0 mm, 1.2 mm, 1.6 mm, 2.0 mm, 2.4 mm, 3.2 mm, and other custom sizes.
Length: Typically supplied in 1000 mm lengths or customized according to customer specifications.
Performance Features
Gr1 Titanium Welding Wire is valued for its excellent welding process performance, ensuring smooth and precise welds with a visually appealing finish. The weld metal produced from this wire demonstrates outstanding comprehensive mechanical properties, making it suitable for high-performance applications.
Applications
This welding wire is predominantly used for welding titanium-based alloys, making it an essential component in industries where titanium's strength, lightweight, and corrosion resistance are crucial.
Chemical Composition
The chemical composition of Gr1 titanium welding wire is carefully controlled to ensure optimal performance and quality. Here is the typical composition (Wt%):
Titanium (Ti): 99.5% min
Iron (Fe): 0.20% max
Oxygen (O): 0.18% max
Carbon (C): 0.10% max
Nitrogen (N): 0.03% max
Hydrogen (H): 0.015% max
ASTM No. | Fe max | O max | N max | C max | H max | Pd | Al | Bal |
Grade 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Physical Properties (Min)
ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % | ||
ksi | Mpa | ksi | Mpa | |||
Grade 1 | Unalloyed Ti ("Pure") 35A -CP1 | 35 | 240 | 25 | 170 | 30 |
| Diameter range | Types | |||
| mm | inch | Coil | Spool | Straight |
| >0.78 to 3.25 | >0.031 to 0.128 | Yes | Yes | Yes |
| > 3.25 to 6.00 | > 0.128 to 0.236 | Yes | No | Yes |
| * Diameter Tolerance: +/-0.05mm (+/-0.002") or finer * Spools: 100mm – 300mm (3.9" – 12") * Straight Length: 300mm - 3000mm (12" – 118") | ||||

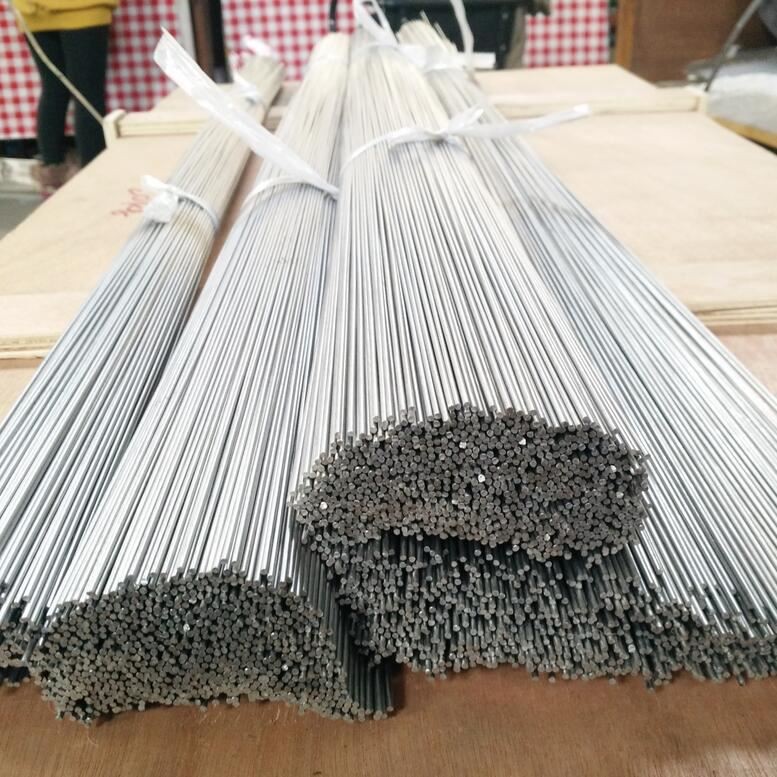

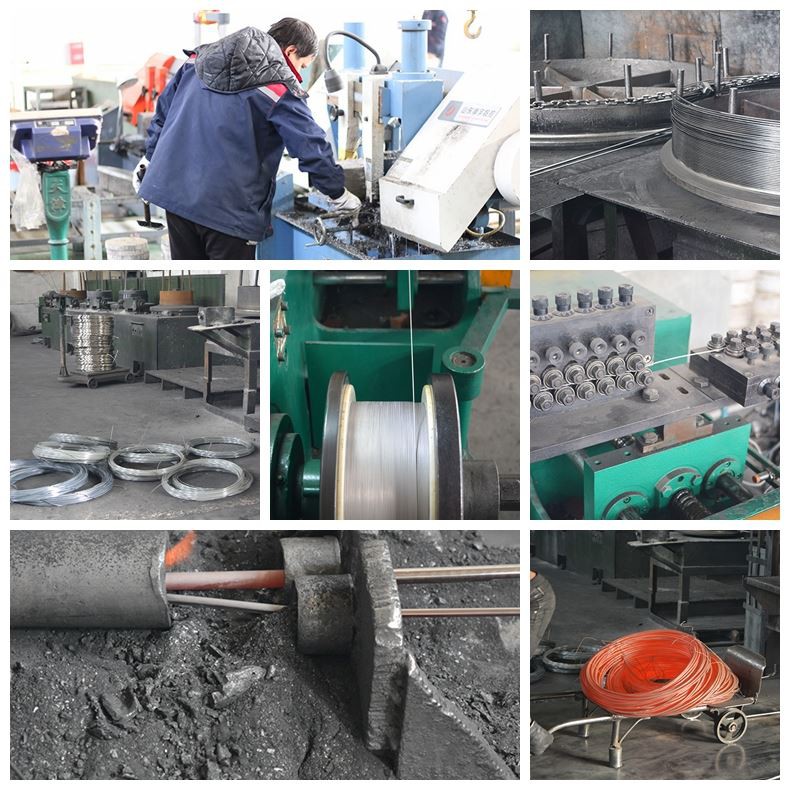

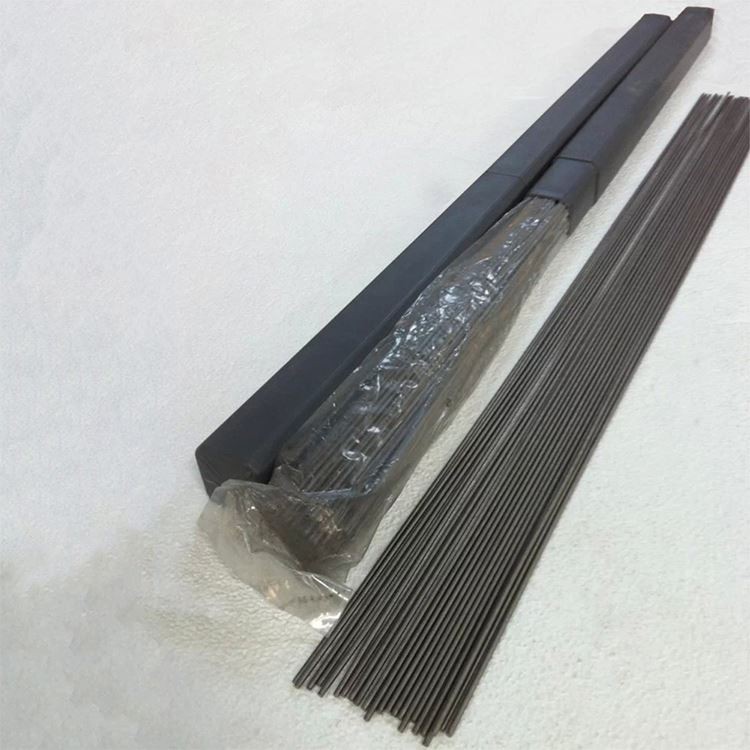

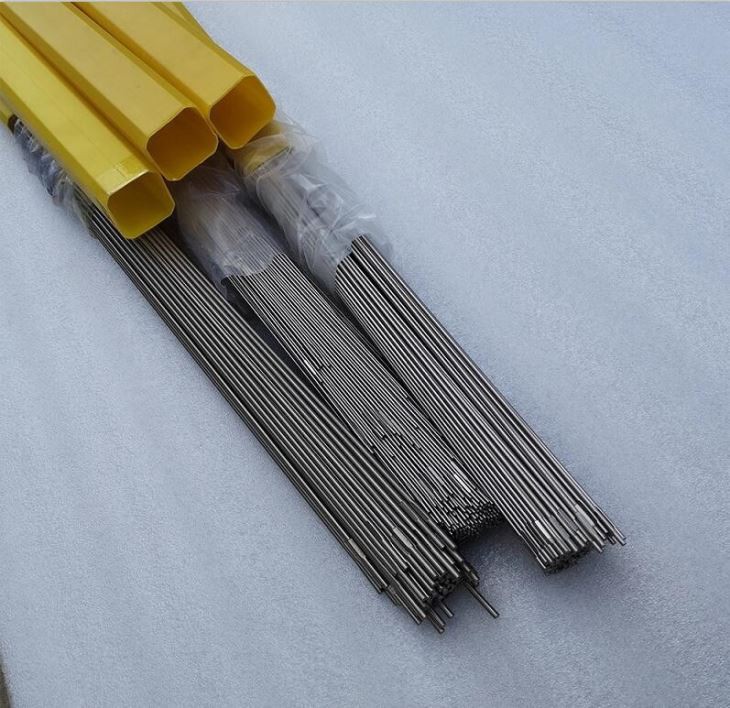

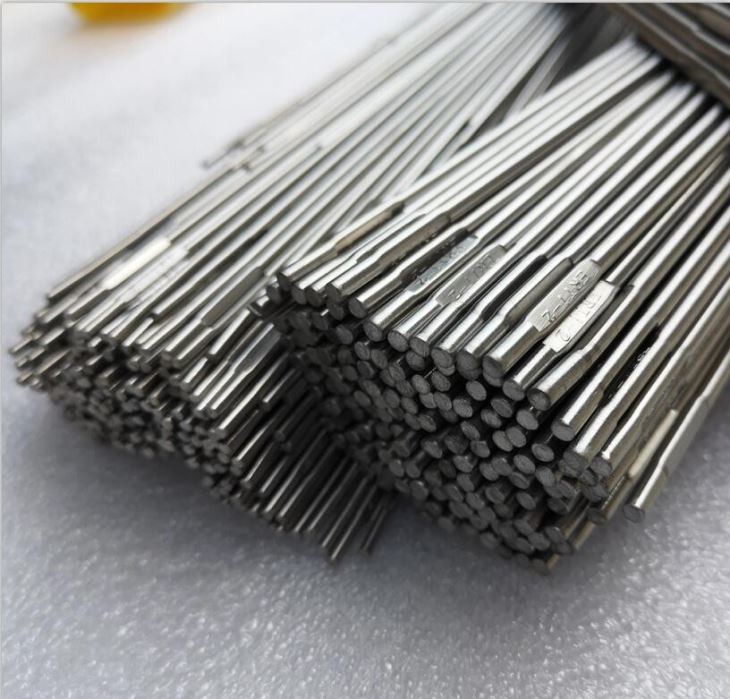

Detailed images:
About our company:
Baoji Lihua Non-ferrous Metals Co.,Ltd has more than 15 years of experience in producing and exporting titanium wires. The titanium wire we produce is strictly in accordance with American standards: ASTM B863 and AWS a5.16/AMSE SFA. High quality and fully meet export standards.
Company certificate:ISO 9001:2015
Product certificate: EN 10204/3.1
The third party detection is available : SGS TUV BV etc.
Our team and Exhibition：

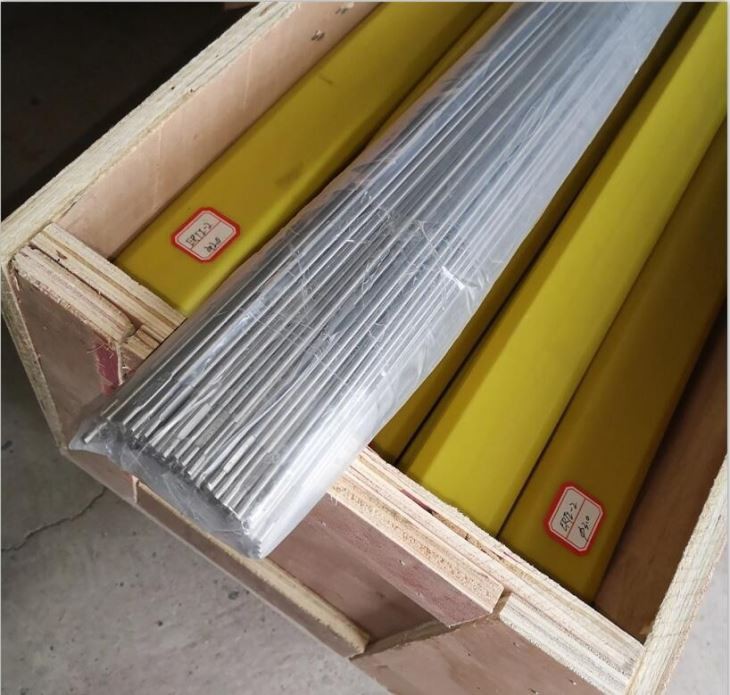

Packaging and Shipping
Our factory employs skilled professionals to ensure meticulous packing of our products.
Straight Titanium Wire: Typically packed in plastic boxes, with each box holding approximately 5 kg of wire. Custom packing options are available to meet specific customer requirements.
Coil and Spool Titanium Wire: Wrapped in a layer of plastic film to prevent deformation and scratches during transportation.
All products are enclosed in non-fumigated wooden boxes that adhere to international shipping standards.
Welcome to contact!We are always available!
