2mm Titanium Wire
Standard: ASTM B863
Material: Gr1, Gr2, Gr5, Gr7, Gr12
Unit Price: $25usd/kg-$60usd/kg
Shape: Straight, Spool, Coil
Diameter: 2mm
Surface: Bright
Material: Gr1, Gr2, Gr5, Gr7, Gr12
Unit Price: $25usd/kg-$60usd/kg
Shape: Straight, Spool, Coil
Diameter: 2mm
Surface: Bright
Send Inquiry
Chat Now
Product Introduction
Product Information of 2mm Titanium Wire
Grade: Gr1, Gr2, Gr5, Gr7, Gr12
Standard: ASTM B863
Size: 2mm
Shape: Straight, Spool, Coil

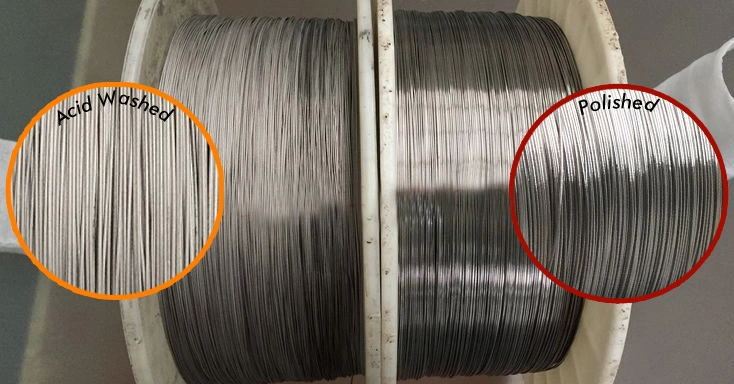

Surface: Polishing, Pickling
Surface of 2mm Titanium Wire
Bright, no oxidation color, no cracks, peeling, thorns, marks and inclusions. Minor
local scratches, abrasions, spots and pits that do not exceed the allowable deviation of the wire diameter are allowed.
Mechanical Propertities of 2mm Titanium Wire
| Grade | Tensile Strength (min) | Yield strength 0.2%Offset | Elongation in 2in. or 50mm % (min) | ||
| Min | |||||
| Ksi | Mpa | Ksi | Mpa | ||
| Gr1 | 35 | 240 | 20 | 138 | 20 |
| Gr2 | 50 | 345 | 40 | 275 | 18 |
| Gr5 | 130 | 895 | 120 | 828 | 10 |
| Gr7 | 50 | 345 | 40 | 275 | 18 |
| Gr12 | 70 | 483 | 50 | 345 | 18 |
Package of 2mm Titanium Wire

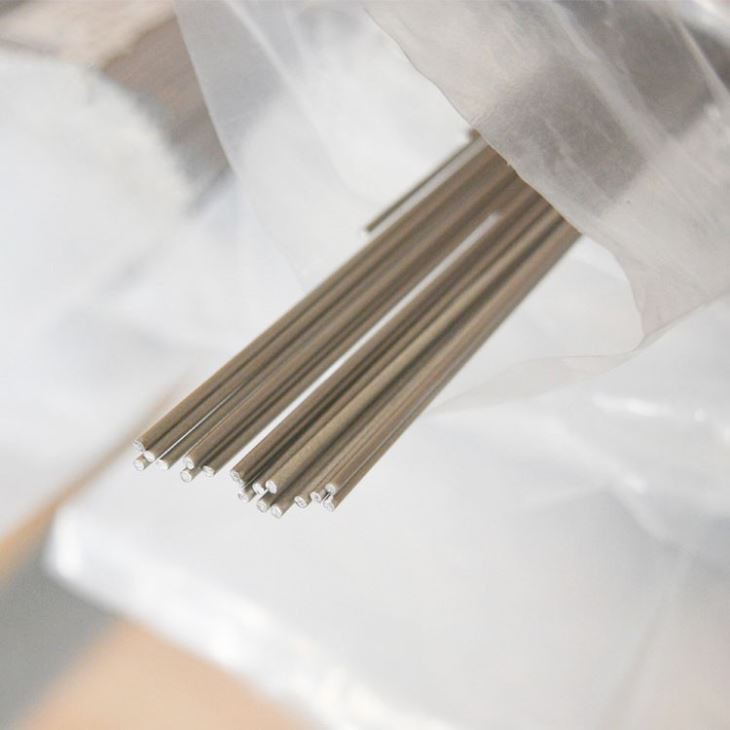

Straight wire is contained in plastic box, 5kg/box, with plywood box for export outside

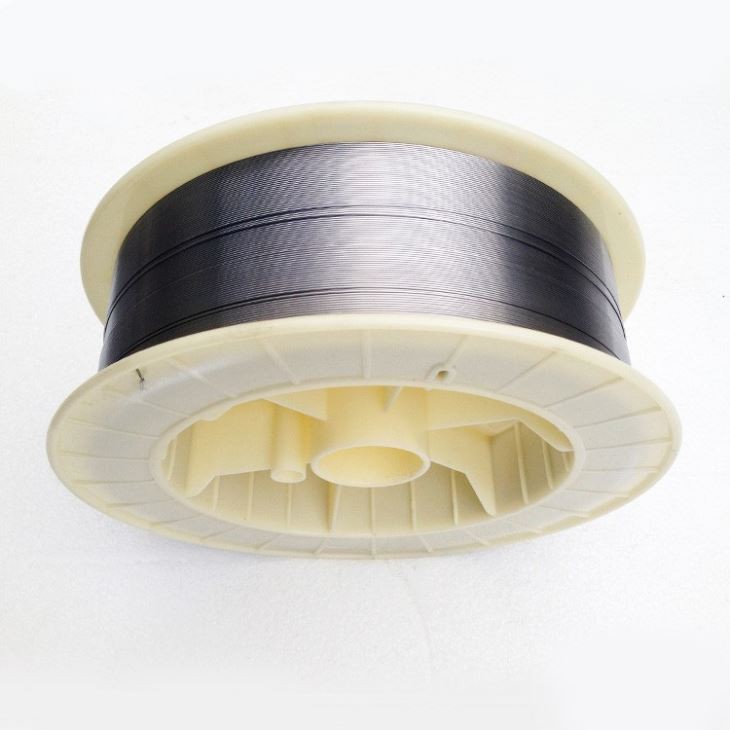

Spool and coil wire is contained in standard export plywood box
