Titanium Tig Welding Wire

Product Introduction of Titanium Tig Welding Wire:

TIG welding titanium wire, also known as gas tungsten arc welding (GTAW), is a process of joining metals by heating the metal with an electric arc between a tungsten electrode (non-consumable) and the workpiece. The process uses shielding gas, and filler metal can also be added. The difference between the two lies in how the arc is used. MIG (Metal Inert Gas) welding uses a wire feed that continuously passes through the welding gun to generate sparks and then melts to form a weld. TIG (Tungsten Inert Gas) welding uses a long rod to directly fuse two metals together.

Titanium TIG welding wire, conforms to the AWS A5.16 standard and comes in various grades and dimensions suitable for different welding applications:

Standard: AWS A5.16 - This is the American Welding Society standard that specifies the requirements for titanium and titanium alloy welding electrodes and rods.

Grades: GR1, GR2, GR4, GR5, GR7 (ErTi-1, ErTi-2, ErTi-4, ErTi-5, ErTi-7) - These grades correspond to different compositions of titanium and titanium alloys, each with specific characteristics suited for various industrial and medical applications.

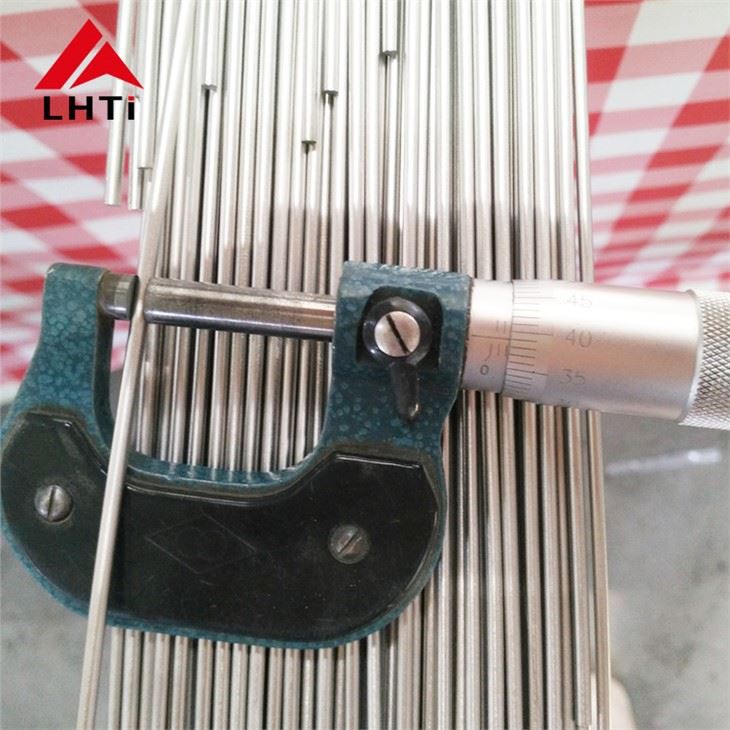

Diameter: 1.0mm, 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm, etc. - These are the diameters available for the welding wire, allowing flexibility depending on the welding requirements and the thickness of the materials being welded.

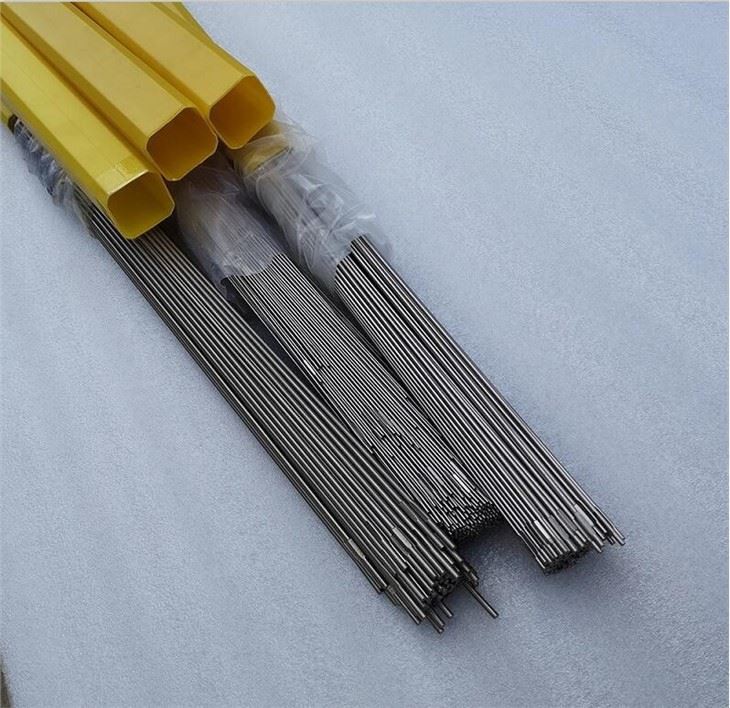

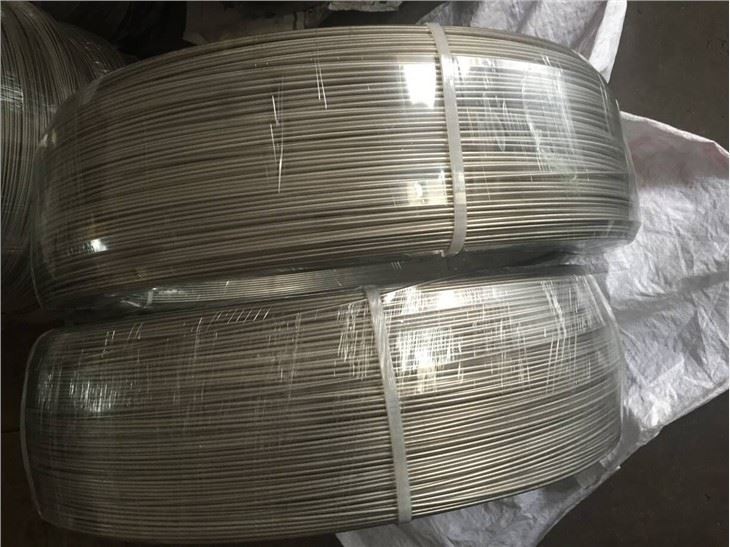

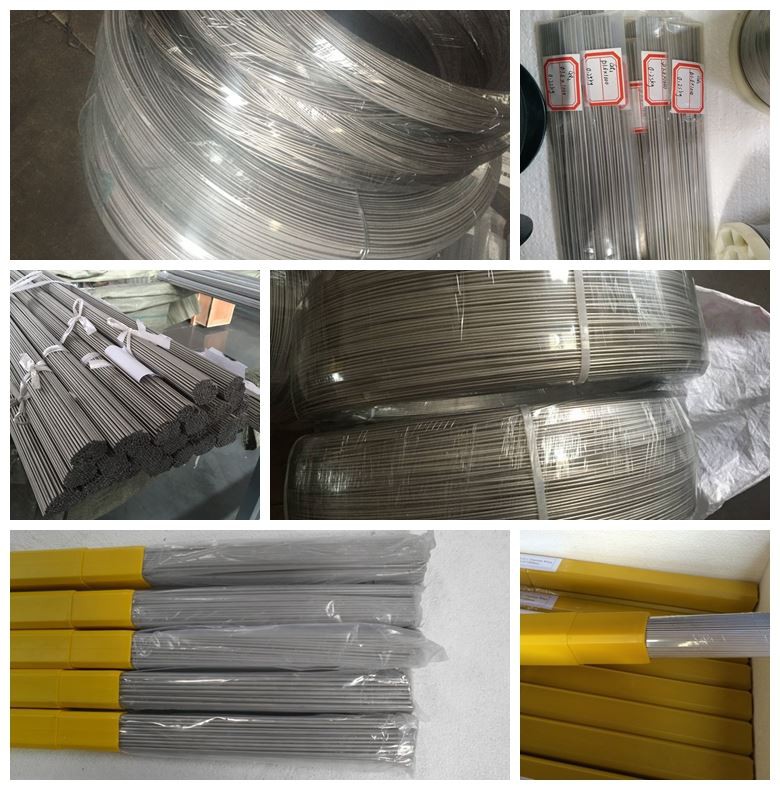

Shape: Coil, spool, straight - The wire can be supplied in different shapes, including coils, spools, or straight lengths, which cater to different welding processes and preferences.

Surface: Pickling surface/bright surface - This refers to the surface finish of the wire. Pickling surface is typically treated to remove impurities and contaminants, while bright surface is polished or finished to a smooth appearance.

Key Features:

Precision: TIG welding is highly precise due to the control over heat input and arc characteristics. This makes it suitable for welding thin materials and intricate joints.

Control: Welders can control the heat input, arc length, and welding speed, allowing for customization based on the material thickness and type.

Quality: TIG welding produces high-quality welds with minimal spatter, smooth appearance, and strong mechanical properties. It's often preferred for applications where weld aesthetics and strength are critical.

Applications:

Industries: TIG welding is widely used in industries such as aerospace, automotive, semiconductor, nuclear, and medical.

Materials: It can weld a variety of metals, including stainless steel, aluminum, titanium, nickel alloys, and copper alloys.

Applications: Common applications include welding components in aircraft structures, automotive frames, pressure vessels, piping systems, and precision instruments.

Advantages:

Clean Welds: The precise control over the welding parameters results in clean, high-quality welds with minimal defects.

Versatility: Suitable for welding thin and thick materials alike, as well as dissimilar metals.

No Flux Required: Unlike some other welding processes, TIG welding does not require a flux, reducing the need for post-weld cleaning.

Challenges:

Skill Intensive: TIG welding requires a high level of skill and training due to the need for precise control and technique.

Slower Process: Compared to processes like MIG welding, TIG welding can be slower, especially for thicker materials.

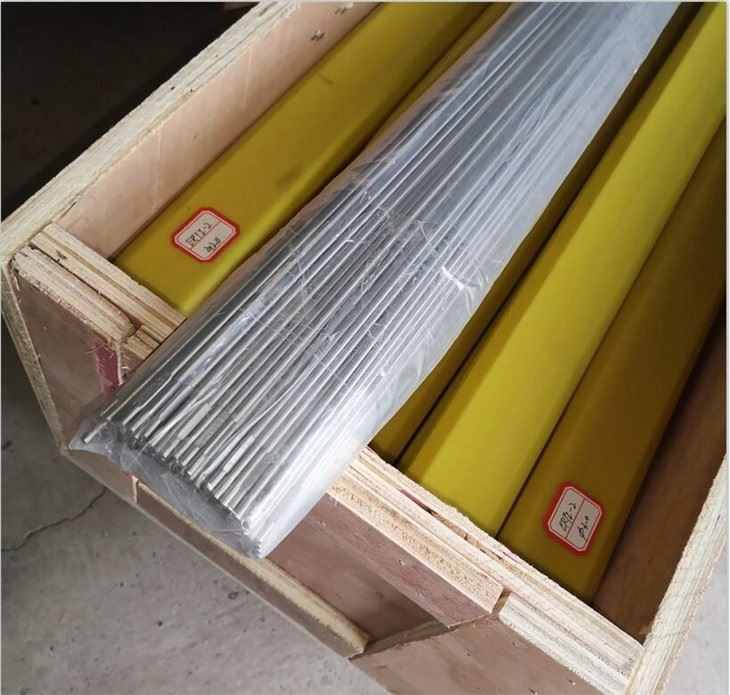

Packaging:

---Coil and spool package in carton casse or plywood case

---Straight wire package in Plastic case,outside is standard export plywood case.

---accept customer requirment

Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.
