ASTM B861 Titanium Tubes

ASTM B861 Titanium Tubes

Titanium tube is light in weight, high in strength and superior in mechanical properties. It is widely used in heat exchange equipment, such as column and tube heat exchangers, coil and tube heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transmission pipes.

Standards: ASTM B861

Grades: Gr1, Gr2 , Gr7(To-0.2Pd),Gr9(Ti-5Al-2.5V) , Gr12(Ti-0.3Mo-0.8Ni)

The seamless titanium tube/pipe is made by extrusion process, and the welded titanium pipe is welded from rolled titanium plate. Generally, the seamless titanium tube has a smaller wall thickness and a smaller caliber.

1. Seamless titanium tube/pipe has high hardness. The hardness HRC of titanium alloy (annealed state) is 32-38.

2. Seamless titanium tube/pipe has low elastic modulus. Titanium alloy (annealed) has an elastic modulus of 1.078 × 10 to 1.176 × 10 MPa, which is about half that of steel and stainless steel.
Seamless titanium tube:
Diameter: O.D 6-108mm
Wall thickness: 0.5-8mm
Length: up to 15000mm

3. Excellent high and low temperature performance. At high temperatures, seamless titanium tubes can still maintain good mechanical properties. Their heat resistance is much higher than aluminum alloys, and their operating temperature range is wide. At present, the working temperature of new heat-resistant titanium alloys can reach 550-600 ℃ ; At low temperature, the strength of titanium alloy is increased than that at normal temperature, and it has good toughness. Low temperature titanium alloy can still maintain good toughness at -253 ℃. 

4. Seamless titanium tube has strong corrosion resistance. In the air below 550 ℃, titanium will quickly form a thin and dense titanium oxide film. Therefore, its corrosion resistance is better than that of most stainless steels in oxidizing media such as air, sea water, nitric acid and sulfuric acid, and strong alkalis.

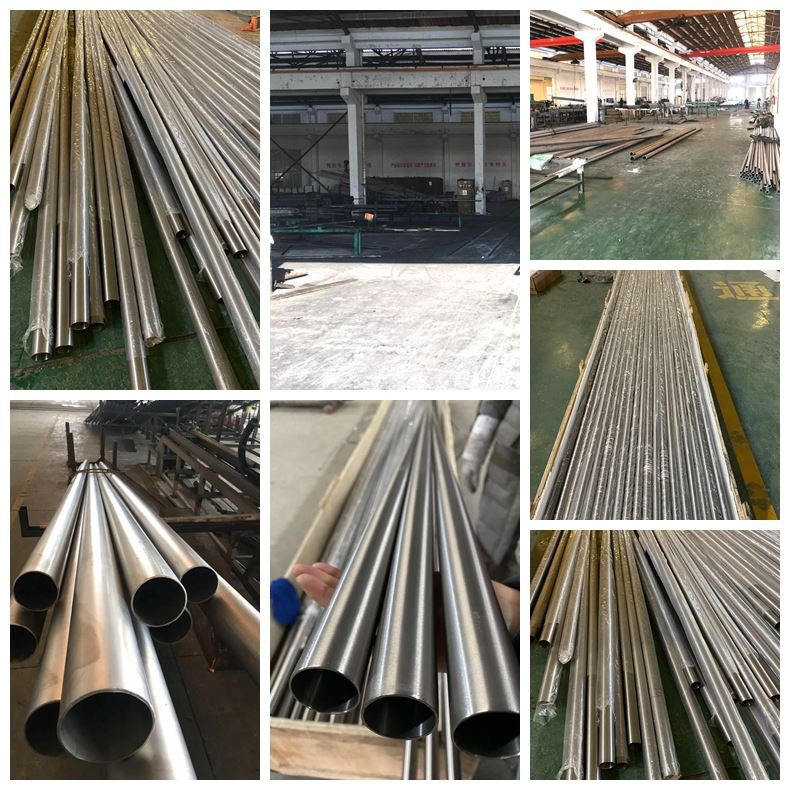

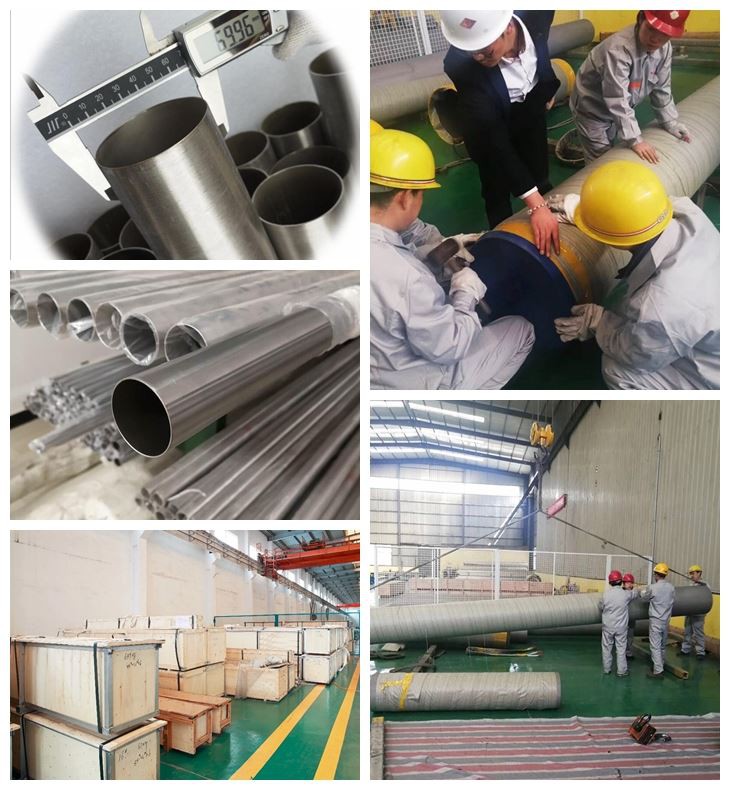

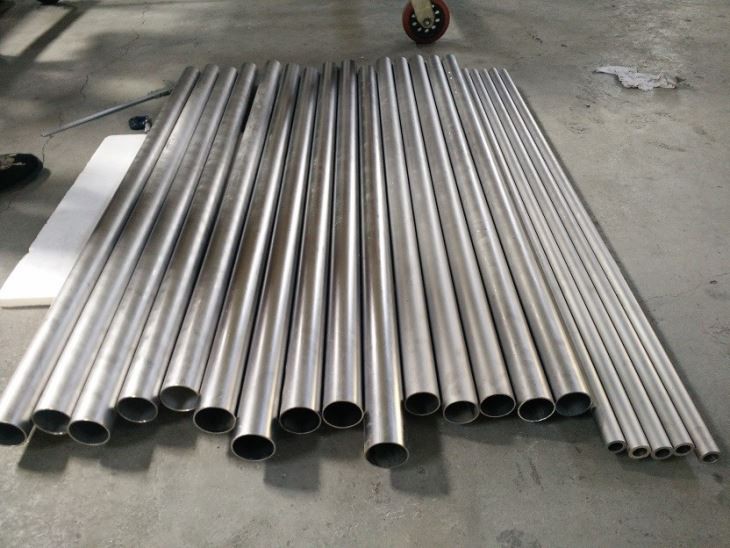

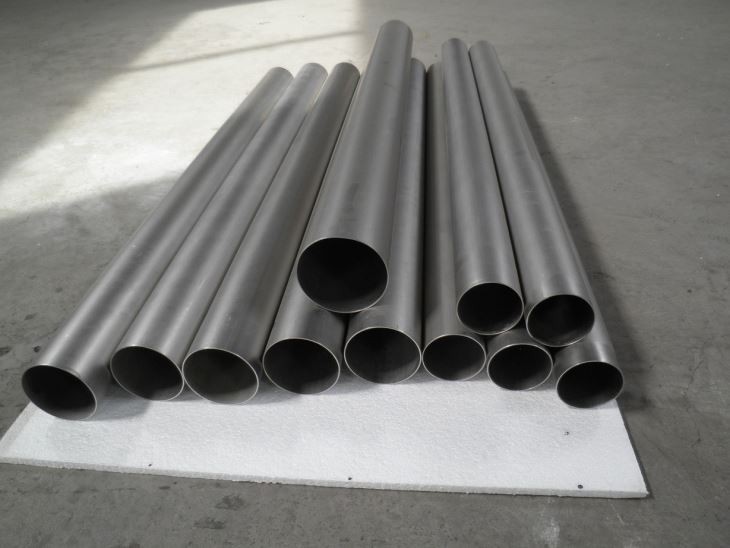

Titanium tubes pictures:

Tensile requirements:

About our company

Hamil metals, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing titanium, called “China Titanium Valley”.Our company certificate of ISO 9001:2015.Our factory produces titanium tubes in accordance with the standard ASTM /ASME B338/B861/B862 strictly. In addition

to ensuring size, chemical composition, physical properties, and good surfaces, we always do all quality inspections strictly in accordance with ASTM standards. Including hydraulic test, flaw detection, Ultrasonic Testing, Flattening test, etc. If customers require third party testing, like TUV, SGS, BV, etc., we welcome for that.

Welcome to contact !
