GR2 Titanium Pipe
Standard: ASTM B861, ASTM B862, ASTM B338
Material: Gr2
Unit Price: $25usd/kg-$40usd/kg
Type: Welded/Seamless
Shape: Round
Outer Diameter: 3-114mm or as customized
Wall Thickness: 0.5-7mm or as customized
Length: Max 12000mm
Surface: Bright
Grade 2 titanium is commercially pure and also known as Titanium CP3. It has moderate strength and excellent cold forming properties. It provides excellent welding properties and high resistance to oxidation and corrosion.
Product name:Gr2 titanium pipe/titanium seamless tubes/titanium seamless pipe/ASTM B338 Titanium pipe
Material: GR2
Standard: ASTM B861, ASTM B862, ASTM B338
OD: 3-114mm or as customized
WT: 0.5-7mm or as customized
Length: Max 12m
Type: Welded/Seamless
Surface: Polishing, Pickling
Grade 2 Titanium
Chemical composition (Wt%)
ASTM No. | Fe max | O max | N max | C max | H max | Pd | Al | Bal |
Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Physical Properties (Min)
ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % | ||
ksi | Mpa | ksi | Mpa | |||

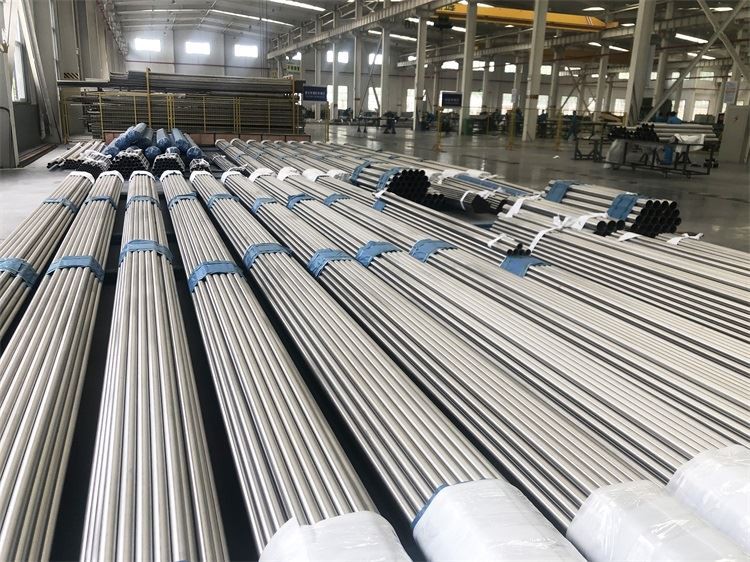

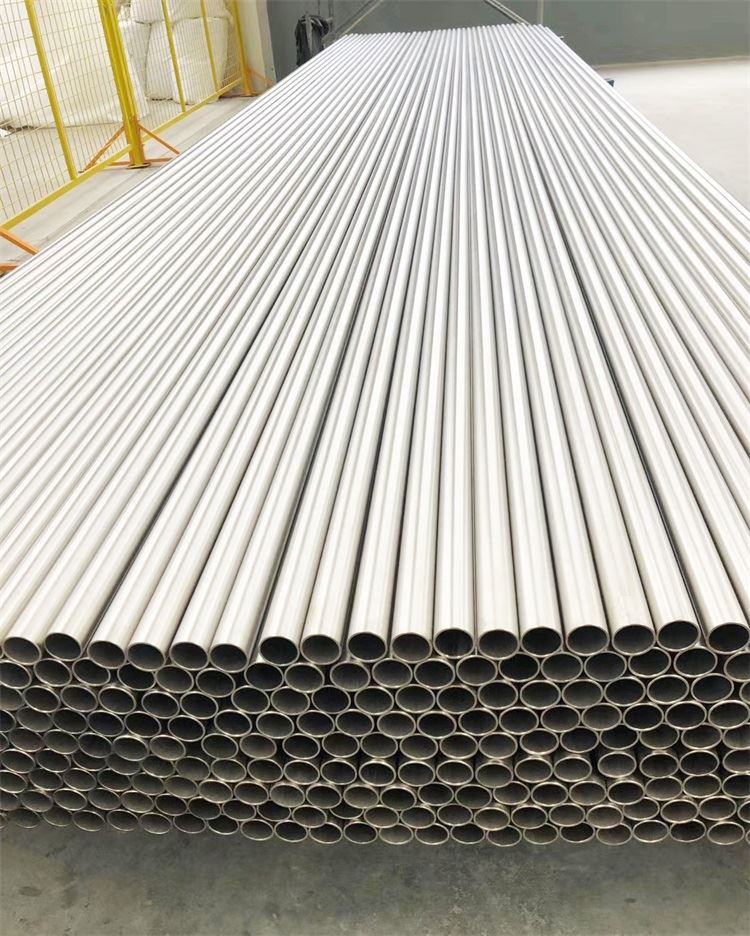

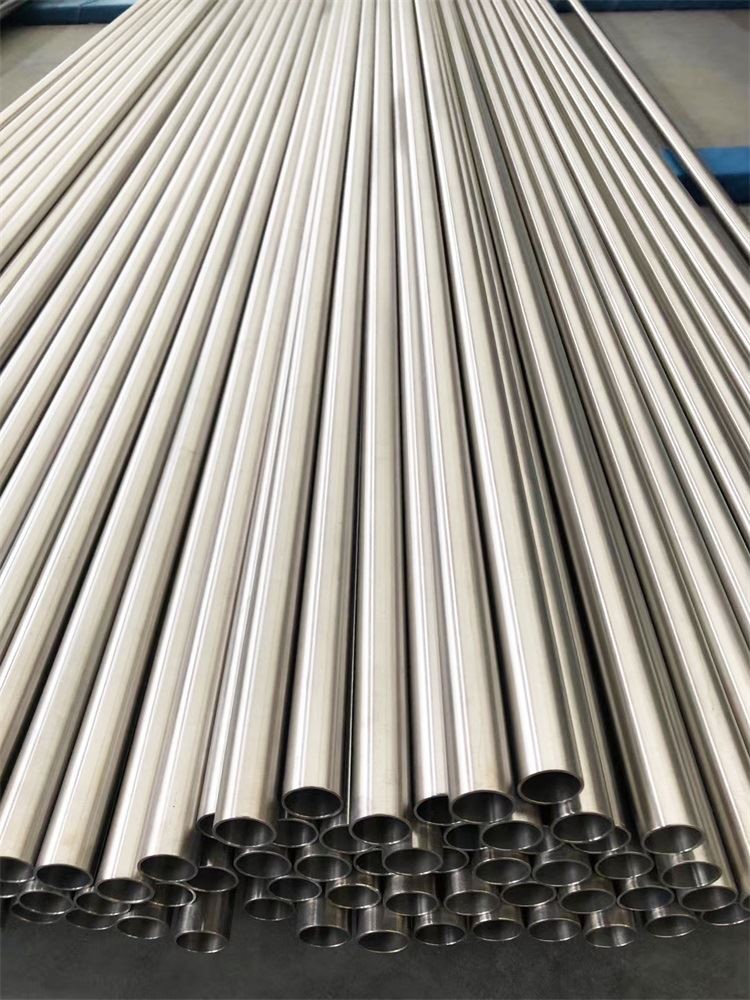

Detailed images:
Application of GR2 Titanium Pipe
Typically, gr2 titanium pipe is applied for various equipments including oil & gas components, liners, reaction and pressure vessels, piping systems, heat exchangers, flue-gas desulphurization systems along with many other industrial components.

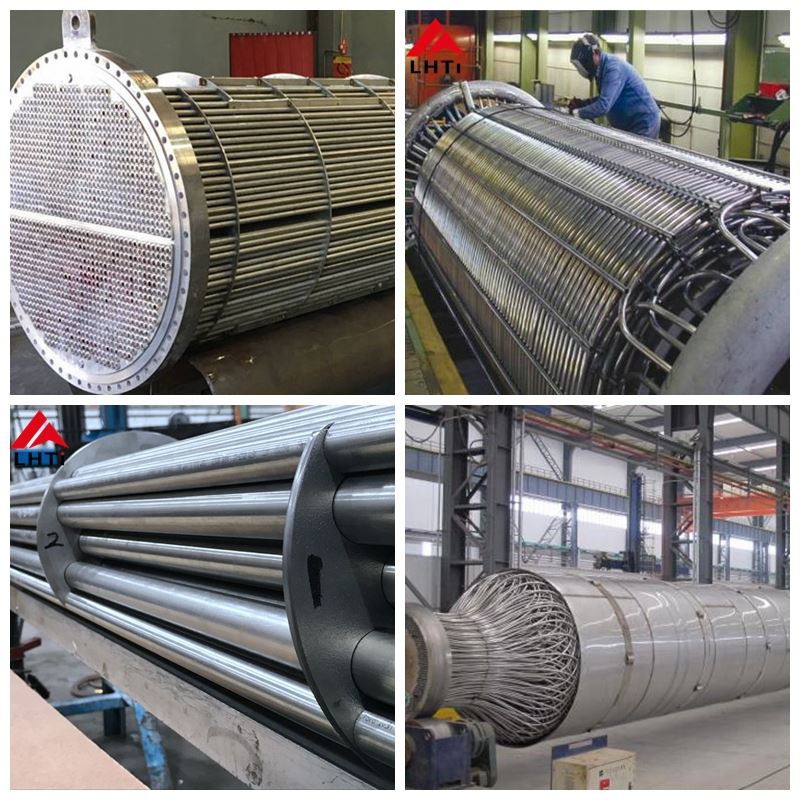

Titanium tubes used for titanium heat exchanger:
