Titanium Tubes For Heat Exchanger

Titanium Tubes For Heat Exchanger

Product name: Titanium Tubes For Heat Exchanger
Standard:ASTM B338
Material:Grade 1 Grade 2 titanium
Diameter:15mm 19.1mm 25.4mm 33.4mm 38.1mm 45mm etc.
Wall thickness:1.0mm / 1.2mm
Length:Max 16000mm
Surface:Pickling surface/Polished
Type:Seamless, welded
Application:Heat Exchanger, chemical industry etc.
Technique:Rolled
MOQ:100kgs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium tubes manufacturer

Send Inquiry

Chat Now

Product Introduction

Titanium Tubes For Heat Exchanger

Titanium tubes are corrosion resistant in seawater and chlorine. It is alloyed with elements such as iron, vanadium, aluminum and molybdenum to produce strong and light alloys for industrial purposes such as chemical industry, seawater desalination plant, petrochemical, papermaking and pulp.

The most common dimensions of titanium seamless or titanium welded tubes for heat exchangers and pressure vessels are od0.5 "(12.7mm), 0.63" (16mm), 0.75 "(19.05mm), 1" (25.4mm), 1.25 "(31.75mm), 1.5" (38.1mm), 1.78 "(45mm), 2" (50.8mm), etc., and wt0.02 "(0.5mm), 0.024" (0.6mm), 0.028 "(0.71mm), 0.035" (0.89mm) , 0.049 "(1.24mm), 0.11" (2.77mm), 0.125 "(3.17mm), etc.

Product name	Titanium tubes for heat exchanger，ASTM B338 titanium tube pipe,Seamless titanium tube,Welded titanium tubes,Titanium tube price per kg
Grade	Gr1 Gr2
Different types of Titanium heat exchanger tubes	Seamless, Welded
Standard	ASME /ASTM B 338
Straightness of heat exchanger tubes	0.0015 x L. In conversion , 1 meter length
OUTER DIAMETER (OD)	0.500 - 3.000 inch heat exchanger tubes manufacturer 12.7 - 76.2 mm
WALL THICKNESS (WT)	0.035 - 0.220 inch 0.89 - 5.52 mm
Lengths	Titanium heat exchanger tubes are delivered in straight lengths up to 16.5 meters (54 ft). Titanium U-bent tubes are available on request.
Manufacturing Method	Seamless (Cold Drawn/Cold Rolling)
Heat exchanger tubes Certified test reports	ASTM / ASME A450 EN 10204: for EN 10297 nonspecified testing (only the mandatory tests), 2.2 specified testing – 3.1.B after agreement - 3.1.A, 3.1.C, 3.2 DIN 50049, - 2.2, 3.1. B
Pipe Assemby	Headers Pigtails Flanged Pipes Longitudinal finned Pipes and Tubes Finned Tubes Special Forgings Special designed parts acc. to drawing Welding together possible

Grades of Seamless Titanium Heat Exchanger Tubes

ASTM GRADE	UNS NO.	DIN/ EN	MATERIAL CODE
Grade 1	R50250	3.7025	Ti 1
Grade 2	R50400	3.7035	Ti 2
Grade 3	R50550	3.7055	Ti 3
Grade 7	R52400	3.7235	Ti 2 Pd
Grade 9	R56320	3.7195	Ti Al 3 V 2,5
Grade 11	R52550	3.7225	Ti 1 Pd
Grade 12	R53400	3.7105	Ti Ni 0,8 Mo 0,3

Detailed images

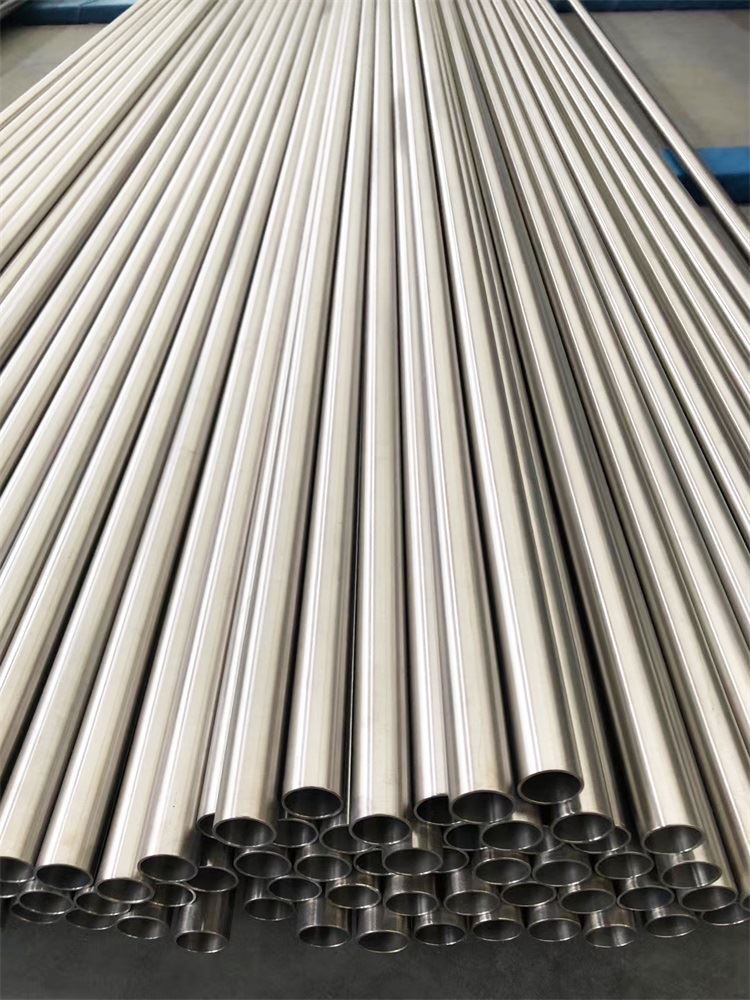

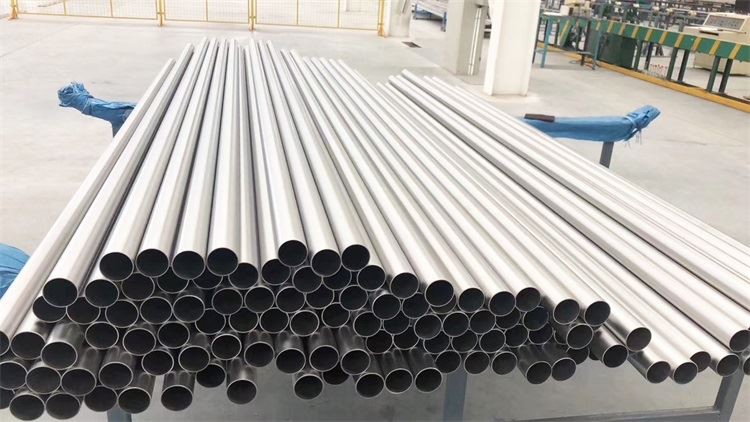

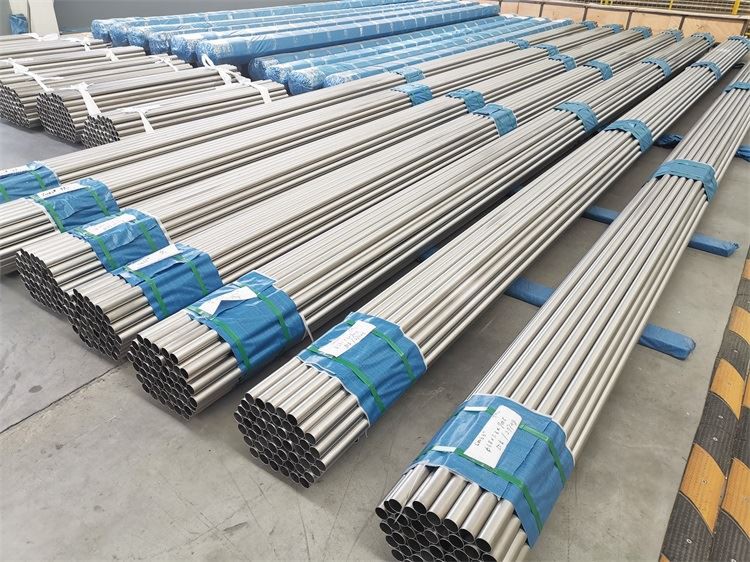

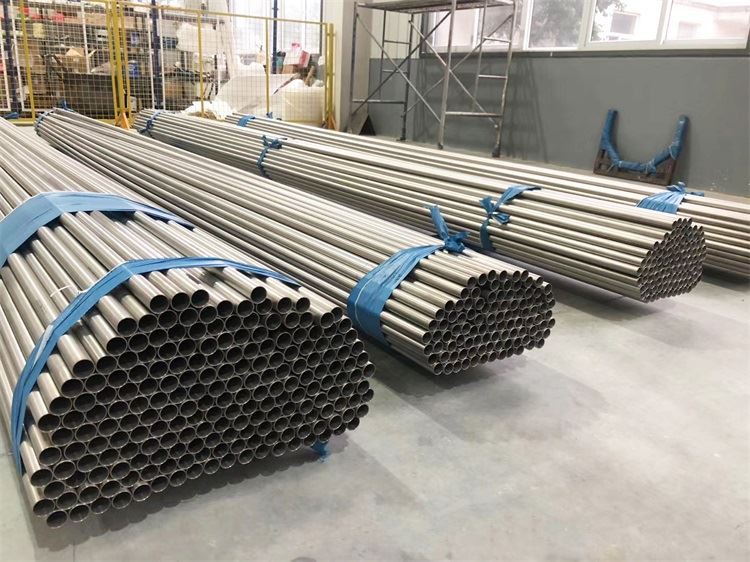

titanium tube (31) grade 2 titanium tube (30) titanium tube (45) titanium tube (21)

Titanium tubes Quality testings:

Dimention inspection, Tensile testing, UT ,PT ,Chemical composition inspection,

Hydrodtatic test, Eddy current inspection,Radiographic inspection,Thickness inspection,PMI inspection

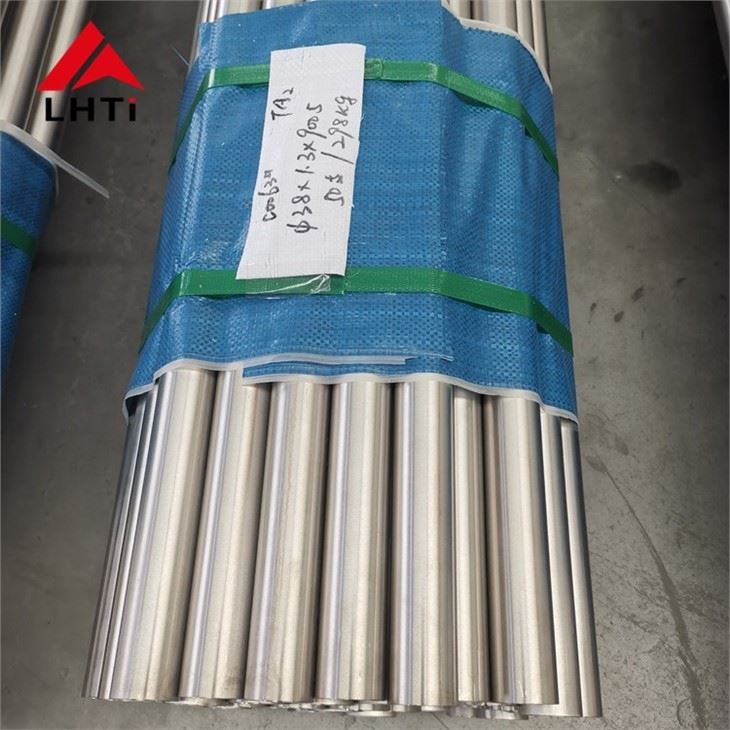

tube

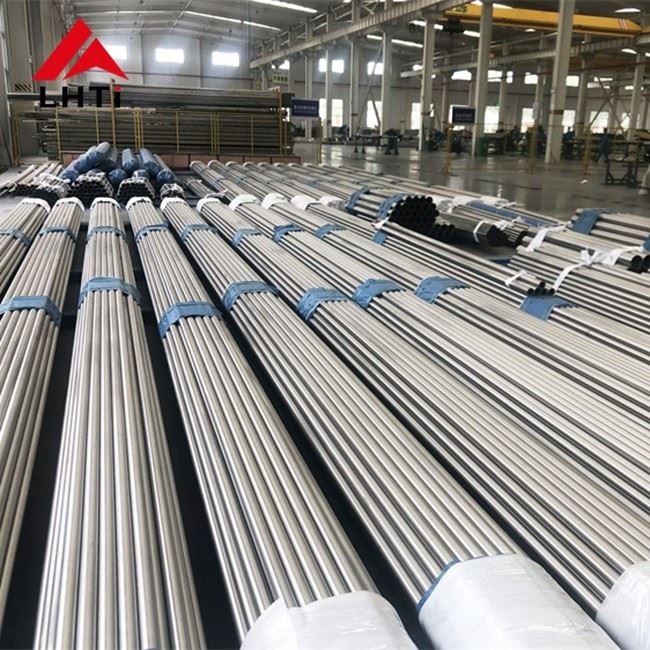

Titanium pipes / titanium tubes used in heat exchanger:

About us

Baoji Lihua Non-ferrous Metals Co.,Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing titanium, called “China Titanium Valley”.Our company certificated by ISO 9001:2015. As customers's request ,many of our titanium products tested by internation inspection agencies and met the standard,suc asTUV, SGS, BV, etc.

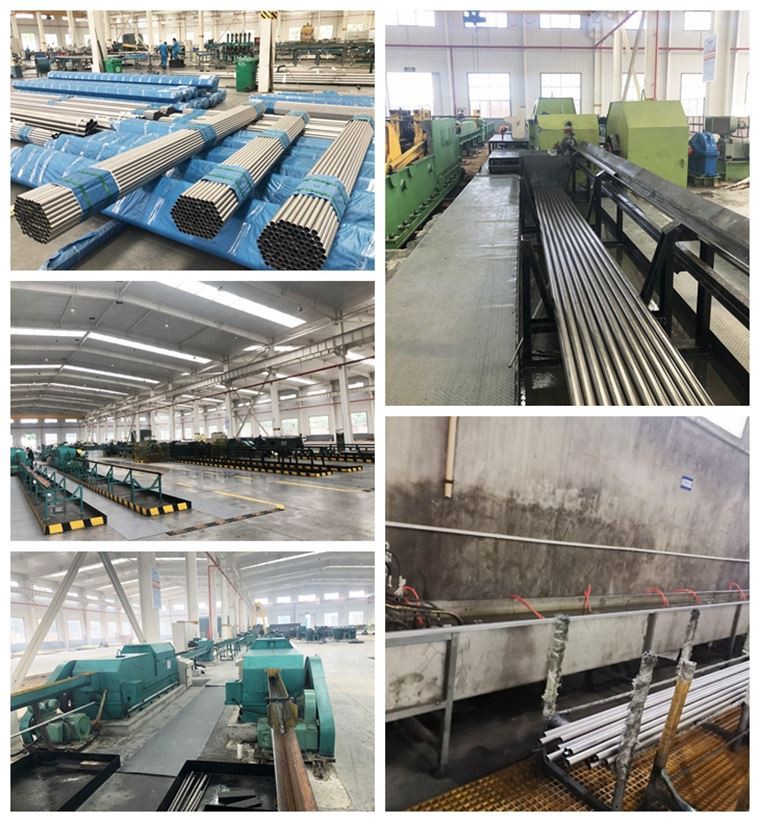

titanium tube 12

our advantagement lihua titanium rod (1)

If you have any question or requirements, please don't hesitate to contact us.
