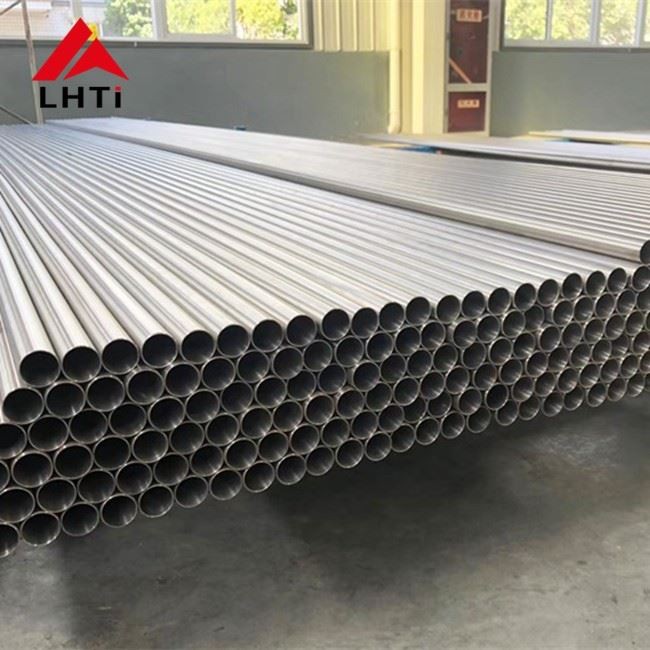

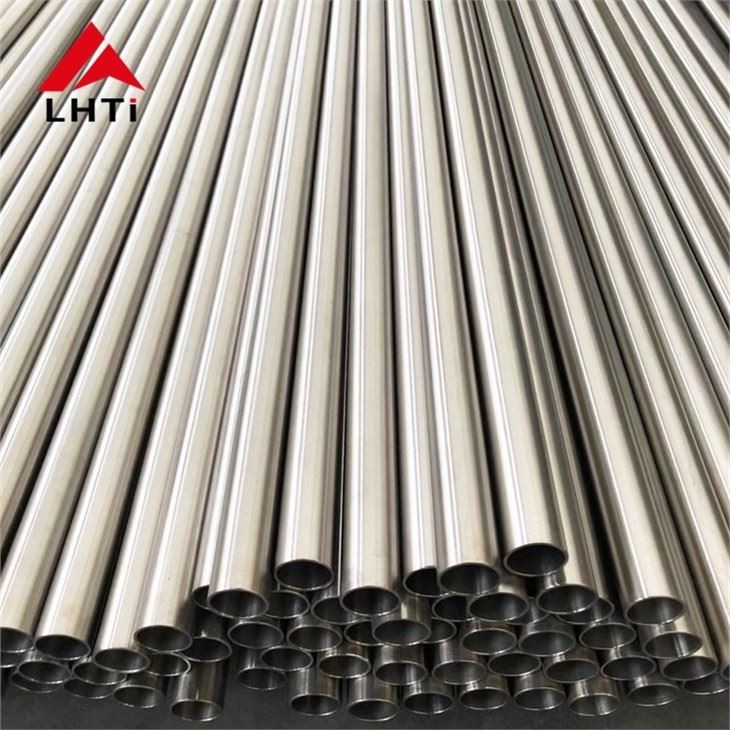

25.4mm Titanium Pipe For Heat Exchanger
Standard:ASTM B338
Material:Grade 1 Grade 2 titanium
Diameter:25.4mm
Wall thickness:1.0mm / 1.2mm
Length:Max 16000mm
Surface:Pickling surface/Polished
Type:Seamless, welded
Application:Heat Exchanger, chemical industry etc.
Technique:Rolled
MOQ:100kgs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium tubes manufacturer
25.4mm Titanium Pipe for Heat Exchanger
In case of strong acid, high pressure, high temperature, nuclear energy and other environments, titanium tube is widely used for titanium heat exchanger, in seafood breeding, sea water heat exchange, salt water heat exchange,marine engineering chemicalindustry, nuclear power project, sea water desalination, chemical containers, such as tubular heat exchangers, pressure vessels, boilers, condensers, central air conditioning, evaporators and other industries and fields.
| TITANIUM TUBING | ||
|---|---|---|
| Sizes: Tube & Tubing Full Range of sizes in all grades | GRADE | SPECIFICATIONS |
| CP-GRADES 2,3,4 | AMS-4941, 4942, BMS-7-21, DMS-1872, 1874, 1898 | |
| 3AL-2.5V | AMS-4943, 4944, 4945, DMS-2241, B50TF35, PWA-1260 | |
| Extruded Titanium Tubing Specifications: AMS 4935, DMS 1650, MIL-T 9047, MIL-T 81556, MMS 1202, AIMS 03-18-011, AMS 4975 (chemistry only) | ||
Titanium Seamless Tubes Specifications:
| Dimension | Outer Diameter | Thickness | Length |
|---|---|---|---|
| Size Range: | 0.5mm – 330mm | 0.4mm – 10mm | Max 15m |
| Manufacturing Standards | ASTM B338, ASTM B861, DIN 17 861 | ||
Titanium Welded Tube Specifications:
| Dimension | Outer Diameter | Thickness | Length |
|---|---|---|---|
| Size Range: | 114mm – 20000mm | 0.5mm – 50mm | Max 15m |
| Manufacturing Standards | ASTM B338, ASTM B862 | ||
Titanium Tubing Standard:
| ASTM | USA | Ameirican Society of Mechanical Engineers |
| AISI | USA | Acronym of American Iron and Steel Institute |
| JIS | JP | Japanese Industrial Standards |
| DIN | GER | Deutsches Institut für Normung e.V. |
| UNS | USA | Unified Numbering System |
| Types | Out diameter | Sizes | Length |
|---|---|---|---|
| NB Sizes (in stock) | .0035” ~ 8” | 1/8", 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1.25", 1.5", 2", 2.5", 3", 4", 5", 6" | Cut to length |
| Titanium Seamless Tube (Custom Sizes) | 6.35 mm OD To 101.6 mm OD | As per requirement | Cut to length |
| Titanium Welded Tube (ERW Tube) (in Stock + Custom Sizes) | 6.35 mm OD To 152 mm OD | As per requirement | Cut to length |
Titanium Welded Tubes & Seamless Tubing Surface Finish
| Surface Finish | Internal Surface(ID) | Exterbal Surface(OD) | |||
| Roughness Average(RA) | Roughness Average(RA) | ||||
| μ inch | μm | μ inch | μm | ||
| AP | Annealed & Pickled | Not defined | Not defined | 40 or Not defined | 1.0 or Not defined |
| BA | Beight Annealed | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
| MP | Mechanical Polish | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
| EP | Electro Polish | 15,10,7,5 | 0.38,0.25,0.20;0.13 | 32 | 0.8 |

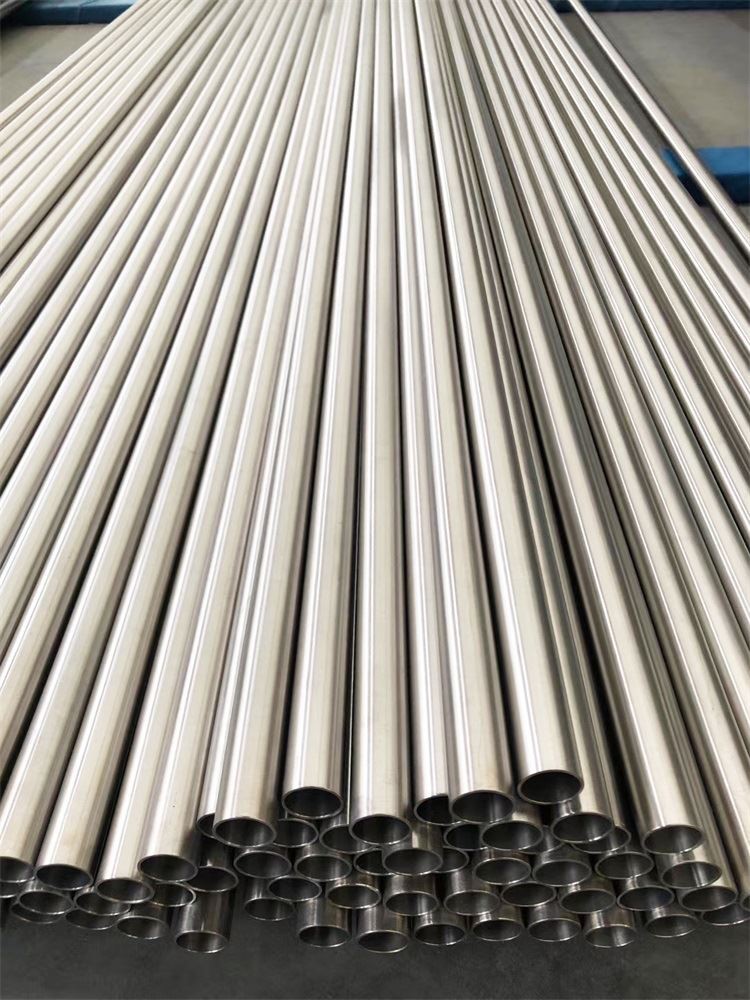

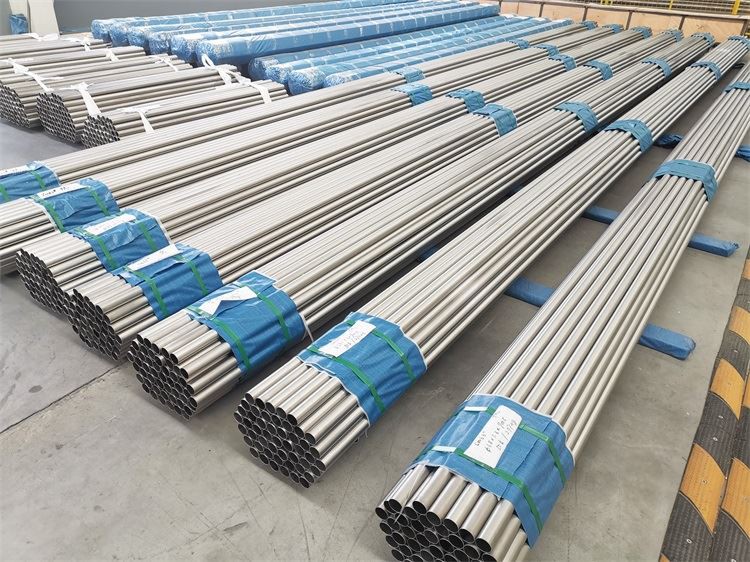

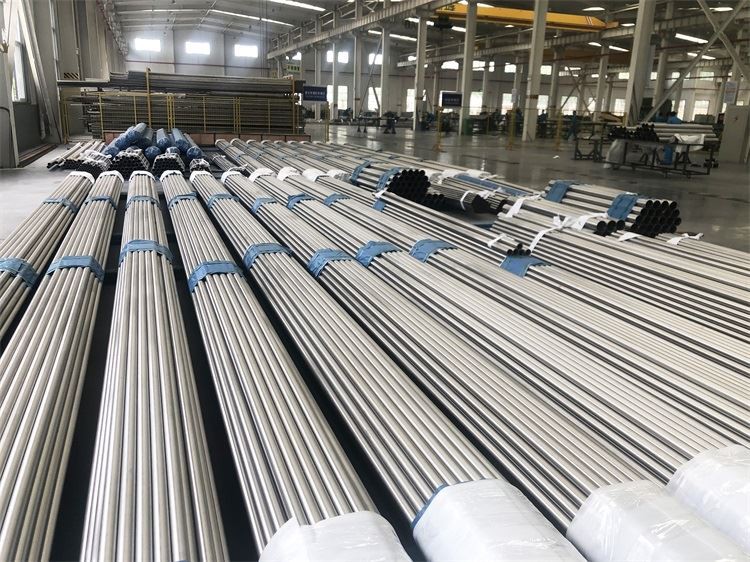

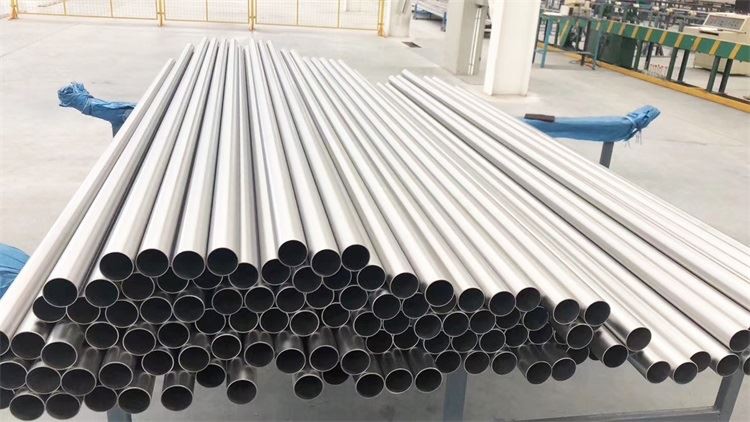

Detailed images:
Titanium tubes Quality testings:
Dimention inspection, Tensile testing, UT ,PT ,Chemical composition inspection,
Hydrodtatic test, Eddy current inspection,Radiographic inspection,Thickness inspection,PMI inspection
Titanium pipes / titanium tubes used in heat exchanger:
About us
Baoji Lihua Non-ferrous Metals Co.,Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing titanium, called “China Titanium Valley”.Our company certificated by ISO 9001:2015. As customers's request ,many of our titanium products tested by internation inspection agencies and met the standard,suc asTUV, SGS, BV, etc.
If you have any question or requirements, please don't hesitate to contact us.
