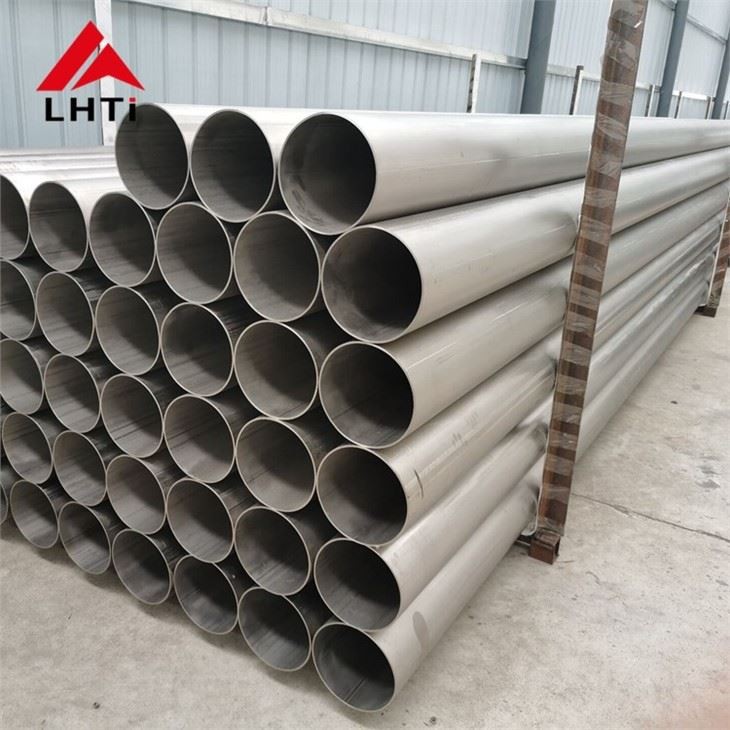

Gr2 Titanium Welded Tube

 Gr2 Titanium welded Tube

Titanium welded pipe is produced by automatic continuous production line, using titanium strip coil with uniform wall thickness through cold bending forming, welding, online heat treatment, sizing straightening, non-destructive testing and air tightness test and other procedures. From sponge titanium to welded pipe, the material utilization rate is usually about 80%, if the titanium strip coil as the raw material, its material utilization rate is more than 95%. With the rapid development of titanium industry and mature welding technology, the titanium tube welding will also greatly enhance production efficiency, quality stability, consistency, and the production efficiency will be higher, can according to customer request length cut into the required length, short delivery time, high material utilization, cost per unit is seamless tube will be lower.

Product name: Gr2 Titanium welded Tube

Standard:ASTM B338 ASTMB 862

Material: GR1 GR2 GR7 GR12

Diameter:10-914mm

Wall thickness:0.5-10mm

Length:Max 16000mm

Surface:Pickling surface/Polished

Type:Seamless, welded

Application:Heat Exchanger, chemical industry etc.

Technique:Rolled

MOQ:100kgs

Titanium welded pipe production process: titanium with open book - shearing butt - looping the loading - titanium belt cleaning - type pipe forming and welding to eddy current flaw detection, the predetermined diameter - online annealing - pure sizing/straightening to eddy current flaw detection, laser caliper - online printing - scale cutting and ultrasonic testing to fine scale/flat head, air tightness test to the finished product inspection, packaging warehousing.

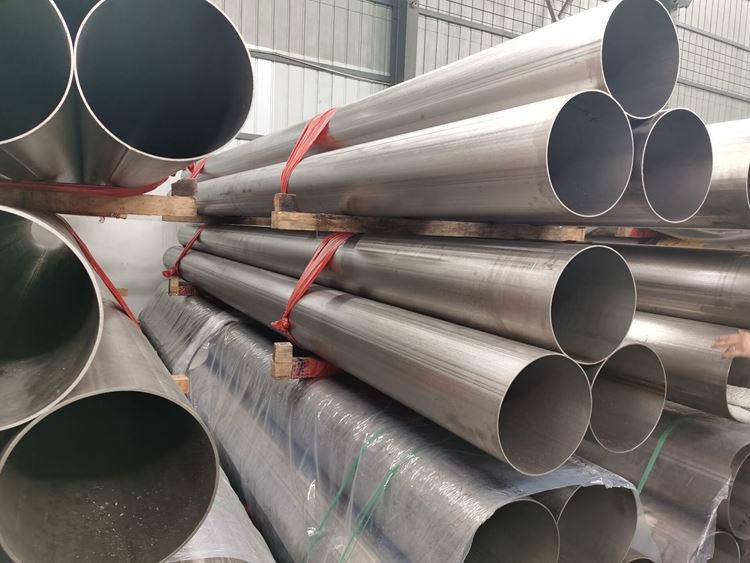

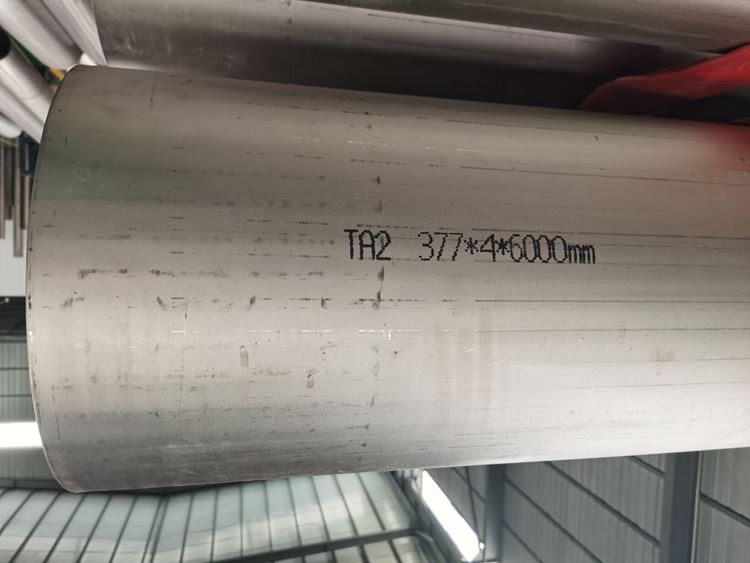

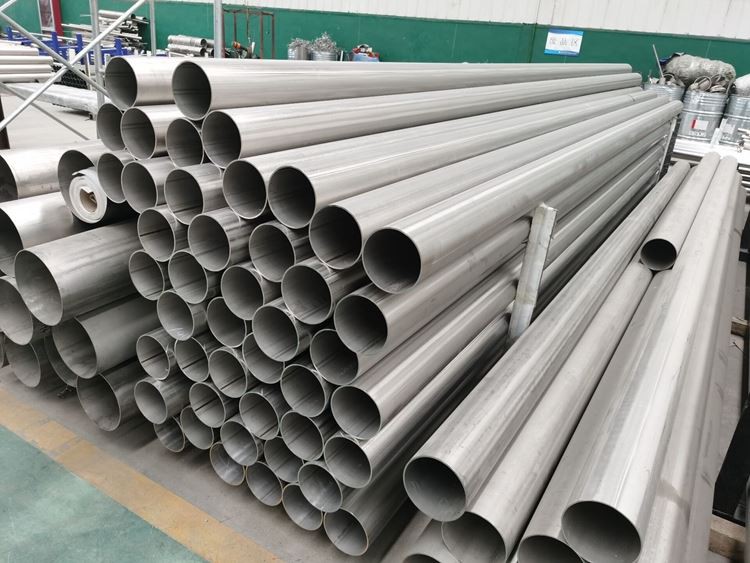

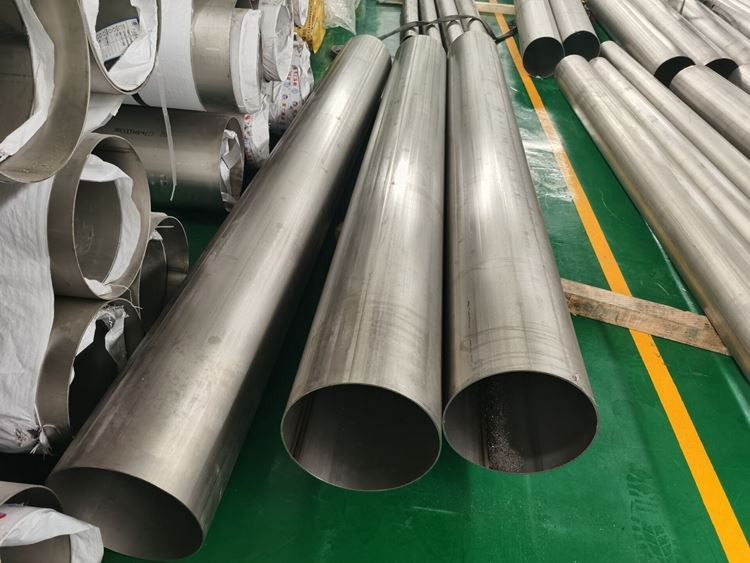

Detailed images:

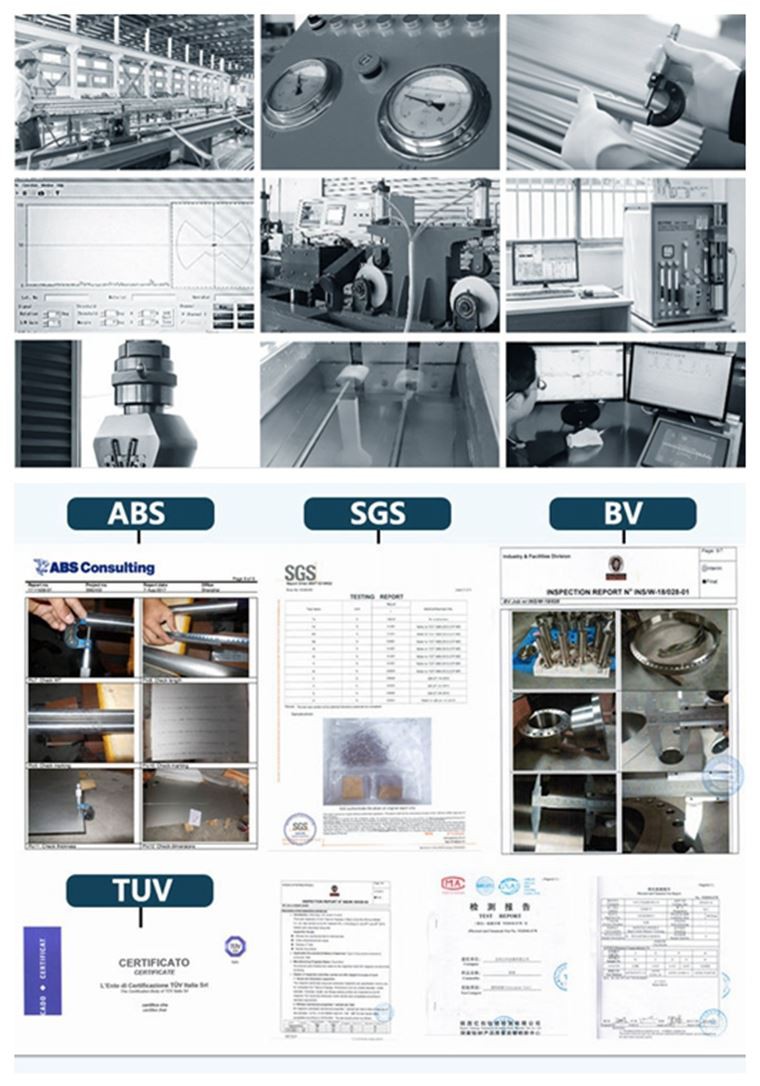

Titanium tubes Quality inspections:

Dimention inspection, Tensile testing, UT ,PT ,Chemical composition inspection,

Hydrodtatic test, Eddy current inspection,Radiographic inspection,Thickness inspection,PMI inspection

Titanium pipes / titanium tubes used in heat exchanger:

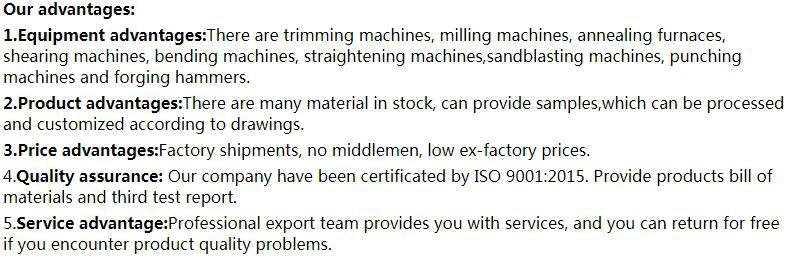

About us

Baoji Lihua Non-ferrous Metals Co.,Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing titanium, called “China Titanium Valley”.Our company certificated by ISO 9001:2015. As customers's request ,many of our titanium products tested by internation inspection agencies and met the standard,suc asTUV, SGS, BV, etc.

If you have any question or requirements, please don't hesitate to contact us.
