Product Introduction

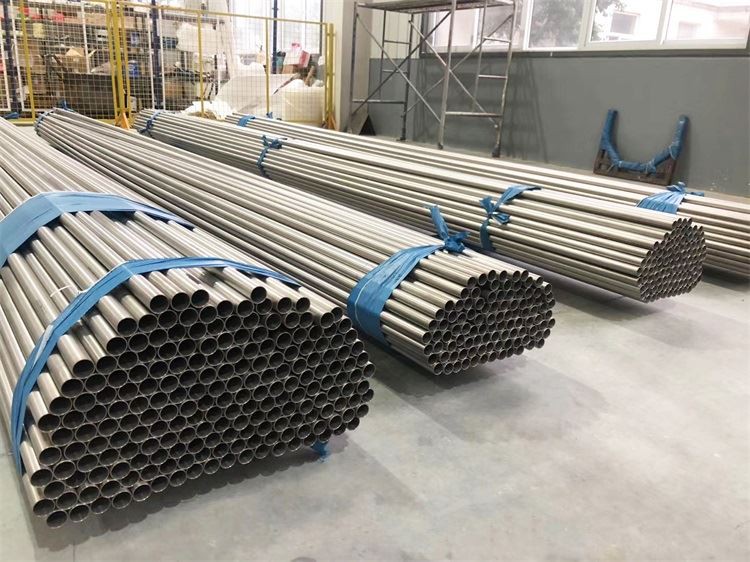

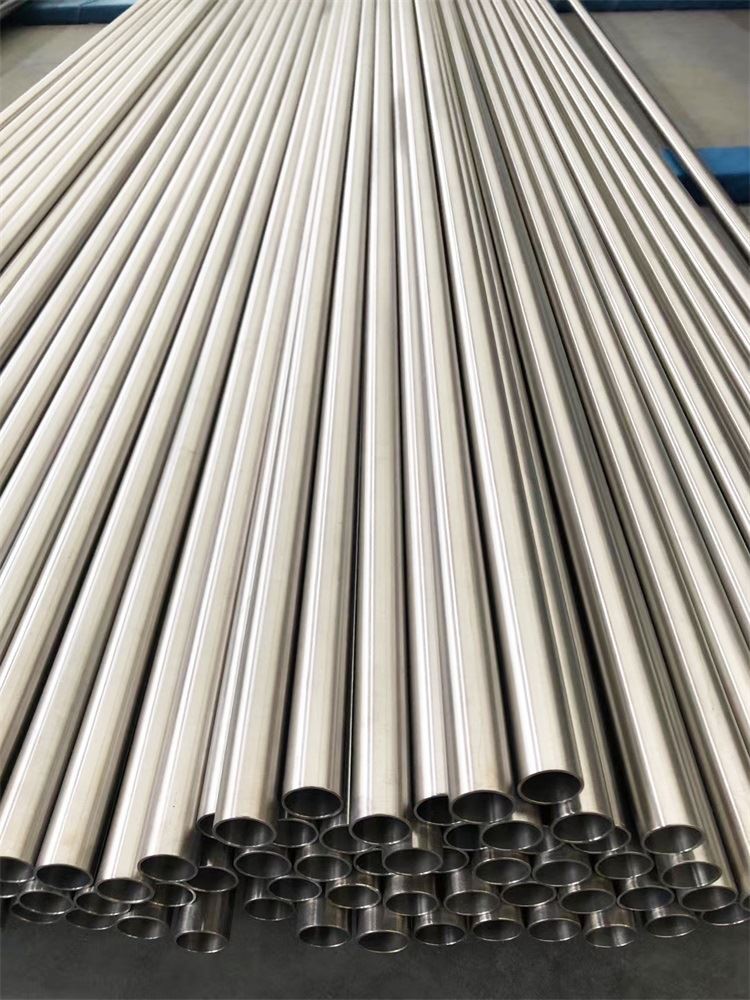

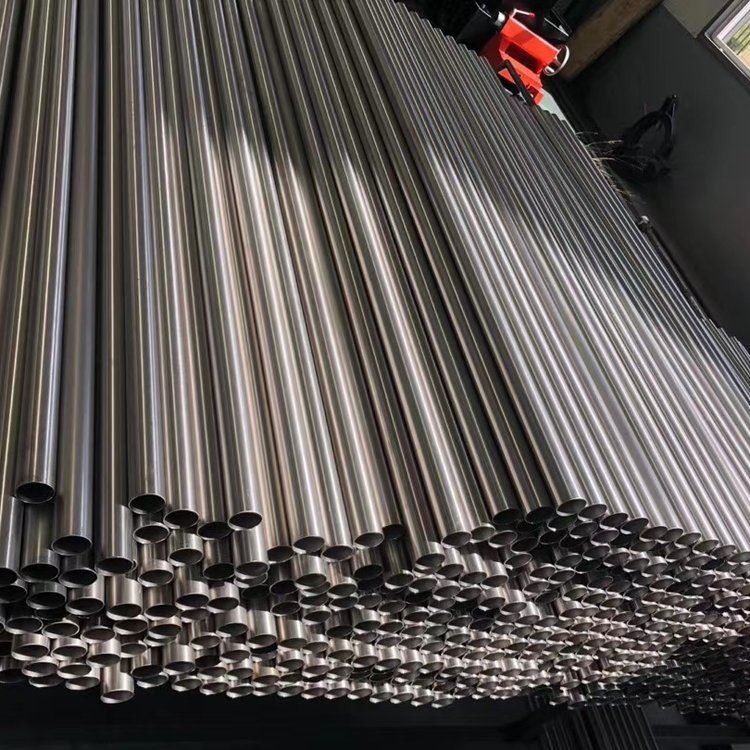

ASTM B338 titanium Seamless Tubes for Condensers

ASTM B338 Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers

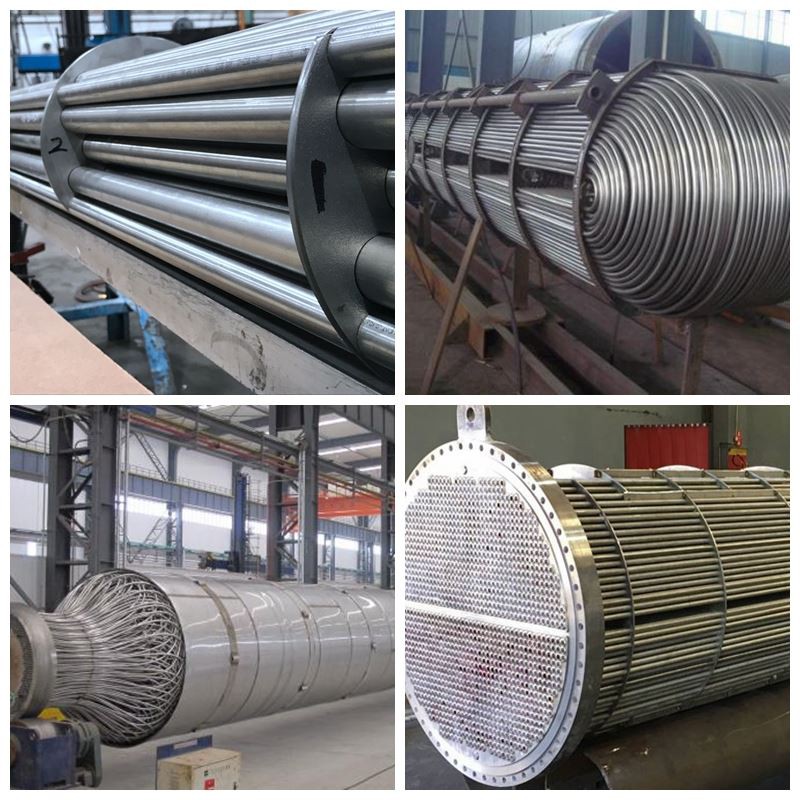

ASTM B338 covers 28 grades of seamless and welded titanium alloy tubes for surface condensers, evaporators, and heat exchangers.

Standard	ASTM B338, ASME SB338
Regular Grade	Grade 1 Grade 2
Outer Diameter	12.7mm 15mm 17mm 19mm 25.4mm 31mm etc.
Wall thickness	0.9mm/1.0mm/1.2mm/1.5mm
Length	3000 - 6000mm or other economical lengths
Finish	Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Form	Straight titanium Pipe, Coiled titanium tube
Type	Seamless, ERW, EFW, Welded, Fabricated
End	Plain End, Beveled End, Treaded
Marking	Standard, Grade, OD, Thickness, Length, Heat No. (Or as per customer's request.)
Application	Oil Tube, Gas Tube, Fluid Tube, Boiler and Heat exchanger
Value Added Service	Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc.
Test Certificate	Mill Test Certificate EN 10204/3.1,TPI Report, EN10204/3.2

Precautions for titanium pipe processing:

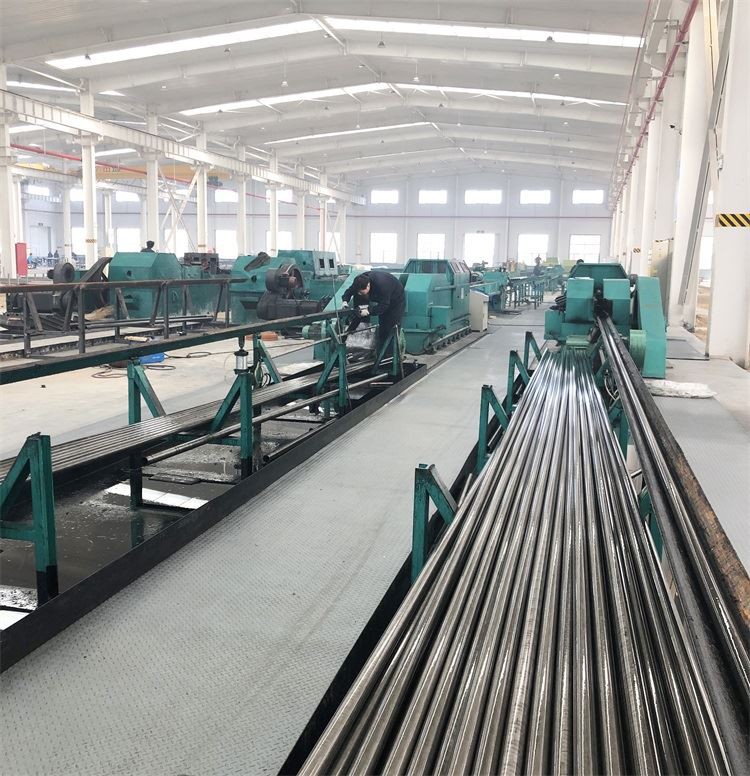

During the deformation process, titanium pipe will gradually reduce wall and diameter with the rotation and feeding of the rolling mill. The pipe size required by the process can be obtained only after 5 ~ 10 rolling and finishing in one rolling pass. The cold rolling pipe mill can carry out large diameter reduction and wall reduction, but the dimensional accuracy is low after rolling, and the pipe end is prone to cracking, uneven concave convex and other phenomena. The cracking phenomenon can be solved mainly by grinding and leveling before pipe blank processing; For the uneven pipe end, similar to the "fish mouth" phenomenon, flat head treatment is required in the subsequent processing process, otherwise it will cause the plug stuffy accident. Therefore, this paper analyzes from the aspects of process, tooling and equipment, in order to find out the causes of uneven concave convex of pipe end and take effective measures to solve it.

Chemical composition (Wt%)

ASTM No.	Fe max	O max	N max	C max	H max	Pd	Al	Bal
Grade 1	0.2	0.18	0.03	0.1	0.015	-	-	Ti
Grade 2	0.3	0.25	0.03	0.1	0.015	-	-	Ti

Physical Properties (Min)

ASTM Grade	Alloy Composition	Tensile Strength		Yield Strength		Elongation min %
ASTM Grade	Alloy Composition	ksi	Mpa	ksi	Mpa
Grade 1	Unalloyed Ti ("Pure") 35A -CP1	35	240	25	170	30
Grade 2	Unalloyed Ti ("Pure") 50A -CP2	58	400	40	275	25
