Titanium Target Cylindirc
Material: Titanium Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr12
Other available sputtering target: TiAl,TiCu,TiSi,Cr,Zr,Cu,Fe,Mo,W etc.
Standard: ASTM / ASME 348 , ASTM / ASME SB381 , ASTM F136 ,ASTM F67
Shape: cylindirc (Round)
Technique: Rolled, Forged, CNC Machined
Quality Control: PMI, Ultrasonic Testing etc.
MOQ:1PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium sputtering targets manufacturer
Titanium target is mainly used in mechanical equipment, electronic equipment, electroplating equipment, aviation, medical, a variety of precision mechanical and electrical industries.
Product name:Titanium sputtering target cylindirc
Size: Diameter:50-200mm*Height 2-140mm
Diameter:200-400mm*Height 25-150mm
Diameter:400-600*Height 30-110mm
Material: Titanium Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr12
Other available sputtering target: TiAl,TiCu,TiSi,Cr,Zr,Cu,Fe,Mo,W etc.
Standard: ASTM / ASME 348 , ASTM / ASME SB381 , ASTM F136 ,ASTM F67
Shape: cylindirc (Round)
Technique: Rolled, Forged, CNC Machined
Quality Control: PMI, Ultrasonic Testing etc.
Chemical composition | |||||||||||
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
Grade 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | Bal |
Grade 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | Bal |
Grade 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | / | / | Bal |
Grade 4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | / | / | / | / | / | / |
Grade 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5-6.75 | 3.5-4.5 | / | / | / | Bal |
Physical Properties | |||||
Tensile Strength(min) | Yeild Strength(min) | Elongation(%) | |||
ksi | MPa | ksi | MPa | ||
Grade 1 | 35 | 240 | 20 | 138 | 24 |
Grade2 | 50 | 345 | 40 | 275 | 20 |
Grade 3 | 65 | 450 | 55 | 380 | 18 |
Grade 4 | 80 | 550 | 70 | 483 | 15 |
Grade 5 | 130 | 895 | 120 | 828 | 10 |
Titanium target / titanium alloy target is made of high quality titanium sponge, through the three vacuum melting, forging in anti-oxidation and no pollution environment, and mechanical. The company has strict quality request of the products of the processing and inspection (the product of high purity, uniform chemical composition, mechanical performance is good, good castability, high rate of moulds, good machining performance), the company's products fully meet the national standards ASTM / ASME 348 , ASTM / ASME SB381 etc.

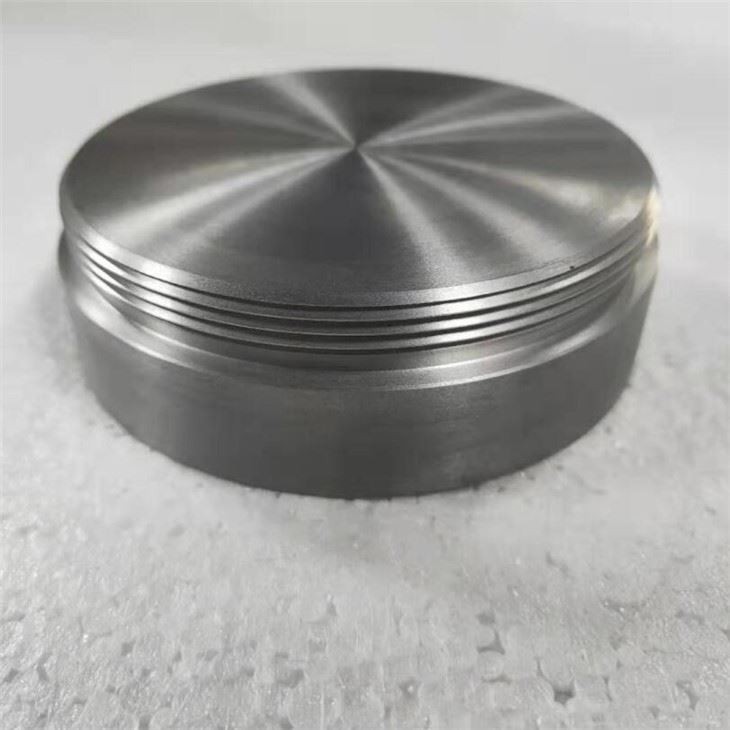

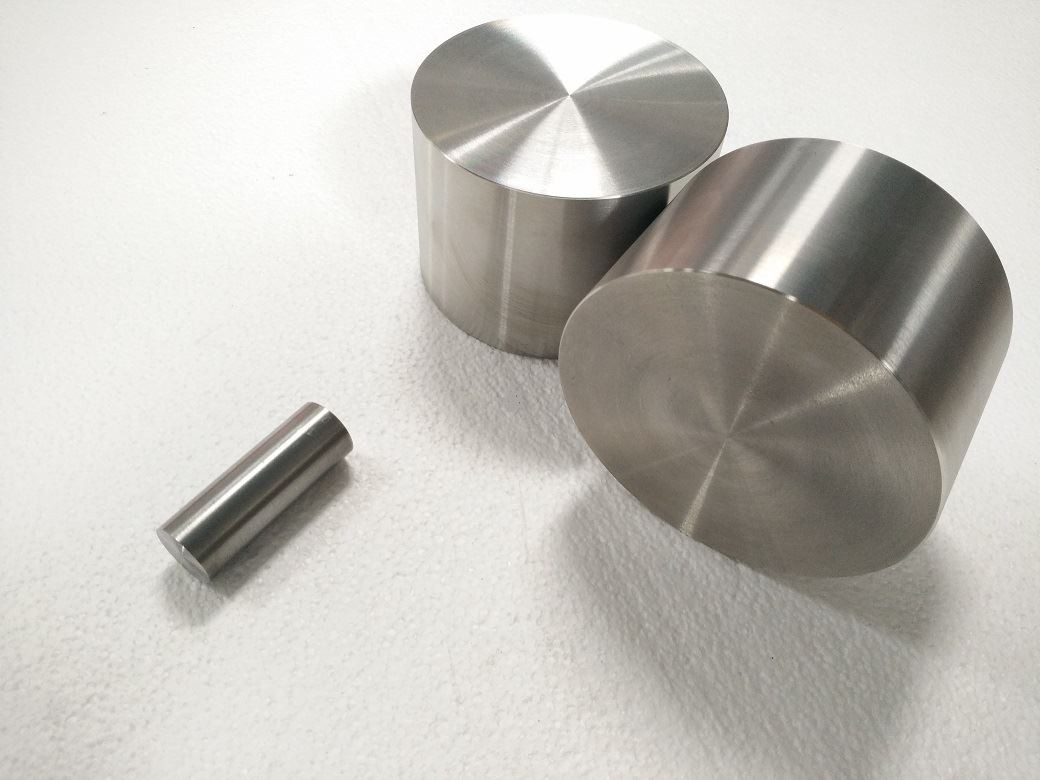

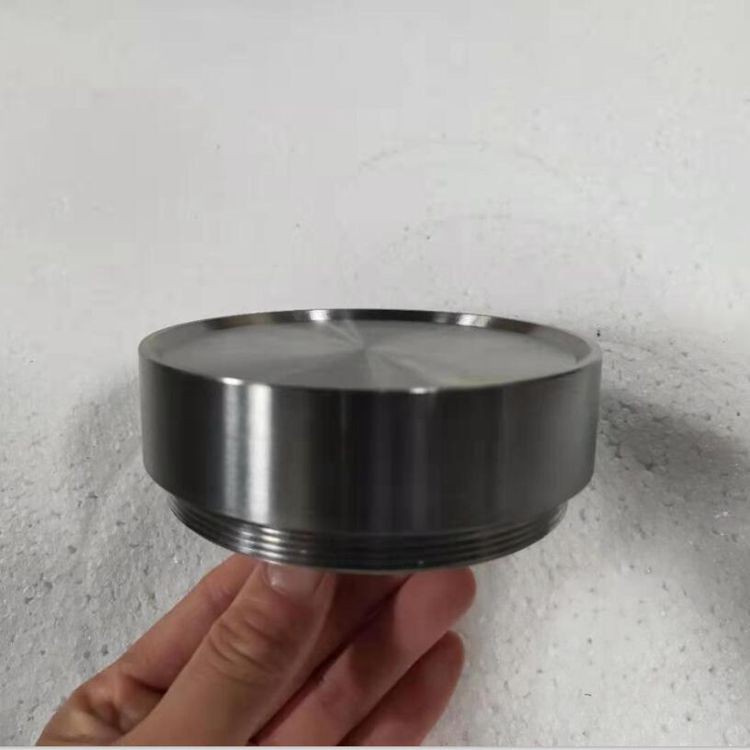

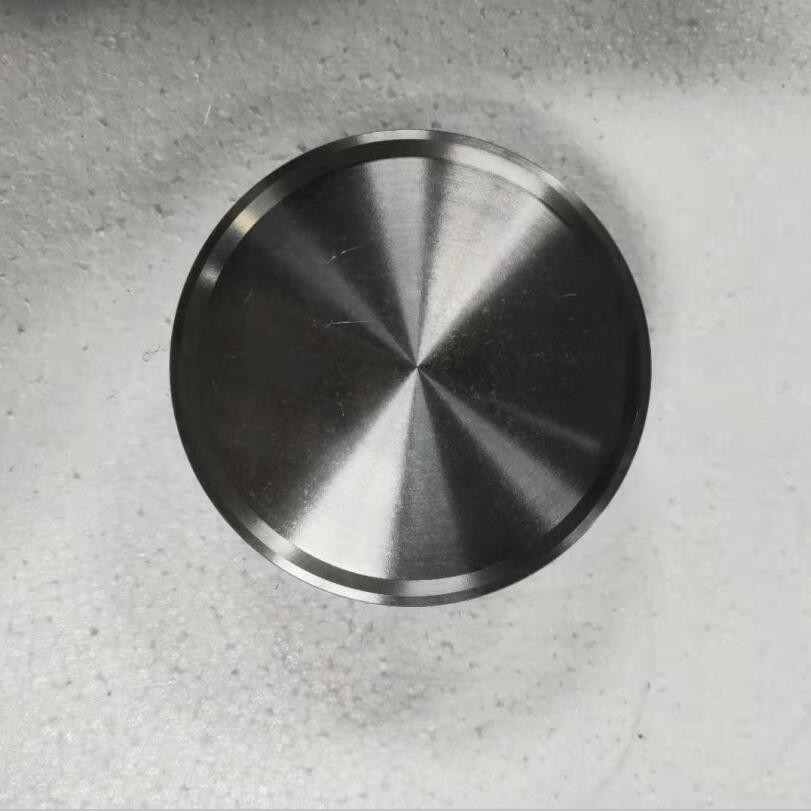

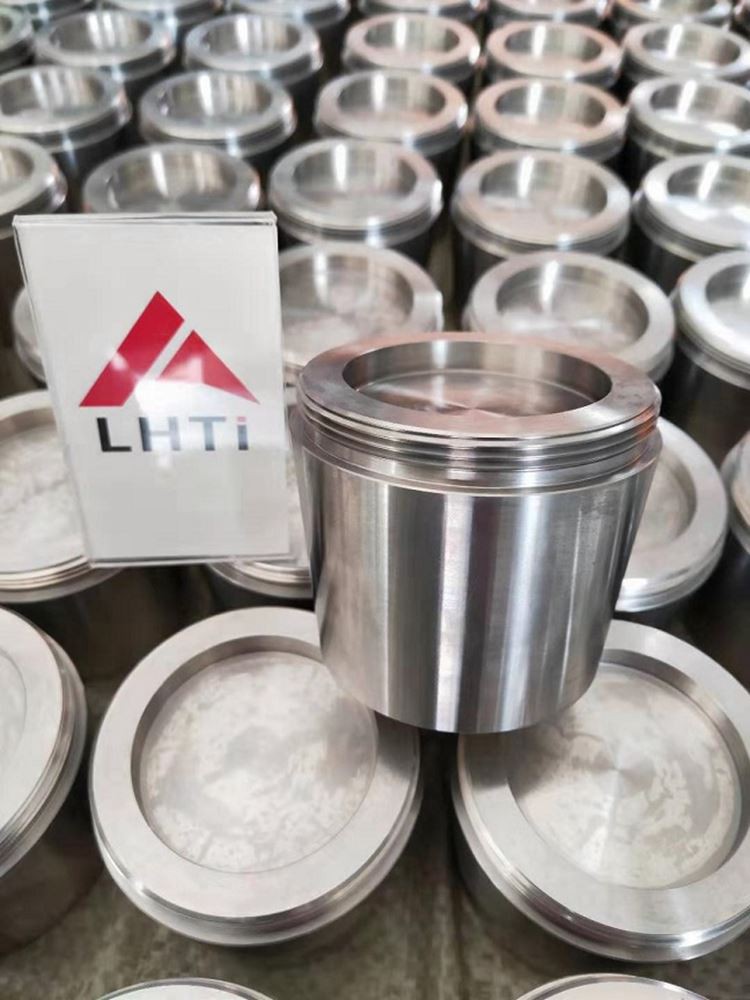

Detailed imagies:
Packaging and shipping:

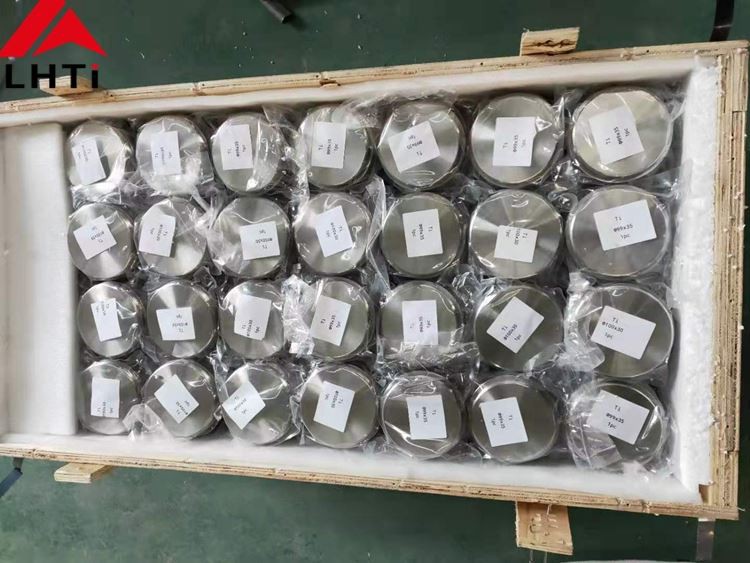

In order to avoid extrusion deformation and bruise on the surface of titanium sputtering target during transportation, each titanium target is individually packed with vacuum packaging bag. The material and size of the corresponding products will be printed on each packaging bag to make it easy for customers to identify when they receive the goods.
About our company:
