Titanium Grade 7 Plate
Standard: ASTM B265
Material: Gr7
Unit Price: $246.5usd/kg-$307.6usd/kg g
Thickness: 0.5-100mm
Length: 500-6000mm Or As You Require
Width: 500-1000mm Or As You Require
Surface: Pickling, Polishing, Sand Blasting
Gr7 is an α-titanium alloy, and its technological and mechanical properties are similar to those of industrial pure titanium. When the amount of Pd added to titanium reaches 0.1%-0.2%, the corrosion rate of titanium in sulfuric acid and hydrochloric acid is significantly reduced, and the Pd content is further increased, and the corrosion rate of the alloy is almost unchanged, and when the Pd content is less than 0.05% , The corrosion rate increases instead. When the acid concentration is low, the titanium-palladium alloy containing 0.13% Pd has satisfactory corrosion resistance, but when the acid concentration is high, Ti-0.2Pd has better corrosion resistance, so Ti-0.2Pd is more For appropriate.
Titanium Grade 7 Plate
Product Name: Titanium Plate
Thickness: 0.5-100mm >
Standard size: 1000*2000mm, 3000*6000mm
Standard: ASTM B265
Material: Gr7
Surface: Pickling, Polishing, Sand Blasting
Status: Annealed
| Specification of Titanium Foil/Titanium Sheet/Titanium Plate | |||
| Thickness(mm) | Width(mm) | Length(mm) | |
| Titanium foil | 0.03-0.5 | 30-150 | 30-200 |
| Titanium sheet | 0.5-5 | 30-1000 | 30-2000 |
| Titanium plate | 5-60 | 200-2800 | 1000-6000 |
Chemical Composition of Titanium Gr7 Plate
| Grade | N | C | H | Fe | O | Pd | Residuals |
| Titanium Gr 7 | 0.03 max | 0.08 max | 0.015 max | 0.30 max | 0.25 max | 0.12 - 0.25 | 0.40 max |
Physical Properties of Titanium Gr7 Plate
| Physical properties(min) | Σb Tensile Strength (Mpa) | σr0.2 Yield Strength (Mpa) | δL0+50mm Elongation (%) | ψ Reduction of area (%) |
| 400 | 275 | 20 | / |

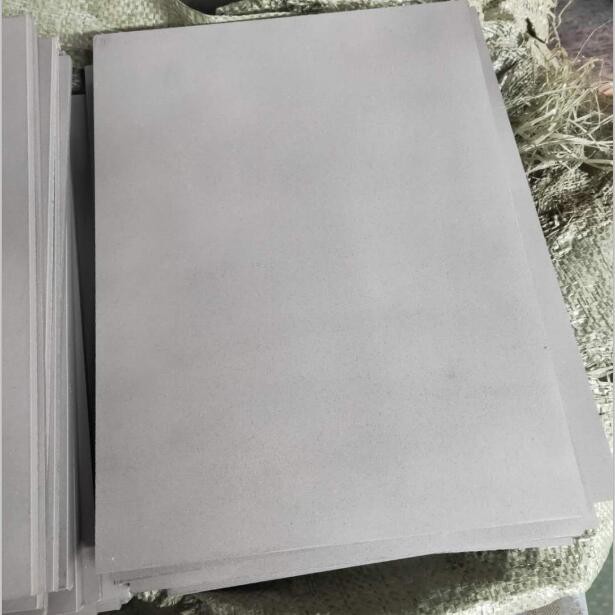

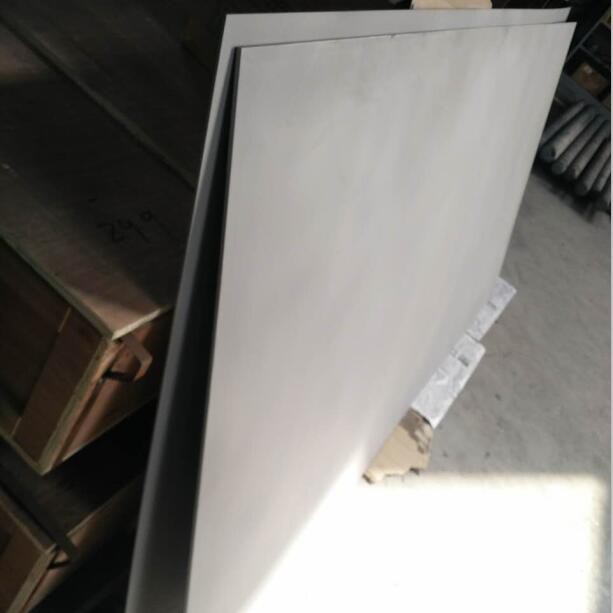

Detailed Images of Titanium Gr7 Plate:
Our Services
(1) We have the stocks so we would provide our clients the short delivery time.
(2) Strict control from raw materials till products finished, so the quality is guaranteed.
(3) Customized sizes are offered as well as specified sizes and multiple sizes.
(4) Strict quality test from raw material to product.
(5) Original mill sheet test reports EN 10204.3.1 is available.
