6-2-4-2 Titanium Plate

6-2-4-2 Titanium Plate

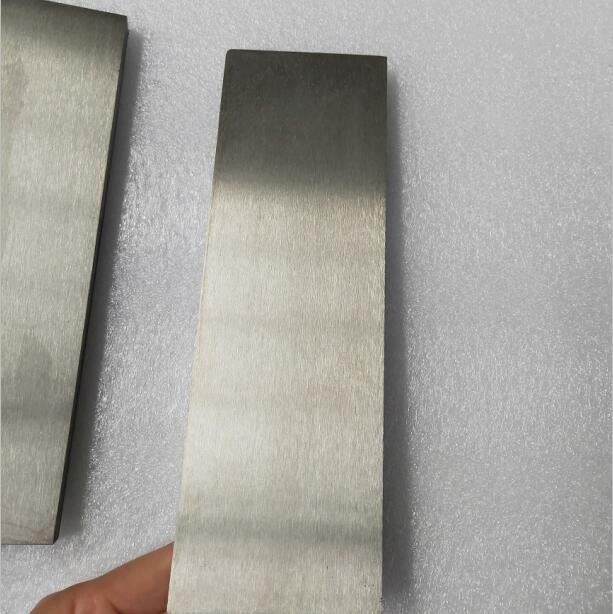

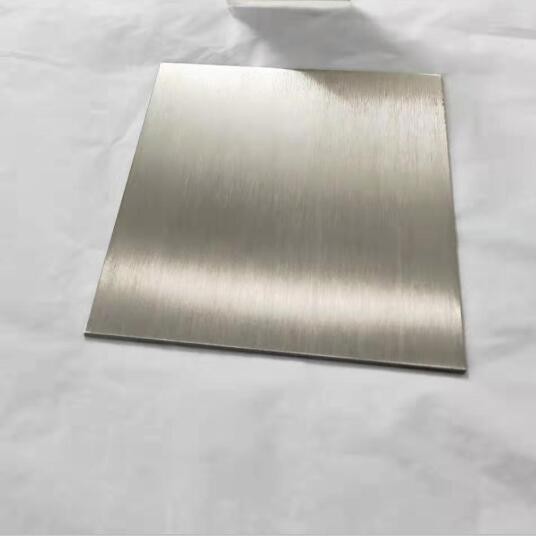

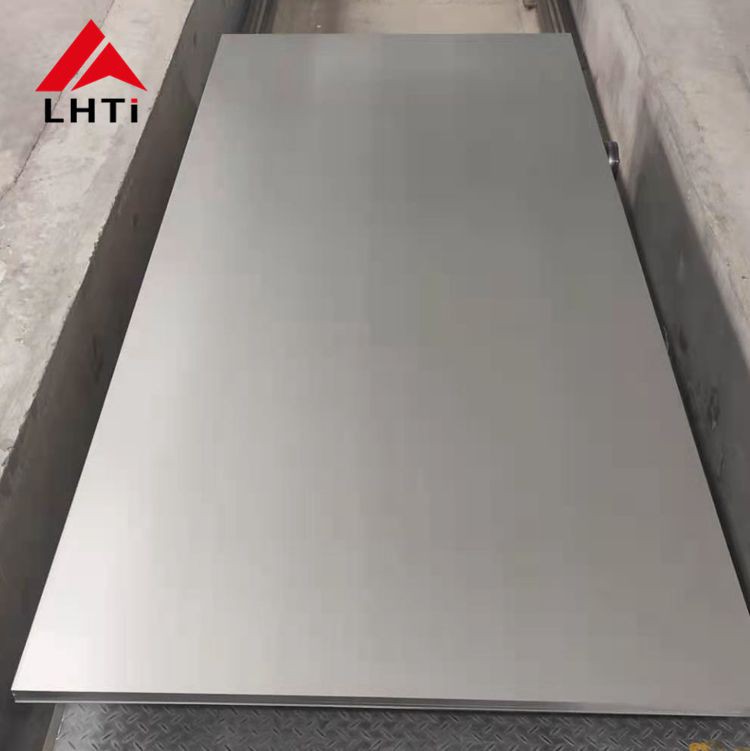

Product name:6-2-4-2 titanium plate
Standard:ASTM/ASME B265 AMS 4911
Material: Ti-6Al-2Sn-4Zr-2Mo-0.1Si
Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size);
Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc
Technique : Rolled
Status: Annealed(M)
Unit price:$41.2-$61.5/kg

Send Inquiry

Chat Now

Product Introduction

Titanium Ti6Al4V Plate For Aerospace has high strength and is not easily deformed and rusted. We have a full range of product specifications, affordable prices, reliable quality and fast delivery. It has good performance of wear-resisting and anti-corrosion. It has smooth surface, clear and burr-free. It has low density and high strength, making it an essential structural material for industrial production.

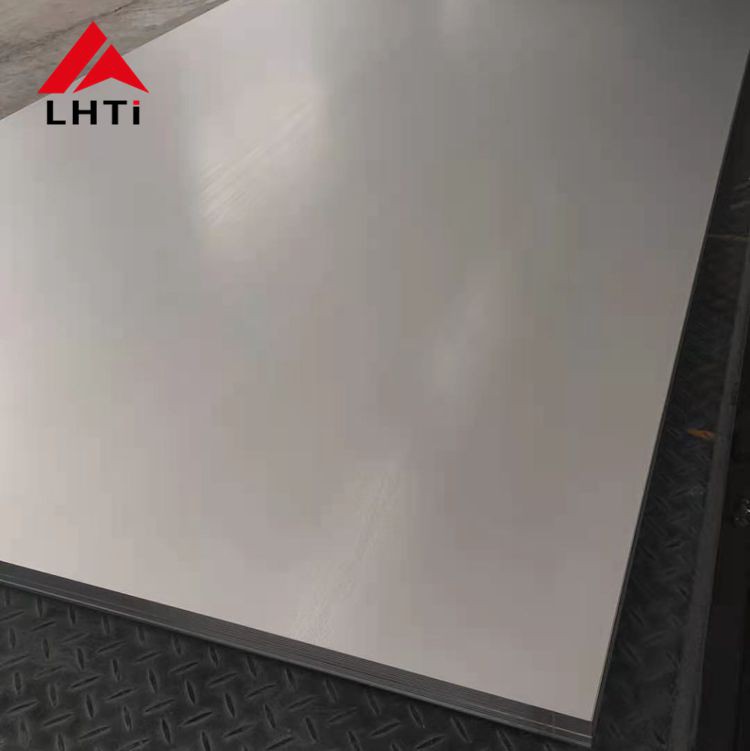

6-2-4-2 Titanium plate is belong to titanium alloy plate, and it is usually used in Avaition,Petroleum ,chemical industry, Marine etc.Compared with pure titanium plate, titanium alloy plate has higher tensile strength ,higher yield strength, and higher hardness. In some industry, have request to anti corrosion, also have higher requirements to performance in the same time, titanium alloy plate has a great advantage.

Production Name	6-2-4-2 Titanium plate
Size	T 0.5-5.0mm x W1000mm x L 2000-3500mm T 6.0- 30mm x W1000-2500mm x L 3000-6000mm T 30- 80mm x W1000mm x L 2000mm
Material grade	(6-2-4-2 )Ti-6Al-2Sn-4Zr-2Mo-0.1Si
Standard	ASTM/ASME B265
Surface	Bright/ polished
Technique	Rolled, forged
Supply status	M (Y/ R)
Feature	High corrosion resistance, low density, good thermal stability
Certificate	ISO 9001:2008; The third test report; TÜV Rheinland; Supplier Assessment Certificate

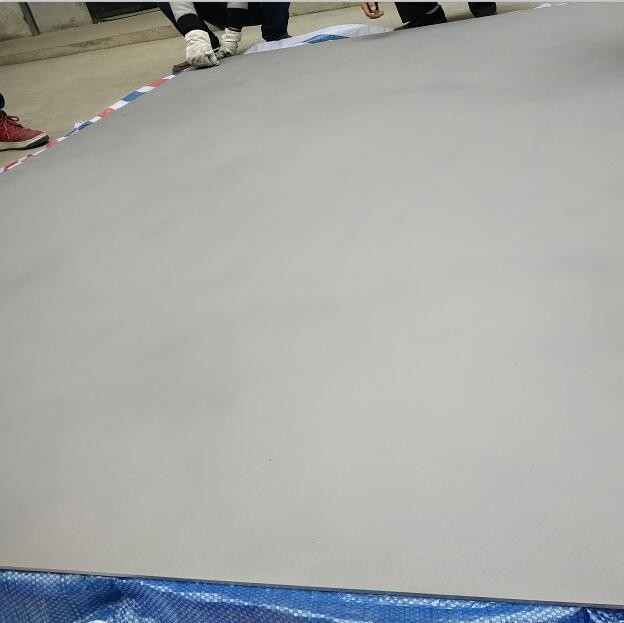

6-2-4-2 titanium plate
Chemical compositions(weight%,<=)
Al	Sn	Mo	Zr	Si	Fe	C
5.5-6.5	1.8-2.2	1.8-2.2	3.6-4.4	<=0.13	0.25	0.05
N	H	O	Other(total)	Ti
0.05	0.0125	0.15	0.3	Remainder
Physical properties(>=)
Σb Tensile Strength (Mpa)	σr0.2 Yield Strength (Mpa)	δL0+50mm Elongation (%)	ψ Reduction of area (%)
620	483	15	----
