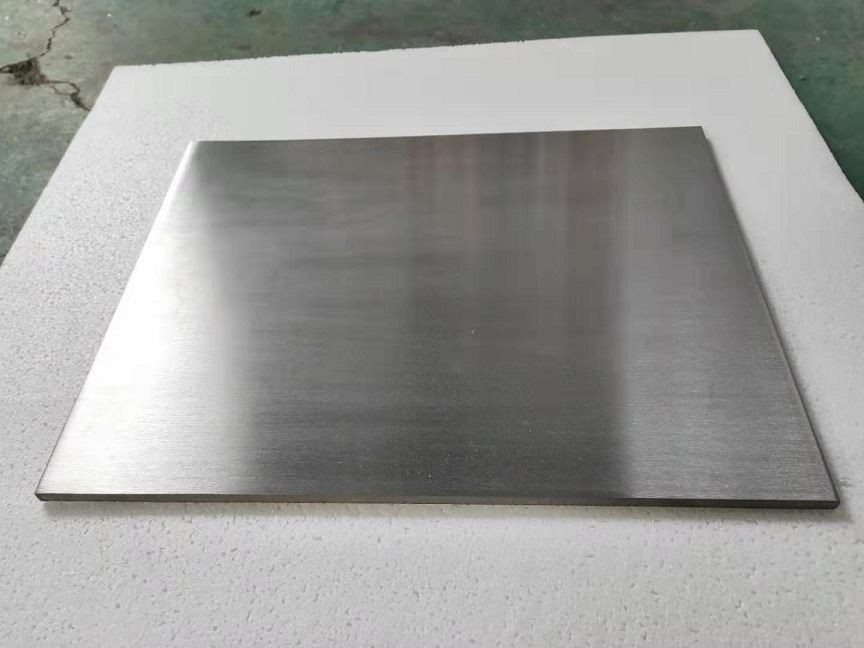

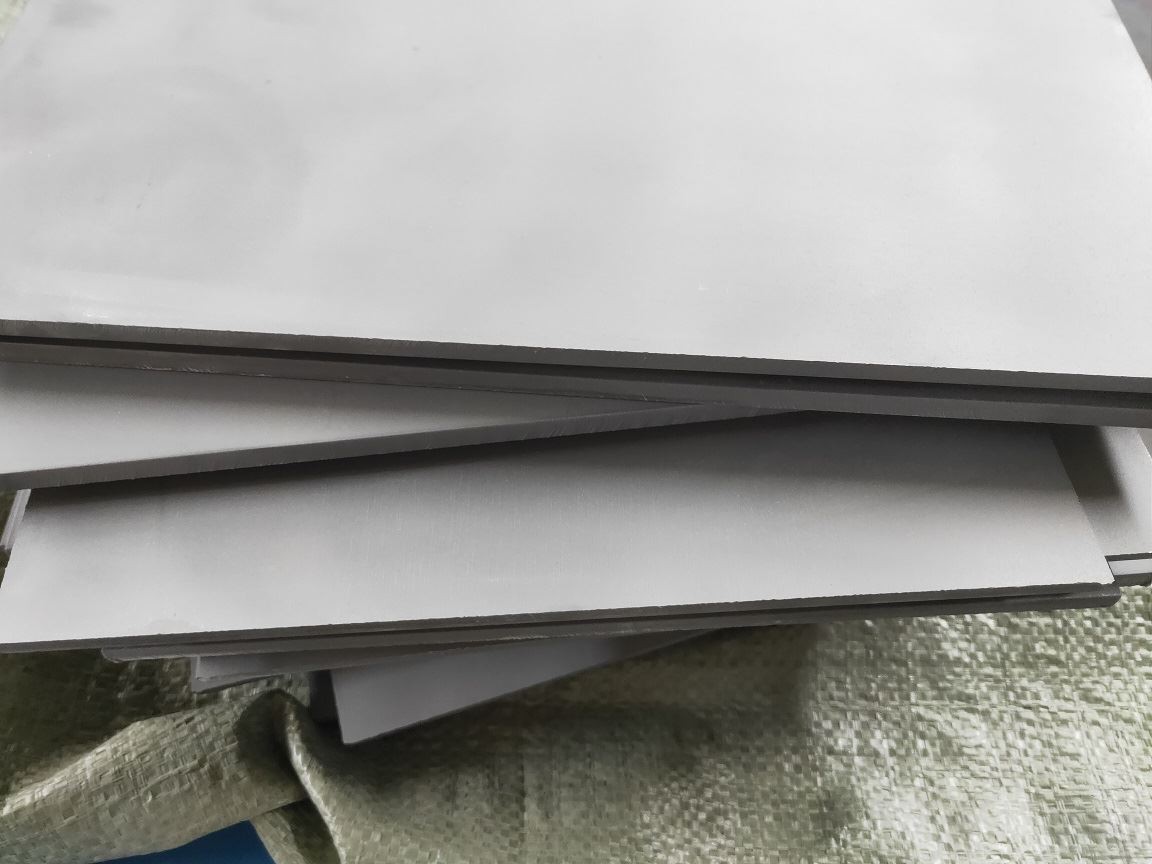

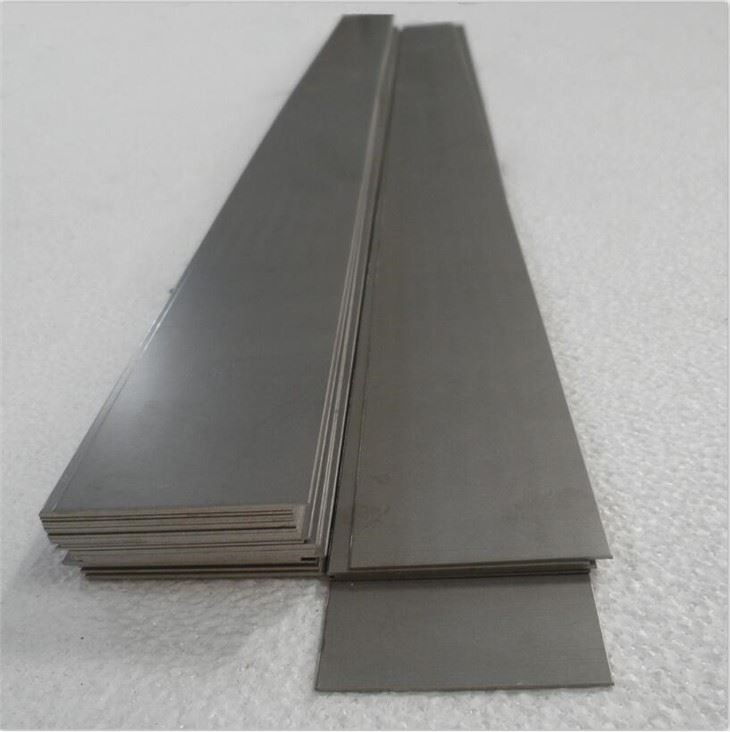

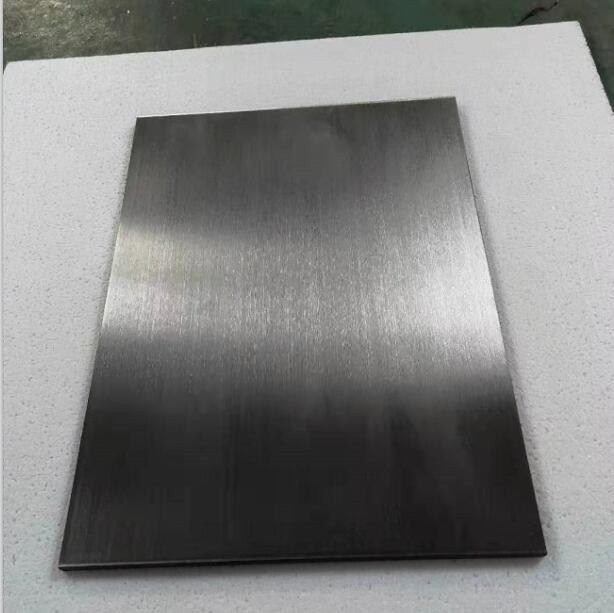

Titanium Sheet AMS 4901

Titanium Sheet AMS 4901

Product Name:Titanium Sheet AMS 4901 Standard: AMS 4911 Material: Gr5 Unit Price: $18.5usd/kg-$48usd/kg Thickness: 0.3-6mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting

Send Inquiry

Chat Now

Product Introduction

AMS 4901 is covers one grade or commercially-pure titanium in the form of sheet, strip and plate, up through 1.000 inches (25.4mm),inclusive.

Product name: Titanium Sheet AMS 4901

Thickness: 0.3-25.4mm

The size of standard sheet is 1000mm × 2000mm and 3000 x 6000mm. We can also cut it as you require.

Surface: Pickling, Polishing, Sand blasting.

Type: Sheet, plate, foil; Straight & roll

State: Annealed

Applications:

This material have been used typically for parts requiring moderate,sustaines strength up to 400 ℉ (204℃) and oxidation resistance up to 600 ℉ (316℃) ，but usage is not only limited to such applications.

Titanium Sheet AMS 4901
Chemical compositions(weight%,<=)
Ti	Al	V	Fe	C
Remainder	-------	-------	0.50	0.08
N	H	O	Other(each)	Other(total)
0.05	0.015	0.40	0.10	0.30
Physical properties(>=)
Σb Tensile Strength (Mpa)	σr0.2 Yield Strength (Mpa)	δL0+50mm Elongation (%)	ψ Reduction of area (%)
552	483-655	15	25
